Ubiquiti UF-AE Manual de usuario

UFiber ActiveEthernet Wall Mount Bracket Screws (Qty. 4)

Screw Anchors (Qty. 4)

Package Contents

Installation Requirement

The UF-AE requires an active ﬁber SFP module and does not support passive GPON SFP

modules.

Hardware Overview

Ports

UF-AE Quick Start Guide

SFP Port

Ethernet Port

Ethernet LED

The hot-swappable SFP port supports a 1 Gbps connection. (You can use an SFP+

module; however, the maximum speed is 1 Gbps.)

The RJ45 Ethernet port supports a 10/100/1000 connection. To power the device, the

port also supports 802.3af active PoE or 24V passive PoE.

Oﬀ Ethernet connection down

Amber 10/100 Mbps Ethernet connection up

Flashing indicates activity

White 1000 Mbps (1 Gbps) Ethernet connection up

Flashing indicates activity

UF-AE Quick Start Guide

Signal LED

Power LED

Oﬀ Optical signal present

Amber

Loss of optical signal

Check the ﬁber cable for damage and ensure that it is

properly connected on both ends.

Oﬀ Power oﬀ

White Power on

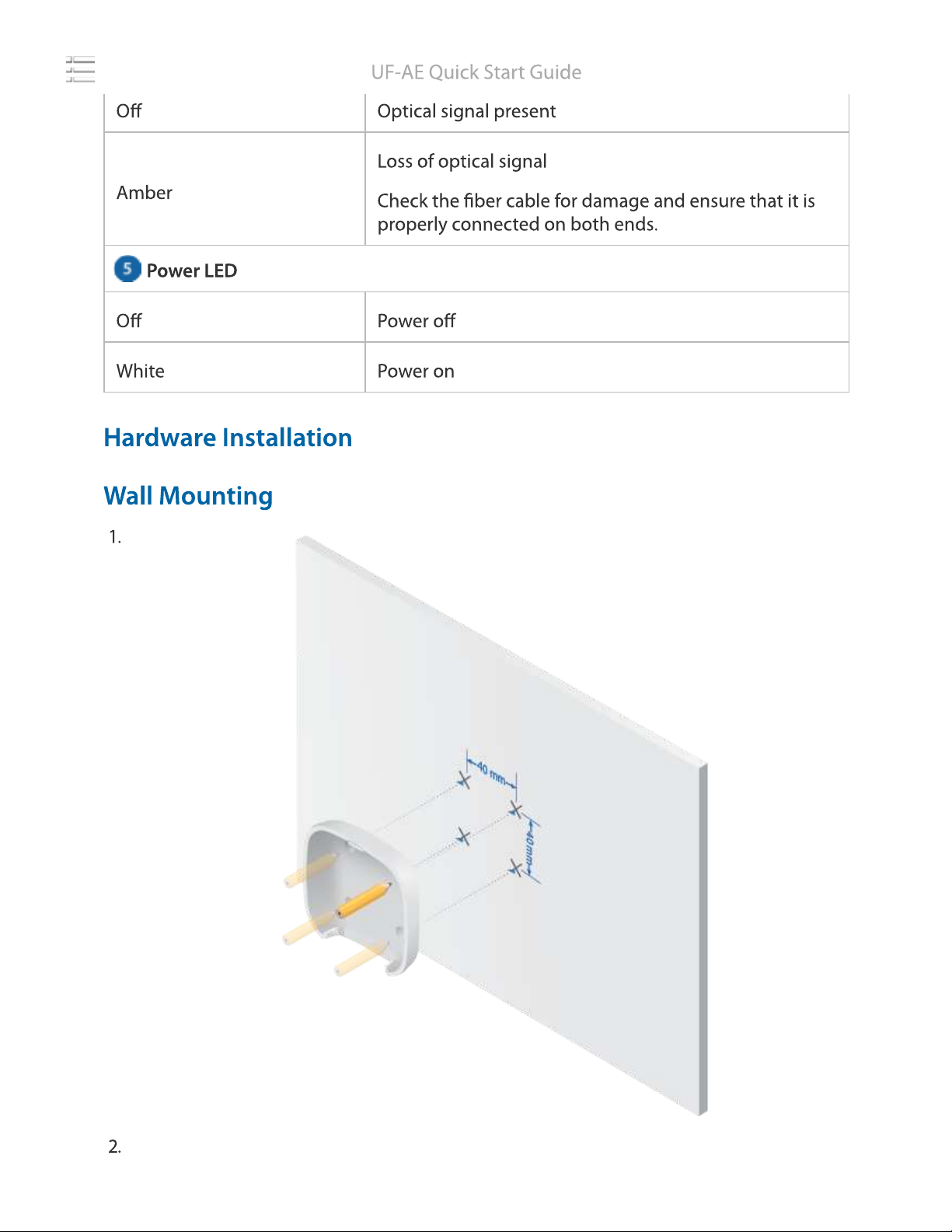

Hardware Installation

Wall Mounting

1.

2.

UF-AE Quick Start Guide

3.

UF-AE Quick Start Guide

4.

UF-AE Quick Start Guide

5.

UF-AE Quick Start Guide

Connecting Fiber

The UF-AE requires an active ﬁber SFP module and does not support passive GPON SFP

modules.

Note:

You can use an SFP+ module; however, the maximum speed is 1 Gbps.

1.

UF-AE Quick Start Guide

2.

3.

Connecting LAN

UF-AE Quick Start Guide

Connecting Power

OR

Note:

The airCube AC provides a 1 Gbps Ethernet connection and Wi-Fi

connectivity with PoE passthrough, so it is the ideal complement to the device for

CPE installations.

UF-AE Quick Start Guide

OR

WARNING:

The switch port must comply with the power speciﬁcations listed in

this Quick Start Guide.

Speciﬁcations

UF-AE

Dimensions 76.5 x 76.5 x 26.4 mm

(3.01 x 3.01 x 1.04")

Weight 68 g (2.40 oz)

UF-AE Quick Start Guide
