Ubiquiti NanoBeam M Manual de usuario

High-Performance

airMAX™Bridge

Model: NBE-M5-300

Introduction

Thank you for purchasing the Ubiquiti Networks™NanoBeam™.

This Quick Start Guide is designed to guide you through

the installation, and show you how to access the airOS™

Configuration Interface. This Quick Start Guide also includes

the warranty terms and is for use with the NanoBeamM5,

modelNBE-M5-300.

Package Contents

Dish Reflector Antenna Feed Rear Housing Dish Bracket

Pole Clamp U-Bolt Flange Nuts

(M6, Qty. 2)

Washers

(M6, Qty. 2)

PoE Adapter

(24V, 0.5A)

Power Cord Quick Start Guide

cable and earth grounding must be used as conditions of product warranty. TOUGHCable is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations including operation within legal frequency channels output power and Dynamic

Frequency Selection (DFS) requirements.

Hardware Overview

Bottom View

Cable Door

Rear Housing

Antenna Feed

Ethernet Port

Release

Button Slot

Dish Bracket

Release Button

Dish

Reflector

Alignment Pins

Reset Button

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the NanoBeam is

already poweredon.

Release Button After you assemble the NanoBeam, check the

Release button; it should be fully engaged in the Release Button

Slot of the Rear Housing. This ensures that the Antenna Feed is

locked into place. If you need to remove the Antenna Feed, you

must depress the Release button first.

LEDs

Signal In airOS, you can modify the wireless signal

strength threshold values for each LED on the

Advanced tab under Signal LED Thresholds. The

default values are shown below:

LED will light green when the wireless signal

strength is above -65 dBm.

LED will light green when the wireless signal

strength is above -73 dBm.

LED will light amber when the wireless signal

strength is above -80 dBm.

LED will light red when the wireless signal

strength is above -94 dBm.

Ethernet The Ethernet LED will light steady green

when an active Ethernet connection is made and

flash when there is activity.

Power The Power LED will light green when the

device is connected to a power source.

Application Examples

The NanoBeam mounted outdoors with the Dish Reflector

installed provides directional outdoor coverage (gain is

reflector-dependent).

The NanoBeam mounted outdoors without the Dish Reflector

installed provides outdoor-to-indoor coverage using the 3 dBi

Antenna Feed only.

Installation Requirements

• 10 mm or 3/8" wrench

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from the

most brutal environments and devastating ESD attacks

with industrial-grade shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

*720-00005-01*

720 00005 01

Installation

1. Align and insert the tabs of the Dish Bracket into the

slots of the Dish Reflector. Rotate the Dish Bracket

counter-clockwise until the tabs lock into place.

2. Line up the Alignment Pins of the Rear Housing with the

alignment holes of the Dish Bracket. Insert the pins and

push until they lock intoplace.

3. Push in the sides of the Cable Door and detach it from the

Rear Housing.

4. Attach the Antenna Feed:

a. Insert the Antenna Feed into the Rear Housing, and push

until it locks into place with a click.

b. Lightly pull the Antenna Feed to ensure that it is locked

into place and the Release button is fully engaged.

Release Button

Bottom View

5. Connect the Ethernet cable:

a. Connect an Ethernet cable to the Ethernet Port of the

Antenna Feed.

b. Re-attach the Cable Door to the Rear Housing.

6. Insert the U-Bolt into the Pole Clamp and Dish Bracket.

Secure each end of the U-Bolt with a Washer and a

FlangeNut.

10 N-m

(7 lb-ft)

Note: The mounting assembly can accommodate a

Ø 1.25" - 2.2" pole.

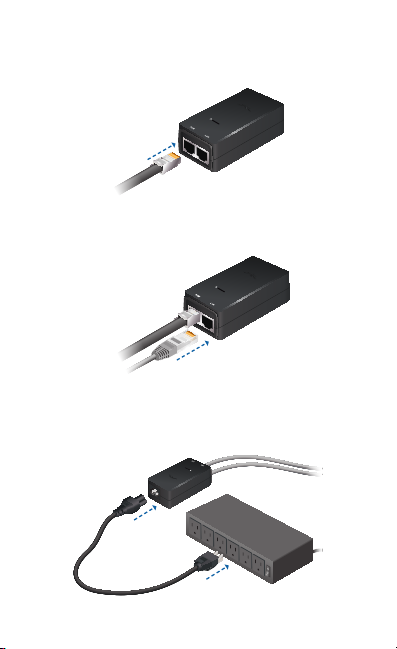

7. Connect the other end of the Ethernet cable from the

NanoBeam to the Ethernet port labeled POE on the

PoEAdapter.

8. Connect an Ethernet cable from your LAN or computer to

the Ethernet port labeled LAN on the PoE Adapter.

9. Connect the Power Cord to the power port on the PoE

Adapter. Connect the other end of the Power Cord to a

power outlet.
