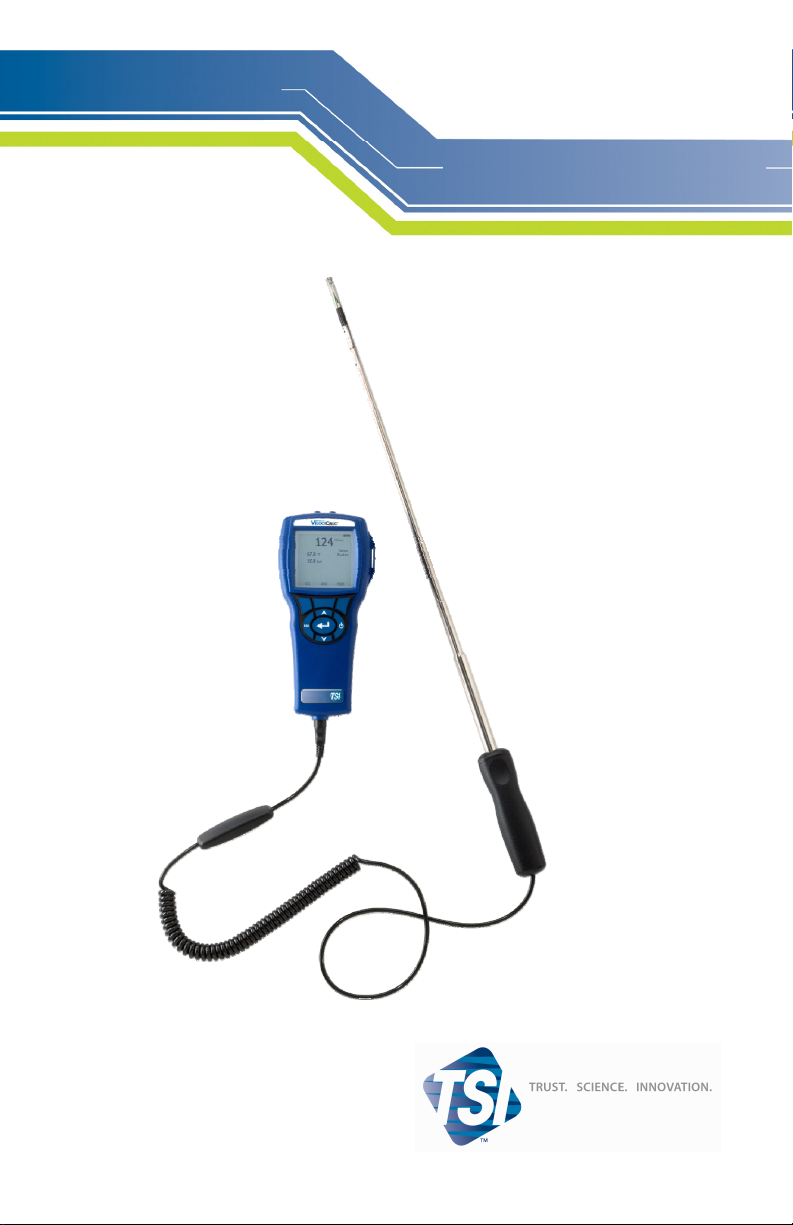

TSI Instruments 9555 Series Manual de operación

Ventilation Testing

VELOCICALC®

Air Velocity Meter

Model 9555 Series

Operation and Service Manual

ENERGY AND COMFORT

Address

TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA

Fax No.

(651) 490-3824

LIMITATION OF WARRANTY AND LIABILITY (effective July 2000)

Seller warrants the goods sold hereunder, under normal use and service as described in the

operator's manual, shall be free from defects in workmanship and material for twenty-four (24)

months, or the length of time specified in the operator's manual, from the date of shipment to the

customer. This warranty period is inclusive of any statutory warranty. This limited warranty is

subject to the following exclusions:

a. Hot-wire or hot-film sensors used with research anemometers, and certain other

components when indicated in specifications, are warranted for 90 days from the date of

shipment.

b. Parts repaired or replaced as a result of repair services are warranted to be free from

defects in workmanship and material, under normal use, for 90 days from the date of

shipment.

c. Seller does not provide any warranty on finished goods manufactured by others or on any

fuses, batteries or other consumable materials. Only the original manufacturer's warranty

applies.

d. Unless specifically authorized in a separate writing by Seller, Seller makes no warranty

with respect to, and shall have no liability in connection with, goods which are

incorporated into other products or equipment, or which are modified by any person other

than Seller.

The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS stated

herein. NO OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR

PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE.

TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR

BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES,

INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED

ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE) SHALL

BE THE RETURN OF GOODS TO SELLER AND THE REFUND OF THE PURCHASE

PRICE, OR, AT THE OPTION OF SELLER, THE REPAIR OR REPLACEMENT OF THE

GOODS. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY SPECIAL,

CONSEQUENTIAL OR INCIDENTAL DAMAGES. SELLER SHALL NOT BE

RESPONSIBLE FOR INSTALLATION, DISMANTLING OR REINSTALLATION COSTS

OR CHARGES. No Action, regardless of form, may be brought against Seller more than 12

months after a cause of action has accrued. The goods returned under warranty to Seller's

factory shall be at Buyer's risk of loss, and will be returned, if at all, at Seller's risk of loss.

Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY AND

LIABILITY, which contains the complete and exclusive limited warranty of Seller. This

LIMITATION OF WARRANTY AND LIABILITY may not be amended, modified or its terms

waived, except by writing signed by an Officer of Seller.

Service Policy

Knowing that inoperative or defective instruments are as detrimental to TSI as they are to our

customers, our service policy is designed to give prompt attention to any problems. If any

malfunction is discovered, please contact your nearest sales office or representative, or call

Customer Service department at (800) 874-2811 (USA) or (1) 651-490-2811 (International).

iii

CONTENTS

CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION ............ 1

CHAPTER 2 SETTING-UP.................................................................3

Supplying Power to the Model 9555 Series ...................................3

Installing the Batteries ...............................................................3

Using the Optional AC Adapter .................................................3

Using The Telescoping Probe ........................................................3

Extending The Probe.................................................................3

Retracting The Probe ................................................................3

Connecting the Optional Bluetooth Portable Printer....................... 4

Connecting to a Computer..............................................................4

CHAPTER 3 OPERATION .................................................................5

Keypad Functions ...........................................................................5

Common Terms ..............................................................................5

Menus .............................................................................................6

DISPLAY SETUP.................................................................................6

PRESSURE ZERO............................................................................... 6

SETTINGS .........................................................................................6

FLOW SET UP....................................................................................6

ACTUAL/STANDARD SETUP ................................................................7

DATA LOGGING .................................................................................7

Measurements...........................................................................7

Log Mode/Log Settings .............................................................7

Delete Data................................................................................8

% Memory .................................................................................8

APPLICATIONS ..................................................................................8

Printing Data Using the Portable Printer ........................................8

TRAKPRO™ Data Analysis Software ............................................... 8

CHAPTER 4 MAINTENANCE............................................................9

Recalibration...................................................................................9

Cases.............................................................................................. 9

Storage ...........................................................................................9

CHAPTER 5 TROUBLESHOOTING................................................11

APPENDIX A SPECIFICATIONS.....................................................13

APPENDIX B DIP SWITCH SETTINGS...........................................17

Chapter 1

Unpacking and Parts Identification

Carefully unpack the instrument and accessories from the shipping

container. Check the individual parts against the list of components below. If

anything is missing or damaged, notify TSI immediately.

1. Carrying case

2. Instrument

3. Static pressure tip

4. Rubber tubing

5. USB cable

6. CD-ROM with downloading software

7. AC adapter

Chapter 2

Setting-up

Supplying Power to the Model 9555 Series

The Model 9555 VELOCICALC Air Velocity Meter can be powered in one of

two ways: four size AA batteries or the AC adapter.

Installing the Batteries

Insert four AA batteries as indicated by the diagram located on the

inside of the battery compartment. The Model 9555 is designed to

operate with either alkaline or NiMH rechargeable batteries. Battery life

will be shorter if NiMH batteries are used. If NiMH batteries are used

the DIP switch will need to be changed. Refer to Appendix B, DIP

Switch Settings. Carbon-zinc batteries are not recommended because of

the danger of battery acid leakage.

Using the AC Adapter

When using the AC adapter, the batteries (if installed) will be bypassed.

Be sure to provide the correct voltage and frequency, which is marked

on the back of the AC adapter.

Using The Telescoping Probe

The telescoping probe contains the velocity, temperature, and humidity

sensors. When using the probe, make sure the sensor window is fully

exposed and the orientation dimple is facing upstream.

NOTE: For temperature and humidity measurements, make sure that at

least 3 inches (7.5 cm) of the probe is in the flow to allow the temperature

and humidity sensors to be in the air stream.

Extending The Probe

To extend the probe, hold the handle in one hand while pulling on the

probe tip with the other hand. Do not hold the cable while extending the

probe as this prevents the probe from extending.

Retracting The Probe

To retract the probe, hold the handle in one hand while gently pushing

on the probe tip with the other hand. If you feel the probe antenna

binding, pull gently on the probe cable until the smallest antenna section

is retracted. Collapse the rest of the antenna by pressing the probe tip.

4Chapter 2

Connecting the Optional Bluetooth Portable Printer

To connect the Bluetooth printer to the Model 9555, power on the unit and

the printer. Then select the MENU soft key. From the Menu use the Sand T

keys to highlight Discover Printer and press the key. If other TSI Bluetooth-

printers are in the area, turn them off before searching. The Model 9555 will

then search for and list all available Bluetooth devices. Select the device

”Handy700”.

If the Model 9555 has previously been connected to a TSI printer, then it

should automatically reconnect to that printer.

If the printer prints question marks (??????), asterisks (******), or random

characters, reset it by turning it off and then on again. If necessary, refer to

the Portable Printer Manual.

Connecting to a Computer

Use the Computer Interface USB Cable provided with the Model 9555 to

connect the instrument to a computer for downloading stored data or for

remote polling. Connect the end labeled “COMPUTER” to the computer

USB port and the other end to the data port of the Model 9555.

For more information on how to download stored data see Chapter 3 section

titled TrakPro™ Data Analysis Software.

Caution: This symbol is used to indicate that the data port

of the Model 9555 is not intended for connection to a

public telecommunications network. Connect the USB

data port only to another USB port.

Chapter 3

Operation

Keypad Functions

ON/OFF Key Press to turn the Model 9555 on and off. During

the power up sequence the display will show the

following: Model Number, Serial Number,

Software Revision and Last Date Calibrated.

Arrow (ST) Keys Press to scroll through choices while setting a

parameter. Pressing the ST keys simultaneously

will lock the keypad to prevent unauthorized

adjustments to the instruments. To unlock the

keypad, press the ST keys simultaneously.

(Enter) Key Press to accept a value or condition.

Arrow (gor h) and

Menu Soft Keys

Press arrow keys to change choices while setting a

parameter. Press the Menu soft key to select the

Menu selections, which are Display Setup,

Pressure Zero, Settings, Flow Setup, Actual/Std

Set up, Data Logging, Applications, Calibration

and Printer.

Common Terms

In this manual there are several terms that are used in different places. The

following is a brief explanation of the meanings of those terms.

Sample Consists of all of the measurement parameters

stored at the same time.

Test ID A group of samples. The statistics (average,

minimum, maximum, and count) are calculated for

each test ID. The maximum number of test IDs is

100.

6 Chapter 3

Time Constant The time constant is an averaging period. It is used

to dampen the display. If you are experiencing

fluctuating flows, a longer time constant will slow

down those fluctuations. The display will update

every second, but the displayed reading will be the

average over the last time constant period. For

example, if the time constant is 10 seconds, the

display will update every second, but the displayed

reading will be the average from the last 10

seconds. This is also referred to as a “moving

average”.

Logging Interval The logging interval is a frequency period that the

instrument will log readings. For example, if the

logging interval is set to 30 minutes, each sample

will be the average of the last 30 minutes.

Menus

DISPLAY SETUP

Display setup menu is where you will setup the desired parameters to be

displayed on the running screen. With a parameter highlighted you can then

use the ON soft key to have it show up on the running screen or select the

OFF soft key to turn off the parameter. Use PRIMARY soft key to have a

parameter show up on the running screen in a larger display. Only one

parameter can be selected as a primary, and up to 4 secondary parameters

can be selected at one time.

PRESSURE ZERO

To zero the pressure reading, select the Pressure Zero menu. The instrument

will indicate if the pressure zero was successful.

SETTINGS

Settings menu is where you can set the general settings. These include

Language, Beeper, Select Units, Time Constant, Contrast, Set Time, Set

Date, Time Format, Date Format, Number Format, Backlight and Auto Off.

Use the gor hsoft keys to adjust the settings for each option and use the 

key to accept settings.

FLOW SET UP

In Flow Setup mode, there are 5 types: Round Duct, Rectangle Duct, Duct

Area, Horn and K-Factor. Use the gor hsoft keys to scroll through the

types and then press the key to accept the desired type. To change the

value, highlight the Enter Settings option and press the key.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de TSI Instruments

TSI Instruments

TSI Instruments Dickey-John MINI GAC 2500 Manual de usuario

TSI Instruments

TSI Instruments VelociCalc 9515-AC Manual de operación

TSI Instruments

TSI Instruments AVM430 Manual de operación

TSI Instruments

TSI Instruments HM685 Manual de usuario

TSI Instruments

TSI Instruments VelociCalc Plus 8384 Manual de operación

TSI Instruments

TSI Instruments DustTrak 8520 Instrucciones de instalación y funcionamiento

TSI Instruments

TSI Instruments AirAssure Manual de usuario

TSI Instruments

TSI Instruments ALNOR RVA501 Manual de operación

TSI Instruments

TSI Instruments VelociCheck 8330 Manual de operación

TSI Instruments

TSI Instruments Alnor Model AXD620 Manual de operación

TSI Instruments

TSI Instruments AirPro AP500 Manual de usuario

TSI Instruments

TSI Instruments 9565-P Manual de operación

TSI Instruments

TSI Instruments Q-Trak XP Manual de operación

TSI Instruments

TSI Instruments Aerotrak 9303 Manual de usuario

TSI Instruments

TSI Instruments ALNOR AVM430A Manual de operación

TSI Instruments

TSI Instruments VELOCICALC 5725 Manual de operación

TSI Instruments

TSI Instruments DustTrak 8520 Manual de operación

TSI Instruments

TSI Instruments 8525 Manual de operación

TSI Instruments

TSI Instruments VelociCalc 9600 Series Manual de operación

TSI Instruments

TSI Instruments 3936 Manual de operación

TSI Instruments

TSI Instruments ALNOR AVM440 Manual de operación

TSI Instruments

TSI Instruments dusttrak II 8530 Manual de operación

TSI Instruments

TSI Instruments HM685 Manual de usuario

TSI Instruments

TSI Instruments HM675 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
