TSI and TSI logo are registered trademarks of TSI Incorporated.

MODEL TF-SERIES

FLOW STATION

INSTALLATION INSTRUCTIONS

WARNING

The Model TF-Series Flow Stations must be wired to

24 VAC only. Wiring the unit to 110 VAC will cause

serious damage to the unit and void the warranty.

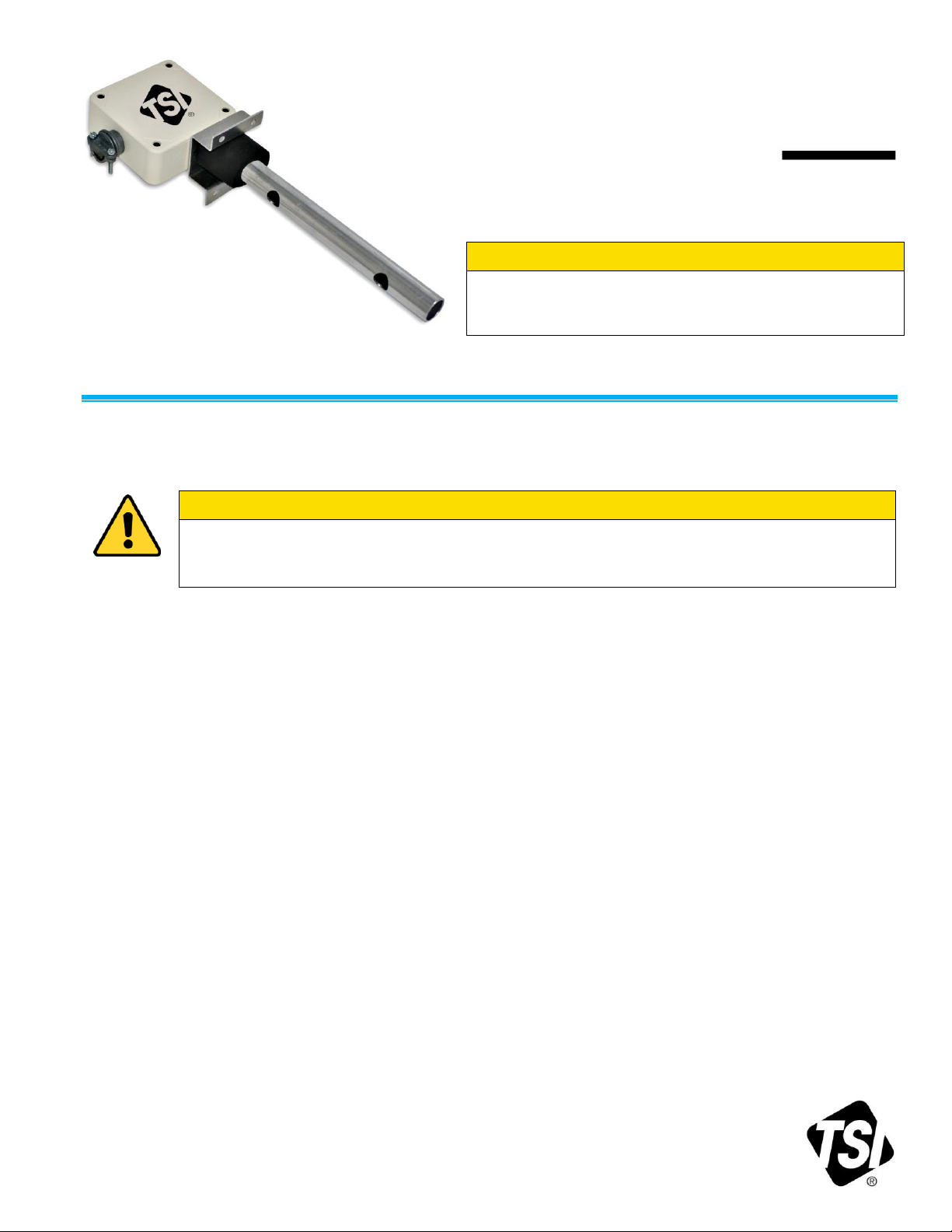

Figure 1. TF-Series Thermal Flow Station

TF-Series Flow Station Placement

The following paragraphs detail the procedure for determining optimum placement of the TF-Series Flow

Station in typical installation applications.

CAUTION

Installation of the TF-Series Flow Station with straight duct lengths equal to or greater than

indicated in the Minimum Placement Guidelines below is critical for proper performance of the

airflow measurement station.

Minimum Placement Guidelines

Placement of the TF-Series Flow Station is critical for proper operation and accuracy of the airflow

measurement station. Figure 2 shows minimum placement requirements for the TF-Series Flow Station in

typical applications. Probe placement is expressed in multiples of ‘Simple Equivalent Duct Diameter –“D,”

which is determined as follows:

D= (duct width + duct height) / 2

1. Using the illustration in Figure 2 that most closely matches the installation, multiply the calculated “D”

value from above by the value indicated in the application illustration. This is the calculated location for the

TF-Series Flow Station.

2. Mark the duct location and install the TF-Series Flow Station at the calculated location.

p. 2 of 8

Unvaned Elbows

Vaned Elbows

Radius Elbows

Transitions

T Fittings

TSI recommends removing flow ring from Box.

Install TF-Series Flow Station at least 3 inches (75-mm)

upstream of Box or flow ring.

TF-Series Flow Station can be

installed downstream of hot

water coil only.

VAV Box Inlet

VAV Box Outlet with Coil (for Temp. Output)

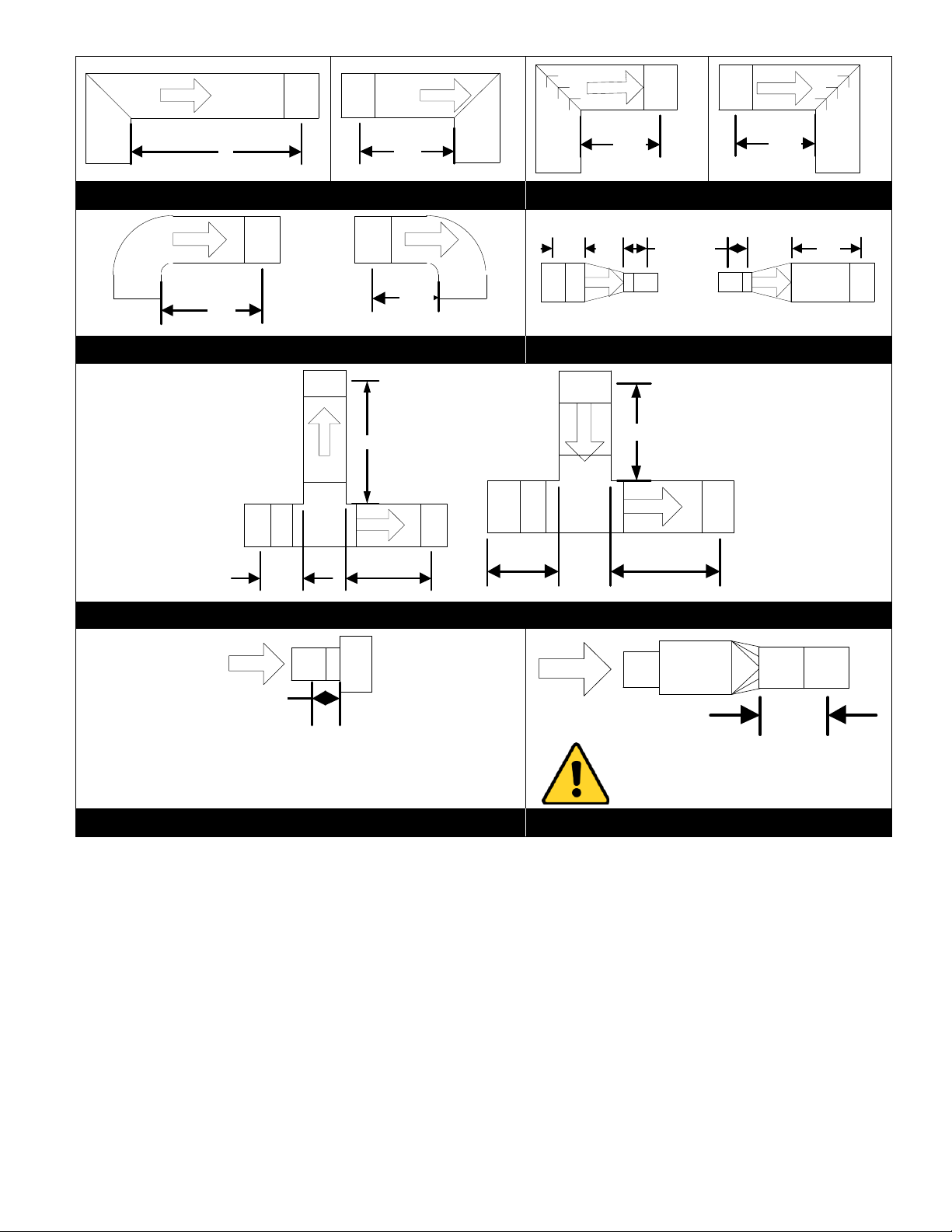

Figure 2. TF-Series Flow Station Minimum Placement Requirements Guide

AFMS

Airflow

AFMS Airflow

1.5 D

Airflow

0.75 D

AFMS

Airflow

0.75 D

AFMS

1.5 D

AFMS

0.75 D

Airflow Airflow

AirflowAFMS AFMS

0.5 D 0.5 D

0.5 D

AFMS

1.5 D

AFMSAirflow

AFMSAFMS

AFMS

Airflow

3 D

0.5 D 1.5D

AFMSAFMS

AFMS

Airflow

1 D

0.5 D 1.5D

AFMS

3 in

Airflow

AFMS

Airflow VAV Box

1 D

p. 3 of 8

Rectangular Duct Placement

Round Duct Placement

Flat-Oval Duct Placement

Across major axis

Across minor axis

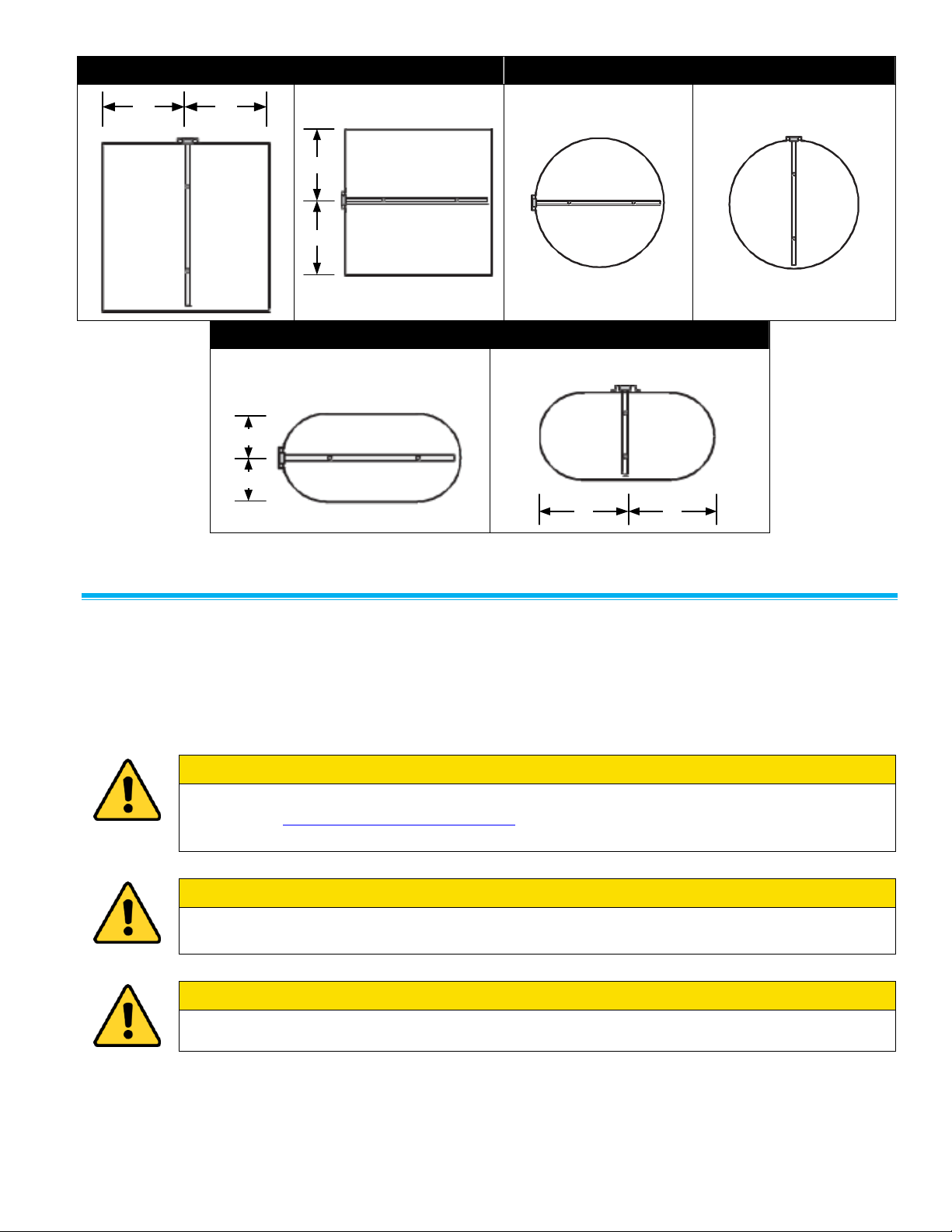

Figure 3. TF-Series Installation Flow Station Applications and Orientation

TF-Series Flow Station Installation

The TF-Series Flow Station is designed for use indoors in ducts up to 16 inches and in VAV terminal box

applications TF-Series airflow measurement station sensor probes are designed for insertion mounting

through one side of the duct or VAV box. Mount the instrument in an accessible location to permit set up.

Locate the instrument so that the attached instrument cable will reach the TSI controller or customer-provided

junction box.

CAUTION

The installed location of the TF-Series Flow Station is critical for proper performance. Refer to

the previous Minimum Placement Guidelines section of this document to determine the

recommended location for the TF-Series Flow Station.

CAUTION

Ensure that adequate clearance exists to permit insertion of the probe, and to allow clearance

for the instrument enclosure.

CAUTION

External duct insulation that interferes with mounting should be temporarily removed prior to

installation. Mounting requires a 0.875 inches (22.2 mm) hole on the insertion side of the duct.

1. Determine where the TF-Series airflow measuring station is to be located as indicated on the engineer's

plans.

2. Carefully open the TF-Series Flow Station package and inspect for damage. If damage is noted, immediately

file a claim with carrier.

½ X ½ X

½ X

½ X ½ X

p. 4 of 8

3. Locate and mark the point on the duct or VAV box where the probe will be inserted using the previous

Minimum Placement Guidelines section of this document. Refer to Figure 3 and Figure 4 for TF-Series Flow

Station dimensions and probe orientation.

4. Using a 0.875 inch (22.2 mm) hole saw, drill the insertion side hole marked in the previous step.

5. Place the probe through the mounting hole, making sure that the gasket is seated firmly against the integral

mounting bracket. Ensure that the edge of the TF-Series Flow Station mounting bracket is parallel to the

edge of the duct or VAV terminal box, and that the airflow arrow printed on it is oriented in the direction of

actual airflow. Ensure that the gasket is firmly seated against the bracket, and then fasten the mounting

bracket at the four mounting holes using appropriate sheet metal screws.

6. Route the TF-Series Flow Station instrument cable to the TSI monitor or controller. Refer to the following

sections of this document for instrument set up and operation.

Mounting Bracket Detail View

Units in inches (mm)

TF-Series Sensor Probe / Transmitter Detail Views

Figure 4. TF-Series Flow Station Installation Dimensions

TF-Series Flow Station—Preparation for Use

Preparation for use consists of connecting 24 VAC power and analog signal output wires from the TF-Series

Flow Station to the TSI monitor or controller, and if required, setting the TF-Series Flow Station analog output

switch options (measurement mode, output signal type and full scale range options).

TF-Series Flow Station Interconnections

The TF-Series Flow Station is equipped with a plenum rated 18 AWG interconnecting cable for power and

analog output(s). Connect 24 VAC power and analog output(s) to TSI monitor or controller as outlined in the

following paragraphs. Refer to Figure 5.

p. 5 of 8

TF-Series Analog Output Connections

CAUTION

24 VAC power must be deactivated before making connections to the instrument.

CAUTION

The 24 VAC input ground (GND) connection is shared with the analog output signal ground. If

an isolated output is desired, a dedicated isolation transformer is required to power the

TF-Series Flow Station.

The TF-Series provides an analog output to indicate airflow or equivalent velocity pressure, with an optional

analog output to indicate air temperature. The analog outputs are not isolated from the power input. Connect

the analog output at the white wire and the signal common at the black wire to the TSI monitor or controller

using twisted pair cable as shown in Figure 5.

TF-Series Flow Station 24 VAC Power Connections

CAUTION

24 VAC power must be deactivated before making connections to the instrument.

CAUTION

The 24 VAC input ground (GND) connection is shared with the analog output signal ground. If

an isolated output is desired, a dedicated isolation transformer is required to power the

TF-Series Flow Station.

The TF-Series Flow Station requires a power source capable of providing 22.8 to 26.4 VAC at 5 VA. Connect

24 VAC power between the red wire and black wires as shown in Figure 6.

Color

Function

Red

24 VAC power

Black

Common TF-Series Flow Station Power/Signal Ground

(for 24 VAC and for analog output)

White

Velocity Analog Output Signal

Green

Temperature Analog Output Signal.

NOTE: Only available on model TF-xx-AL-T Flow Stations

CAUTION

The TF-Series Flow Stations are equipped with a common 24 VAC ground and analog output

signal common(s). The analog output(s) must be wired with dedicated common wire(s).

Sharing the common wire with the 24 VAC return may cause voltage drop leading to inaccurate

readings.

p. 6 of 8

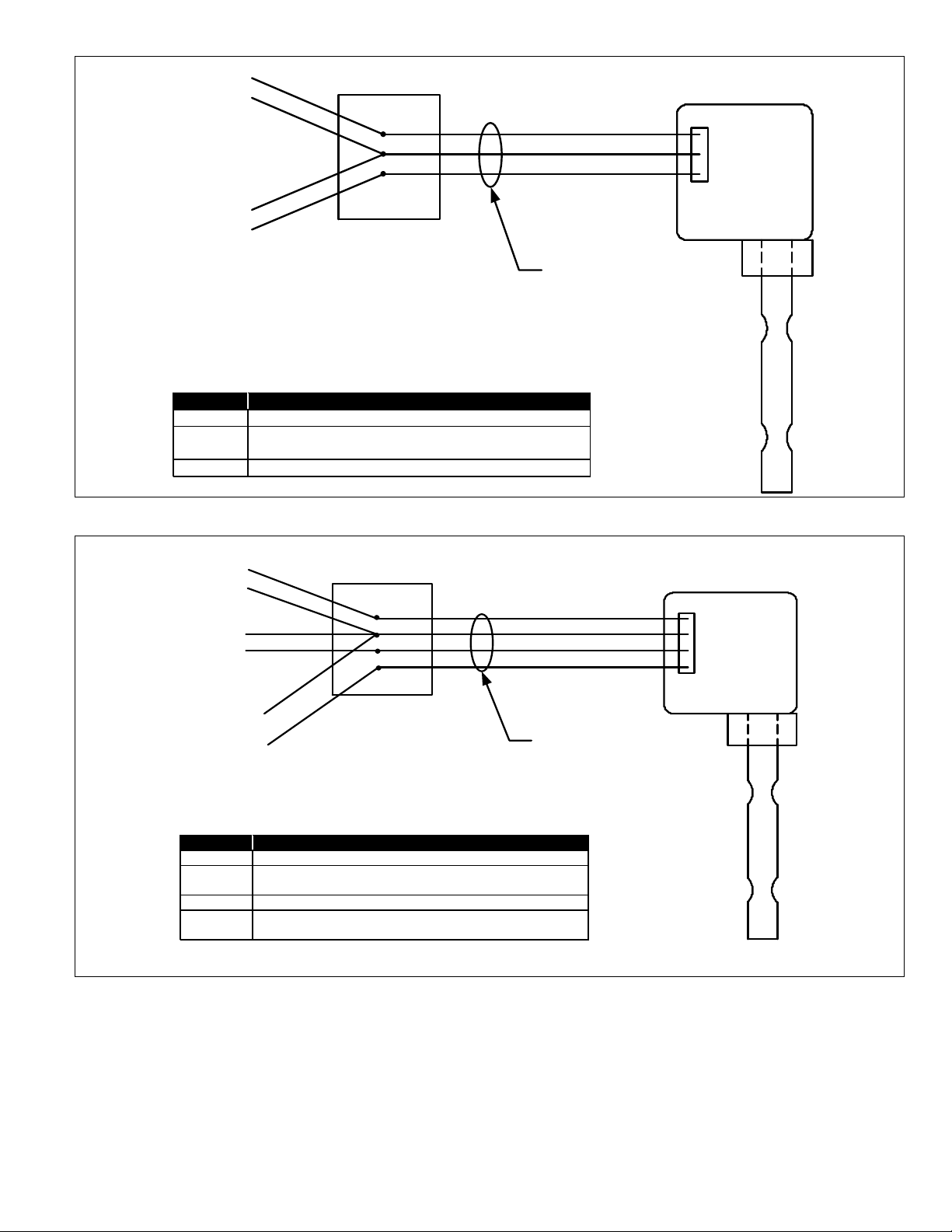

Figure 5. TF-Series Flow Station Wiring

Figure 6. TF-Series Flow Station with Temperature Output Wiring

NOTES:

1. The 24 VAC common and analog output signal commons are non-isolated. Do not share power with

other non-isolated devices.

2. On multiple TF-Series Flow Station installations ensure that all TF-Series Flow Stations are wired to the

same terminals on the 24 VAC power source.

3. Connect cable drains to earth ground at one end of each cable only.

RED (24 V+)

BLACK (COMMON)

WHITE (VEL +)

Junction Box

(By Others)

RED

BLACK

WHITE

24 VAC +

24 VAC -

VEL AO -

VEL AO +

3-foot cable

provided

(pigtail

connection)

TF- Series

Flowstation

Color

Function

Red

24 VAC power

Black

Common TF-Series Flow Station Power/Signal Ground

(for 24 VAC and for analog output)

White

Velocity Analog Output Signal

RED (24V +)

BLACK (COMMON)

WHITE (VEL +)

Junction Box

(By Others)

RED

BLACK

WHITE

24 VAC +

24 VAC -

VEL AO -

VEL AO+

3-foot cable

provided

(pigtail

connection)

TF-T Series

Flowstation

GREEN (TEMP +)

BLACK

GREEN

TEMP AO -

TEMP AO+

Color

Function

Red

24 VAC power

Black

Common TF-Series Flow Station Power/Signal Ground

(for 24 VAC and for analog output)

White

Velocity Analog Output Signal

Green

Temperature Analog Output Signal

Note: Only available on model TF-xx-AL-T Flow Stations

p. 7 of 8

TF-Series Flow Station Analog Output Option Switch Settings

To access the field selectable analog output option switches, remove the four retaining screws at each corner of

the TF-Series Flow Station enclosure cover. The option selector switches are part of a four-switch DIP package

labeled CONFIG. Figure 7 shows the TF-Series circuit board and individual switches for setting TF-Series Flow

Station measurement mode, output voltage and output full-scale values. Factory default switch settings are all

OFF, resulting in airflow measurement mode, 0 to 10 VDC analog output and 0 to 3,000 FPM full scale range. If

desired, these settings can be changed using the CONFIG switch as shown in Figure 6 and as described in the

following paragraphs:

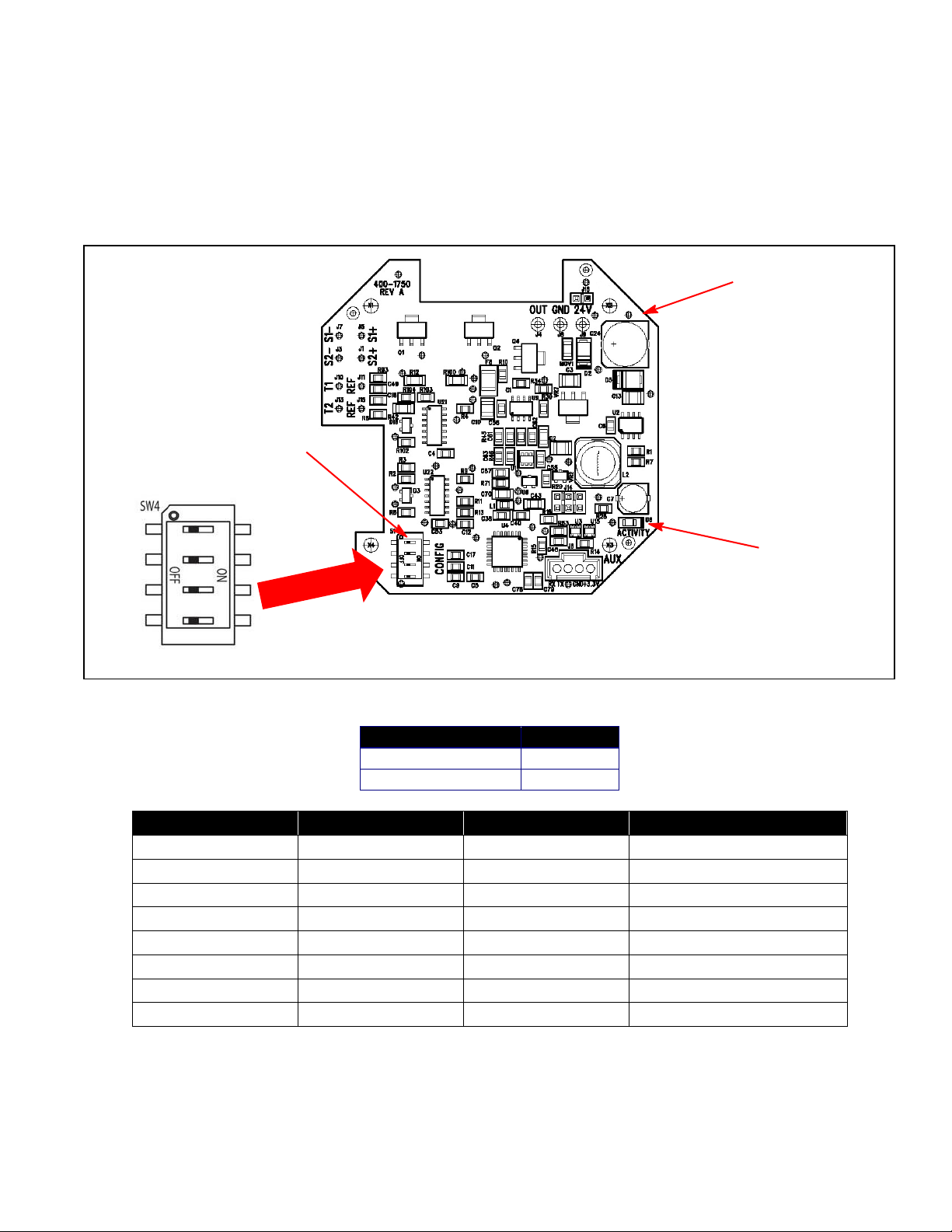

Figure 7. TF-Series Flow Station Circuit Board Detail

Switch 2 Position

Output

OFF (default)

0–10 VDC

2–10 VDC

Switch 1 Position

Switch 3 Position

Switch 4 Position

Full Scale Range

OFF (default)

3,000 fpm (15.24 m/s)

OFF

2,000 fpm (10.16 m/s)

OFF

1,000 fpm (5.08 m/s)

OFF

500 fpm (2.54 m/s)

OFF

0.5 in H2O (124.5 Pa)

OFF

0.25 in H2O (62.27 Pa)

OFF

0.15 in H2O (37.36 Pa)

0.05 in H2O (12.45 Pa)

TF-Series Flow

Station Circuit

Board

Activity Green

LED Indicator

SW1-SW4 CONFIG DIP SWITCH

OUTPUT OPTION SELECTOR

SW1 –AIR FLOW/EQUIVALENT

VELOCITY PRESSURE

SW2 - 0-10/2-10 VDC

SW3 / SW4 - OUTPUT SCALE

(See Detail below)

CONFIG DIP Switch Detail

SW1

SW2

SW3

SW4

TSI Incorporated –Visit our website www.tsi.com for more information.

USA Tel: +1 800 874 2811

UK Tel: +44 149 4 459200

France Tel: +33 1 41 19 21 99

Germany Tel: +49 241 523030

India Tel: +91 80 67877200

China Tel: +86 10 8219 7688

Singapore Tel: +65 6595 6388

TF-Series Flow Station Initial Start Up / Normal Operation

The following procedure is intended for initial start-up of the TF-Series Flow Station. Following the initial

set up, no further user activity is required during normal operation.

1. Remove the cover to the electronics enclosure by removing the four screws on the cover.

2. Make sure that the 24 VAC circuit breaker used to power the TF-Series Flow Station is turned OFF until

all wiring is complete!

3. Confirm 24 VAC connection from the power source to the TF-Series Flow Station 24 VAC wire (red

wire) as outlined in the TF-Series Flow Station 24 VAC Power Connections section of this document.

4. Confirm common ground 24 VAC and signal ground connection from the power source to the TF-Series

Flow Station at the black wire.

5. Confirm TF-Series Flow Station analog signal output connection at the white wire, to the analog input of

the BAS as outlined in TF-Series Analog Output Connections section of this document. Note that the

ground of the BAS must be at the same voltage reference as the ground of the TF-Series Flow Station

and the power source.

6. Set the desired analog output options using CONFIG switches SW1 to SW4 as outlined in the TF-Series

Flow Station Analog Output Option Switch Settings section of this document.

7. Activate the 24 VAC power source to power on the TF-Series Flow Station.

8. Check to confirm that the TSI controller or BAS is receiving the analog output signal indicating

instrument airflow or equivalent velocity pressure.

9. Following a brief instrument initialization, the green Activity LED will continuously flash ON for

1 second, then OFF for 1 second. This indicates normal operation. In the event of a sensor fault, the LED

will continuously flash ON for 2 seconds, and OFF for 2 seconds.

Converting the Output Signal from Linear to Volumetric Flow—FPM to CFM

The TF-Series Flow Station analog output airflow (FPM) can easily be converted to an equivalent

volumetric flow (CFM) by multiplying the indicated flow velocity by the free area at the sensor installation

location (in square feet). For example, assuming an installation in a 12-inch round duct, using the

0 to 10 VDC scale and the 3,000 FPM full scale output range options, an output of 5 VDC from the TF-Series

Flow Station indicates a flow velocity of 1,500 FPM. (5 VDC is one-half of the 0 to 10 VDC output,

corresponding to one-half of the 0 to 3,000 FPM scale, which equals 1,500 FPM). The TF-Series Flow Station

installed duct location area in this example is calculated at 0.785 ft2(using xthe duct radius2, or 3.14 x

0.5 ft2). Multiplying the indicated instrument output of 1,500 FPM by 0.785 ft2yields an equivalent

volumetric flow of 1,177.5 CFM.

Maintenance

In most HVAC environments, periodic maintenance and calibration is not required or recommended*.

*Depending on the application, it may be necessary to periodically inspect and clean sensors using compressed air or a small brush.

Factory performance returns immediately after cleaning. Recalibration is NOT required. Periodic inspection of the sensors is

advised, and accessibility must be considered in these applications.

Tabla de contenidos

Otros manuales de Instrumento de medición de TSI Instruments

TSI Instruments

TSI Instruments Aerotrak 9303 Manual de usuario

TSI Instruments

TSI Instruments ALNOR MicroManometer AXD 550 Manual de usuario

TSI Instruments

TSI Instruments 9600 Series Manual de operación

TSI Instruments

TSI Instruments 4000 Series Guía

TSI Instruments

TSI Instruments DUSTTRAK 8533 Instrucciones de instalación

TSI Instruments

TSI Instruments VELOCICALC 9565-P-AC Manual de operación

TSI Instruments

TSI Instruments Alnor Velometer 6000 Series Manual de usuario

TSI Instruments

TSI Instruments Q-TRAK XP 7585 Manual de usuario

TSI Instruments

TSI Instruments VelociCheck 8330 Manual de operación

TSI Instruments

TSI Instruments 5200 Series Manual de usuario

TSI Instruments

TSI Instruments IAQ-CALC 7525 Manual de usuario

TSI Instruments

TSI Instruments DustTrak 8520 Instrucciones de instalación y funcionamiento

TSI Instruments

TSI Instruments ALNOR AVM430A Manual de operación

TSI Instruments

TSI Instruments 9565 Series Manual de operación

TSI Instruments

TSI Instruments Sizer 3310A Manual de usuario

TSI Instruments

TSI Instruments 9535A Manual de operación

TSI Instruments

TSI Instruments VelociCalc 9515-AC Manual de operación

TSI Instruments

TSI Instruments DustTrak 8520 Manual de operación

TSI Instruments

TSI Instruments Alnor Velometer 6000 Series Manual de operación

TSI Instruments

TSI Instruments dusttrak II 8530 Manual de operación

TSI Instruments

TSI Instruments Q-Trak XP Manual de operación

TSI Instruments

TSI Instruments Alnor AirGard 405 Manual de usuario

TSI Instruments

TSI Instruments ALNOR AXD 530 Manual de usuario

TSI Instruments

TSI Instruments DP-CALC 5825-AC Manual de operación

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
