TSI Instruments 9535A Manual de operación

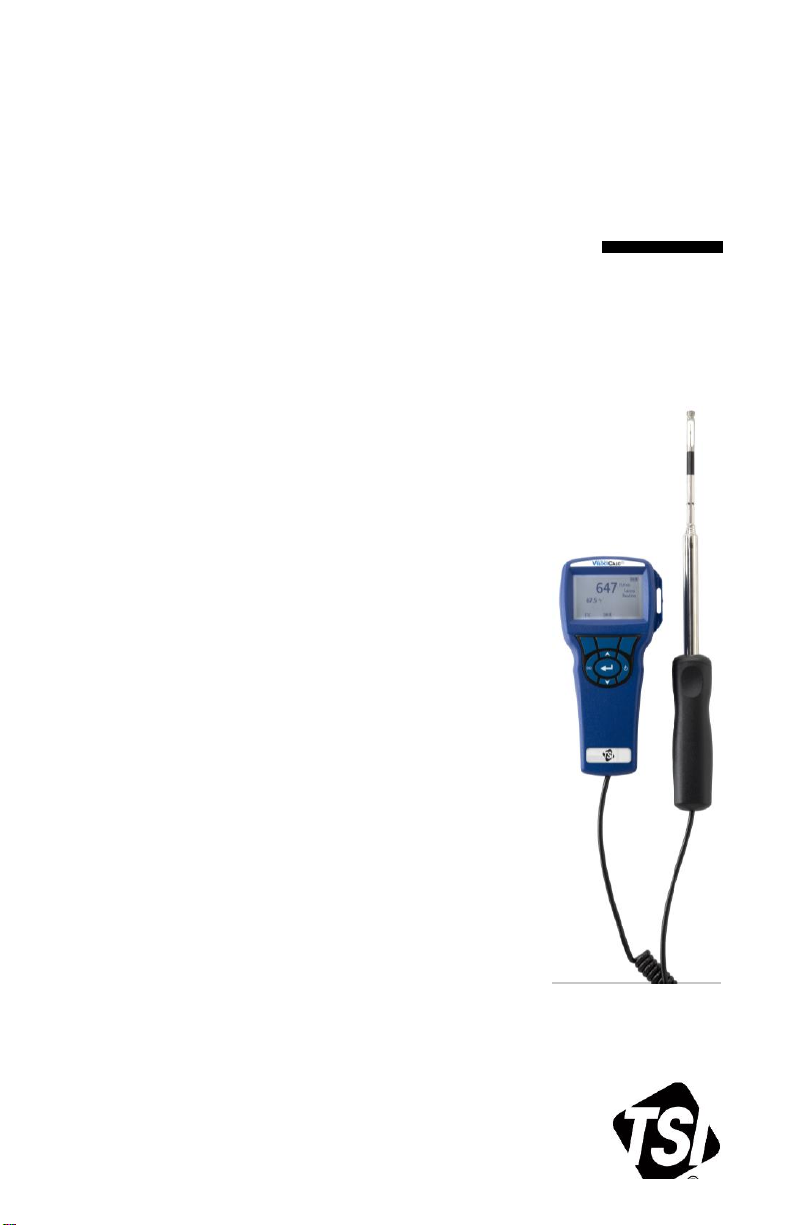

VELOCICALC®

AIR VELOCITY METER

MODEL 9535/9535-A

OPERATION AND SERVICE MANUAL

P/N 1980563, REVISION J

NOVEMBER 2020

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

LIMITATION OF WARRANTY AND LIABILITY (effective February 2015)

Seller warrants the goods, excluding software, sold hereunder, under normal use and

service as described in the operator's manual, to be free from defects in workmanship and

material for 24 months, or if less, the length of time specified in the operator's manual, from

the date of shipment to the customer. This warranty period is inclusive of any statutory

warranty. This limited warranty is subject to the following exclusions and exceptions:

a. Hot-wire or hot-film sensors used with research anemometers, and certain other

components when indicated in specifications, are warranted for 90 days from the date

of shipment;

b. Pumps are warranted for hours of operation as set forth in product or

operator’s manuals;

c. Parts repaired or replaced as a result of repair services are warranted to be free from

defects in workmanship and material, under normal use, for 90 days from the date

of shipment;

d. Seller does not provide any warranty on finished goods manufactured by others or on

anyfuses, batteries or other consumable materials. Only the original manufacturer's

warranty applies;

e. This warranty does not cover calibration requirements, and seller warrants only that the

instrument or product is properlycalibrated at the time of its manufacture. Instruments

returned for calibration are not covered bythis warranty;

f. This warranty is VOID if the instrument is opened by anyone other than a factory

authorized service center with the one exception where requirements set forth in the

manual allow an operator to replace consumables orperform recommended cleaning;

g. This warranty is VOID if the product has been misused, neglected, subjected to

accidental or intentional damage, or is not properly installed, maintained, or cleaned

according to the requirements of the manual. Unless specifically authorized in a

separate writing by Seller, Seller makes no warranty with respect to, and shall have no

liability in connection with, goods which are incorporated into other products or

equipment, or which are modified by any person other than Seller.

The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS stated

herein. NO OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR

PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE. WITH RESPECT TO

SELLER’S BREACH OF THE IMPLIED WARRANTY AGAINST INFRINGEMENT, SAID

WARRANTY IS LIMITED TO CLAIMS OF DIRECT INFRINGEMENT AND EXCLUDES

CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS. BUYER’S EXCLUSIVE

REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE DISCOUNTED FOR

REASONABLE WEAR AND TEAR OR AT SELLER’S OPTION REPLACEMENT OF THE

GOODS WITH NON-INFRINGING GOODS.

TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR

BUYER, AND THE LIMIT OF SELLER'S LIABILITYFOR ANY AND ALL LOSSES,

INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED

ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITYOR OTHERWISE) SHALL BE

THE RETURN OF GOODS TO SELLER ANDTHE REFUND OF THE PURCHASE PRICE,

OR, AT THE OPTION OF SELLER, THE REPAIR OR REPLACEMENT OF THE GOODS.

IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE

SOFTWARE OR IF UNABLE TO DOSO, WILL REFUND THE PURCHASE PRICE OF

THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS,

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR

INCIDENTAL DAMAGES. SELLER SHALL NOT BE RESPONSIBLE FOR INSTALLATION,

DISMANTLING OR REINSTALLATION COSTS OR CHARGES. No Action, regardless of

form, may be brought against Seller more than 12 months after a cause of action has

accrued. The goods returned under warrantyto Seller's factoryshall be at Buyer's risk of

loss, and will be returned, if at all, at Seller's risk of loss.

Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY AND

LIABILITY, which contains the complete and exclusive limited warranty of Seller. This

LIMITATION OF WARRANTY AND LIABILITY may not be amended, modified or its terms

waived, except by writing signed by an Officer of Seller.

Service Policy

Knowing that inoperative or defective instruments are as detrimental to TSI as they are

to our customers, our service policy is designed to give prompt attention to any

problems. If any malfunction is discovered, please contact your nearest sales office or

representative, or call Customer Service department at (800) 680-1220 (USA) or (1)

651-490-2860 (International).

Trademarks

TSI, the TSI logo, and VelociCalc are registered trademarks of TSI Incorporated in the

United States and may be protected under other country’s trademark registrations.

LogDat2 is a trademark of TSI Incorporated.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

iii

CONTENTS

CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION ............1

CHAPTER 2 SETTING-UP.................................................................3

Supplying Power to the Model 9535/9535-A..................................3

Installing the Batteries...............................................................3

Using the Optional AC Adapter.................................................3

Using the Telescoping Probe .........................................................3

Extending the Probe..................................................................3

Retracting the Probe..................................................................3

Connecting to a Computer..............................................................4

CHAPTER 3 OPERATION.................................................................5

Keypad Functions...........................................................................5

Common Terms..............................................................................5

Menus.............................................................................................6

DISPLAY SETUP.................................................................................6

SETTINGS .........................................................................................6

FLOW SET UP....................................................................................6

ACTUAL/STANDARD SETUP ................................................................6

DATA LOGGING .................................................................................7

Measurements...........................................................................7

Delete Data................................................................................7

% Memory .................................................................................7

LogDat2™ Downloading Software .................................................7

CHAPTER 4 MAINTENANCE............................................................9

Recalibration...................................................................................9

Cases..............................................................................................9

Storage ...........................................................................................9

CHAPTER 5 TROUBLESHOOTING................................................11

APPENDIX A SPECIFICATIONS.....................................................13

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Chapter 1

Unpacking and Parts Identification

Carefully unpack the instrument and accessories from the

shipping container. Check the individual parts against the list of

components. If anything is missing or damaged, notify TSI®

Incorporated immediately.

1. Carrying case

2. Instrument

3. USB cable

4. CD-ROM with downloading software

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Chapter 2

Setting-up

Supplying Power to the Model 9535/9535-A

The TSI®Model 9535/9535-A VelociCalc®Air Velocity Meter is

powered with four size AA batteries.

Installing the Batteries

Insert four AA batteries as indicated by the diagram located on

the inside of the battery compartment. The Model 9535/9535-A is

designed to operate with either alkaline or NiMH rechargeable

batteries, although it will not recharge NiMH batteries. Battery life

will be shorter if NiMH batteries are used. Carbon-zinc batteries

are not recommended because of the danger of battery

acid leakage.

Using the Optional AC Adapter

When using the AC adapter, the batteries (if installed) will be

bypassed. Be sure to provide the correct voltage and frequency,

which is marked on the back of the AC adapter. The AC adapter

will not recharge the batteries.

Using the Telescoping Probe

The telescoping probe contains the velocity and temperature sensors.

When using the probe, make sure the sensor window is fully exposed

and the orientation dimple is facing upstream.

N O T E

For temperature measurements, make sure that at least 3 inches

(7.5 cm) of the probe is in the flow to allow the temperature sensor to

be in the air stream.

Extending the Probe

To extend the probe, hold the handle in one hand while pulling on

the probe tip with the other hand. Do not hold the cable while

extending the probe as this prevents the probe from extending.

Retracting the Probe

To retract the probe, hold the handle in one hand while pulling

gently on the probe cable with the other hand.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

4 Chapter 2

Connecting to a Computer

Use the Computer Interface USB Cable provided with the Model

9535/9535-A to connect the instrument to a computer for

downloading stored data.

For more information on how to download stored data see Chapter 3

section titled LogDat2™ Downloading Software.

C A U T I O N

This symbol is used to indicate that the data port of the

Model 9535/9535-A is NOT intended for connection to

a public telecommunications network. Connect the USB

data port only to another USB port.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Chapter 3

Operation

Keypad Functions

ON/OFF Key

Press to turn the Model 9535/9535-A on and off.

During the power up sequence the display will

show the following: Model Number, Serial Number,

Software Revision and Last Date Calibrated.

Arrow () Keys

Press to scroll through choices while setting a

parameter.

(Enter) Key

Press to accept a value or condition.

Arrow (or ) and

Menu Soft Keys

Press arrow keys to change choices while setting a

parameter. Press the Menu soft key to select the

Menu selections, which are Display Setup,

Settings, Flow Setup, Actual/Std Set up, Data

Logging, and Calibration.

Common Terms

In this manual there are several terms that are used in different

places. The following is a brief explanation of the meanings of

those terms.

Sample

Consists of all of the measurement parameters

stored at the same time.

Test ID

A group of samples. The statistics (average,

minimum, maximum, and count) are calculated for

each test ID. The maximum number of test IDs

is 100.

Time Constant

The time constant is an averaging period. It is used to

dampen the display. If you are experiencing

fluctuating flows, a longer time constant will slow

down those fluctuations. The display will update every

second, but the displayed reading will be the average

over the last time constant period. For example, if the

time constant is 10 seconds, the display will update

every second, but the displayed reading will be the

average from the last 10 seconds. This is also

referred to as a “moving average”.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

6 Chapter 3

Menus

DISPLAY SETUP

Display setup menu is where you will setup the desired parameters

to be displayed on the running screen. With a parameter highlighted

you can then use the ON soft key to have it show up on the running

screen or select the OFF soft key to turn off the parameter. Use

PRIMARY soft key to have a parameter show up on the running

screen in a larger display. Only one parameter can be selected as a

primary, and up to 2 secondary parameters can be selected at

one time.

SETTINGS

Settings menu is where you can set the general settings. These

include Language, Beeper, Select Units, Time Constant, Contrast,

Set Time, Set Date, Time Format, Date Format, Number Format,

Backlight and Auto Off. Use the or soft keys to adjust the

settings for each option and use the key to accept settings.

FLOW SET UP

In Flow Setup mode, there are 4 types: Round Duct, Rectangle Duct,

Duct Area and Horn. Use the or soft keys to scroll through the

types and then press the key to accept the desired type. To

change the value, highlight the Enter Settings option and press the 

key. Use the instructions below to change the value of the type that

you selected.

N O T E

The horn numbers are the models of the horns. For example, 100

refers to a horn model number AM 100. Only horns with Model

numbers as follows can be used with this function: AM 100, AM 300,

AM 600, and AM 1200. If a horn model number is chosen, the

instrument will return to measuring mode and use a preprogrammed

curve to calculate flow rate from velocity.

ACTUAL/STANDARD SETUP

Choose Actual/Standard measurements and parameters in the

Act/Std Setup menu. Within this menu, the user can also select

Standard Temperature, Standard Pressure and a source for the

actual temperature. The actual barometric pressure must be entered

to convert air velocity and volume measurements to actual conditions.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de TSI Instruments

TSI Instruments

TSI Instruments QUESTemp 32 Manual de usuario

TSI Instruments

TSI Instruments 3080 Series Manual de operación

TSI Instruments

TSI Instruments AIRASSURE PM2.5 Manual de uso y cuidado

TSI Instruments

TSI Instruments IAQ-CALC 7525 Manual de usuario

TSI Instruments

TSI Instruments SIZER 3321 Manual de usuario

TSI Instruments

TSI Instruments ALNOR RVA501 Manual de operación

TSI Instruments

TSI Instruments AVM430 Manual de operación

TSI Instruments

TSI Instruments 5200 Series Manual de usuario

TSI Instruments

TSI Instruments PORTACOUNT 8020 Instrucciones de instalación y funcionamiento

TSI Instruments

TSI Instruments questemp 44 Manual de usuario

TSI Instruments

TSI Instruments dusttrak II 8530 Manual de operación

TSI Instruments

TSI Instruments ALNOR AXD 530 Manual de usuario

TSI Instruments

TSI Instruments DustTrak DRX Manual de usuario

TSI Instruments

TSI Instruments Airflow TA500 Series Manual de operación

TSI Instruments

TSI Instruments HM685 Manual de usuario

TSI Instruments

TSI Instruments DUSTTRAK 854201-M1 Manual de usuario

TSI Instruments

TSI Instruments Alnor Velometer 6000 Series Manual de operación

TSI Instruments

TSI Instruments AccuBalance 8370 Manual de operación

TSI Instruments

TSI Instruments Aerotrak 9303 Manual de usuario

TSI Instruments

TSI Instruments ALNOR LOFLO BALOMETER Series Manual de usuario

TSI Instruments

TSI Instruments 3082 Manual de usuario

TSI Instruments

TSI Instruments Flowmaster 250 Guía

TSI Instruments

TSI Instruments ALNOR HM670 Manual de usuario

TSI Instruments

TSI Instruments ALNOR MicroManometer AXD 550 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
