Trust ACM-3000H2 Manual de usuario
www.trust.com
START-LINE
ACM-3000H2
ACM-3000H2 BUILT-IN SWITCH
Item 71148 Version 1.0
Visit www.trust.com
for the latest instructions
USER MANUAL
MULTI LANGUAGE
2
4
1
3
5mm
3A
3B
65
7
L
i
v
e
w
i
r
e
N
e
u
t
r
a
l
w
i
r
e
01 02
Com S1 S2 N L
L
i
v
e
w
i
r
e
L
i
v
e
w
i
r
e
N
e
u
t
r
a
l
w
i
r
e
S
w
i
t
c
h
w
i
r
e
01 02
Com S1 S2 N L
01 02Com S1 S2 N L
S
w
i
t
c
h
w
i
r
e
t
o
l
a
m
p
2
S
w
i
t
c
h
w
i
r
e
t
o
w
a
l
l
s
w
i
t
c
h
2
9.1
8
PP
01 02 S1 S2 N L
COM
L
N
Wall switch
P
Wall switch
Wall switch
P
Wall switch
ACM-3000H2
Switch 1a
Switch 2a
Switch 1b Switch 2b
L
N
n
u
l
d
r
a
a
d
01 02Com S1 S2 N L
1 SEC
PP
01 02 S1 S2 N L
COM
L
N
Wall switch
Wall switch
ACM-3000H2
Switch 2Switch 1
9.2
10
9.3
11
ON
01 02Com S1 S2 N L
2x
ININ OUT
L
N N
n
u
l
d
r
a
a
d
01 02Com S1 S2 N L
n
u
l
d
r
a
a
d
01 02Com S1 S2 N L
01 02Com S1 S2 N L
1 SEC
2x
OFF
01 02Com S1 S2 N L
n
u
l
d
r
a
a
d
01 02Com S1 S2 N L
8 SEC 1 SEC
2x
1
ACM-3000H2 BUILT-IN SWITCH

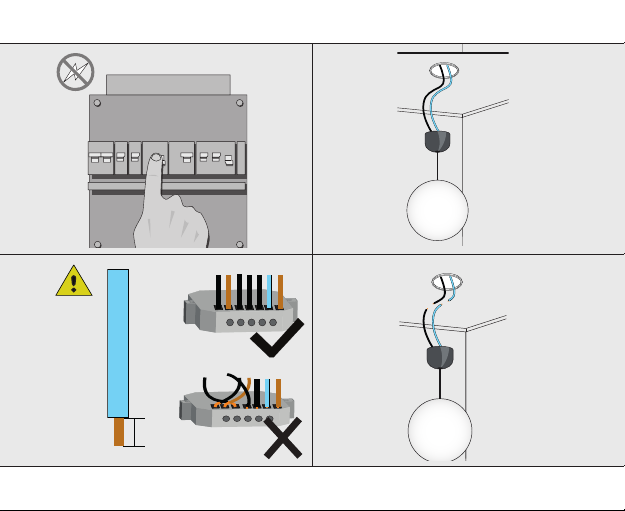

1. Disable mains power
Always turn OFF the mains power (In the meter closet) before you begin the installation or removal
of this product. The ACM-3000H2 can be used for either one or two hotel switches, connected with
one or two lamps. Also, the ACM-3000H2 can be used for one or two single wall switches, which are
connected with one or two lamps.
2. Loosen ceiling lights
Remove the existing lighting/equipment from the ceiling, leaving the wires connected to the lighting.
Lighting/equipment, may not exceed the maximum of 3000 watts.
3. Warning for stripping wires
3A. Make sure the wires are stripped for 5mm.
3B. When connecting the wires to the ACM-3000H2 make sure the stripped wires are pressed firmly
in the module, no exposed wires are visible and the wires cannot touch each other. This can cause a
short circuit.
4. Disconnect the switch wire and neutral wire
To install the ACM-3000H2 disconnect the switch wire and neutral wire of lamp 1. (Disconnect from
terminal block or cut the wires if necessary) Disconnect the switch wire and neutral wire of lamp 2.
Consult an electrician if in doubt about wire colours.
5. Connect the live wire and the neutral wire to a terminal block
(a) Connect the live wire from the ceiling box to a terminal block. Connect the other end of the live
wire also back into the same terminal block.
(b) Connect the neutral wire from the ceiling box to a dierent terminal block. Make sure other Trust
Smart Home receivers are placed at least 50 cm from the ACM-3000H2 to prevent interference.
6. Connect the switch wire and neutral wire of the lamp to the terminal block
(a) Connect the wall switch wire of lamp 1 from the ceiling box to the [S1] contact.
(b) Connect the (blue) neutral wire from lamp 1 to the terminal block of the neutral wire. Connect a
new wire from the neutral terminal block on to the [N] contact.
(c) Connect the switch wire from lamp 1 on to the [O1] contact.
EN
ACM-3000H2 BUILT-IN SWITCH
2
(d) Connect two new live wires from the live wire terminal block to the [L] and [COM] contact.
(e) Tighten the terminal screws of the ACM-3000H2.
7. Connect second lamp and wall switch.
(a) Pull the switch wire from the wall switch of lamp 2 to the ceiling box of lamp 1. Pull the switch wire
from lamp 2 to the ceiling box of lamp 1.
(b) Connect the switch wire of lamp 2 to the [O2] contact
(c) Connect the switch wire from the wall switch of lamp 2 to the [S2] contact.

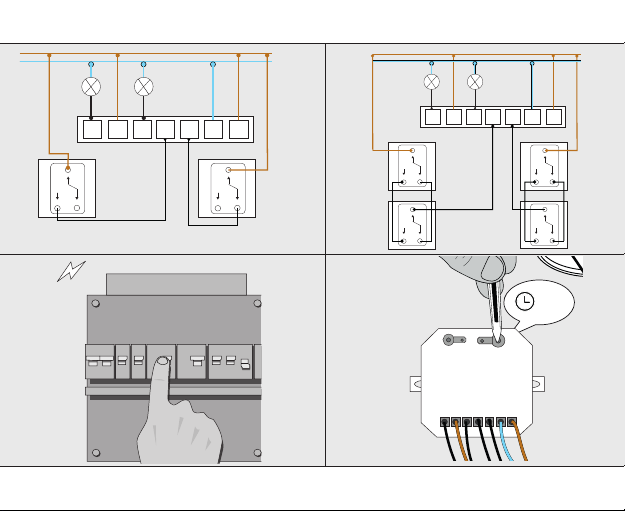

This is an technical installation schematic of the ACM-3000H2 with two wall-switches (1 hotel/stairwell
circuit).
This is an technical installation schematic of the ACM-3000H2 with four wall-switches (2 hotel/stairwell
circuit.
8. Enable mains power
Switch the mains power ON before proceeding with the installation.
Make sure no stripped parts of wires are touched after this step.
The LED indicator on the receiver will be lit for a few seconds when voltage is applied.
9.1 Activate pairing mode
Press for about 1 second (with a pointed object) on the Connect button to activate the pairing mode.
The pairing mode will be active for 15 seconds and the LED indicator on the receiver will flash slowly.
9.2 Send an ON signal
While the LED indicator flashes, press the ON button on a Trust Smart Home transmitter to pair the
transmitter to the ACM-3000H2. (Or activate a Trust Smart Home sensor).
EN
