Trust SMART Home AWMR-230 Manual de usuario

www.trustsmarthome.com

71035_AWMR-230_ML_MANUAL.indd 1 15-4-2016 11:55:52

START-LINE

RECEIVER AWMR230

Item 71035 Version 1.0

Visit www.trustsmarthome.com

for the latest instructions

MINI BUILD-IN SWITCH

USER MANUAL

MULTI LANGUAGE

71035_AWMR-230_ML_MANUAL.indd 2 15-4-2016 11:55:53

2

4

1

3

Live wire

Switch wire

71035_AWMR-230_ML_MANUAL.indd 3 15-4-2016 11:55:54

6

8

5

7

Live wire

Neutral

Live wire

Live wire

Neutral

Live wire

71035_AWMR-230_ML_MANUAL.indd 4 15-4-2016 11:55:55

910

12

1 sec.

ON

2x

11

71035_AWMR-230_ML_MANUAL.indd 5 15-4-2016 11:55:56

71035_AWMR-230_ML_MANUAL.indd 6 15-4-2016 11:55:56

13

14

1 sec.

OFF

2x

71035_AWMR-230_ML_MANUAL.indd 7 15-4-2016 11:55:57

15

7 sec.

2x

1 sec.

71035_AWMR-230_ML_MANUAL.indd 8 15-4-2016 11:55:57

71035_AWMR-230_ML_MANUAL.indd 9 15-4-2016 11:55:57

AWMR-230 MINI BUILD-IN SWITCH

1

1. Switch o the mains power (electric meter box) before installing this product

Continue with [2] for installation behind a single wall switch.

Continue with [5] for ceiling box installation.

2. Wall installation: Remove the existing light switch

Detach the existing light switch and disconnect the wires. Remember to which terminals the wires

were connected. Only connect lamps that do not exceed the max load: 230 W.

3. Connect the live wire and switch wire

Connect the (brown) live wire to the [L] contact. Connect the (black) switch wire to the [ ] contact.

Tighten the clamping screws. Contact an electrician when in doubt about wire colors.

4. Connect AWMR switch wires to the original wall switch

Connect the 2 white switch wires from the receiver to the previously used terminals on the original

wall switch.

5. Ceiling installation: Remove the existing lighting

Detach the existing lighting and disconnect the wires. The receiver will act as a replacement for

the existing wall switch. Only connect lamps that do not exceed the max load: 230 W. Contact an

electrician when in doubt about wire colors.

6. Connect the live wire to [L] and [ ]

Interrupt the (brown) live wire and connect the two parts to [L] and [ ]. It does not matter which part

is connected to which terminal of the receiver. Tighten the clamping screws.

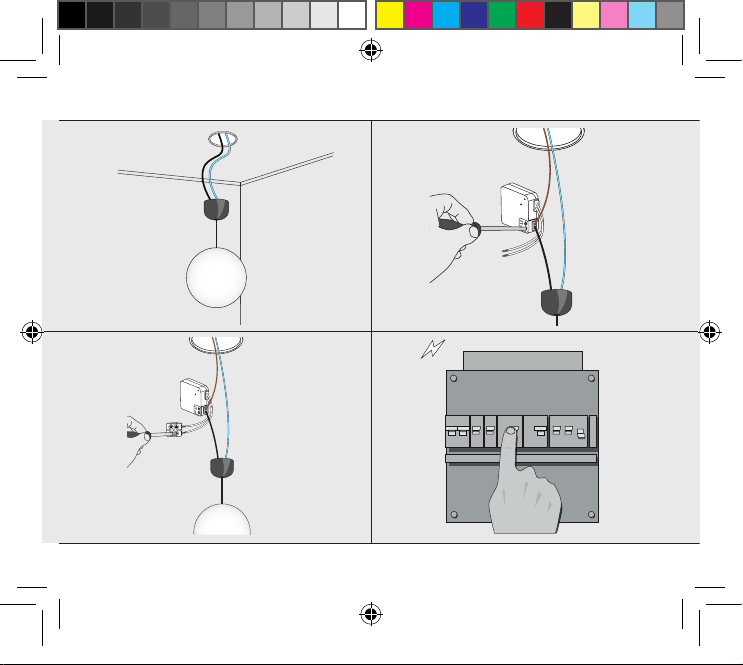

7. Clamp down the 2 AWMR wires in a screw terminal

Isolate the 2 white switch wires from the receiver in a screw terminal.

8. Switch on the mains power (electric meter box) to continue the installation

Shock hazard! Do not contact any exposed wiring. Only touch the plastic housing of this product.

9. Activate learn-mode

Press the learn-button on the receiver for 1 second. The learn-mode will be active for 15 seconds and

the LED-indicator will blink slowly.

EN

71035_AWMR-230_ML_MANUAL.indd 1 15-4-2016 11:55:57
