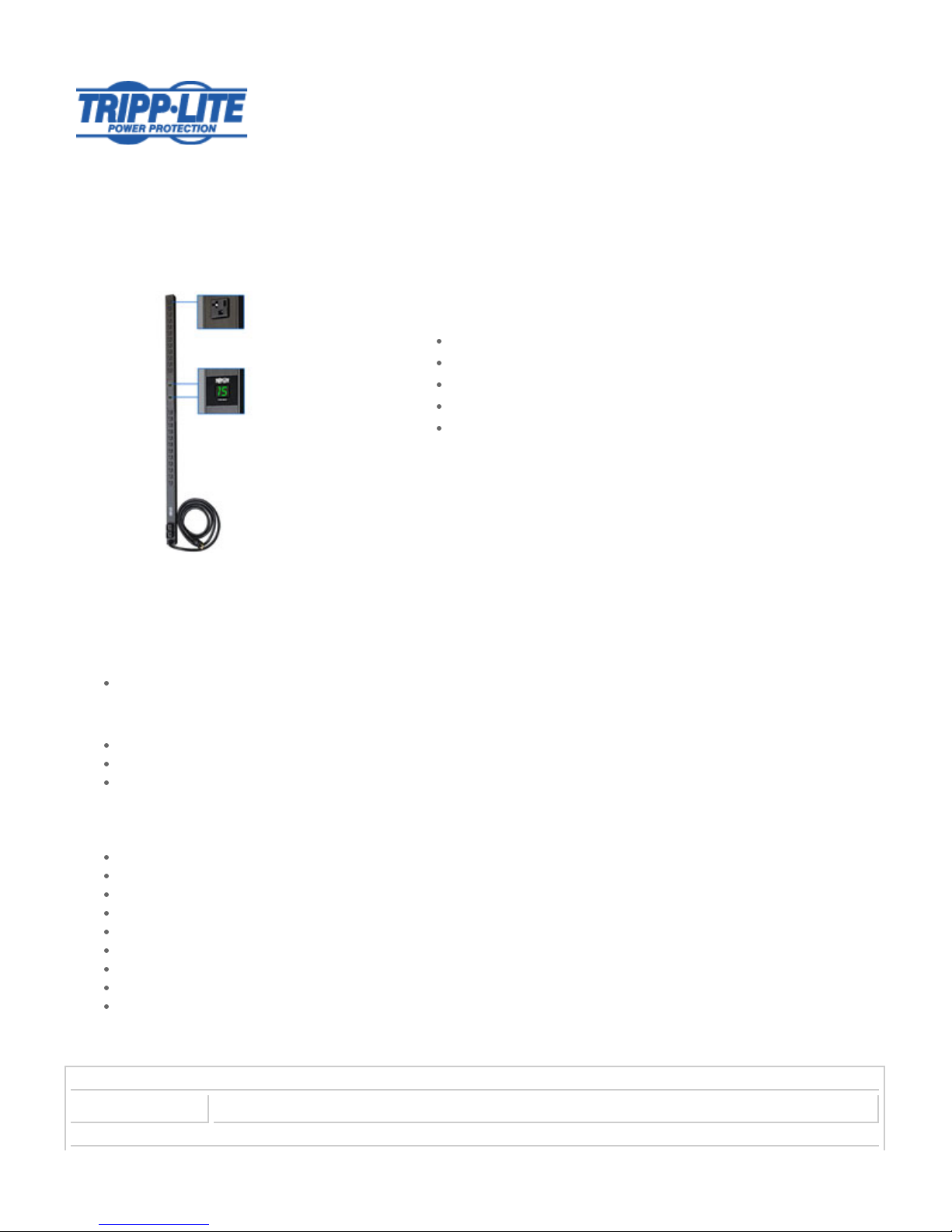

Tripp Lite PDUMV30 Manual de usuario
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: PDUMV30
Single-Phase Metered PDU, 30A 120V, 0U Vertical Rackmount, 24 NEMA 5-15/20R outlets, NEMA L5-30P input
plug
Highlights
Metered single phase 30A 120V, 0U 63.75in / 162cm vertical rackmount PDU
Pair of digital meters report output current in amps for each load bank
Attached 10ft / 3.0m cord with NEMA L5-30P input plug
24 NEMA 5-15/20R outlets in two separately breakered load banks
Toolless button mount and bolt-down bracket installation hardware included
Description
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables
visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution
from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount
installation with included mounting accessories.
Applications
Ideal means of powering networking equipment in datacenters, computer rooms and network closets
Package Includes
PDUMV30 63.75 inch basic PDU with owner's manual
Set of 2 bolt-on plug retention brackets and installation hardware
Set of mounting brackets and installation hardware
Features
30A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 24A continuous)
Set of two lighted meters report PDU output current in amps for each 12 outlet load bank
Attached NEMA L5-30P 30A 120V input plug with 10ft / 3m line cord
0U vertical rackmount format installs using no rack spaces
24 NEMA 5-15/20R output receptacles
Outlets are arranged in two 12 outlet load banks, each with separate 20A breaker and current metering
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces
Cord retention brackets keep vital equipment plugs connected
Specifications
OVERVIEW
PDU Type Metered
OUTPUT
Frequency
compatibility
50 / 60 Hz
Output nominal
voltage
100-127V nominal, single phase
Overload protection Outlets are arranged in two separately breakered load banks. The top 20A breaker covers outlets on the upper half,
the bottom 20A breaker covers outlets on the lower half of the PDU. Each breakered bank covers 12 5-15/20R outlets.
Outlet quantity / type 24 5-15/20R (each outlet accepts 5-15P or 5-20P equipment plugs)
Outlet Type NEMA 5-15R, NEMA 5-20R
INPUT
PDU Input Voltage 100; 120; 127
Maximum Input
Amps (A)
30
Maximum Input
Amps (A) Details
Agency de-rated to 24A continuous
PDU Plug Type NEMA L5-30P
Input cord length (ft.) 10
Input cord length (m) 3
Phase Single-Phase
LEDS ALARMS & SWITCHES
Switches n/a
Front panel LEDs Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately
breakered 20A loading bank.
PHYSICAL
Shipping
Dimensions
(HWD/in)
64.5 x 3.5 x 4.75
Shipping
Dimensions
(HWD/cm)
163.8 x 8.9 x 12.1
Shipping weight
(lbs)
13
Shipping weight (kg) 5.9
Unit Dimensions
(HWD/in)
63.75 x 2.25 x 3.75
Unit Dimensions
(HWD/cm)
162 x 5.7 x 9.5
Unit weight (lbs) 8
Unit weight (kg) 3.6
Material of
construction
Aluminum
Style Vertical Rackmount, Wallmount, Raceway, Workbench
Form factors
supported
0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor Vertical (0U)
ENVIRONMENTAL
Relative Humidity 0-95% non-condensing
CERTIFICATIONS
Certifications Tested to UL60950-1 (USA, Canada), NOM (Mexico)
WARRANTY
Product Warranty
Period (Worldwide)
2-year limited warranty
Related Items
Optional Products
Related Model Description Qty.
P006-006-13LA 6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13 Left Angle) 1
P006-006-13RA 6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13 Right Angle) 1
P022-001 1-ft. 18AWG Power Extension cord (NEMA 5-15R to NEMA 5-15P) 1
P023-001 1-ft. 14AWG Power Adapter cord (NEMA L5-15R to NEMA 5-15P) 1
P044-06I 6-inch 12AWG Heavy Duty Power Adapter cord (NEMA-L5-20R to NEMA-5-20P) 1
P007-002 2-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P) 1
P030-002-5 5-Pack of 2-ft. 18AWG Power Cords NEMA 5-15P to IEC-320-C13) 1
P006-003 3-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13) 1
P006-004 4-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13) 1
P006-004-BL 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Blue Connectors 1
P006-004-GN 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Green Connectors 1
P006-004-RD 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Red Connectors 1
P006-004-YW 4-ft. 18AWG Power Cord (NEMA 5-15P to IEC-320-C13) with Yellow Connectors 1
P006-006 6-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13) 1
P006-006-2 6-ft. AC Power Splitter Cable (NEMA 5-15P to 2 x IEC-320-C13) 1
P006-006-515MF 6 ft. Piggyback Power Cord (NEMA 5-15P/R to IEC-320-C13 ) 1
P007-006 6-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P) 1
P007-010 10-ft. Heavy-Duty 14AWG Power cord (IEC-320-C13 to NEMA 5-15P) 1
P034-010 10-ft. 14AWG Heavy Duty Power cord ( IEC-320-C19 to NEMA 5-15P) 1
P006-010 10-ft. 18AWG Power cord ( NEMA 5-15P to IEC-320-C13) 1
P049-010 10-ft. 12AWG Heavy Duty Power cord (IEC-320-C19 to NEMA 5-20P) 1
P010-012 12-ft. 18AWG Power cord (NEMA 5-15P to IEC-320-C13) 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=3747.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
