TRENDnet TK-217i Manual de usuario
Quick Installation Guide
TK-217i
1.01
English 1
1. Before You Start
2. How to Install 2
3. Operation 3
4. Using the KVM Utility 4
1
Technical Specifications 10
Troubleshooting 11
Table of Contents
Version 11.11.2010
1. Before You Start
Ÿ
ŸUSB Mouse
ŸVGA Compatible Monitor
ŸComputers with a VGA port
ŸComputers with a USB Port
ŸWindows 7(32/64-bit)/Vista(32/64-bit)/XP(32/64-bit)/2000/2003 Server/Me/98SE,
Linux, and Mac OS
USB Keyboard
Package Contents
Ÿ
ŸMulti-Language Quick Installation Guide
ŸCD-ROM (Utility)
TK-217i
System Requirements
Software Utility Requirements
1
Supported Operating Systems CPU Memory
Windows 7 (32/64-bit)
Windows Vista (32/64-bit)
Mac OS X (10.6)
Mac OS X (10.4)
Windows XP (32/64-bit)
Mac OS X (10.5)
1GHz or above
800MHz or above
Intel Processor
333MHz or above
300MHz or above
867MHz or above
1GB RAM or above
512MB RAM or above
1GB RAM or above
256MB RAM or above
256MB RAM or above
512MB RAM or above
2. How to Install
2
1. Properly turn OFF your computers and monitors.
4. Turn ON the first computer and wait until
startup completes.
2. Connect the shared keyboard, monitor and
mouse to the KVM Switch's console ports.
To Computer
To Computer
Computer 1
Computer 2
3. Use the integrated KVM cables to connect
both of your computers to the KVM Switch.
5. Press the push button toggle switch to select
the second computer (Optional).
6. Turn ON the second computer and wait until
startup completes.
Your installation is now complete
3
3. Operation
Note:
1. The TK-217i KVM Switch does not require any drivers or software (optional).
2. For Computer switching, you can use the KVM Switch's push button switch, a
Hot-Key command sequence via keyboard, or the KVM Utility (Windows / MAC OS X
(10.4~10.6) only). For more information on the KVM utility, please see section 4,
Using the KVM Utility. Installing and using the KVM utility is optional.
Push button switch
Hot-Key Command Sequence
Universal Hot-Key Command
Press the push button switch to swich to the other
computer.
After pressing the Scroll Lock key, you have 2 seconds to press the Scroll Lock key
again. If you do not press a key within 2 seconds, the switch will exit hot-key mode.
Command Hot-Key Description
Select Computer Switch to the
other computer
Scroll Lock Scroll Lock
+
4
For Windows Users
4. Using the KVM Utility
1. Insert the Utility CD-ROM into your CD-ROM
Drive.
2. Click Run AUTORUN.EXE
(Windows 7/Vista Only)
4. Click Next. Then follow the Setup Wizard
instructions.
5. Click Finish.
3. Click Install Utility.
5
6. Double click on the USB KVM Switcher icon.
10. Right click on the KVM utility icon in the
system tray. If your computer is connect to
computer 1 port, you should see an icon with
the number 1. If your computer is connected
to computer 2, you should see an icon with
the number 2.
12. Click Start Auto-Scan to start Auto-Scan.
Right click the KVM Utility icon and select
Stop Auto-Scan to stop Auto-Scan.
11. Select the computer that you want to switch to.
8. Select a desired Auto Scan period (10~60).
Options are in increments of 5 seconds.
9. Once you made all desired changes, then click
OK.
7. If you would like to modify the hot key, type in a
character. You can enter any number, letter or
symbol. Control keys such as Alt, Ctrl, Shift,
CAPS LOCK, Tab, Esc, and Num Lock and
function keys cannot be used.
Example: CTRL + ALT + A.
6
For Mac OS X (10.4~10.6) Users
1. Insert the Utility CD-ROM into your CD-ROM
Drive.
2. Double-click on the TK-217i CD-ROM icon on
your desktop.
3. Double-click on the Macintosh folder.
4. Double-click on TrendnetUSBKVMSwitcher.pkg.
6. Select a destination and then click Continue.
5. Click Continue.
7
10. Double click on the Macintosh HD icon.
7. Click Install.
9. Click Close.
8. When the Authenticate screen appears, enter
the Name and Password for your computer
and then click OK.
11. Double click on the Applications icon.
12. Click on Trendnet USB-KVM Switcher.
8
13. Double click on the USB-KVM Switcher icon in
the Dock. If your computer is connect to
computer 1 port, you should see an icon with
the number 1. If your computer is connected
to computer 2, you should see an icon with
the number 2.

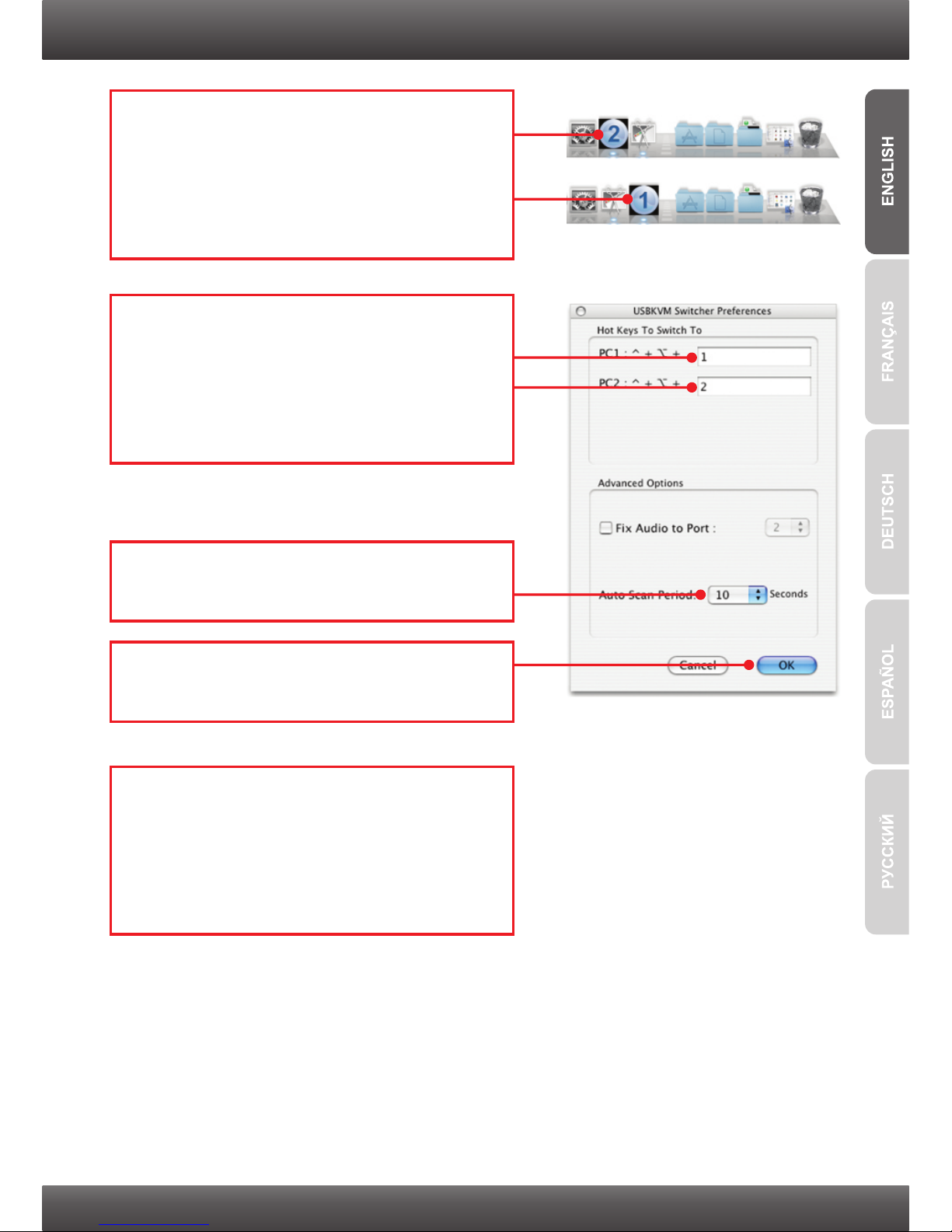

14. If you would like to modify the hot key, type in
a character. You can enter any number, letter
or symbol. Control keys such as Alt, Ctrl, Shift,
CAPS LOCK, Tab, Esc, and Num Lock and
function keys can not be used.
Example: CTRL + ALT + A.
15. Select a desired Auto Scan period (10~60).
Options are in increments of 5 seconds.
16. Once you made all desired changes, then
click OK.
17. Right click on the the USB-KVM Switcher icon
in the dock. If your computer is connect to
computer 1 port, you should see an icon with
the number 1. If your computer is connected
to computer 2, you should see an icon with
the number 2.
