TRENDnet TEG-448WS - Switch Manual de usuario

TEG-448WS

H/W: B2

Quick Installation Guide

Table of Contents

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation ........................................................................

3. Web Management Utility ....................................................................

................................................................................

Table of Contents

Version 03.31.2008

Troubleshooting ........................................................................................ 6

System Requirements

Application

TEG-448WS

Quick Installation Guide

Utility and User Guide CD-ROM

2 mounting brackets with screws

Rubber Cushions

AC Power Cord

Web Browser: Internet Explorer (5.0 or above)

Computer with Network adapter installed

(Optional) 4 Mini-GBIC Modules (e.g. TEG-MGBSX, TEG-MGBS10,

TEG-MGBS40, TEG-MGBS80, TEG-MGBS10D3_5, TEG-MGBS40D3_5)

Package Contents

1. Before You Start

English

Gigabit

48-Port Gigabit Web Smart Switch

(TEG-448WS)

Multi-Mode Mini

GBIC Module

(TEG-MGBSX)

Multi-Mode Mini

GBIC Module

(TEG-MGBSX)

Workstation with

10/100Mbps PCI Adapter

(TE100-PCIWN)

Servers with

Gigabit PCI Adapters

(TEG-PCITXR)

26-Port Gigabit Web Smart Switch

(TEG-224WSplus)

Cable/DSL

Modem

LC Type Cable

4-Port Gigabit Firewall Router

(TWG-BRF114)

Internet

10/100Mbps

Workstation with

10/100Mbps PCI Adapter

(TE100-PCIWN)

2. Hardware Installation

English

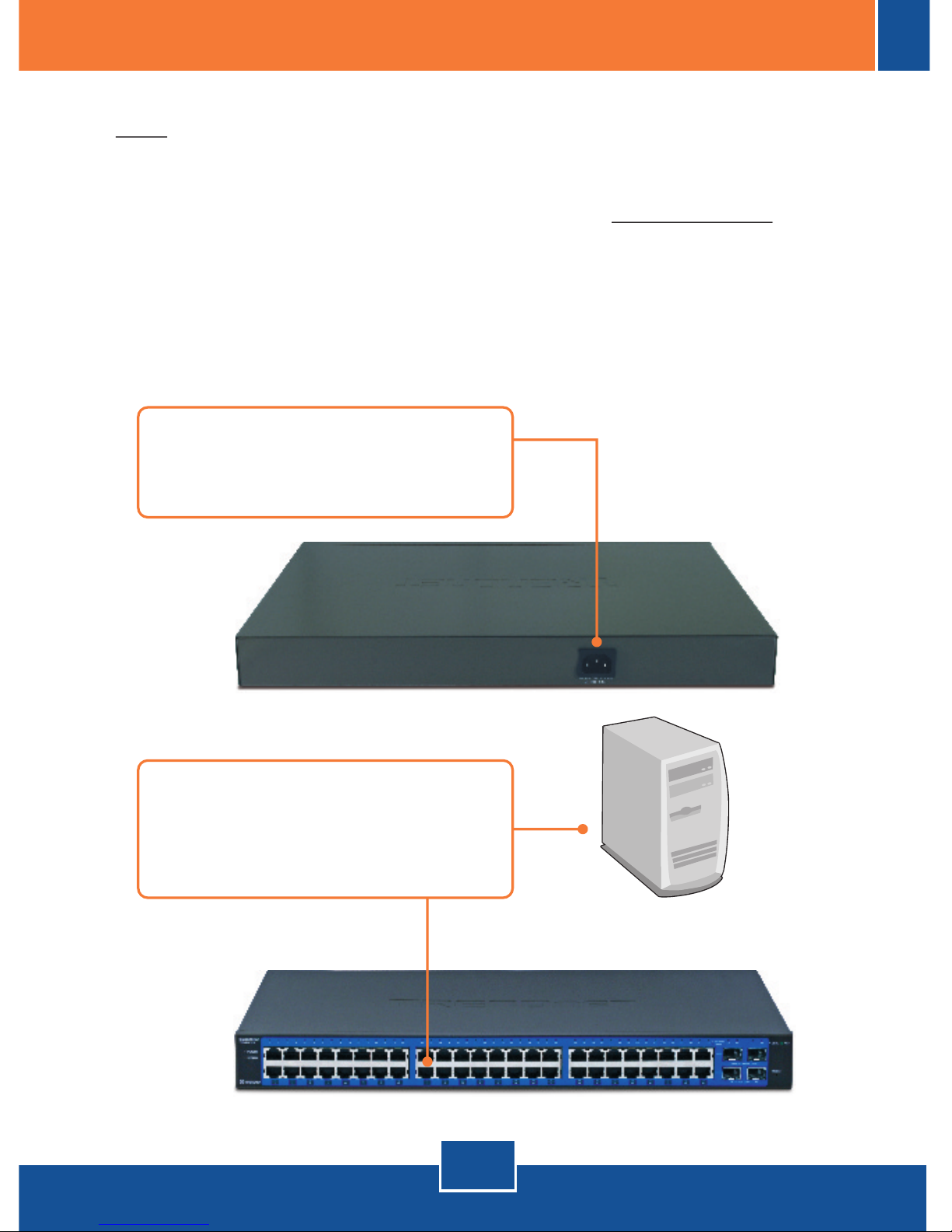

2. Connect a CAT-5e/6 RJ-45

network cable from the computer to

an available Ethernet port of the

TEG-448WS.

1. Connect the Power Cord to the

rear of the TEG-448WS and

then to a power outlet.

Note:

1. After hardware installation is complete, use the Web-based Smart Utility to

configure the TEG-448WS. To access the Web-based Smart Utility, open

your web browser, and enter the default IP Address http://192.168.0.1 and

default password "admin". Make sure your computer and the TEG-448WS

are configured to the same network segment.

2. The Mini-GBIC slots are shared with Gigabit Ethernet ports 45, 46, 47 and

48. When the Mini-GBIC slots are in use, Gigabit Ethernet ports 45, 46, 47

and 48 are disabled.

English

3. Web Management Utility

For Windows User

1. Insert the Utility CD-ROM into

your computer's CD-ROM Drive

and then click Install Utility.

2. Follow the Installation Wizard

instructions. Click OK.

Note: If you would like to easily discover all the Web Management Switches on

the network, assign IP Address, change the password, and upgrade to new

firmware, then install the Web Management Utility. Follow the steps below.

3. Click Start > Programs >

TRENDnet > Web Smart Switch

Management Utility, and

then click Web Smart Switch

Management Utility.

English

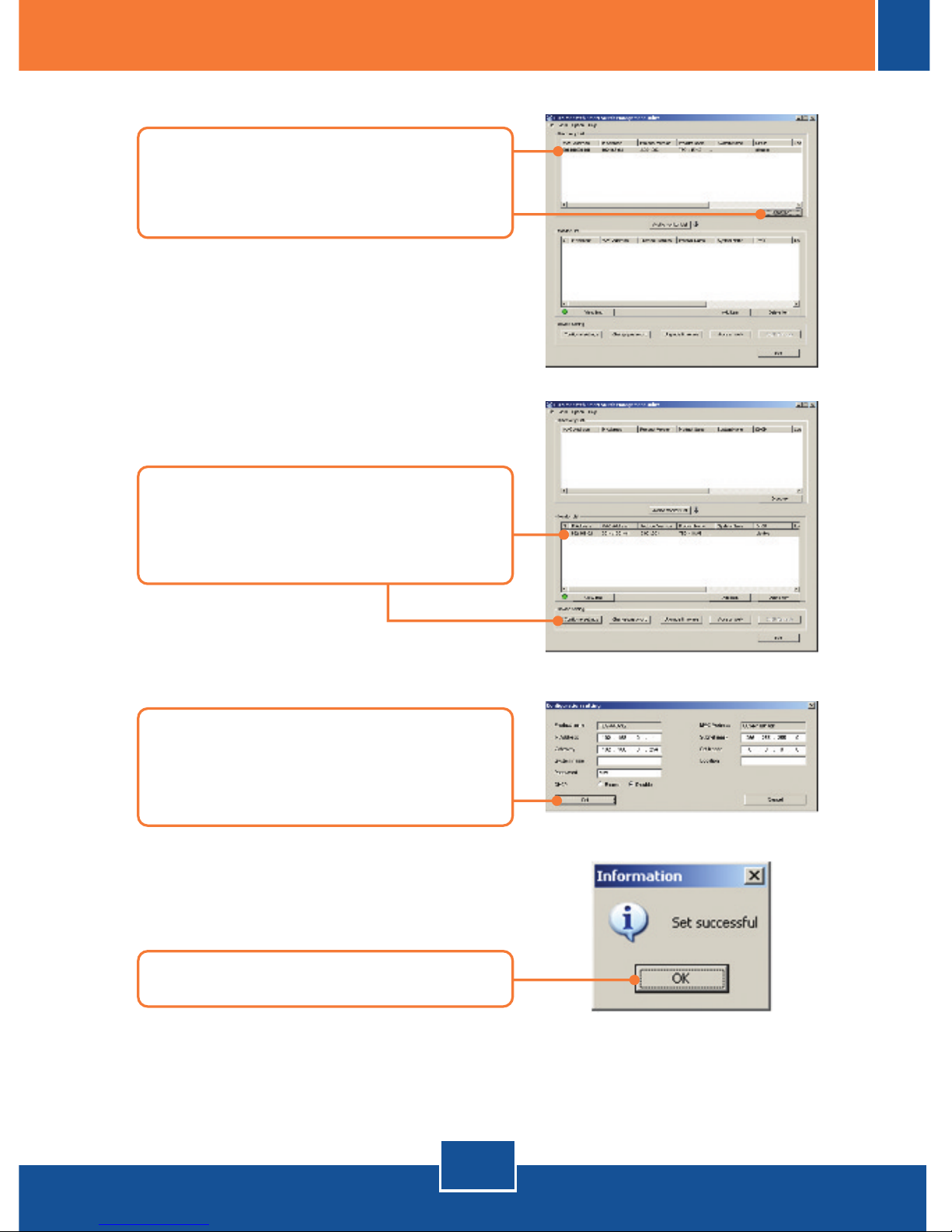

4. Click Discovery, and then double-

click the Switch that appears in

the Discovery List.

5. Click the Switch in the Monitor

List and then click Configuration

setting.

6. Configure the IP Address, Subnet

mask, Gateway, and Password.

Click Set.

7. Click OK.

English

8. Click Access web.

9. Type in your Password and then

click Login.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Your installation is now complete.

For more information regarding the

configuration and advanced settings, please refer to the User's Guide included

on the Utility CD-ROM or TRENDnet's website at www.trendnet.com

Web Smart Switch Management Utility

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

After connecting the TEG-448WS to a power outlet, the LEDs do not turn on.

Check the connection of the power cord to the TEG-448WS and the power

outlet. Also check that the power outlet is receiving power.

After installing the Web-Management Utility, I clicked Discovery and the Utility

is unable to discover the TEG-448WS. What should I do?

Make sure that the TEG-448WS is powered on and that all connections are

secure. Also check that your computer's IP address is on the same network

segment as the TEG-448WS. The default IP address of the TEG-448WS is

http://192.168.0.1 and the default password is "admin".

When I access the TEG-448WS using a web browser, I get a screen that tells

me “only one user can login”. What should I do?

Another computer is configuring the TEG-448WS. Please wait until the user

logs off. If the other user has already logged off and you still get the same screen,

then disconnect the power cord from the TEG-448WS, wait for 5 seconds,

reconnect the power cord to the TEG-448WS, allow 5 seconds for the switch to

power on, and then attempt to access the web configuration page to login.

I forgot the administration password. How do I reset my TEG-448WS?

Press on the reset button using a pen or paperclip for 10 seconds. The

default password is admin.

If you still encounter problems or have any questions regarding the TEG-448WS, please

refer to the User's Guide included on the Utility CD-ROM or contact TRENDnet's

Technical Support Department.

Troubleshooting

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register

20675 Manhattan Place

Torrance, CA 90501

USA
