TRENDnet TK-1604R Manual de usuario

TK-1604R

rev:08.14.2007

• 16-port stackable USB KVM switch with On Screen Display (OSD)

• Console port supports both USB & PS/2 interface

• Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and other MS compatible mice

• Supports Windows 98SE / ME / 2000 / XP / 2003 Server / Vista, Linux, Mac OS and more

• High video quality; up to 2048 x 1536 VGA resolution

• Firmware upgradeable via computer’s serial port

• On Screen Display (OSD) control for easy management

• Adjustable auto-scan via OSD control for monitoring multiple computers

• Keyboards status restored when switching between computers

• LED display for easy status monitoring

• Password protection with auto timeout logout

• Auto-detect bank number when daisy-chaining

• Built-in daisy-chain port for cascading up to 8 levels (64 computers)

• Beeping sound for port switching confirmation (enable/disable)

• Plug & play and hot-pluggable

• Standard 19” (1U) rack mount design

• 2-year warranty

FEATURES

The 16-Port USB KVM Switch with On Screen Display (TK-1604R)

lets you manage multiple computers with just one set of keyboard,

monitor and mouse. This rack mount device supports USB and PS/2

interface on the console side and USB interface on the PC side.

Users can switch between PCs using hot-key, push button or On

Screen Display for flexible management. Hot-plug PCs quickly to

avoid downtime. A maximum of 128 PC connections are supported

when you daisy chain multiple TK-1604R(s). The 16-Port USB KVM

Switch is the perfect choice for managing multiple PC's.

TK-1604R

16-Port Stackable Rack Mount USB KVM

Switch with OSD

NETWORKING SOLUTIONS

Standard

Keyboard Status

PC Ports

Power Adapter

Console Port

Supported OS

PC Selection

Dimension (W x H x D)

Weight

Humidity

Temperature

Certification

• 16 computers

• On-line (red), select (green)

• USB 1.1 compliant

• Saved & restored

• Operating: 0 °C~40 °C (32 °F~104 °F) Storage: -20 °C~60 °C (-4 °F~140 °F)

• CE, FCC

• 16 x VGA HDB 15-pin (female)

• 9V DC 1A external power adapter

• 1 x USB (type A) / PS/2 (6-pin Mini Din) mouse

• 407 x 165 x 45mm (16.0 x 6.5 x 1.8in.)

• Windows 95/98(SE)/ME/ 2000/NT/XP/2003 Server/Vista, Linux, Mac and more

• Hot-key, push buttons or On Screen Display control (OSD)

• 10-100 seconds (programmable through OSD menu)

• 0%~80% (non-condensing)

• 2.06kg (4.54lb.)

• 1 x USB (type A) / PS/2 (6-pin Mini Din) keyboard

• 1 x VGA HDB 15-pin (female)

Auto-Scan Interva

LEDs

Management

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

16-Port Stackable Rack Mount USB KVM Switch with OSD

TK-1604R

RELATED PRODUCTS

PACKAGE CONTENTS

TK-803R

TK-1602R

TK-802R 8-Port Stackable Rack Mount KVM Switch with OSD

• 1 x daisy-chain cable, 1 x daisy-chain terminator, 1 x firmware upgrade cable

8-Port Rack Mount USB KVM Switch

• TK-1604R

16-Port Stackable Rack Mount KVM Switch with OSD

• Multi-language quick installation guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

SPECIFICATIONS

• Power adapter (9VDC, 1A)

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

• Rack mount kit

TK-804R

TK-1603R 16-Port Rack Mount USB KVM Switch

8-Port Stackable Rack Mount USB KVM Switch with OSD

Daisy Chain • 8 levels (up to 128 computers)

Monitor

16-Port Stackable

Rack Mount USB

KVM Switch with OSD

(TK-1604R)

USB or PS/2

Mouse

USB or PS/2

Keyboard

PC 10

PC 1

PC 3

PC 5

PC 12PC 14

Monitor

Daisy-Chain

Stand Alone

Daisy-Chain

16-Port Stackable

Rack Mount USB

KVM Switch with OSD

(TK-1604R)

Master

USB or PS/2

Mouse

USB or PS/2

Keyboard

PC 2PC 4PC 6

Slave

PC 7

PC 16

PC 8

PC 9PC 11PC 13PC 15

Otros manuales para TK-1604R

Tabla de contenidos

Otros manuales de Cambiar de TRENDnet

TRENDnet

TRENDnet TEG-424WS Manual de usuario

TRENDnet

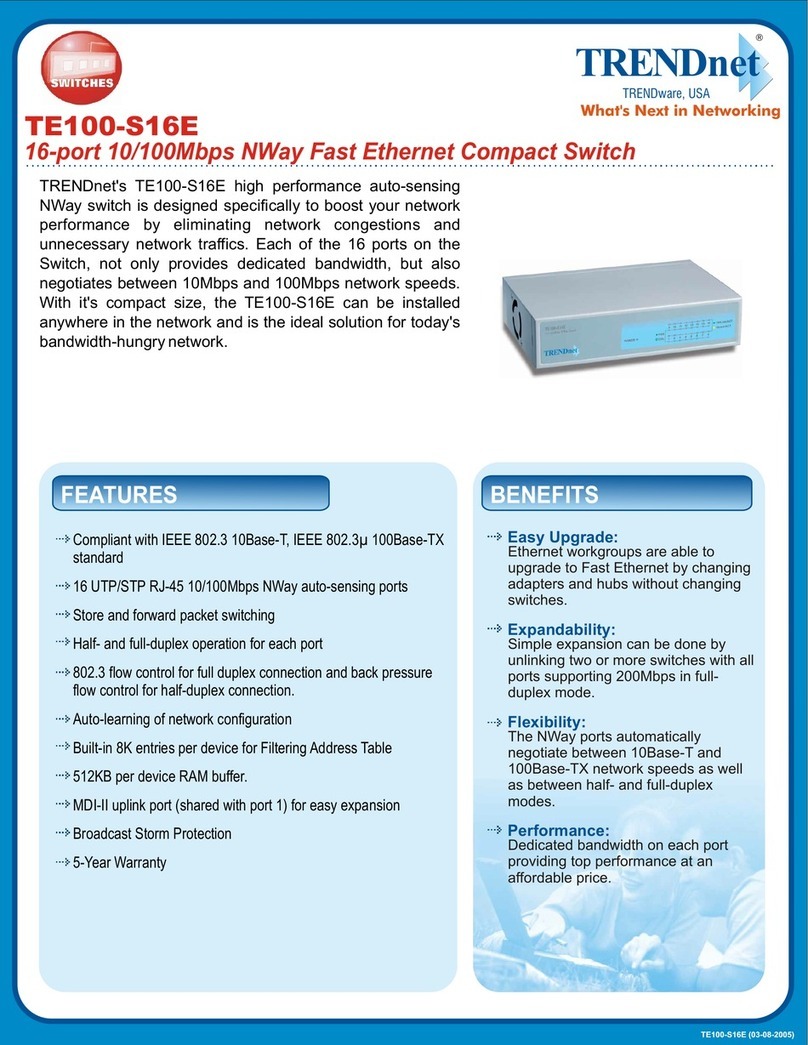

TRENDnet TE100-S16Eg Manual de usuario
