TRENDnet TK-204K Manual de usuario

kvm

TRENDnet’s TK-204K 2-port DVI-KVM encompasses all your

multimedia and multi-tasking needs into one cost effective solution.

Manage multiple PC’s effectively while enjoy audio-rich features

with one set of LCD monitor, keyboard, mouse, microphone, and

speakers.

TK-204K

2-Port High Quality DVI KVM Switch w/Audio

TK-204K

rev:01.23.2007

• 2-Port DVI, PS/2 Audio KVM Switch with Enhanced Digital Video Support

• DVI-I Interface Technology Supports Pure Digital Video Signal Transmission

• Compatible with DVI-D (Digital Only) Connector

• Supports Microsoft IntelliMouse, InteiliMouse Explorer, Logitech NetMouse and more

• Enhanced Digital Video Support up to 1600 x 1200 High VGA Resolution

• Direct Channel Selection and Operation using Push Buttons or Hot-Key Commands

• Auto-Scan Mode for monitoring PCs and Beeping Sound for Switching Confirmation

• Numerical LED Display for Easy Monitoring ( One 7-Segment LED)

• Share Audio and Microphone between Multimedia PCs

• Supports DOS, Windows 95/98(SE)/ME/2000/XP, Linux and more

• Plug & Play and Hot-Pluggable

• 2-Year Warranty

FEATURES

BENEFITS

Integration Friendly:

Does not require driver/software for the installation and operation.Switch between PCs with the push button

or Hot-Key operation.

Flexible:

Hot-Plug feature, add PCs or remove connected PCs without powering off the KVM switch or the other

PCs.

Cost Effective:

Manage two PCs with single keyboard, monitor, mouse and speakers/microphone. Save on equipment

cost, utility, and space.

Performance:

Support High Digital Video Quality up to 1600 x 1200.

PC Selection

PC Port Connector

Console Port Connector

Cable 2 sets of DVI-I Dual Link

KVM Cable (1.2m/4ft)

Keyboard/Mouse Emulation

Digital Display Resolution

Dimensions

Power

Weight

• DVI-I & DVI-D Compliant

• PS/2 Keyboard 6-pin Mini Din (Female)

• 1 x 3.5mm Microphone in/out jack

• Push Buttons or Hot-Key Commands

• 9V DC, 1A External Power Adapter

• 520g (18.4 oz.)

• 2 x PS/2 Mouse 6-pin Mini Din (Female)

• 2 x DVI-I Single Link (Female)

• 1 x PS/2 Keyboard 6-pin Mini Din (Female)

• 1 x 3.5mm Audio in/out jack

• PS/2

• To PC: PS/2 Keyboard 6-pin Mini Din (Male), PS/2 Mouse 6-pin Mini Din (Male), DVI-I Dual Link (Male),

Audio connector (Male), Microphone connector (Male)

• 140 x 86 x 45mm (5.5 x 3.4 x 1.8 inches)

• 1600 x 1200

• 1 x PS/2 Mouse 6-pin Mini Din (Female)

• 1 x DVI-I Single Link (Female)

• To KVM: PS/2 Keyboard 6-pin Mini Din (Male), PS/2 Mouse 6-pin Mini Din (Male), DVI-I Dual Link (Male)

Interface

Hardware

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

2-Port High Quality DVI KVM Switch w/Audio

TK-204K

RELATED PRODUCTS

PACKAGE CONTENTS

TK-404KR 4-Port Rack Mount DVI KVM Switch w/ Audio

• Multi-Language User’s Guide

• 2-Port DVI Audio KVM Switch

• 2 sets of DVI-I Dual Link Cables

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

SPECIFICATIONS

• Power Adapter (9V DC, 1A)

Temperature

Humidity

Certifications

• Operating: 0°~ 40°C (32°~ 104°F) • Storage: -20°~ 60°C (-4°~ 140°F)

• 0 ~ 90%RH, Non-Condensing

• FCC, CE

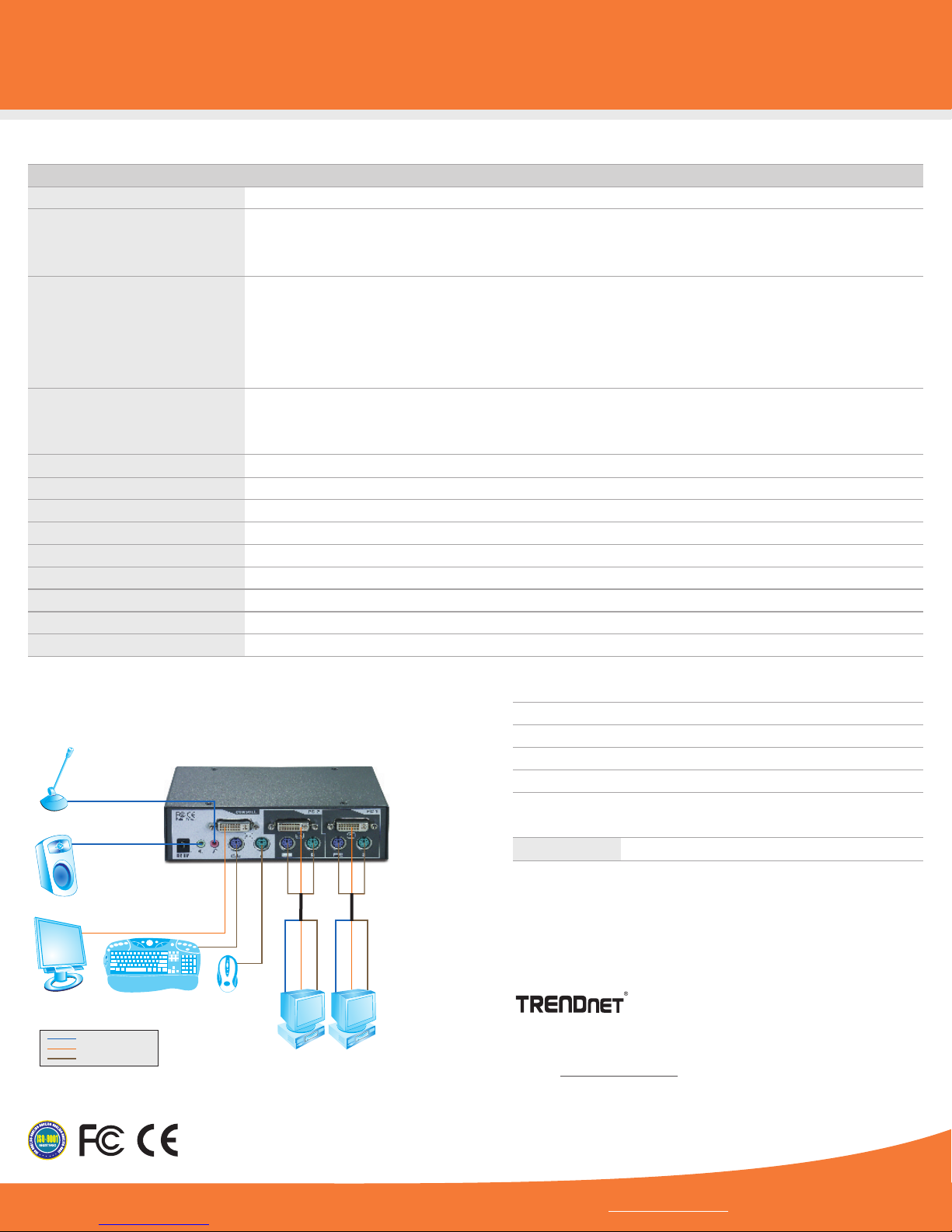

(TK-204K)

Keyboard Mouse

LCD Monitor

2-Port High Quality DVI

KVM Switch with Audio

Speaker

Microphone

Audio/Microphone Cable

DVI Cable

PS/2 Cable

PS/2

DVI

PC 2

PS/2

DVI

PS/2

Audio/Microphone

PS/2

DVI

PC 1

PS/2

DVI

PS/2

Audio/Microphone

DVI

PS/2

Audio

Microphone

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
