System Requirements

Package Contents

1. Before You Start

English

?AC Power Adapter (5V, 2.5A)

?1 x 2dBi Detachable Antenna

(

TV-IP110/TV-IP110W

Quick Installation Guide

Utility CD-ROM

TV-IP110W)

1.8m (5.9 ft) Cat.5 Fast Ethernet

cable

10/100Mbps Ethernet

CPU: Pentium 4 1GHz processor or above

Memory: 256MB RAM or above/ 512MB RAM or above (Windows Vista)

VGA Resolution: 800 x 600 or above

Web Brower: Internet Explorer (6.0 or higher)

Windows 2000/XP/Vista

Application

English

Modem

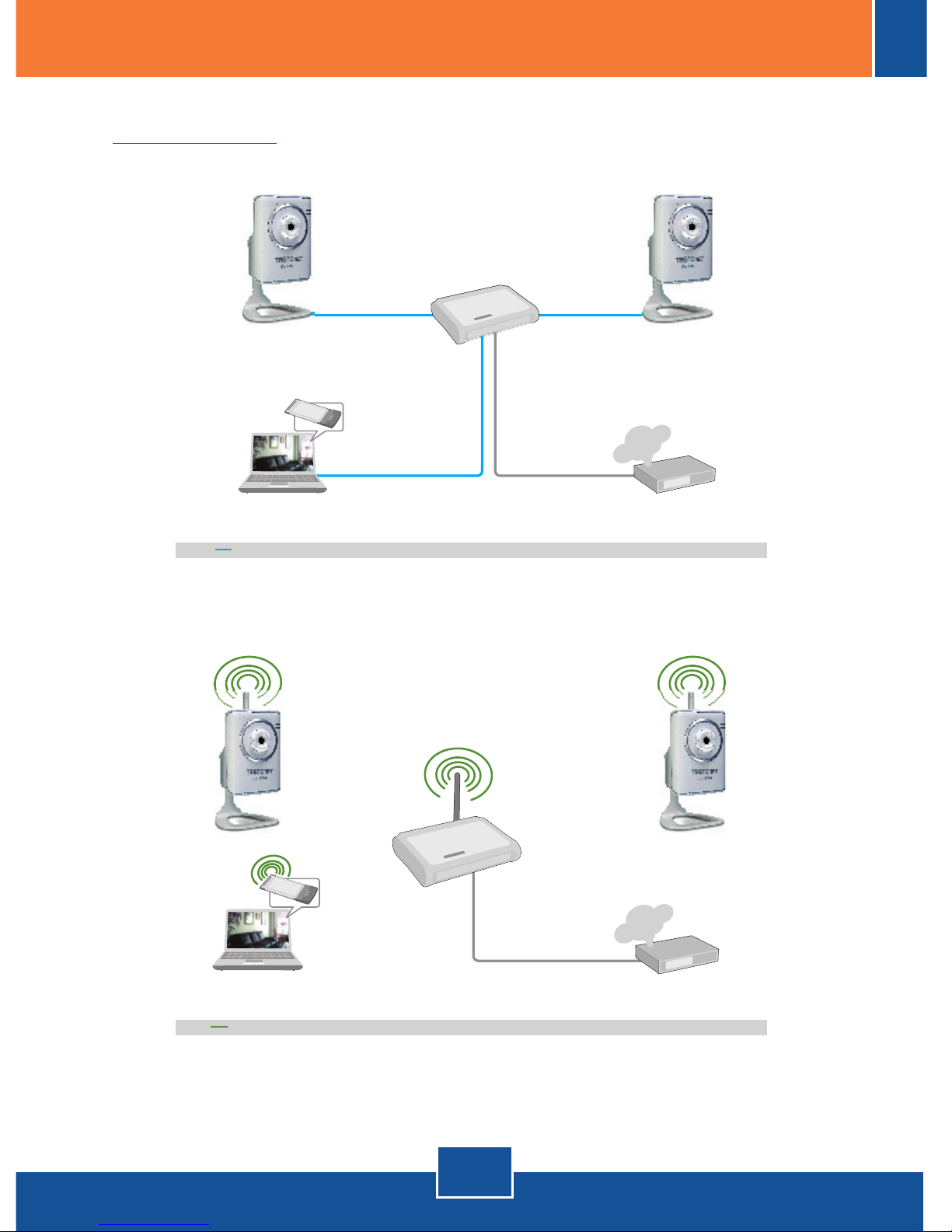

Internet Camera Server

(TV-IP110)

Cable/DSL 4-Port

Broadband Router

(TW100-S4W1CA)

Notebook with PC Card

(TE100-PCBUSR)

Internet

10/100Mbps

Wireless Internet Camera Server

(TV-IP110W)

Wireless G Firewall Router

(TEW-432BRP)

54Mbps

Modem

Notebook with

Wireless G PC Card

(TEW-421PC)

Internet

2. Hardware Installation

English

1. Attach the Antenna. (TV-IP110W)

3. Connect the AC Power Adapter to

the Internet Camera Server and

then to a power outlet.

4. Verify the Power and Link LEDs

are on. (TV-IP110W shown here)

2. Connect a RJ-45 network cable

from a Switch/Router to the

Ethernet port of the Internet

Camera.

English

1. Insert the Utility CD-ROM into your

CD-ROM drive and then click IP

Setup.

3. Configure the Internet Camera

Note: It is recommended that you configure the Internet Camera from a wired

computer. Since the Internet Camera's default IP address is 192.168.10.30,

make sure no other network devices are assigned an IP address of

192.168.10.30.

3. Go to Start -> Programs ->

TRENDnet -> IPSetup and click

IPSetup.

2. Follow the Installation Wizard

instructions and then click Close.

4. Select the Internet Camera and

click Change IP.

English

6. Click OK and wait 30 seconds.

5. Configure the IP address to be in

the same subnet as your network,

type in the Administrator ID and

Password and click Change. By

default:

ID: admin

Password: admin

7. Click OK.

8. Double click the Internet Camera to

access the browser configuration.

11. Click Install.

9. Enter the User name and

Password, and then click OK.

User Name: admin

Password: admin

10. Right click and select Install

Active X Control.

12. Click Network and then click

Wireless. Configure your

wireless settings to match your

wireless network's settings and

then click Apply (Enable/Enter

the WEP/WPA key when your

wireless network is encrypted.

Contact your network

administrator for more

information). (TV-IP110W only)

English

13. Disconnect the RJ-45 cable and

unplug the power. Then plug the

power back in (TV-IP110W).

14. Verify the Power and Link LEDs

are on.

15. Click Live View.

Note: For detailed information regarding the TV-IP110/ 110W configuration

and advanced settings, please refer to the Troubleshooting section, User's

Guide on the Utility CD-ROM, or TRENDnet's website at

http://www.trendnet.com.

TV-IP

Your installation is now complete.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Note: The TV-IP110W will not work wirelessly until you disconnect the Ethernet

cable from the back of the camera.

Q1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Q6:

A6:

The Image is blurry. How can I adjust the focus on the Internet camera?

You can adjust the Internet Camera’s focus by rotating the lens.

How do I configure TCP/IP settings on my computer?

When I click on Live View the image does not load?

First, make sure that you are using a browser that supports Java. Second, make sure

that Java is installed. Third, make sure that you added Active X. See step 10 and 11 in

Section 2: Configure the Internet Camera.

How do I connect the TV-IP110W to my wireless router or access point?

Make sure that you configure the camera to have the same SSID, encryption mode and

key (if enabled). Follow the instructions in section 2 to configure the camera with the SSID

and encryption key.

After I successfully configured the TV-IP110W to match my wireless network settings, I

can not connect to the camera.

First, verify that the wireless settings match your wireless network settings. Second,

verify in the wireless section of the browser configuration that the Enable option is checked.

Third, make sure to disconnect the Ethernet cable from the camera and verify that the LINK

LED is blinking green.

I forgot my password. What should I do?

Take a pin or paperclip and press the reset button on the back of the unit for 15 seconds.

This will return settings back to factory defaults. The default IP address is 192.168.10.30.

The default administrator ID and password is admin.

If you still encounter problems or have any questions regarding the TV-IP110/TV-IP110W, please

contact TRENDnet’s Technical Support Department.

Troubleshooting

1. Go into the Control Panel and double-click

the Network Connections icon, and then

right-click the Local Area Connection icon

and then click Properties.

2. Click Internet Protocol (TCP/IP) and then

click Properties. Then click on Use the

following IP address, and make sure you

assign your network adapter an IP address

in the subnet of 192.168.10.x.
