Application Note

CC2652RSIP Manual Information for the End User and

OEM Installation Guide

ABSTRACT

The OEM integrator must be aware not to provide information to the end user regarding how to install or remove

this RF module in the user’s manual of the end product which integrates this module. The end user manual must

include all required regulatory information/warning as shown in this manual.

Table of Contents

1 RF Function and Frequency Range...................................................................................................................................... 2

2 FCC and IC Certification and Statement...............................................................................................................................2

2.1 FCC....................................................................................................................................................................................2

2.2 CAN ICES-3(B) and NMB-3(B) Certification and Statement..............................................................................................3

2.3 End Product Labeling.........................................................................................................................................................3

2.4 Device Classifications........................................................................................................................................................ 4

2.5 FCC Definitions.................................................................................................................................................................. 4

2.6 Simultaneous Transmission Evaluations............................................................................................................................4

3 EU and UK Certification and Statement ...............................................................................................................................5

3.1 RF Exposure Information (MPE)........................................................................................................................................ 5

3.2 Simplified CE Declaration of Conformity Statement...........................................................................................................5

3.3 Simplified UK Declaration of Conformity Statement...........................................................................................................5

3.4 Waste Electrical and Electronic Equipment (WEEE)..........................................................................................................5

3.5 OEM and Host Manufacturer Responsibilities .................................................................................................................. 5

3.6 Antenna Specifications.......................................................................................................................................................5

4 End Product Labeling.............................................................................................................................................................7

Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SWRA742 – AUGUST 2022

Submit Document Feedback

CC2652RSIP Manual Information for the End User and OEM Installation Guide 1

1 RF Function and Frequency Range

The CC2652RSIPMOT is designed to operate in the 2.4GHz band.

Note

The maximum RF power transmitted in each 2.4GHz band is 5 dBm.

2 FCC and IC Certification and Statement

This device is intended for OEM integrators under the following conditions:

• The antenna must be installed such that 20 cm is maintained between the antenna and users

• The transmitter module may not be co-located with any other transmitter or antenna

• To comply with FCC / IC regulations limiting both maximum RF output power and human exposure to RF

radiation, the maximum antenna gain including cable loss in a mobile exposure condition must not exceed:

– +5.3 dBi in the 2.4 GHz band

In the event that these conditions cannot be met (for example certain laptop configurations or co-location with

another transmitter), then the FCC / IC authorization is no longer considered valid and the FCC / IC ID cannot

be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the

end product (including the transmitter) and obtaining a separate FCC / IC authorization.

2.1 FCC

The TI CC2652RSIPMOT module is certified for FCC as a single-modular transmitter. The module is an FCC-

certified radio module that carries a modular grant.

Users are cautioned that changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired

operation of the device.

CAUTION

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20 cm

between the radiator and your body.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from the one the receiver is connected to.

• Consult the dealer or an experienced radio or TV technician for help.

RF Function and Frequency Range www.ti.com

2CC2652RSIP Manual Information for the End User and OEM Installation Guide SWRA742 – AUGUST 2022

Submit Document Feedback

2.2 CAN ICES-3(B) and NMB-3(B) Certification and Statement

The TI CC2652RSIPMOT module is certified for IC as a single-modular transmitter. The TI CC2652RSIPMOT

module meets IC modular approval and labeling requirements. The IC follows the same testing and rules as the

FCC regarding certified modules in authorized equipment.

This device complies with Industry Canada license-exempt RSS standards.

Operation is subject to the following two conditions:

• This device may not cause interference.

• This device must accept any interference, including interference that may cause undesired operation of the

device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de

licence.

L'exploitation est autorisée aux deux conditions suivantes:

• L'appareil ne doit pas produire de brouillage

• L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.

CAUTION

IC RF Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm between the

radiator and your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un

environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20

cm de distance entre la source de rayonnement et votre corps.

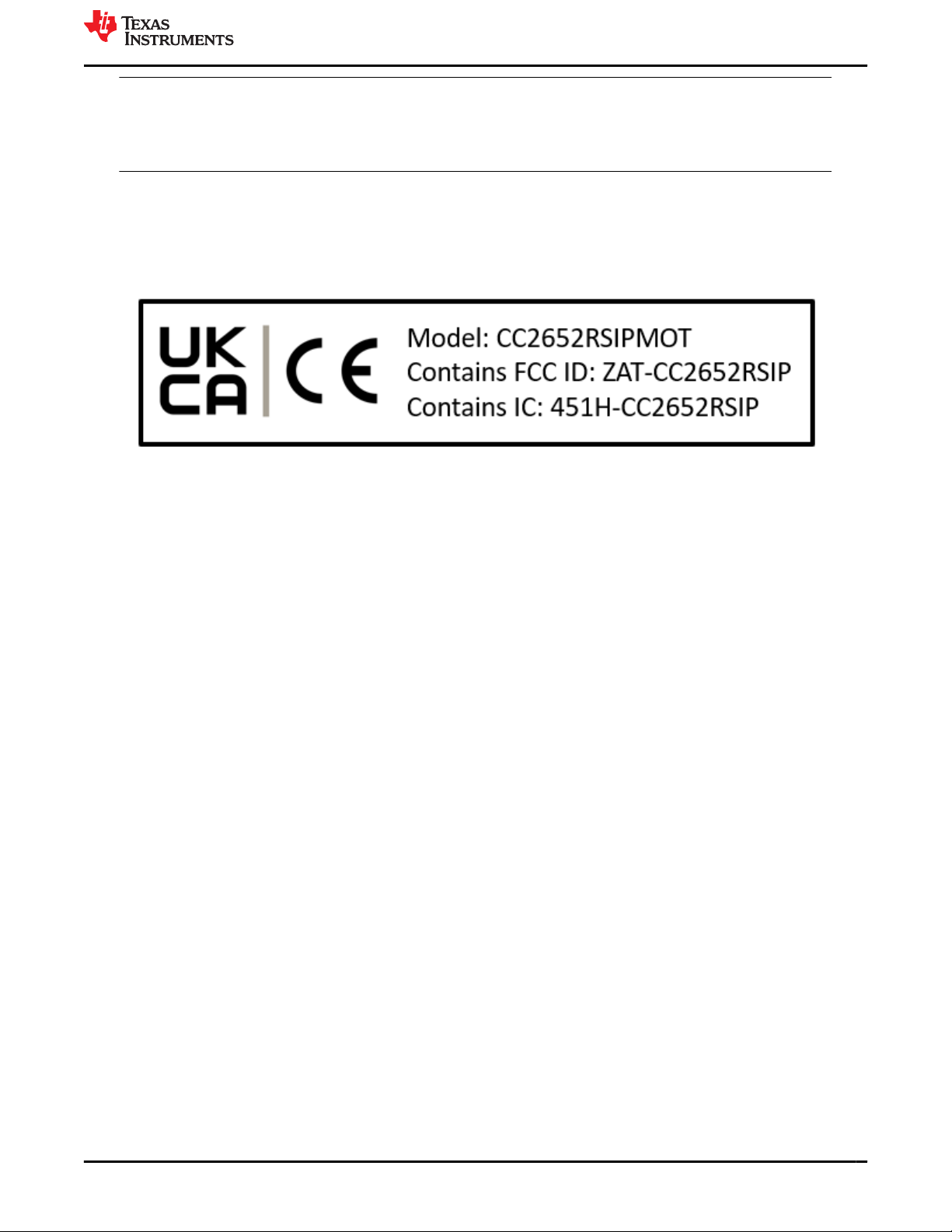

2.3 End Product Labeling

This module is designed to comply with the FCC statement, FCC ID: ZAT-CC2652RSIP. The host system using

this module must display a visible label indicating the following text:

• Contains FCC ID: ZAT-CC2652RSIP

This module is designed to comply with the IC statement, IC: 451H-CC2652RSIP. The host system using this

module must display a visible label indicating the following text:

• Contains IC: 451H-CC2652RSIP

www.ti.com FCC and IC Certification and Statement

SWRA742 – AUGUST 2022

Submit Document Feedback

CC2652RSIP Manual Information for the End User and OEM Installation Guide 3

2.4 Device Classifications

Since host devices vary widely with design features and configurations module integrators shall follow the

guidelines below regarding device classification and simultaneous transmission, and seek guidance from their

preferred regulatory test lab to determine how regulatory guidelines will impact the device compliance. Proactive

management of the regulatory process will minimize unexpected schedule delays and costs due to unplanned

testing activities.

The module integrator must determine the minimum distance required between their host device and the user’s

body. The FCC provides device classification definitions to assist in making the correct determination. Note that

these classifications are guidelines only; strict adherence to a device classification may not satisfy the regulatory

requirement as near-body device design details may vary widely. Your preferred test lab will be able to assist in

determining the appropriate device category for your host product and if a KDB or PBA must be submitted to the

FCC.

Note

The module you are using has been granted modular approval for mobile applications. Portable

applications may require further RF exposure (SAR) evaluations. It is also likely that the host / module

combination will need to undergo testing for FCC Part 15 regardless of the device classification. Your

preferred test lab will be able to assist in determining the exact tests which are required on the host /

module combination.

2.5 FCC Definitions

Portable: (§2.1093) — A portable device is defined as a transmitting device designed to be used so that the

radiating structure(s) of the device is / are within 20 centimeters of the body of the user.

Mobile: (§2.1091) (b) — A mobile device is defined as a transmitting device designed to be used in other than

fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is

normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.

Per §2.1091d(d)(4) In some cases (for example, modular or desktop transmitters), the potential conditions

of use of a device may not allow easy classification of that device as either Mobile or Portable. In these

cases, applicants are responsible for determining minimum distances for compliance for the intended use and

installation of the device based on evaluation of either specific absorption rate (SAR), field strength, or power

density, whichever is most appropriate.

2.6 Simultaneous Transmission Evaluations

This module has not been evaluated or approved for simultaneous transmission as it is impossible to determine

the exact multi-transmission scenario that a host manufacturer may choose. Any simultaneous transmission

condition established through module integration into a host product must be evaluated per the requirements in

KDB447498D01(8) and KDB616217D01,D03 (for laptop, notebook, netbook, and tablet applications).

These requirements include, but are not limited to:

• Transmitters and modules certified for mobile or portable exposure conditions can be incorporated in mobile

host devices without further testing or certification when:

• The closest separation among all simultaneous transmitting antennas is > 20 cm.

• Antenna separation distance and MPE compliance requirements for ALL simultaneous transmitting antennas

have been specified in the application filing of at least one of the certified transmitters within the host

device. In addition, when transmitters certified for portable use are incorporated in a mobile host device, the

antenna(s) must be > 5 cm from all other simultaneous transmitting antennas.

• All antennas in the final product must be at least 20 cm from users and nearby persons.

FCC and IC Certification and Statement www.ti.com

4CC2652RSIP Manual Information for the End User and OEM Installation Guide SWRA742 – AUGUST 2022

Submit Document Feedback

3 EU and UK Certification and Statement

3.1 RF Exposure Information (MPE)

This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. To comply with the

RF exposure requirements, this module must be installed in a host platform that is intended to be operated in a

minimum of 20 cm separation distance to the user.

3.2 Simplified CE Declaration of Conformity Statement

Hereby, Texas Instruments declares that the radio equipment type CC2652RSIPMOT complies with Directive

2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

• CC2652RSIPMOT: CE Delcaration of Conformity

3.3 Simplified UK Declaration of Conformity Statement

Hereby, Texas Instruments declares that the radio equipment type CC2652RSIPMOT complies with the Radio

Equipment Regulations 2017

The full text of the UK declaration of conformity is available at the following internet address:

• CC2652RSIPMOT: UK Declaration of Conformity

3.4 Waste Electrical and Electronic Equipment (WEEE)

Waste Electrical and Electronic Equipment (WEEE)

This symbol means that according to local laws and regulations your

product and/or battery shall be disposed of separately from household

waste. When this product reaches its end of life, take it to a collection point

designated by local authorities. Proper recycling of your product will protect

human health and the environment.

3.5 OEM and Host Manufacturer Responsibilities

OEM/Host manufacturers are ultimately responsible for the compliance of the Host and Module. The final

product must be reassessed against all the essential requirements of the Radio Equipment Directive (RED)

before it can be placed on the EU and UK markets. This includes reassessing the transmitter module for

compliance with the Radio and EMF essential requirements of the RED. This module must not be incorporated

into any other device or system without retesting for compliance as multi-radio and combined equipment.

3.6 Antenna Specifications

In all cases, assessment of the final product must be met against the Essential requirements of the Radio

Equipment Directive Article 3.1(a) and (b), safety and EMC respectively, as well as any relevant Article 3.3

requirements.

The following antennas were verified in the conformity testing, and for compliance the antenna shall not be

modified. A separate approval is required for all other operating configurations, including different antenna

configurations.

www.ti.com EU and UK Certification and Statement

SWRA742 – AUGUST 2022

Submit Document Feedback

CC2652RSIP Manual Information for the End User and OEM Installation Guide 5

Table 3-1. Antenna Specifications

Brand Antenna Type Model 2.4 GHz Gain

Antenna Information

1 Texas Instruments Inverted F - PCB Custom Antenna 3.3dBi

2 Custom Antenna 5.3dBi

3 Ethertronics Dipole 1000423 -0.6dBi

4 LSR Rubber Whip / Dipole 001-0012 2dBi

5 080-0013 2dBi

6 080-0014 2dBi

7 PIFA 001-0016 2.5dBi

8 001-0021 2.5dBi

9 Laird PCB CAF94504 2dBi

10 CAF9405 2dBi

11 Pulse Ceramic Chip W3006 3.2dBi

12 ACX Multilayer Chip AT3216-BR2R7HAA 0.5dBi

13 AT312-T2R4PAA 1.5dBi

14 TDK Multilayer Ceramic Chip

Antenna

ANT016008LCD2442MA1 1.6dBi

15 ANT016008LCD2442MA2 2.5dBi

16 Mitsubishi Material Chip Antenna AM03DP-ST01 1.6dBi

17 Antenna Unit UB18CP-100ST01 -1.0dBi

18 Taiyo Yuden Chip Antenna / Helical

Monopole

AF216M245001 1.5dBi

19 Chip Antenna /Monopole

Type

AH212M245001 1.3dBi

20 AH316M245001 1.9dBi

21 Antenna Technology Dipole AA2402SPU 2.0dBi

22 AA2402RSPU 2.0dBi

23 AA2402A-UFLLP 2.0dBi

24 AA2402AU-UFLLP 2.0dBi

25 Staf Mono-pole 1019-016 2.14dBi

26 1019-017 2.14dBi

27 1019-018 2.14dBi

28 1019-019 2.14dBi

29 Map Electronics Rubber Whip MEIWX-2411SAXX-2400 2.0dBi

30 MEIWX-2411RSXX-2400 2.0dBi

31 MEIWX-1511RSXX-2400 5.0dBi

32 MEIWX-151XSAXX-2400 5.0dBi

33 MEIWX-1451RSXX-2400 4.0dBi

34 MEIWX-282XSAXX-2400 2.0dBi

35 MEIWX-282XRSXX-2400 2.0dBi

36 MEIWF-HP01RS2X-2400 2.0dBi

37 Yageo Chip ANT3216A063R2400A 1.69dBi

38 Mag Layers Scientific Chip LTA-3216-2G4S3-A1 1dBi

39 LTA-3216-2G4S3-A3 2dBi

40 Advantech Rubber Whip / Dipole AN2450-5706RS 2.38dBi

41 AN2450-5010BRS 5.03dBi

42 AN2450-92K01BRS 5.03dBi

43 R-AN2400-5701RS 3.3dBi

EU and UK Certification and Statement www.ti.com

6CC2652RSIP Manual Information for the End User and OEM Installation Guide SWRA742 – AUGUST 2022

Submit Document Feedback

Note

If any other simultaneous transmission radio is installed in the host platform together with this

module, or above restrictions cannot be kept, a separate RF exposure assessment and CE equipment

certification is required.

4 End Product Labeling

In order to comply with the CC2652RSIP modular approval for use in Canada, Europe, Great Britain, and the

United States, OEM/Host manufacturers must including the following example label on their end product and

user manual:

www.ti.com End Product Labeling

SWRA742 – AUGUST 2022

Submit Document Feedback

CC2652RSIP Manual Information for the End User and OEM Installation Guide 7

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an

application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license

is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you

will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these

resources.

TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with

such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for

TI products.

TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Tabla de contenidos

Otros manuales de Microcontrolador de Texas Instruments

Texas Instruments

Texas Instruments MSP432 Manual de usuario

Texas Instruments

Texas Instruments CC1120 Manual de usuario

Texas Instruments

Texas Instruments TMS570LS12x Manual de usuario

Texas Instruments

Texas Instruments TMS370 Series Guía del usuario

Texas Instruments

Texas Instruments CC3220 Manual de usuario

Texas Instruments

Texas Instruments TMS320F28004x Manual del producto

Texas Instruments

Texas Instruments AM5728 Manual de usuario

Texas Instruments

Texas Instruments RM46L852 Manual de usuario

Texas Instruments

Texas Instruments MSP430F643 Series Manual de usuario

Texas Instruments

Texas Instruments LaunchPad MSP-EXP430FR5994 Manual de usuario

Texas Instruments

Texas Instruments MSP-EXPCC430RF Series Manual de usuario

Texas Instruments

Texas Instruments Jacinto7 Manual de usuario

Texas Instruments

Texas Instruments CC3220 Manual de usuario

Texas Instruments

Texas Instruments MSP430G2533 Manual de usuario

Texas Instruments

Texas Instruments MSP430FG6425 Manual de usuario

Texas Instruments

Texas Instruments CC2520EM Manual de usuario

Texas Instruments

Texas Instruments MSP430F67481 Manual de usuario

Texas Instruments

Texas Instruments TUSB3210 Manual de usuario

Texas Instruments

Texas Instruments MSP430F6721 Manual de usuario

Texas Instruments

Texas Instruments Serial Programming Adapter MSP430 Manual de usuario

Texas Instruments

Texas Instruments MSP430F67461 Manual de usuario

Texas Instruments

Texas Instruments TMS570LS3137 Manual de usuario

Texas Instruments

Texas Instruments MSP430F6748 Manual de usuario

Texas Instruments

Texas Instruments MSP430F22x4 Series Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario

Silicon Laboratories

Silicon Laboratories C8051F800 Manual de usuario

Energy micro

Energy micro EFM32 Giant Gecko Starter Kit Manual de usuario

Mikroe

Mikroe click Proximity 2 Manual de usuario
