Teltonika FMC234 Guía de instalación

FMC234

WATERPROOF GPRS/GNSS TRACKER

WITH HIGH-CAPACITY BATTERY

Quick Manual v1.2

Quick Manual v1.2 // FMC234 2

CONTENT

Know your device................................................................................................................................................................................................3

Pinout ...................................................................................................................................................................................................................4

Wiring scheme.....................................................................................................................................................................................................5

Set up your device ..............................................................................................................................................................................................6

PC Connection (Windows)..................................................................................................................................................................................7

How to install USB drivers (Windows) ..............................................................................................................................................................7

Conguration.......................................................................................................................................................................................................8

Quick SMS conguration................................................................................................................................................................................. 10

Mounting recommendations with a standard cable ................................................................................................................................... 12

Basic characteristics ........................................................................................................................................................................................ 13

LED indications................................................................................................................................................................................................. 13

Electrical characteristics.................................................................................................................................................................................. 16

Safety information .......................................................................................................................................................................................... 19

Certication and Approvals ............................................................................................................................................................................ 20

Warranty ........................................................................................................................................................................................................... 21

Warranty disclaimer......................................................................................................................................................................................... 21

Quick Manual v1.2 // FMC234 3

KNOW YOUR DEVICE

GNSS

ANTENNA

MICRO SIM

SLOT

BATTERY

SOCKET

STATUS

LED

NAVIGATE

LED

2x6

SOCKET

TOP VIEW TOP VIEW (WITHOUT COVER)BOTTOM VIEW (WITHOUT COVER)

Quick Manual v1.2 // FMC234 4

PIN NUMBER PIN NAME DESCRIPTION

1VCC (10-30)

V DC (+) Power supply (10-30 V DC).

2 DOUT 3 Digital output, channel 3. Open

collector output. Max. 0,5 A DC.

3DIN 3 /

AIN 2

Analog input, channel 2. Input

range: 0-30 V DC / Digital input,

channel 3.

4DIN 2-N /

AIN 1

Digital input, channel 2,

Negative input (ground sense),

Analog input, channel 1, Input

range: 0-30 VDC.

5 DIN 1 Digital input, channel 1.

6 INPUT 6 TX EXT (LVCAN – TX).

7 GND (-) Ground pin. (10-30) V DC (―)

8 DOUT 1 Digital output, channel 1. Open

collector output. Max. 0,5 A DC.

9 DOUT 2 Digital output, channel 2. Open

collector output. Max. 0,5 A DC.

10 1WIRE

POWER

+3,8 V output for 1–Wire

devices.

11 1WIRE

DATA Data for 1–Wire devices.

12 INPUT 5 RX EXT (LVCAN - RX).

PINOUT

DOUT2

1WIRE POWER

1WIRE DATA

GND

DOUT1

INPUT 5

DIN3/AIN2

DIN2-N/AIN1

DIN1

DOUT3

+10...30 V DC

INPUT 6

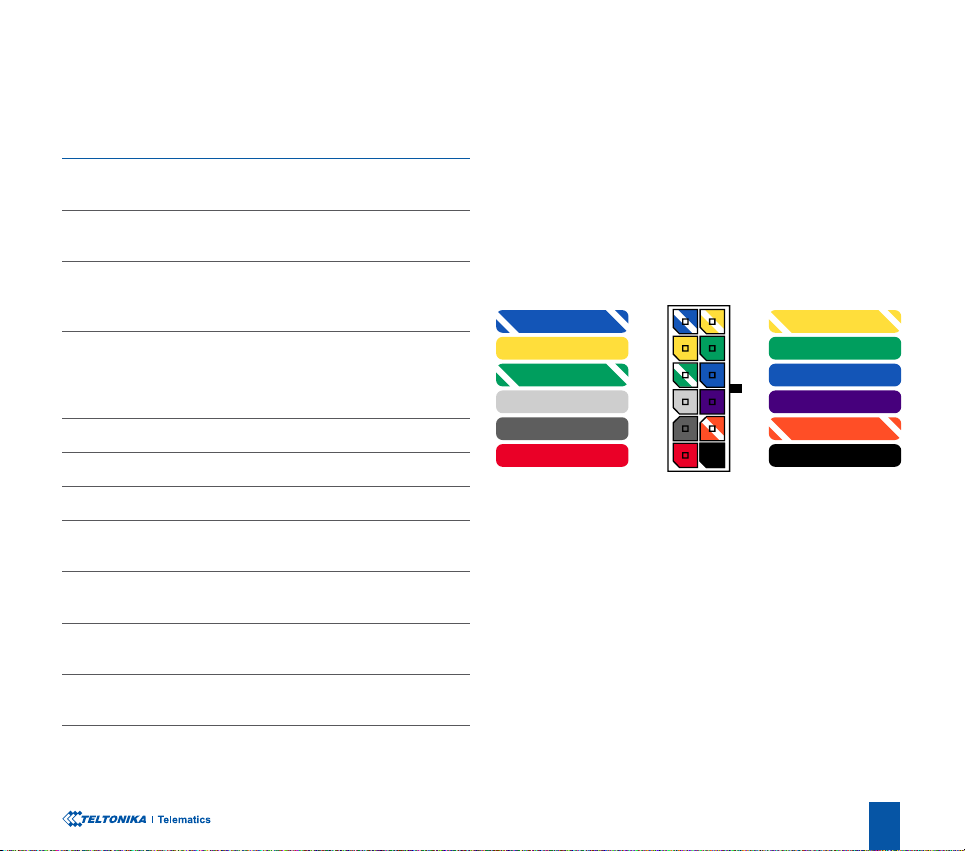

FMC234 2x6 socket pinout

Quick Manual v1.2 // FMC234 5

WIRING SCHEME

BUZZER

8586

87a

IGNITION

DETECTION

FUEL GAUGE

STARTER

IBUTTON

POWER SUPPLY

10 - 30V DC

ANALOG

LLS SENSOR

CAN-CONTROL

ALARM BUTTON

DOOR SENSOR CENTRAL LOCK

DOUT2

1WIRE POWER

1WIRE DATA

GND

DOUT1

INPUT 5

DIN3/AIN2

DIN2-N/AIN1

DIN1

DOUT3

+10...30 V DC

INPUT 6

AIN2

DIN3

DIN2

DIN2-N

Quick Manual v1.2 // FMC234 6

SET UP YOUR DEVICE

HOW TO INSERT MICRO-SIM CARD AND CONNECT THE BATTERY

PARTLY CLOSED DEVICE

BATTERY CONNECTION

SIM CARD INSERT

COMPLETELY CLOSED

DEVICE

IMPORTANT!

COVER REMOVAL

ATTACHING COVER BACK

You will receive your device

partly closed.

Connect battery as shown to

device. Position the battery

in place where it does not

obstruct other components.

Gently remove top and

bottom covers.

After conguration, see “PC

Connection (Windows)1”,

attach device top and bottom

cover back and press them

twice to the full closure.

1 Page 7, "PC Connection

(Windows)

Insert SIM card as shown with PIN request disabled or read

our Wiki1how to enter it later in Teltonika Congurator2. Make

sure that SIM card cut-o corner is pointing outward from slot.

SIM slot 1 is closer to PCB, SIM slot 2 is the top one.

1 wiki.teltonika-gps.com/view/FMC234_Security_info

2 wiki.teltonika-gps.com/view/Teltonika_Congurator

Make sure that product

casing is closed correctly.

This device has an IP67 casing

with a two-phase closing, that

ensures reliable protection and

ease of use. Please make sure

that product casing corner clips

are xed tightly and cable is

connected to the device in order

to maintain the degree of IP67

protection.

Quick Manual v1.2 // FMC234 7

PC CONNECTION (WINDOWS)

HOW TO INSTALL USB DRIVERS (WINDOWS)

1. Please download COM port drivers from here1.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the

setup.

1 teltonika.lt/downloads/en/FMC234/TeltonikaCOMDriver.zip

1. Power-up FMC234 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED

indications1”.

2. Connect device to computer using Micro-USB cable or Bluetooth®connection:

• Using Micro-USB cable

• You will need to install USB drivers, see “How to install USB drivers (Windows)2”

• Using Bluetooth® wireless technology

• FMC234 Bluetooth® technology is enabled by default. Turn on Bluetooth®connection on your PC, then select Add

Bluetooth or other device > Bluetooth. Choose your device named – “FMC234_last_7_imei_digits”, without LE in the end.

Enter default password 5555, press Connect and then select Done.

3. You are now ready to use the device on your computer.

1 wiki.teltonika-gps.com/view/FMC234_LED_status

2 Page 6, "How to install USB drivers"

Quick Manual v1.2 // FMC234 8

MS .NET REQUIREMENTS

Operating system MS .NET Framework version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1

1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462

At rst FMC234 device will have default factory settings set. These settings should be changed according to the users needs. Main

conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator

operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.

1 wiki.teltonika-gps.com/view/Teltonika_Congurator

2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions

CONFIGURATION

Quick Manual v1.2 // FMC234 9

Downloaded Congurator will be in compressed archive.

Extract it and launch Congurator.exe. After launch software

language can be changed by clicking

🌐

in the right bottom

corner.

Conguration process begins by pressing on connected device.

FMC234

Various Status window1 tabs display information about GNSS2,

GSM3, I/O4, Maintenance5and etc. FMC234 has one user

editable prole, which can be loaded and saved to the device.

After any modication of conguration the changes need to

be saved to device using Save to device button. Main buttons

oer following functionality:

 Load from device – loads conguration from device.

 Save to device – saves conguration to device.

 Load from le – loads conguration from le.

 Save to le – saves conguration to le.

 Update rmware – updates rmware on device.

 Read records – reads records from the device.

 Reboot device – restarts device.

 Reset conguration – sets device conguration to

default.

Most important congurator section is GPRS – where all

your server and GPRS settings6 can be congured and Data

Acquisition7 – where data acquiring parameters can be

congured. More details about FMC234 conguration using

Congurator can be found in our Wiki8.

After connection to Congurator Status window will be

displayed.

FMC234

1 wiki.teltonika-gps.com/view/FMC234_Status_info

2 wiki.teltonika-gps.com/view/FMC234_Status_info#GNSS_Info

3 wiki.teltonika-gps.com/view/FMC234_Status_info#GSM_Info

4 wiki.teltonika-gps.com/view/FMC234_Status_info#I.2FO_Info

5 wiki.teltonika-gps.com/view/FMC234_Status_info#Maintenance

6 wiki.teltonika-gps.com/index.php?title=FMC234_GPRS_settings

7 wiki.teltonika-gps.com/index.php?title=FMC234_Data_acquisition_

settings

8 wiki.teltonika-gps.com/index.php?title=FMC234_Conguration

Quick Manual v1.2 // FMC234 10

QUICK SMS CONFIGURATION

Default conguration has optimal parameters present to ensure best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS SETTINGS:

 2001 – APN

 2002 – APN username (if there are no APN username,

empty eld should be left)

 2003 – APN password (if there are no APN password,

empty eld should be left)

SERVER SETTINGS:

 2004 – Domain

 2005 – Port

 2006 – Data sending protocol (0 – TCP, 1 – UDP)

« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»

1 2 3 4 5 6
