Teltonika TMT250 Guía de instalación

Quick Manual

v1.0

Autonomous personal tracker

TMT250

TMT250 | Wiki

Table of Contents

Know your device .......................................................................... 3

Set up your device......................................................................... 4

How to insert Micro-SIM card and connect the battery................ 4

PC Connection (Windows)................................................................ 5

How to install USB drivers (Windows)............................................. 5

Configuration (Windows) ................................................................. 5

LED indication scenarios .............................................................. 7

Basic characteristics ..................................................................... 7

Safety information ........................................................................ 9

Certification and Approvals ....................................................... 10

Warranty ...................................................................................... 11

Warranty Disclaimer....................................................................... 11

TMT250 | Wiki

Know your device

Figure 1 TMT250 device view

TMT250 | Wiki

Set up your device

How to insert Micro-SIM card and

connect the battery

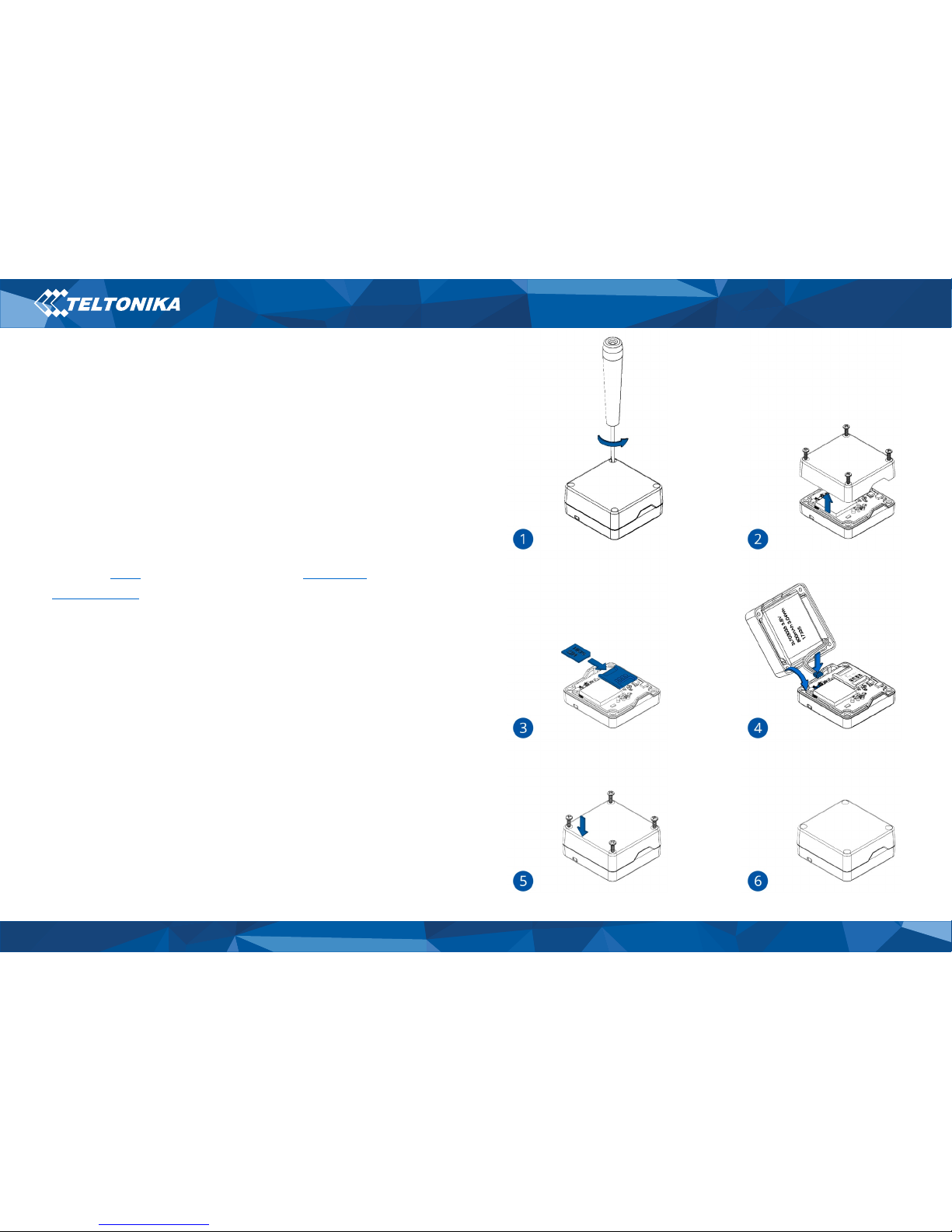

1. Unscrew 4 screws counterclockwise.

2. Remove the cover.

3. Insert Micro-SIM card as shown with PIN request disabled or

read our Wiki how to enter it later with Teltonika

Configurator. Make sure that Micro-SIM card cut-off corner is

pointing forward to slot.

4. Connect the battery as shown to device.

5. Attach device cover back and screw in all screws.

6. Device is ready to be used.

Figure 2 Attaching cover back Figure 7 Device is ready

Figure 4 Micro-SIM card insert Figure 3 Battery connection

Figure 5 Unscrew screws Figure 6 Cover removal

TMT250 | Wiki

PC Connection (Windows)

1. Turn on your device by holding the power button for around 5

seconds.

2. Connect your device to computer using Magnetic USB cable or

Blue-tooth connection:

•Using Magnetic USB cable

▬You will need to install USB drivers, see “How to install

USB drivers (Windows)”

•Using Blue-tooth

▬TMT250 Blue-tooth is enabled by default. Turn on Blue-

tooth on your PC, then select Add Blue-tooth or other

device > Blue-tooth. Choose your device named –

“TMT250_last_7_imei_digits”, without LE in the end.

Enter default password 5555, press Connect and then

select Done.

3. You are now ready to use the device on your computer.

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

Setup will continue installing the driver and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first TMT250 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Get the latest Configurator version from here.

Configurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct

version installed.

Table 1 MS .NET requirements

MS.NETrequirements

Operating

system

MS .NET Framework

version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2 32 and 64 bit www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it

and launch Configurator.exe. After launch software language can

be changed by clicking in the right bottom corner (Figure 8

Language selection).

TMT250 | Wiki

Configuration process begins by pressing on connected device

(Figure 9 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 10 Configurator Status window).

Various Status window tabs display information about GNSS,

GSM,I/O, Maintenance and etc. TMT250 has one user editable

profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device – loads configuration from device.

2. Save to device – saves configuration to device.

3. Load from file – loads configuration from file.

4. Save to file – saves configuration to file.

5. Update firmware – updates firmware on device.

6. Read records – reads records from the device.

7. Reboot device – restarts device.

8. Reset configuration – sets device configuration to

default.

Most important configurator section is GPRS – where all your

server and GPRS settings can be configured and Data Acquisition

–where data acquiring parameters can be configured.

More details about TMT250 configuration using Configurator can

be found in our Wiki.

Figure 9 Device connected via USB

Figure 8 Language selection

Figure 10 Configurator Status window

TMT250 | Wiki

LED indication scenarios

Table 2 LED indication scenarios

SCENARIO Meaning

GSM error

SIM is not inserted, device can’t

connect to the operator or GSM signal

is being jammed

No GNSS fix Device doesn’t have valid GNSS fix and

is searching for coordinates

GNSS fix Device has valid GNSS fix

Device off Device is turning off

Device on Device is turning on

Alarm key pressed Alarm button is pressed and held

Power key pressed Power key is pressed and held

Charging Device is charging

Charging error Overcurrent, low temperature or high

temperature

Fully charged Device is fully charged

Battery low Battery is almost fully discharged

I am alive Indication used to remind the user

that device is still operational

Note! This table contains only the default scenarios. Additional

scenarios/default ones can be modified using Teltonika

Configurator. User is able to select different indication color (Red,

Green or Blue), frequency of LED blinking and vibration status.

Basic characteristics

Table 3 Basic characteristics

Module

Name

TM2500

Technology

GSM, GPRS, GNSS, BLUE-TOOTH

GNSS

GNSS GPS, GLONASS, GALILEO, BEIDOU,

SBAS, QZSS, DGPS

Receiver 33 channel

Tracking sensitivity -165 dBM

Accuracy < 3 m

Hot start < 1 s

Warm start < 25 s

Cold start < 35 s

Cellular

Technology GSM

2G bands Quad-band 850 / 900 / 1800 / 1900

MHz

Data transfer GPRS Multi-Slot Class 12 (up to 240

kbps), GPRS Mobile Station Class B

Data support SMS (text/data)

Power

Charging voltage 5V DC

Battery 800 mAh Li-Ion battery (3,04 Wh)

Power consumption

1,5 mA (Ultra Deep Sleep)

3,5 mA (Deep Sleep)

4 mA (Online Deep Sleep)

8 mA (GPS Sleep)

44 mA (nominal)

TMT250 | Wiki

Blue-tooth

Specification 4.0 + LE

Supported peripherals Temperature and Humidity sensor,

Headset

Interface

Configurable buttons 2

GNSS antenna Internal High Gain

GSM antenna Internal High Gain

USB 2.0 Magnetic USB contact

LED indication 1 RGB LED

SIM Micro-SIM

Memory 128MB internal flash memory

Physicalspecification

Dimensions 44 x 43 x 20 mm (L x W x H)

Weight 40 g

Operatingenvironment

Operating temperature -25 °C to +55 °C

Storage temperature -40 °C to +70 °C

Charging temperature 0 °C to +45 °C

Operating humidity 5% to 95% non-condensing

Ingress Protection Rating IP67

Features

Sensors Accelerometer, Gyroscope

Scenarios

Overspeeding, Man-down, Alarm, Auto

Geofence, Manual Geofence, Action on

call, Movement Event

Sleep modes GPS Sleep, Online Deep Sleep, Deep

Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA Web, FOTA, FMB Configurator

(USB, Blue-tooth), FMBT mobile

application (Configuration)

SMS Configuration, Events, Debug

GPRS commands Configuration, Debug

Time Synchronization GPS, NITZ, NTP

TMT250 | Wiki

Safety information

This message contains information on how to operate TMT250

safely. By following these requirements and recommendations,

you will avoid dangerous situations. You must read these

instructions carefully and follow them strictly before operating the

device!

Use only original batteries. Using uncertified

manufacturer or different type batteries may

cause an explosion.

Use batteries safely. Protect batteries from

moisture, place them in a cool and dry place when

storing. Avoid extensive o

peration at high

temperatures. Do not attempt charging battery

directly from the electrical mains. All utilized

batteries shall comply with IEC 62133.

Power supply circuits used to charge the device

connection must have safeguards, which prevent

power

leakage, short circuits or incorrect

electrical grounding. Any used switches ought to

be installed in a readily accessible location. Power

must be uninterrupted.

Remove device safely. Device must be

disconnected from computer or charger by

unplugging th

e magnetic USB cable from the

device.

In order to prevent device from mechanical

damage it is advisable to transport it in a shock-

resistant packaging. If device stopped working

properly regardless of the settings only a

qualified specialist can help.

Operate the device in suitable conditions. Do not

use the device where mobile connectivity is

forbidden.

Road safety first. Comply with local traffic laws,

always hold you hands on a steering wheel when

using a device. Your safety is of utmost

importance when you drive.

All wireless devices are sensitive to

electromagnetic interference, as a result wireless

devices affect the performance of each other.

Charging precautions. SELV LPS chargers, personal

computers or laptops that device will be

connected to must comply with the requirements

of IEC 60950:2005 standard.

TMT250 | Wiki

Certification and Approvals

•TMT250 IP Rating

•TMT250 CE RED

•TMT250 REACH

•TMT250 Declaration of IMEI assignment

This sign on the package means that it is

necessary to read the User‘s Manual before

your start using the device. Full User‘s

Manual version can be found in our Wiki.

This sign on the package means that all used

electronic and electric equipment should not

be mixed with general household waste.

Hereby, Teltonika declare under our sole

responsibility that the above described

product is in conformity with the relevant

Community harmonization: European

Directive 2014/53/EU (RED).

Otros manuales para TMT250

Tabla de contenidos

Otros manuales de GPS de Teltonika

Teltonika

Teltonika FMB910 Manual de usuario

Teltonika

Teltonika FMB003 Guía de instalación

Teltonika

Teltonika Telematics FMC003 Manual de usuario

Teltonika

Teltonika GH1201 Manual de usuario

Teltonika

Teltonika FMB110 Guía de instalación

Teltonika

Teltonika MH2000 Manual

Teltonika

Teltonika GH4000 Manual de usuario

Teltonika

Teltonika FMC125 Manual de usuario

Teltonika

Teltonika FM3622 Manual de usuario

Teltonika

Teltonika FM3612 Manual de usuario

Teltonika

Teltonika FMT100 Guía de instalación

Teltonika

Teltonika Telematics FTC921 Guía de instalación

Teltonika

Teltonika FMB130 Manual de usuario

Teltonika

Teltonika FM3622 Manual de usuario

Teltonika

Teltonika FMB202 Guía de instalación

Teltonika

Teltonika FM1200 Manual de usuario

Teltonika

Teltonika FMB965 Manual de usuario

Teltonika

Teltonika FMC230 Guía de instalación

Teltonika

Teltonika GH4000 Manual de usuario

Teltonika

Teltonika MSP500 Guía de instalación

Teltonika

Teltonika FMB900 Guía de instalación y uso

Teltonika

Teltonika FM5500 Manual de usuario

Teltonika

Teltonika Telematics FTC881 Guía de instalación

Teltonika

Teltonika FMB010 Guía de instalación

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
