Teltonika FMB204 Guía de instalación

FMB204

Advanced waterproof tracker

Quick Manual v1.4

Quick Manual v1.4 // FMB204 2

CONTENT

Know your device................................................................................................................................................................................................3

Pinout ...................................................................................................................................................................................................................4

WIRING SCHEME .................................................................................................................................................................................................5

Set up your device ..............................................................................................................................................................................................6

PC Connection (Windows)..................................................................................................................................................................................7

How to install USB drivers (Windows) ..............................................................................................................................................................7

Conguration.......................................................................................................................................................................................................8

Quick SMS conguration................................................................................................................................................................................. 10

Mounting recommendations.......................................................................................................................................................................... 12

Basic characteristics ........................................................................................................................................................................................ 13

LED indications................................................................................................................................................................................................. 13

Electrical characteristics.................................................................................................................................................................................. 16

Safety information .......................................................................................................................................................................................... 17

Certication and Approvals ............................................................................................................................................................................ 18

Warranty ........................................................................................................................................................................................................... 19

Warranty disclaimer ........................................................................................................................................................................................ 19

Quick Manual v1.4 // FMB204 3

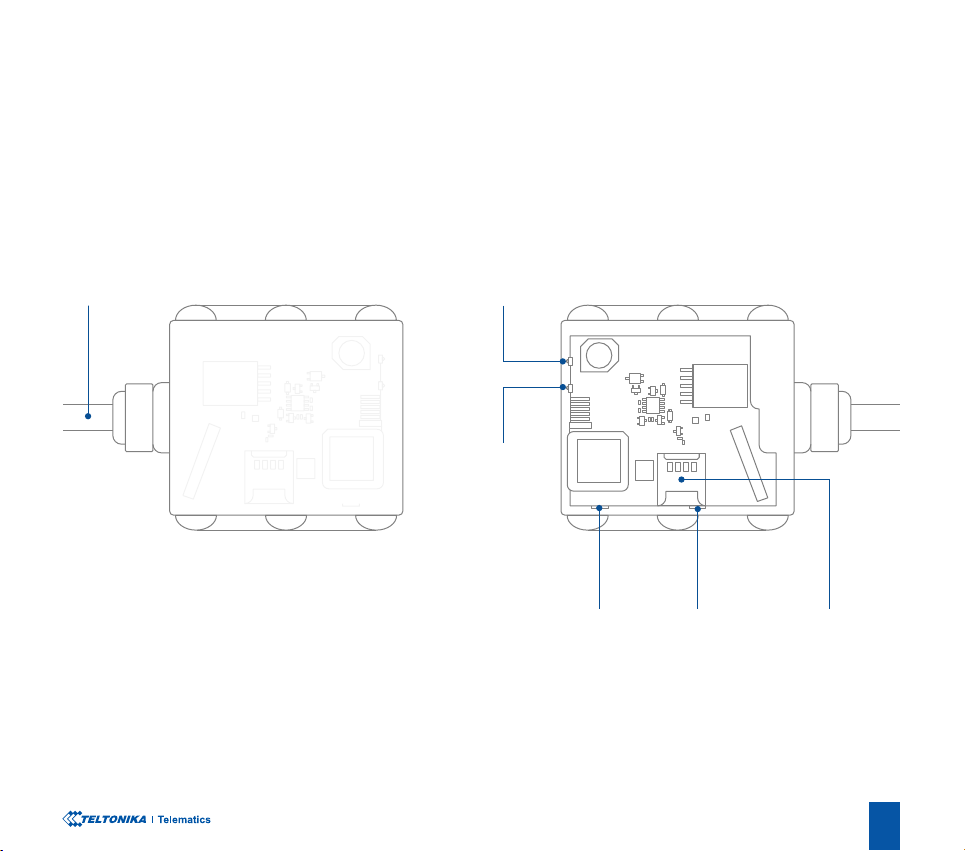

KNOW YOUR DEVICE

POWER

CABLE

NAVIGATE

LED

STATUS

LED

BATTERY

SOCKET

MICRO-USB

MICRO-SIM

SLOT

TOP VIEW TOP VIEW (WITHOUT COVER)

Quick Manual v1.4 // FMB204 4

PIN NAME DESCRIPTION

VCC (6-30) V Power supply (6-30) V DC (+).

GND (-) Ground pin. (6-30) V DC (-)

DIN 1 Digital input, channel 1.

DIN 2 Digital input, channel 2.

DIN 3 Digital input, channel 3.

AIN 1 Analog input, channel 1. Input

range: 0-30 V DC.

DOUT 1 Digital output, channel 1. Open

collector output. Max. 0,5 A DC.

DOUT 2 Digital output, channel 2. Open

collector output. Max. 0,5 A DC.

1WIRE DATA Data for 1–Wire devices.

1WIRE

POWER +3,8 V output for 1–Wire devices.

PINOUT

+6...30 V DC

GND

DIN3

AIN1

DIN1

1WIRE DATA

1WIRE POWER

DOUT2

DIN2

GND

+6...30 V DC

DOUT1

FMB204 wires

Quick Manual v1.4 // FMB204 5

WIRING SCHEME

BUZZER

IGNITION

DETECTION

FUEL GAUGE

STARTER

IBUTTON

POWER SUPPLY

6 - 30V DC

ANALOG

LLS SENSOR

MULTIPLE

TEMPERATURE

SENSORS

ALARM BUTTON

8586

87a

LED LIGHTS

RELAY

DOUT2

1WIRE POWER

1WIRE DATA

GND

DOUT1

DIN3

DIN1

AIN1

+6...30 V DC

DIN2

Quick Manual v1.4 // FMB204 6

SET UP YOUR DEVICE

HOW TO INSERT MICRO-SIM CARD

1UNSCREW SCREWS 3MICRO-SIM CARD INSERT

2COVER REMOVAL

Unscrew 6 screws counterclockwise that

are located on the bottom of the device.

4BATTERY CONNECTION 6DEVICE IS READY

5ATTACHING COVER BACK

Remove the cover Insert Micro-SIM card as shown with

PIN request disabled or read our

Wiki1how to enter it later in Teltonika

Congurator2. Make sure that Micro-

SIM card cut-o corner is pointing

forward to slot.

1 wiki.teltonika-gps.com/view/FMB204_

Security_info

2 wiki.teltonika-gps.com/view/Teltonika_

Congurator

Connect battery as shown to device. After conguration, see “PC Connection

(Windows)1”, attach device cover back

and screw in all screws.

1 Page 7, “PC Connection (Windows)

Device is ready to be mounted.

Quick Manual v1.4 // FMB204 7

PC CONNECTION (WINDOWS)

HOW TO INSTALL USB DRIVERS (WINDOWS)

1. Please download COM port drivers from here1.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the conrmation window will appear. Click Finish to complete the

setup.

1 teltonika.lt/downloads/en/FMB204/TeltonikaCOMDriver.zip

1. Power-up FMB204 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED

indications1”.

2. Connect device to computer using Micro-USB cable or Bluetooth connection:

• Using Micro-USB cable

• You will need to install USB drivers, see “How to install USB drivers (Windows)2”

• Using Bluetooth

• FMB204 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device >

Bluetooth. Choose your device named – “FMB204_last_7_imei_digits”, without LE in the end. Enter default password 5555,

press Connect and then select Done.

3. You are now ready to use the device on your computer.

1 wiki.teltonika-gps.com/view/FMB204_LED_status

2 Page 7, "How to install USB drivers"

Quick Manual v1.4 // FMB204 8

MS .NET REQUIREMENTS

Operating system MS .NET Framework version Version Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com1

1 dotnet.microsoft.com/en-us/download/dotnet-framework/net462

At rst FMB204 device will have default factory settings set. These settings should be changed according to the users needs. Main

conguration can be performed via Teltonika Congurator1software. Get the latest Congurator version from here2. Congurator

operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.

1 wiki.teltonika-gps.com/view/Teltonika_Congurator

2 wiki.teltonika-gps.com/view/Teltonika_Congurator_versions

CONFIGURATION

Quick Manual v1.4 // FMB204 9

Downloaded Congurator will be in compressed archive.

Extract it and launch Congurator.exe. After launch software

language can be changed by clicking 🌐 in the right bottom

corner.

Conguration process begins by pressing on connected device.

FMB204

Various Status window1 tabs display information about GNSS2,

GSM3, I/O4, Maintenance5and etc. FMB204 has one user

editable prole, which can be loaded and saved to the device.

After any modication of conguration the changes need to

be saved to device using Save to device button. Main buttons

oer following functionality:

 Load from device – loads conguration from device.

 Save to device – saves conguration to device.

 Load from le – loads conguration from le.

 Save to le – saves conguration to le.

 Update rmware – updates rmware on device.

 Read records – reads records from the device.

 Reboot device – restarts device.

 Reset conguration – sets device conguration to

default.

Most important congurator section is GPRS – where all

your server and GPRS settings6 can be congured and Data

Acquisition7 – where data acquiring parameters can be

congured. More details about FMB204 conguration using

Congurator can be found in our Wiki8.

After connection to Congurator Status window will be

displayed.

FMB204

1 wiki.teltonika-gps.com/view/FMB204_Status_info

2 wiki.teltonika-gps.com/view/FMB204_Status_info#GNSS_Info

3 wiki.teltonika-gps.com/view/FMB204_Status_info#GSM_Info

4 wiki.teltonika-gps.com/view/FMB204_Status_info#I.2FO_Info

5 wiki.teltonika-gps.com/view/FMB204_Status_info#Maintenance

6 wiki.teltonika-gps.com/index.php?title=FMB204_GPRS_settings

7 wiki.teltonika-gps.com/index.php?title=FMB204_Data_acquisition_

settings

8 wiki.teltonika-gps.com/index.php?title=FMB204_Conguration

Quick Manual v1.4 // FMB204 10

QUICK SMS CONFIGURATION

Default conguration has optimal parameters present to ensure best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS SETTINGS:

 2001 – APN

 2002 – APN username (if there are no APN username,

empty eld should be left)

 2003 – APN password (if there are no APN password,

empty eld should be left)

SERVER SETTINGS:

 2004 – Domain

 2005 – Port

 2006 – Data sending protocol (0 – TCP, 1 – UDP)

« setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0»

1 2 3 4 5 6
