TechniSat HDFV

Freeview HD Digital Receiver

Quick Start Guide

1 Contents List

The following items should be in your HDFV Freeview HD receiver box:

> HDFV

> Remote control and batteries

> HDMI lead

> Mains adaptor

> Owner’s Manual

> Quick Start Guide

2 Setup – Connection of the Receiver

a. Mains adaptor

b. Connection between the

antenna and the aerial

input of the DVB receiver.

c. HDMI connection between

the receiver and the TV.

d. Scart connection between

the DVB receiver and the

television set.

e. Scart connection from a

VCR to the Scart socket of

the DVB receiver.

f. Connection between the

audio outputs and a HiFi or

surround sound system.

VCR

2.1 Connection (a)

Connect all the ancillary cables before connecting the HDFV to the mains supply.

> After you have made all connections in accordance with the following infor-

mation, connect the receiver to a mains socket using the enclosed power

adaptor.

2.2 Antenna Connection (b)

> Connect the aerial input of the receiver using a suitable coaxial cable to

your external antenna.

2.3 Connection to a TV (c & d)

> Connect the receiver’s HDMI output to the TV HDMI input using the sup-

plied HDMI cable. Select the HDMI source on the TV using the TV remote

control.

Alternatively:

> Use a SCART cable to connect the receiver SCART socket with the tel-

evision SCART socket. If your television is appropriately equipped, it will

automatically switch to the correct AV source when the receiver is switched

on.

2.4 Connection to a Video cassette recorder (VCR)

or DVD Recorder (d)

> With the TV connected to the receiver with the HDMI cable, the SCART

socket can be used to connect to a VCR or DVD recorder. The VCR or

DVD recorder can then be connected to the TV using another SCART ca-

ble for playing back recordings.

2.5 Audio connection to a Hi-Fi or Surround Sound

system (e)

> Connect either the analogue or digital audio output of the receiver to the

appropriate input on a Hi-Fi or Surround Sound system.

3 Power Up

1. Connect the mains adaptor to a mains socket.

2. The unit will now be powered and in standby.

3. Power on by pressing the red standby key on the remote control or the

standby button on the front of the freesat receiver (identi ed by a red sur-

round).

4. The power button surround will now illuminate green to indicate that it is

operational.

4 Initial installation

When powering on the HDFV for the  rst time an automatic installation process will

start.

2.1 Welcome

and start-up

Press the OK key on the remote

control to begin the installation

2.2 AV Output

Using the arrow keys, select the

AV output that you have con-

nected to the TV, then press OK

to continue.

The receiver defaults to SCART

mode and when HDMI mode is

selected, the receiver tests the

connection. When it reports back

that the test was successful, the

settings must then be accepted

by pressing the OK key.

2.3. Screen format

The Screen format step allows

you to set your TV screen format

(aspect ratio) to either normal 4:3

or 16:9 widescreen format. Press

OK to continue.

2.4. Antenna

conguration

For a standard installation, ac-

cept the default antenna congu-

ration and press OK to start the

channel search.

2.5 Channel search

When all the channels have been

found press the OK key to nish

the installation.

2.6 Standby

It is important to ensure that the

HDFV is placed in standby when

not in use as during this time

the unit checks for any available

software updates. If an update

is available you will be informed

when the unit comes out of

standby.

5 Programme Information Banner

The programme information banner is displayed when you change a channel or

when you press the ‘i’ key while viewing a tv channel.

> Press the ‘i’ key while watching a tv channel to see extended information

about the current programme

6 Electronic Programme Guide (EPG)

The EPG shows an 8 day programme schedule for all channels and provides vari-

ous ways to view this information.

> Press the ‘guide’ key on the remote control to display the EPG in the default

Grid view.

> Use the up/down arrow keys and the OK key to move around the schedule.

Press the ‘i’ key for information on the selected programme. Press the red

key to set timers for programmes.

> Press the blue key to show

a menu to change how you

view the guide.

> Refer to the User Guide for

further details of the EPG

features.

7 Navigator

The Navigator gives you a quick way of viewing and selecting new channels.

> Press the OK key to view the Navigator and list of

channels.

> Use up/down arrow keys to highlight a channel and

press OK to switch to the selected channel.

> Refer to the Owner’s manual for full details of the

Navigator

8 Retuning the receiver

You may need to retune the receiver at some point if new channels become available

or if you move to a new transmitter region. To ensure you nd all available channels

follow the steps below:

> Press the ‘menu’ key to display the

main menu options.

> Use up/down arrows and the OK

key to select ‘Channel search’ and

then ‘Automatic search’.

> Ensure ‘All Channels’ is selected

and then select ‘Start search’.

Press the green ‘Accept’ key to

start an automatic channel search.

9 Service and support

If you need technical support please use the following contact details:

Tel: 0845 467 1935

 OpeningHours: MondaytoFriday09:00to17:00

Saturday 09:00 to 13:00

Email: [email protected]

Website: www.technisat.co.uk

2233660001000

Tabla de contenidos

Otros manuales de Receptor de TechniSat

TechniSat

TechniSat DigiPlus STR 1 Manual de usuario

TechniSat

TechniSat DigiBox CRYPTOWORKS Manual de usuario

TechniSat

TechniSat DIGIT MF4-S Manual de usuario

TechniSat

TechniSat DigiCorder HD series Manual

TechniSat

TechniSat DigiPal 1 Manual de usuario

TechniSat

TechniSat TERRABOX T3 Manual de usuario

TechniSat

TechniSat SkyStar USB HD Manual de usuario

TechniSat

TechniSat TECHNISTAR S6 Guía de instalación y uso

TechniSat

TechniSat TECHNISTAR S5 Manual de instrucciones

TechniSat

TechniSat DigiCorder T1 Manual de usuario

TechniSat

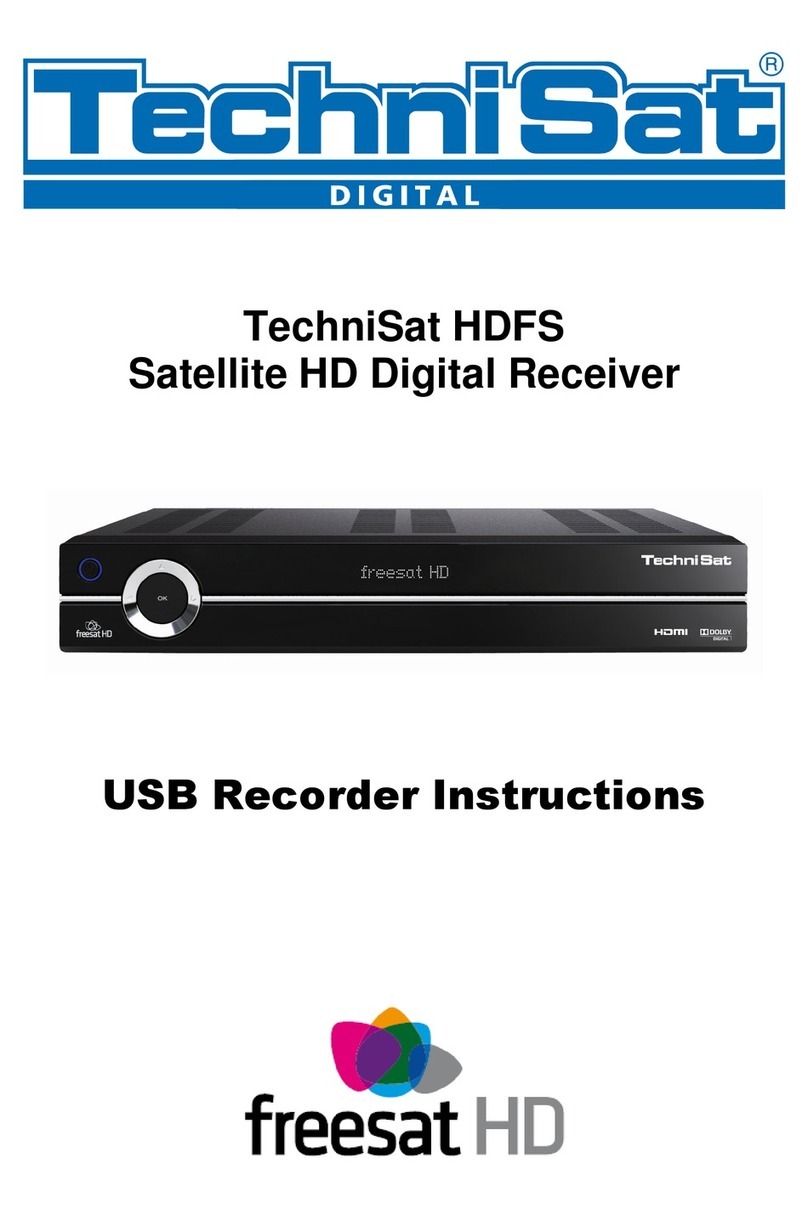

TechniSat HDFS Manual de usuario

TechniSat

TechniSat HD-S 261 Manual de usuario

TechniSat

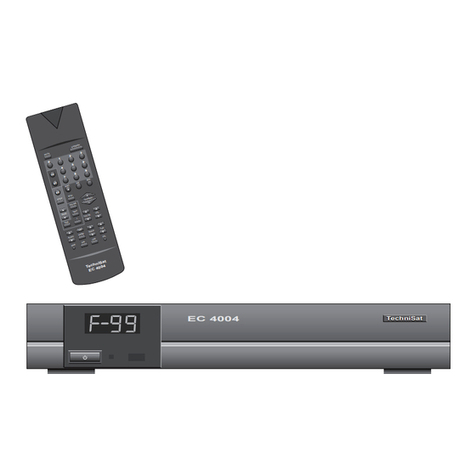

TechniSat EC 4004 Manual de usuario
