User manualTERRABOX T3DVB-T2 receiver with USB recording function
Foreword
Dear Customer, Thank you for choosing TechniSat TERRABOX T3 Digital Terrestrial Receiver. This user manual is intended to help you learn about and make the most of the extensive features of your new device. It will help you to use your digital receiver safely and as intended. The manual is intended for anyone who installs, connects, operates, cleans or disposes of the receiver. Keep this manual in a safe place for future reference. Detailed information on the operation of the unit is provided in this manual and we have tried to make the manual as clear and concise as possible. We wish you much pleasure in using the TechniSat TERRABOX T3. Digital Imports Team43 Canada Crescent, Hornby SouthChristchurch 8042, New Zealand+64 3 344 5417 https://digitalimports.co.nz
Contents1 Pictures and description of the device42 Please read first62.1 Purpose of the device62.2 Safety instructions62.3 Interruptions in operation92.4 Important information about backing up data92.5 Remote control / Battery change92.6Disposal instructions93 Connecting the receiver103.1Connection to power supply103.2Connecting to a TV103.3 USB connector103.4 Connecting the antenna cable103.5 First start-up104 Basic operation114.1 Turning the device on / off114.2Calling up the main menu and menu navigation114.3 List of programs (Channel list)124.4Picture settings144.5Channel search154.6Time and Region174.7 Additional Options184.8 System194.9USB214.10PVR configuration224.11PVR Media Playback235 Useful functions24 5.1EPG24 5.2 Selecting an audio track24 5.3 Subtitles25 5.4 Recording25 5.5 Time Shift26 5.6 Information about the program266Legal information27 7Service Information and Warranty288Cleaning28 9Specification2910Trouble Shooting32
1. Pictures and description of the deviceRemote controllerLearning functionSome of the remote control buttons can be freely programmed. This function allows you to transfer some functions of TV remote control to the decoder remote control. Thanks to this function, you may switch on the TV set, change volume or choose signal source. Programming the buttons with the Learning function•Press the SET button until the red LED on the remote control lights up solidly.•Next, press the button you wish to program on the remote control. •The LED starts blinking. •Press the button on the TV remote control that you want to transfer to the decoder remote control. The TV remote control and the decoder remote control should be 3-5 cm apart, with their transmitters facing each other.

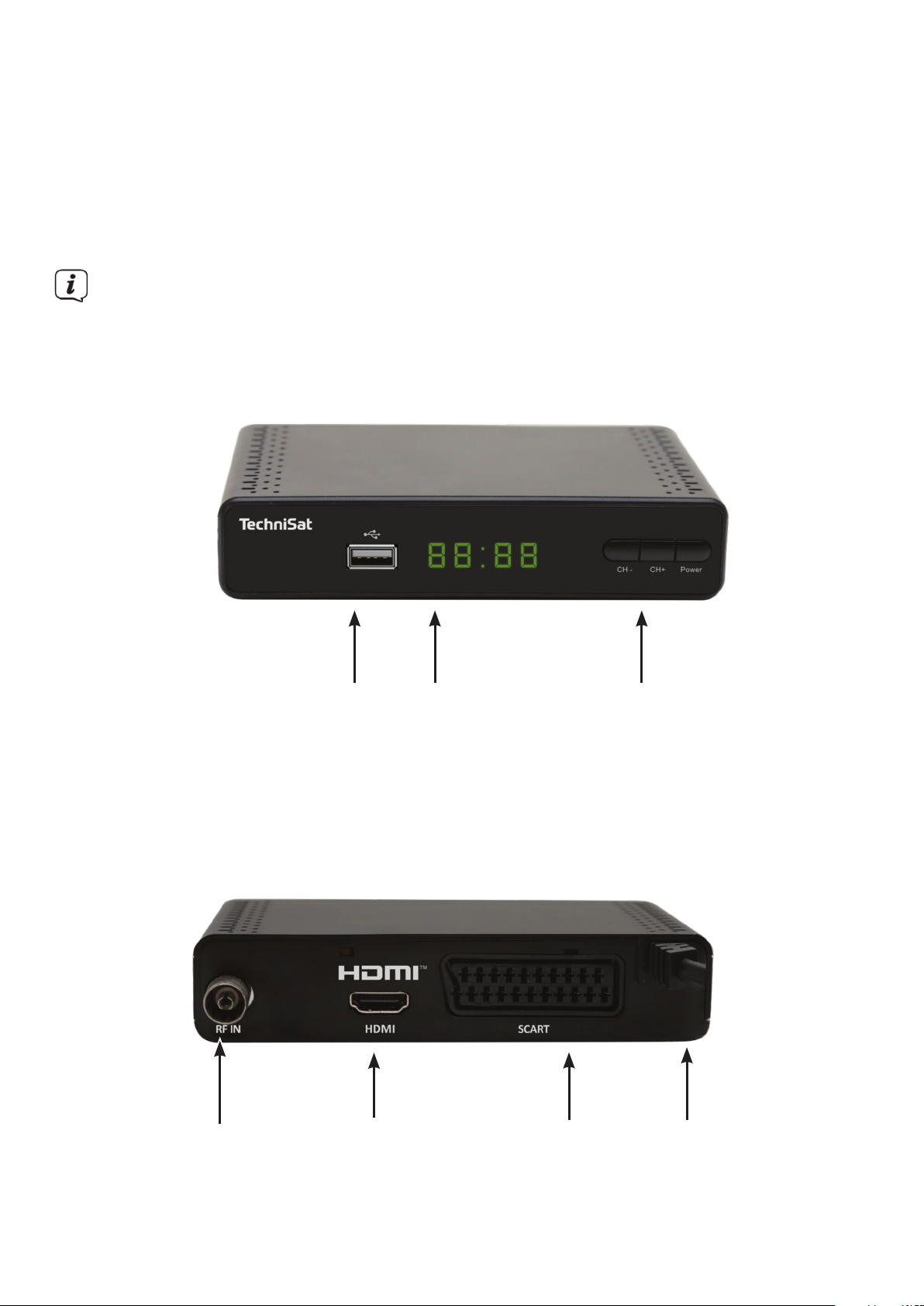

•Once the button is programmed, the red LED stops flashing and turns solid. •The remote control is ready to program the next button.•Program the next button as described above. •Once programming is complete, press the "SET" button quickly. The red LED stops flashing and the newly assigned button functions are saved. 1 USB slot (recording, multimedia playback, software update)2 LED display3 Buttons. CH-/CH+ channel change, Power - On/Standby Device back4RF (Aerial) - input 5HDMI - output6SCART - output 7Power cable (AC 110-240V, ~50/60Hz)4567123When programming the buttons it is very important that the remote controls are close to each other, with the transmitters facing each other directly. Only such an arrangement will allow for correct programming. Device front
2 Please read firstBefore connecting and commissioning the device, first check the delivery for completeness and read the safety instructions.The scope of delivery for the TERRABOX T3 includes: 1x DVB-T2 receiver, 1x operating manual, 1x remote control with battery’s included2.1 Purpose of the deviceDigital receiver TERRABOX T3 is used for receiving digital terrestrial broadcast channels. It is designed exclusively for this purpose. Observe all information contained in this manual, especially the safety instructions. Any other use is considered inappropriate and may result in property damage or even personal injury. Digital Imports Limited cannot be held liable for damage caused by misuse.2.2 Safety instructionsFor your protection, please read the safety precautions carefully before operating your new device. The manufacturer is not liable for damage caused by improper handling or failure to observe the safety precautions. Electrical equipment may experience leakage currents due to their function. These are permissible and harmless, even if they may be perceived as a slight "tingling". To avoid these leakage currents, new installation or connection of mains-powered equipment (receiver, TV, etc.) must always be carried out in a de-energized state, i.e. all equipment must be disconnected from the mains.. •The device can only be used in moderate climates.•To ensure proper ventilation, place the unit on a smooth, level surface and do not place any objects on the cover of the unit. The ventilation slots through which heat escapes from the interior must be uncovered.•Do not place any burning objects, such as lighted candles, on top of the unit.•Do not expose the unit to dripping or splashing and do not place objects filled with liquids, such as vases, on the unit. If water enters the unit, unplug the unit immediately and contact the service shop.•Do not use any heat sources near the device that will additionally heat it up.
•Do not insert any objects through the ventilation slots.•Never open the device! There is a risk of electric shock. Any necessary intervention should only be carried out by trained personnel.In the following cases, unplug the unit from the mains and ask a specialist for assistance: •The power cable or plug is damaged•The unit has been exposed to moisture or liquid has penetrated into it.•In case of serious malfunctions•In case of serious external damage
Protection Class II - Protection Class II electrical equipment is electrical equipment that has continuous double and/or reinforced insulation and no protective conductor connection. The enclosure of an insulated Class II electrical device may partially or completely provide additional or reinforced insulation. All of the following instructions must be observed for proper use of the device and to prevent defects. •The unit should only be operated in moderate climates.•To ensure sufficient ventilation, place the unit on a smooth, level surface and do not place any objects on the cover of the unit. •Do not cover any ventilation slots that may be present.•Do not place any burning objects, such as lighted candles, on top of the unit. Voltage!There is a possibility of electric shock.Never open the device or the AC adapter!
•Do not expose the unit to dripping or splashing and do not place objects filled with liquids, such as vases, on the unit. If water enters the unit, unplug the unit immediately and call for service.•Do not use any heat sources near the machine that will further heat the machine.•Do not insert any objects through the ventilation slots.•Use only accessories approved for the device.•Regularly check the power cord for damage and do not use it if it is damaged. •When disconnecting the power adapter from the electrical outlet, pull on the plug, not the cord.•This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities, or persons without experience and/or knowledge, unless they have received supervision or instruction in the use of the appliance from a person responsible for their safety.•Children must be supervised to ensure that they do not play with the appliance.
•The unit's remote control can only be powered by batteries approved for this unit.•Normal batteries cannot be recharged. •Batteries must not be reactivated by other means, disassembled, heated or throwninto an open flame (risk of explosion!).•Clean the battery contacts and the device contacts before insertion.•Incorrectly inserted batteries can cause the battery to explode!•Replace batteries only with the correct type and model number.•Do not expose the batteries to extreme conditions. •Do not place on radiators or in direct sunlight!•Leaking or damaged batteries can cause burns if they come into contact with the skin. Use appropriate protective gloves in this case. Clean the batterycompartment with a dry cloth.. Battery handling Danger of suffocation! The packaging and its parts should not be left around children. Risk of suffocation due to foil and other packaging materials.
2.3 Interruptions in operation During thunderstorms or longer periods of disuse (e.g. vacations), disconnect the device from the mains and remove the antenna cable. Before disconnecting the device from the mains, first switch it to standby mode and wait until the red LED lights up. 2.4 Important Note on Backing Up DataWe recommend removing all memory media or data carriers before returning the receiver to a specialist dealer for repair.Restoring data is not part of maintenance or repair work. Digital Imports is not responsible for any loss or damage to data during repair. 2.5 Remote controller / Battery replacement •Open the battery compartment cover on the back of the remote control by pressing lightly on the latch and pulling it down.•Insert the supplied batteries, taking care to observe the correct polarity (marking visible in the battery compartment).•Close the battery compartment again. 2.6 Disposal instructionsThe packaging of your device consists of recyclable materials only. When the product has reached the end of its useful life, do not dispose of it with other household waste, but bring it to a collection point for the recycling of electrical and electronic equipment.
Important note on disposal of batteries: Batteries may contain toxic substances that are harmful to the environment. Therefore, it is necessary to dispose of batteries in accordance with applicable laws. Never dispose of batteries in normal household waste. You can dispose of used batteries at your recycling facilities free of charge.3 Connecting the receiver3.1 Connecting to power supply The Digital Receiver should not be connected to the mains until the unit is fully connected to the aerial and the TV. This will prevent damage to the Digital Receiver or other components. •After making all connections according to the following points, connect the receiver to the power supply. •Please ensure that the power cord is easily and quickly accessible. 3.2 Connecting to TV setConnect an HDMI cable to your TV and to the HDMI output of the Digital Receiver (5). If your TV is properly equipped, it will automatically switch to the HDMI input when the digital receiver is turned on. If not, then use the source/input button on your TVremote to switch to the HDMI input you have connected to. Optionally you can also connect your receiver to your TV set in analogue mode (connection with SCART cable (6)). 3.3 USB slotThe USB socket (3) is used for software updates, recording and multimedia playback (music, videos, photos).The receiver supports all types of hard drives up to 1TB in external enclosures that are equipped with an independent power supply. The only condition is that the hard drive has one primary partition that is formatted in NTFS (recommended) or FAT32.We recommend that you regularly archive your data on a PC. A large number of files with recordings may slow down access to the drive with the receiver (slow loading of the file list).3.4 Connecting the antenna cableConnect the cable from your DVB-T/T2 antenna to the RF-Input of the receiver (4).Please also refer to the Antenna Setup item in the User Manual.3.5 First start-upThe receiver must be configured during initial start-up. •With the arrow buttons select the menu language and the country in whichthe receiver will operate. Choose ‘England’ as the Country.•Then use the OK button to confirm your selection. •The receiver starts searching for available programmes. •This can take several minutes to complete.
