TechniSat DIGIT ISIO STC Manual de instrucciones

Quick start manual

DIGIT ISIO STC

DIGIT ISIO STC+

Digital Multituner-UHD Receiver

With Internet access

With CONAX / NAGRAVISION card reader and an interface

for incorporating a CI / CI+ module,

and DVR recording function via the

USB interface or the home network.

For receiving free and encrypted

(e.g. VIACCESS, CONAX, IRDETO, etc.)

UHD satellite channels.

DiSEqC 1.2

Dear Customer,

Congratulations for choosing the DIGIT ISIO STC / DIGIT ISIO STC+ digital receiver.

The operating manual supplied is intended to help you to utilise the comprehensive functions

of your new digital receiver to the fullest extent. We have kept the operating instructions as

brief as possible and have used terminology that everybody can understand.

The range of functions of your receiver is constantly being expanded by means of software

updates. This means that additional steps in the operation may be added that are not yet

described in this operating manual, or the operation of existing functions may be changed.

For this reason, you should occasionally visit the TechniSat homepage, to download the

latest version of the operating manual.

We hope you enjoy your TechniSat DIGIT ISIO STC / DIGIT ISIO STC+ !

Your

TechniSat Team

TechniSat hereby declares that the DIGIT ISIO STC / DIGIT ISIO STC+ is compliant with the

basic requirements and other relevant provisions of the 1999 / 5 / EC directive. The

declaration of conformity can be found at the following address:

http://www.technisat.com/de_DE/konformitaetserklaerung/?productID=10861

The device also bears the CE mark.

This device is intended for use in all countries of the European Union and in Switzerland,

Norway, Liechtenstein and Iceland. Operation within the frequency range 5150 MHz - 5350

MHz is only permitted in enclosed spaces.

HDMI, the HDMI logo and High Definition Multimedia Interface are brands or

registered trademarks of HDMI Licensing LLC.

This product contains copyrighted technologies, which are protected by U.S. patents and

other rights for the protection of the intellectual property of the Rovi Corporation. Reverse

engineering and disassembly are prohibited.

This item incorporates copy protection technology that is protected by U.S. patents and

other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly

are prohibited.

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

1 Illustrations

Remote control code

On / standby

Sound on / off

Numeric keypad keys

Recording

EPG

Page up

Back

TV / Radio mode

Rewind

Info

Fast forward

Channel + / - Volume + / -

Menu Zoom / Format

Function keys

Stop / DVR

Arrow keys Pause / Playback

Options selection

Function selection

Page down

WWW

Sleep Timer

Audio channel

PiP / PaP

HDMI

Teletext

Freeze frame /

Jog shuttle

Timer

Front of TV

Rear sight

RF in

LNB 2

input

LNB 1

input

Network port Mains power

connection

Smartcard

card reader

HDMI

output

USB port

Analogue / digital

audio outputs

S / PDIF out

electr. / optical

CI module

socket

Arrow keys

On / standby Display USB port

SD / MMC

card reader

Inserting the CONAX / NAGRAVISION (HD+) smartcard:

> Insert the CONAX / NAGRAVISION (HD+) smartcard (gold chip facing

down and to the front as you insert it) and push it in as far as it will go.

Inserting the CI / CI+ module:

> Consult the CI / CI+ module and card manufacturer's instructions.

> Insert the desired Smartcard into the corresponding CI module.

> Now carefully insert the CI module into the slot.

2 Please read this first

Before connecting and using the device, first check that everything has been supplied and

familiarise yourself with the safety instructions.

Included within the scope of supply for the DIGIT ISIO STC / DIGIT ISIO STC+:

1 digital receiver, 1 quick start guide, 1 CD-ROM,

1 remote control, 1 power supply, batteries (2x 1.5V microcells)

Also for DIGIT ISIO STC+:

1 HD+ smartcard

2.1 Safety advice

For your own protection, you should read the safety precautions carefully before using your

new receiver.

The manufacturer accepts no liability for damage caused by inappropriate handling, or by

non-compliance with the safety precautions.

Function-related discharge current may occur with electrical equipment. This is

acceptable and poses no risk, even if it is experienced as a slight "tingling". To

prevent such discharge current, mains operated devices (receivers, TVs etc.) must

always be installed or connected with the power switched off, i.e. all devices must be

disconnected from the mains.

- Only operate the receiver in a temperate climate.

- To ensure adequate ventilation, place the receiver on a flat, horizontal surface and

do not place any objects on top of it. There are ventilation slots here to allow heat to

be dissipated from the interior of the unit.

- Do not place any burning objects, such as lit candles, on top of the receiver.

- Do not expose the receiver to water droplets or water spray, and do not place any

objects filled with liquid, such as vases, on top of it. If water gets into the unit,

immediately disconnect the mains plug and inform the service department.

- Do not operate any sources of heat near the device that may also heat it up.

- Do not obstruct the ventilation slots.

- Do not open the device under any circumstances! You risk receiving

an electric shock. Any necessary repairs to the receiver should only be carried out

by qualified service personnel.

In the following circumstances, you should disconnect the device from the mains

power and consult an expert:

> the power cable or mains plug is damaged

> the device has been exposed to moisture or liquid has got into it

> there are significant malfunctions

> there is severe external damage

2.2 Periods of non-use

During a storm or lengthy period of non-use (e.g. holiday), the receiver should be

disconnected from the mains and the antenna cable removed.

Before you disconnect the receiver from the mains, you should first switch it to standby

mode and wait until the time appears in the display or the red LED light is displayed.

2.3 Important notes on operation

Operation of the digital receiver is simplified through the use of so-called "On Screen

Displays" (OSD). This also means that the number of keys on the remote control unit is

reduced.

All functions are displayed on screen, and can be controlled by means of a few control

buttons.

Functions that are logically related are combined into a "MENU". The selected function will

be highlighted.

The red, yellow, blue and green "function" keys are indicated by coloured bars at the bottom

of the screen. In the various menus, these coloured bars represent different functions, which

can be implemented by pressing the appropriately coloured keys (multi-function keys) on the

remote control. The "function keys" are only active when a brief description is displayed in

the appropriate field.

The button identifications and terms that appear in the OSD menu are shown in bold type in

this operating manual.

Help: where available, press the blue function key in the menus to display the help text;

press again to close the help window.

2.4 Important information on data security

Before handing your receiver over to your supplier for maintenance purposes, we

recommend that you remove all storage media or data carriers.

The recovery of data is not part of the maintenance and repair work. TechniSat assumes no

warranty for the loss or damage of data during the repair.

2.5 Remote control / Changing the battery

> Open the cover on the battery compartment at the rear of the remote control by

pressing gently on the point indicated and pressing in the direction of the arrow.

> Insert the supplied batteries, ensuring that the poles are the right way around (indicator

visible in battery compartment).

> Close the battery compartment again.

2.6 Disposal advice

The packaging material used for your receiver consists entirely of recyclable materials.

Please sort the components appropriately, and dispose of them in line with your local waste

disposal regulations.

At the end of its useful life span, this receiver may not be disposed of with your regular

household waste. It must be taken to a recycling collection point for electrical and electronic

equipment.

This is indicated by the symbol on the product, the operating manual or the packaging.

The materials used can be re-used in accordance with their labelling.

By ensuring that valuable raw materials in old equipment are re-used, you can make a

valuable contribution towards protecting our environment.

Please contact your local authority for the location of the nearest recycling point.

Please ensure that spent batteries removed from the remote control are not disposed of in

your regular household refuse, but are correctly disposed of either in special bins for

problem waste, or at retail trade collection points.

3 Optional accessories

3.1 Optional IsiZapper remote control

IsiZapper (Item No. 0000 / 3773) is an optional remote control that is specially designed for

operation in ISI mode (see Point 16).

On / standby

Numeric keypad keys

Teletext

Sound on / off

Channel + / - Volume + / -

Arrow keys OK

Function selection

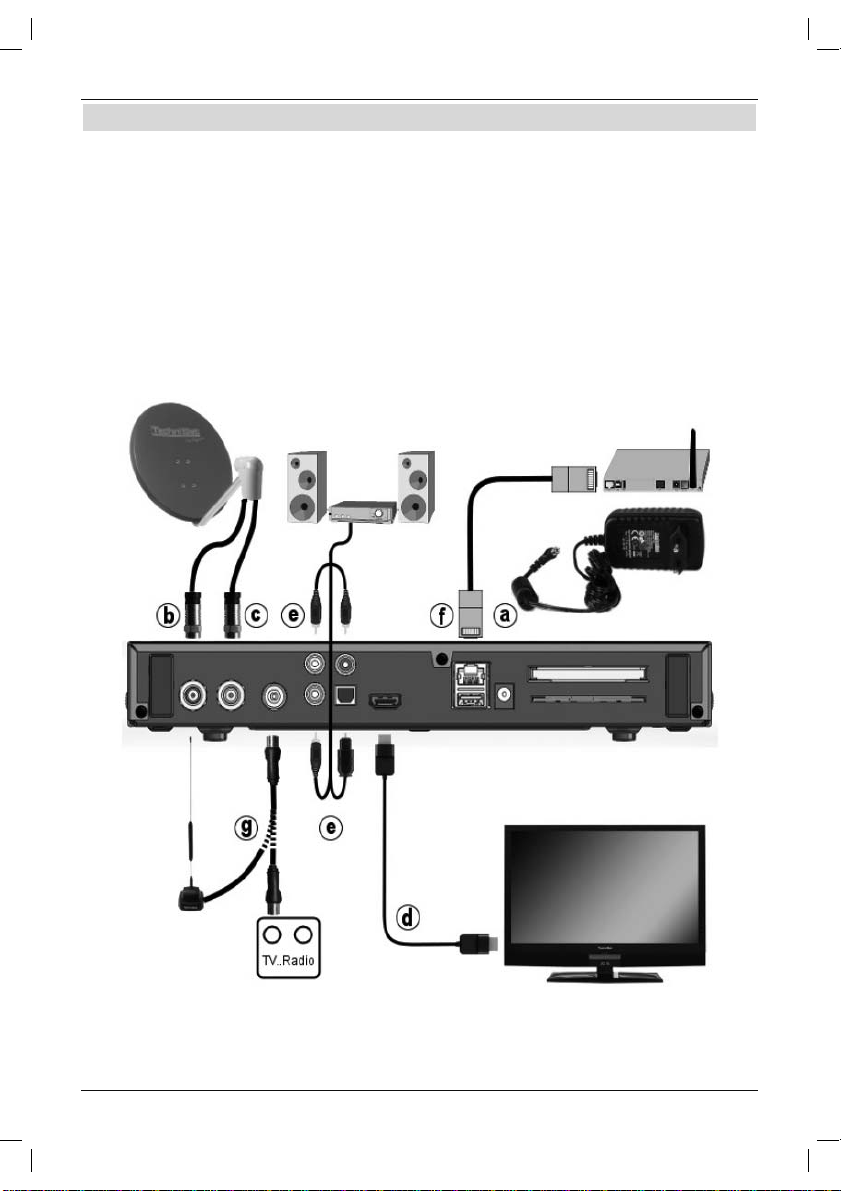

4 Connecting the DVB receiver

a Network connection

b Connecting the LNB 1 to the LNB input 1 of the DVB receiver. (Please note: The

LNB must be connected with the LNB Input 1 when operating using an antenna

signal.)

c Connecting the LNB 2 to the LNB input 2 on the DVB receiver.

d HDMI connection from the DVB receiver to the TV.

e Connecting the audio outputs to a hi-fi / surround sound system.

f Connecting the DVB receiver to the network / Internet.

g Connecting the cable connector (digital) and / or the DVB-T antenna with the RF IN

antenna input on the DVB receiver.

The following references (a b c etc.) relate to the illustrations beginning from the previous

page.
