TechniSat TECHNISTAR S6 Manual de instrucciones

Quick start manual

TECHNISTAR S6

Foreword

Dear Customer,

Thank you for choosing TechniSat's TECHNISTAR S6 Digital Satellite Receiver.

The quick start manual supplied is intended to help you to familiarise yourself with

the extensive functions of your new digital receiver and make best use of it.

It will help you to use your digital receiver as intended and safely.

It is for anyone who assembles, connects, operates, cleans or disposes of the receiver.

Keep the quick start manual in a safe place for future reference.

The range of functions in your receiver is constantly being expanded by means of

soware updates. This means that additional steps in the operation may be added

that are not yet described in this instruction manual, or that the operation of existing

functions may change.

As such, you should occasionally visit the TechniSat homepage, to download the

latest version of the quick start manual or instruction manual.

We hope you enjoy your

TechniSat TECHNISTAR!

Your

TechniSat Team

1 Illustrations

Sleep/Timer

On / Stand-by

Remote control code

TV/RADIO - Mode

Fast forward

Pause / Play

Page down

Info

Volume +/-

Function selection

Zoom / Format

Audio Channel

PiP

HDMI

Mute on/o

Number buons

Recording

Stop / DVR

Rewind

Arrow buons

SFI

Page up

Return

Options

Channel + / -

Function buons

Timer

Teletext

Freeze frame / Jog Shule

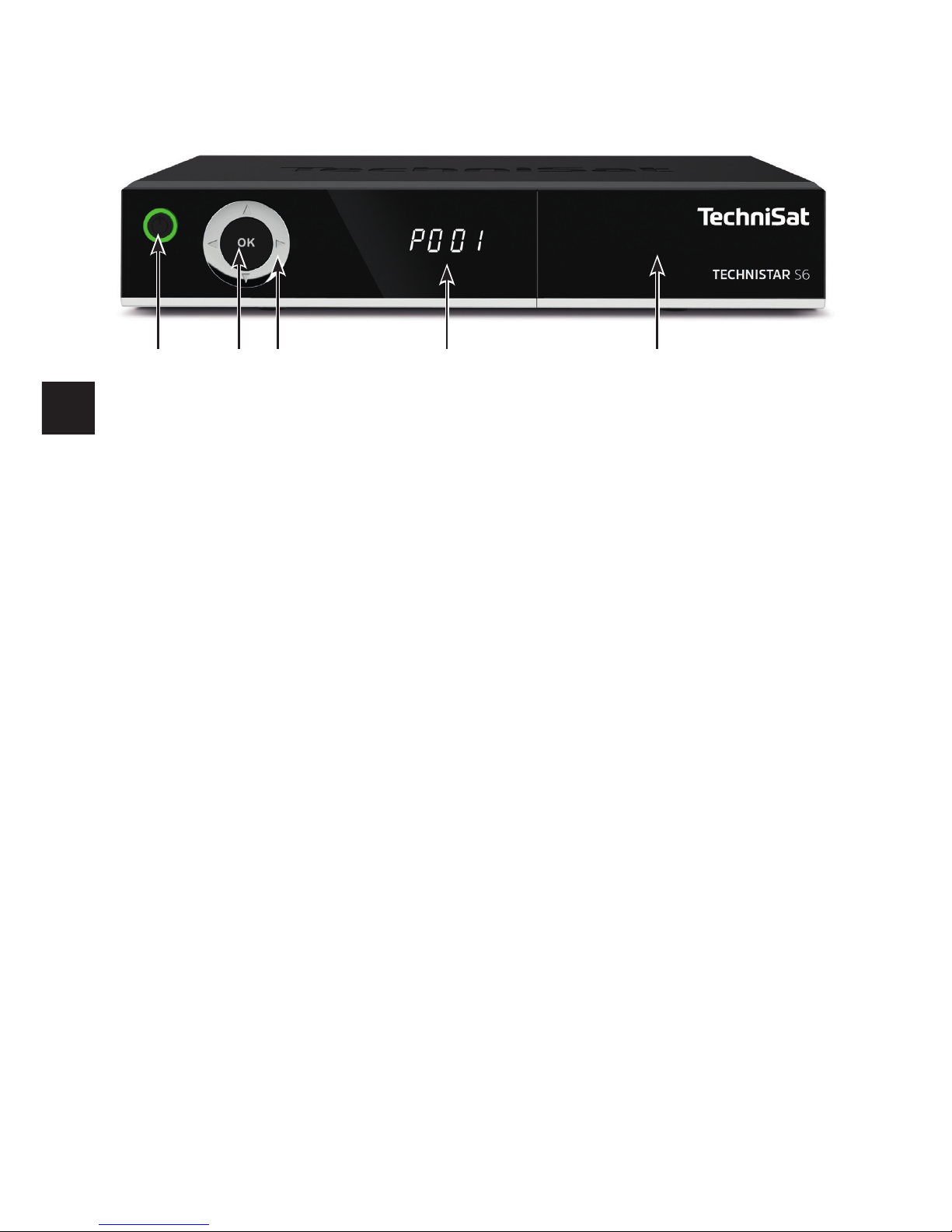

Front

1 4 52 3

1On/Standby

2OK buon (selection, retrieving the channel list)

3Up/down and right/le arrow buons (channel +/-, volume +/-, menu

navigation)

4Display

5Front ﬂap (CI/CI+ module slot and smart card reader)

Rear

8 9 10 11 12 13 14

8LNB port (DC 13/18V, max. 600mA)

9Ethernet connection

10 USB port

11 HDMI output

12 A/V output (Video/Audio analogue)*

13 S/PDIF output (Audio Digital)

14 Power supply unit connection (DC 12V, 2A)

*For TechniSat- speciﬁc adapter set, article number 0000/3649

Front ﬂap open (grip on side and open downwards):

Smart card

slot

CI/CI+ module

slot

Eject buon

CI/CI+ module

Insert the smart card with the gold contacts forwards and facing downwards

into the smart card slot.

To eject an inserted CI/CI+ module, press the eject buon and remove the

module.

2 Please read this ﬁrst

Before connecting and using the device, ﬁrst check that everything has been

supplied and familiarise yourself with the safety advice.

The scope of delivery for the TECHNISTAR S6 includes:

1 Digital receiver,

1 Quick start manual,

1 Remote control, baeries (2 pcs. 1.5V microcells)

1 Plug-in power supply unit.

1 HDMI cable

2.1 Intended use

The digital satellite receiver is used to receive digital satellite channels in the private

sector. It is intended exclusively for this purpose. Observe all the information in this

quick start manual, in particular the safety instructions. Any other use is considered

improper and can lead to property damage or personal injury. No liability is accepted

for damage resulting from improper use.

2.2 Safety instructions

For your own protection you should read the safety notes carefully before using the

device. The manufacturer accepts no liability for damage caused by inappropriate

handling, or by non-compliance with the safety precautions.

Function-related discharge current may occur with electrical equipment.

This is acceptable and poses no risk, even if it is experienced as a slight tingling.

To prevent such discharge currents, mains operated devices (receivers, TVs etc.)

must always be installed or connected with the power switched o, i.e.

alldevices must be disconnected from the mains.

- The device must only be operated in an appropriate climate.

- To ensure adequate ventilation, place the device on a ﬂat, horizontal surface

and do not place any objects on top of it. There are ventilation slots here to

allow heat to be dissipated from the interior of the unit.

- Do not place any burning objects, such as lit candles, on top of the receiver.

- Do not expose the device to water droplets or water spray, and do not place

any objects ﬁlled with liquid, such as vases, on top of it. If water gets into

the unit, immediately disconnect the mains plug and inform the service

department.

- Do not operate sources of heat near the device that can additionally heat it

up.

- Do not obstruct the ventilation slots with any objects.

- Never open the device! You risk receiving an electric shock. Any necessary

repairs to the receiver should only be carried out by qualiﬁed service

personnel.

In the following circumstances, you should disconnect the device from the mains

power and consult an expert:

> the power cable or mains plug is damaged

> the device has been exposed to moisture or liquid has got into it

> there are signiﬁcant malfunctions

> there is severe external damage.

2.3 Operating breaks

During a storm or lengthy periods of non-use (e.g. holiday), the device should be

disconnected from the mains and the antenna cable removed.

Before you disconnect the receiver from the mains, you should ﬁrst switch it to

standby mode and wait until the red LED light is displayed.

2.4 Important notes on operation

Operation of the digital receiver is simpliﬁed through the use of a so-called "On

Screen Display" (OSD).

This also means that the number of buons on the remote control unit is reduced.

All functions are displayed on screen, and can be controlled by means of a few

control buons.

Functions that are logically related are combined into a "MENU". The selected function

will be highlighted. The red, yellow, blue and green function buons are indicated

by coloured bars at the boom of the screen. These coloured bars represent

dierent functions in the various menus, which can be implemented by pressing

the appropriately coloured buons (multi-function buons) on the remote control.

The function buons are only active when a brief description is displayed in the

appropriate ﬁeld.

The buon identiﬁcations and terms that appear in the OSD menu are shown

inboldtype in this operating manual.

Help: where available, press the blue function buon in the menus to display the

help text; press again to close the help window.

2.5 Important information on data security

Before handing your receiver to your supplier for maintenance purposes, we

recommend that you remove all USB storage media.

The recovery of data is not part of the maintenance and repair work. TechniSat

assumes no warranty for the loss or damage of data during the repair.

2.6 Remote control/Changing the baery

> Open the cover on the baery compartment at the rear of the remote control

by pressing gently on the point indicated and pressing in the direction of the

arrow.

> Insert the supplied baeries, ensuring that the poles are the right way round

(indicator visible in baery compartment).

> Close the baery compartment again.

2.7 Disposal advice

The packaging material used for your device consists entirely of recyclable materials.

Please sort these appropriately, and dispose of them in line with your local waste

disposal regulations.

At the end of its useful life, this product may not be disposed of in your regular

domestic refuse. It must be taken to a recycling collection point for electrical and

electronic equipment.

This is indicated by the symbol on the product, the instruction manual or the

packaging.

The materials are recyclable according to their identiﬁcation.

By ensuring that valuable raw materials are re-used you can make an important

contribution towards protecting our environment.

Please ask local authorities for the location of the relevant disposal point.

Please ensure that ﬂat baeries removed from the remote control and electronic

waste are not disposed of in your regular household refuse, but are correctly

disposed of either in special bins for problem waste, or at collection points in the

retail trade.

2.8 Optional accessories

Optional IsiZapper remote control

IsiZapper (Item No. 0000/3773) is an optional remote control which is specially

designed for the operation of the ISI mode (see Section 13).

TechniSat A/V adapter set

To connect analogue audio/video playback devices, please use the TechniSat speciﬁc

adapter set (Item No. 0000/3649).

TechniSat WLAN dongle

TELTRONIC ISIO USB WLAN adapter (Item No. 0002/3633)

TELTRONIC ISIO TC USB-WLAN adapter (Item No. 0004/3633)

USB Bluetooth adapter

(Item No. 0000/3635)

3 Connecting the DVB receiver

3.1 Mains connection

The digital receiver should only be connected to the mains power supply once you

have ﬁnished making all the connections to the various other components.

This will prevent damage to the digital receiver or other components.

> Once you have made all the connections in accordance with the following

sections, use the power supply unit supplied to connect the receiver to a 230

V/50-60 Hzmains power outlet.
