System air FGT010 Manual de usuario

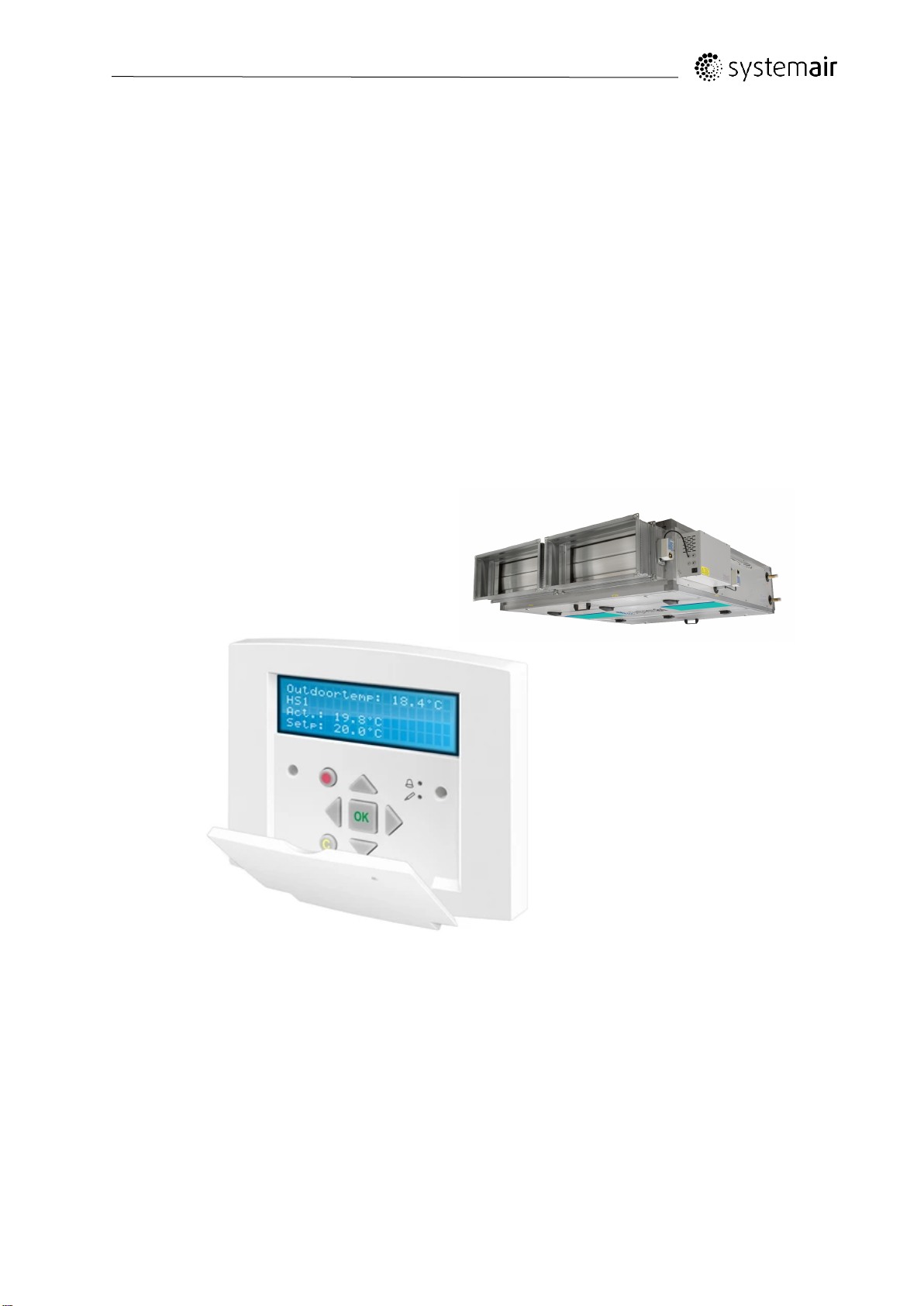

Systemair FGT

Control manual

Content

I. CHANGING LANGUAGE

II. EXTERNAL DISPLEY

III. EXTERNAL SENSORS

IV. CHANGING AIRFLOW

V. CHANGING REGULATION INTO VAV

VI. CHANGING UNIT OPERATION TIME

VII. TURNING OFF THE UNIT

VIII. CHANGING TEMPERATURE REGULATION

IX. CHANGING TEMPERATURE SETPOINTS FOR ROOM EXTRACT

TEMPERATURE OR TEMPERATURE FOR SUPPLY AIR

X. WATER COOLER ACTIVATION

XI. DX COOLING UNIT ACTIVATION

XII. DX HEATING/COOLING UNIT ACTIVATION

XIII. ELECTRIC HEATER ACTIVATION

XIV. SMOKE DETECTOR

INSTRUCTIONS FOR

CHANGING LANGUAGE

CORRIGO CONTROLLER

Basic

FGT010, FGT015, FGT022

Contents

1. Search for change language menu .................................................................................................. 3

2. Changing language .......................................................................................................................... 4

1. Search for change language menu

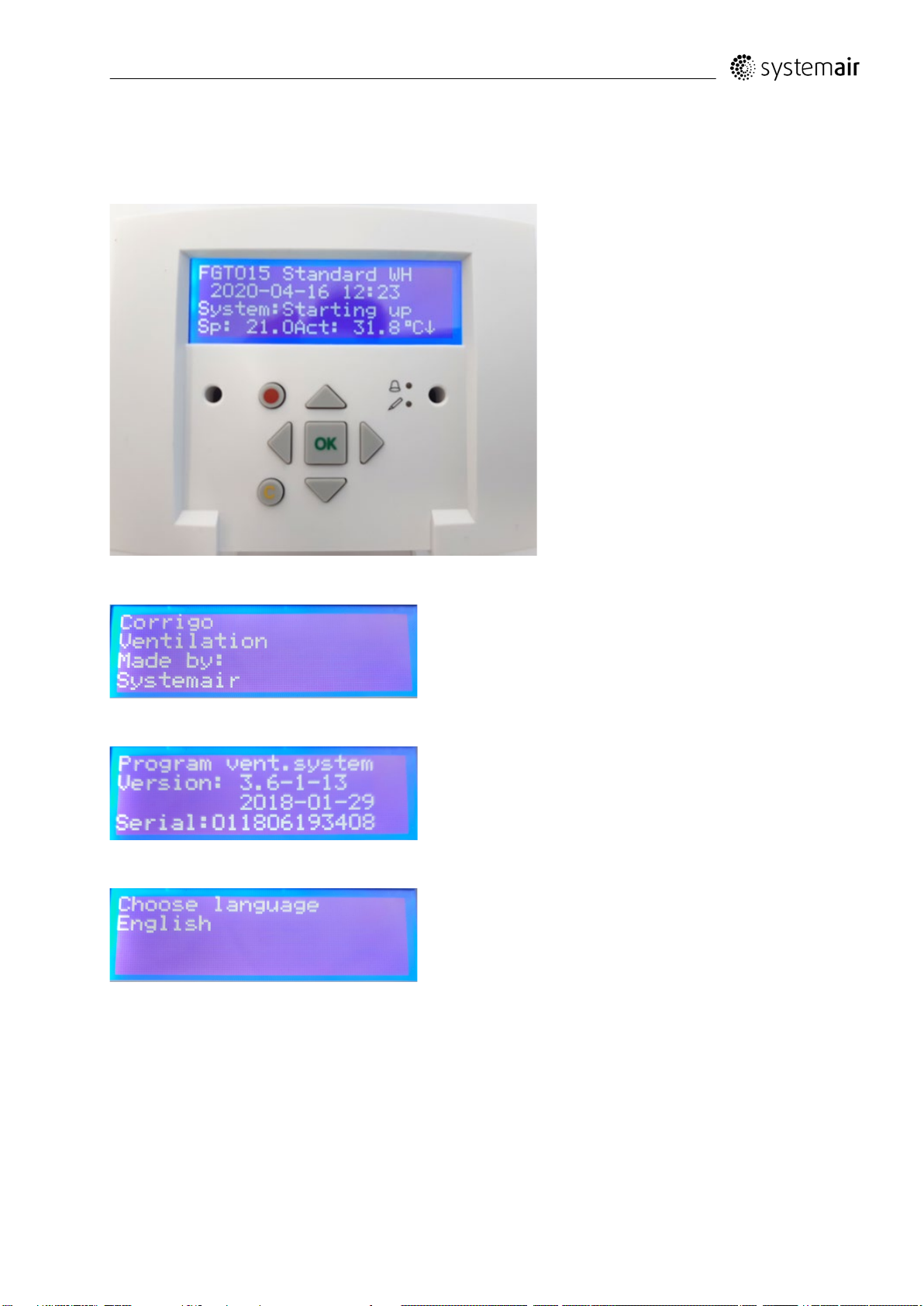

Put yourself on the first screen:

Press RIGHT key button for menu:

Again, press the RIGHT key button:

2. Changing language

Press OK.

With button UP or DOWN you can select your language and when you found language which you like

to have, press OK.

Press LEFT (3x) to go back to first menu.

You can choose between:

English Czech Slovak

Swedish Lithuanian Dutch

Norwegian Estonian Turkish

Danish Hungarian Romanian

German Latvian

French Slovenian

Finnish Spanish

Russian Portuguese

Polish Italian

INSTRUCTIONS FOR

EXTERNAL DISPLEY

-ED-RU-DFO

-ED-TCV

CORRIGO CONTROLLER

Basic

FGT010, FGT015, FGT022

Contents

1. Search for Admin access.................................................................................................................. 3

2. Search for communication menu .................................................................................................... 5

3. Wiring diagram of ED-TCV............................................................................................................... 7

4. Wiring diagram of ED-RU-DFO ........................................................................................................ 9

5. Important note .............................................................................................................................. 11

1. Search for Admin access

Put yourself on the first screen:

Press DOWN key to enter the menu:

Press DOWN key (4x) to access the menu ''Access rights'':

Press RIGHT key button:

Press the OK button to position yourself on ''Enter password''. Please enter the password ''1111''. For

entering the password Press UP key (2x) for value 1. Press RIGHT key for next position and repeat the

process for the password ''1111'':

Press OK button and you will be logged in as ''Admin'':
