StarTech.com ST7202USBGB Manual de usuario

USB Hub

ST4202USB

ST7202USB

Instruction Manual

Actual product may vary from photo

4 Port USB 2.0 Hub

7 Port USB 2.0 Hub

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Instruction Manual

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Windows 98SE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Windows 2000/XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Instruction Manual

Thank you for purchasing a StarTech.com Multi-port USB 2.0 Hub. This product allows

you to connect multiple USB 2.0 devices to your computer, while taking up minimal

deskspace. Perfect for notebook users or those with confined workspaces, this product

delivers the performance you expect from USB 2.0 while maintaining backward

compatibility with the USB 1.1 standard, so your existing devices still function flawlessly.

For added convenience, this product includes a USB-to-power converter so that unused

USB ports on your computer can power your high performance devices.

IInnttrroodduuccttiioonn

Features

BBeeffoorreeYYoouuBBeeggiinn

•Compact space-saving design

•Maximum data transfer rate of up to 480 Mbps

•Backward compatible with USB 1.1 standard

•Quick, easy installation

•A computer with one available USB 2.0 port

System Requirements

•Windows 98SE / ME / 2000 / XP / Vista, MAC 8.6/9.x/10.x and later

•1 x USB 2.0 Hub

Package Contents

•1 x USB Cable

•1 x Power Adapter

•1 x User Manual

This package should contain:

Instruction Manual

IInnssttaallllaattiioonn

Windows 98SE

1. Windows will launch the

Add New Hardware Wizard

. Press Next to begin the

software installation process.

2. When the Add New Hardware Wizard

appears, click Next:

3. Windows will inform you that it is ready to

install the driver for the device Generic

USB Hub on USB 2.0 Bus. Click Next:

4. Follow any remaining prompts. When Windows informs you it has finished installing

the drivers. Click Finish.

5. To verify that the drivers have successfully been

installed, right-click on My Computer and select

Manage. Select Device Manager, and click on

the [+] symbol located next to

Universal Serial

Bus Controllers

. Here, you should notice a listing

for Generic USB Hub on USB 2.0 Bus:

6. You can now attach USB devices to the hub.

To begin the installation process, connect the USB 2.0 Hub to an available USB 2.0 port.

Software installation will commence as follows:

1. Windows will launch the

Add New Hardware Wizard

. Press Next to begin the

software installation process.

2. When the Found New Hardware Wizard

appears, click Next:

3. Windows will then search for the driver

files required for the Generic USB Hub.

Click Next:

4. Windows will locate the driver file. Click

OK to proceed, and follow any remaining

prompts to complete installation.

Instruction Manual

Windows 2000/XP

5. To verify that the drivers have successfully been

installed, right-click on My Computer and select

Manage. Select Device Manager, and click on

the [+] symbol located next to

Universal Serial

Bus Controllers

. Here, you should notice a listing

for Generic USB Hub:

6. You can now attach USB devices to the hub.

Instruction Manual

Windows Vista

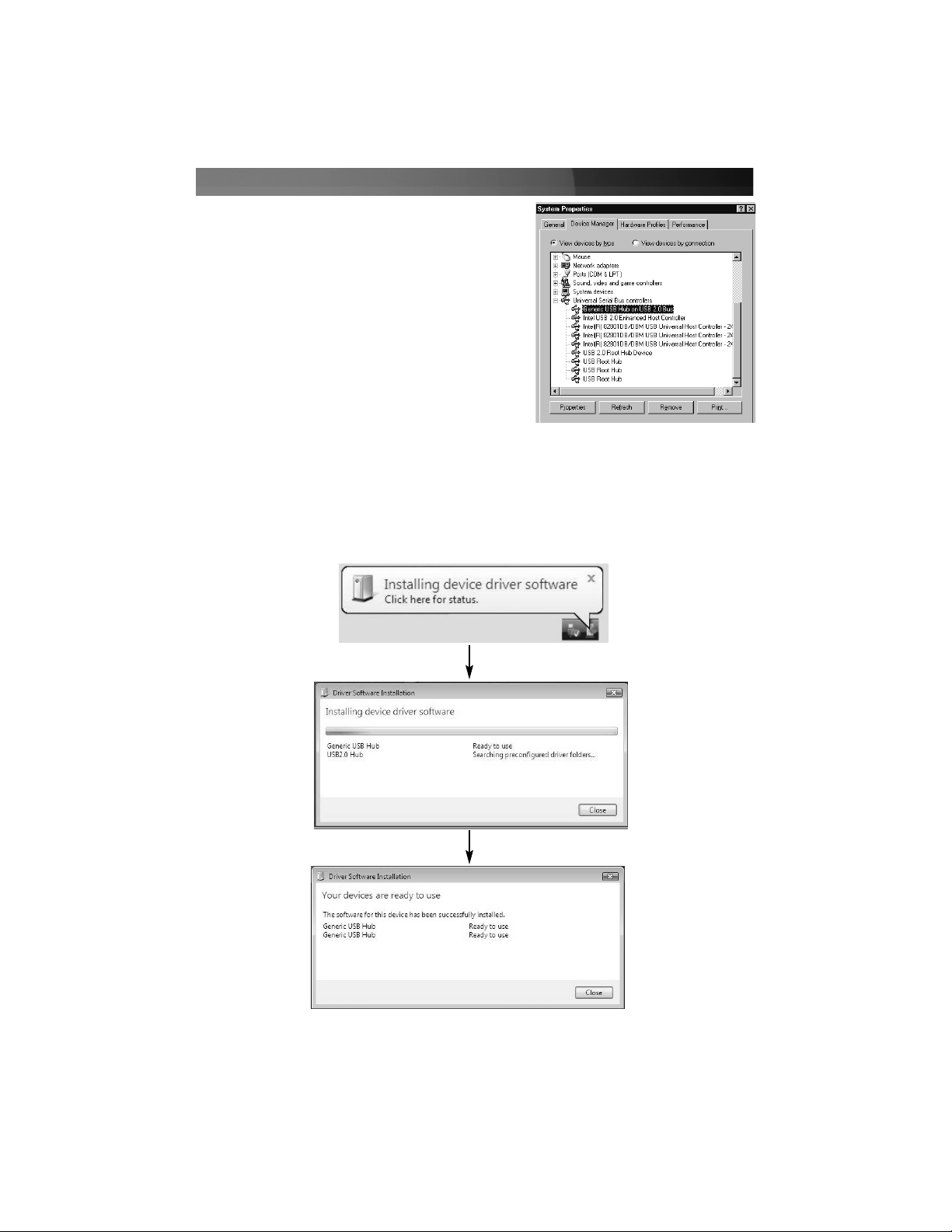

Windows Vista driver installation requires no interaction. Simply connect the USB Hub to

an available USB port on the host computer, and wait for the Windows notification that

your device is now installed:

Instruction Manual

SSppeecciiffiiccaattiioonnss

Bus Type USB

Connectors

1 x USB Mini B Male

4 x USB Type A Male (ST4202USB)

7 x USB Type A Male (ST7202USB)

Cables 1 x 3 ft. USB Type B to Type A Cable

Maximum Data Transfer Rate 480 Mbps

Operating Temperature 0 to 70° C (0 to 158° F)

Regulatory Certifications FCC, CE, ROHS

Instruction Manual

USB2HAB6

6 ft High Speed Certified USB 2.0 Cable

USB2HAB10

10 ft High Speed Certified USB 2.0 Cable

AAcccceessssoorryyPPrroodduuccttssffrroommSSttaarrTTeecchh..ccoomm

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

USB2HAB15

15 ft High Speed USB 2.0 Cable

PCI225USB

Value 2 Port USB 2.0 PCI Card

CBUSB220

2 Port USB 2.0 CardBus Adapter

Instruction Manual

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
