StarTech.com ICUSB23208FD Manual de usuario

Manual Revision: 02/12/2019

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/ICUSB23208FD.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

ICUSB23208FD

8-Port USB-to-Serial RS232 Adapter Hub

with Daisy Chain - Rack Mountable

*actual product may vary from photos

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless of

any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Important: Read and understand the entire manual before you use this product,

and follow the instructions as they are outlined in the manual. Failure to do so

might result in damage to your property or equipment.

Quick-start guide

Table of Contents

Introduction............................................................................................1

Product diagram........................................................................................................................................ 1

Packaging contents.................................................................................................................................. 2

System requirements............................................................................................................................... 2

RS232 pinout .............................................................................................................................................. 3

About the LED indicators......................................................................3

Installation ..............................................................................................4

Install the USB serial hub using the power adapter ..................................................................... 4

Install the hub using the terminal block power input................................................................. 4

Conrm installation.................................................................................................................................. 5

Use the daisy chain feature ..................................................................5

Perform a serial loopback test .............................................................6

Mount the serial hub in a server rack .................................................6

Technical support...................................................................................7

Warranty information............................................................................7

Quick-start guide

Introduction

You can use the ICUSB23208FD to convert a single USB port into eight RS232 serial

ports, and connect multiple hubs together to create a scalable and economical

solution.

The ICUSB23208FD adds eight RS232 serial ports with data transfer rates up to 921.6

Kbps and can be controlled by a desktop or laptop computer system using a single

USB port. The durable metal chassis ts into standard 19-inch server storage racks and

supports an extended -40oC to 85oC (-40oF to 185oF) operating temperature range that

allows for reliable use even in harsh environments.

The ICUSB23208FD also features daisy chain capability, allowing you to connect

multiple hubs through a single USB port.

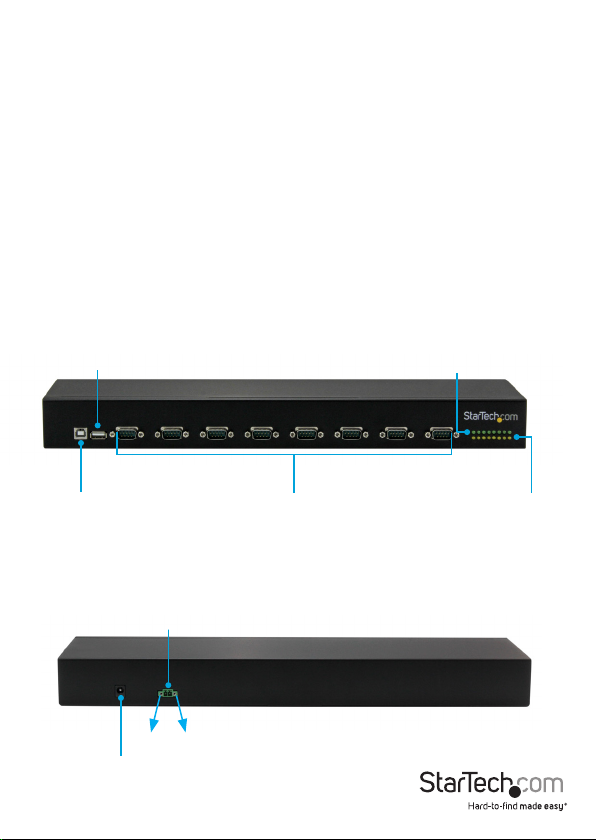

Product diagram

USB Type-B connector

(host)

USB Type-A connector

(daisy chain)

DB9 serial connectors

(1 to 8)

Receive LEDs

(yellow)

Transmit LEDs

(green)

Front view

Back view

DC power connector

Two-wire terminal block

(9-36V DC input)

Quick-start guide

Packaging contents

• 1 x 8-port USB to RS232 hub

• 1 x USB 2.0 cable

• 2 x rack-mounting brackets

• 8 x rack-mounting screws

• 2 x DIN-rail mounting brackets

• 4 x DIN-rail mounting screws

• 4 x washers

• 4 x nuts

• 1 x universal power adapter (NA/JP, UK, EU, AU)

• 1 x driver CD

• 1 x terminal block plug

• 1 x quick-start guide

System requirements

• USB-equipped host computer system

• Any of the following operating systems:

• Windows® 10 (32-bit or 64-bit)

• Windows 8.1 (32-bit or 64-bit)

• Windows 8 (32-bit or 64-bit)

• Windows 7 (32-bit or 64-bit)

• Windows Vista®

• Windows Server® 2012

• Windows Server 2008 R2

• Mac OS 10.7 and later

• Linux® 2.4x to 4.4x LTS Versions Only

• System requirements are subject to change. For the latest requirements, please visit

www.startech.com/ICUSB23208FD.

Quick-start guide

RS232 pinout

PIN Signal

1 DCD

2 RxD

3TxD

4DTR

5 GND

6 DSR

7RTS

8CTS

9 RI

About the LED indicators

The ICUSB23208FD features a set of transmit and receive LEDs for all of the eight ports.

For more information about what the LEDs signify, see the table below.

LED LED behavior Signicance

Transmit LED (yellow)

Blinking Data is being transmitted

through the port.

Not illuminated No data is being transmitted

through the port.

Receive LED (green)

Blinking Data is being received through

the port.

Not illuminated No data is being received

through the port.

Quick-start guide

Installation

You can use the power adapter or the two-wire terminal block power input (9-36V DC)

to power the USB serial hub. You can also use redundant power input by connecting

both the power adapter and the terminal block power, and in the event that your

power source fails, the USB serial hub will switch to use the secondary power source.

Install the USB serial hub using the power adapter

Warning! Make sure that the driver installation is complete before you plug in and

connect the USB serial hub.

1. Insert the provided driver CD into your host computer.

Note: The CD should automatically open and display all of the folders contained on the

CD. If that doesn’t happen, navigate to the CD/DVD drive on your computer.

2. In the driver folder, double-click the appropriate setup le for the OS that you’re

currently running. The driver installation wizard will begin installing the driver and

automatically close when the installation is complete.

3. Connect the provided USB cable to the USB Type-B connector (host) port on the

USB serial hub and the USB port on your computer.

4. Connect the universal power adapter to the DC power connector on the USB serial

hub and a wall outlet.

Install the hub using the terminal block power input

Warning! Make sure that the driver installation is complete before you plug in and

connect the devices to the USB serial hub.

1. Insert the provided driver CD into your host computer.

Note: The CD should automatically open and display all of the folders contained on the

CD. If that doesn’t happen, navigate to the CD/DVD drive on your computer.

2. In the driver folder, double-click the appropriate setup le for the OS that you’re

currently running. The driver installation wizard will begin installing the driver and

automatically close when the installation is complete.

3. Connect the provided USB cable to the USB Type-B connector (host) port on the

USB serial hub and the USB port on your computer.

4. If the terminal block connector is already inserted in the USB serial hub, use a small

at-head screwdriver to loosen the screws to the left and right of the terminal block

connector until you can remove it from the USB serial hub.

5. Use a small at-head screwdriver to loosen the two screws located on the top of the

terminal block connector.

Quick-start guide

6. Connect the positive and negative wires from your DC power source to the

corresponding terminal block connectors.

Note: Make sure that the polarity of the input power, positive (+) and negative (-), is

matched correctly with the terminal block pins.

7. Tighten the two screws located on the top of the terminal block connector.

8. Reinsert the terminal block connector into the USB serial hub and tighten the

screws to the left and right of the terminal block connector.

Conrm installation

Windows OS

1. On your computer, navigate to Device Manager.

2. Expand the Ports (COM & LPT) option.

3. Verify that the additional COM ports are listed.

4. Double-click a port and review the device properties.

Mac OS

1. On your computer, press and hold the Option key and click the Apple menu.

2. Click System Information or System Proler.

3. Under Hardware, click USB.

The USB device tree lists all of the devices connected to each port.

Use the daisy chain feature

You can daisy chain up to three devices and add up to 24 ports in total.

1. Connect the ICUSB23208FD to your host computer. For more information about

how to do this, see“Installation.”

2. Connect a USB cable to the USB Type-A connector (daisy chain) on the

ICUSB23208FD connected to your host computer and to the USB Type-B connector

on the serial hub that you want to daisy chain.

3. If you’re connecting a third serial hub, connect a USB cable to the USB Type-A

connector (daisy chain) on the second serial hub and to the USB Type-B connector

on the third serial hub that you want to daisy chain.

4. On each of the USB serial hubs, connect the universal power adapter to the DC

power connector or the Two-wire terminal block input and a wall outlet.

Quick-start guide

Perform a serial loopback test

To verify that a port is operational and to map the ports, you should perform a serial

loopback test. A loopback test sends and receives data to and from the same serial

port. To complete the loopback test, you need to temporarily connect pin two and pin

three to allow the signals to be sent and received on the same port.

To perform a serial loopback test, you need a loopback adapter and a third-party

software program (for example, PuTTY or HyperTerminal®).

1. Download a third-party software program.

2. Open a connection on the COM port that you want to test.

3. Insert the loopback adapter into a serial port.

4. Type something in the third-party software.

If what you typed is displayed in the window, you have located the correct port. If the

text isn’t displayed in the window, move the adapter to another port and try again until

you nd the correct port.

Mount the serial hub in a server rack

The ICUSB23208FD comes with the necessary hardware to install the serial hub in a

regular server rack or on DIN rails.

1. Do one of the following:

• Use the rack-mounting screws to attach the two rack-mounting brackets to

both sides of the serial hub.

• Use the DIN-rail mounting screws to attach the two DIN-rail mounting brackets

to both sides of the serial hub.

2. To mount the serial hub in your server rack or on DIN rails, follow the instructions

that came with your server rack or DIN rails.

Instruction manual

Technical support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship

for the periods noted, following the initial date of purchase. During this period,

the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Tabla de contenidos

Otros manuales de Cambiar de StarTech.com

StarTech.com

StarTech.com 5G4AIBS-USB-HUB-NA Manual de usuario

StarTech.com

StarTech.com ICUSB2322X Manual de usuario

StarTech.com

StarTech.com SV231DVGAU2A Manual de usuario

StarTech.com

StarTech.com 2PORT-HDMI-SWITCH-8K Manual de usuario

StarTech.com

StarTech.com VS221HDQ Manual de usuario

StarTech.com

StarTech.com P2DD46A22-KVM-SWITCH Manual de usuario

StarTech.com

StarTech.com SV231MDPU2 Manual de usuario

StarTech.com

StarTech.com PCM815SHNA Manual de usuario

StarTech.com

StarTech.com 5G4AINDNP-USB-A-HUB Manual de usuario

StarTech.com

StarTech.com SV231DVGAU2A Manual de usuario

StarTech.com

StarTech.com ConvergeAV VS410HDMIE Manual de usuario

StarTech.com

StarTech.com IES81GW Guía

StarTech.com

StarTech.com StarView SV231USB Manual de usuario

StarTech.com

StarTech.com SV231DD2DUA Manual de usuario

StarTech.com

StarTech.com SV231DPUA Manual de usuario

StarTech.com

StarTech.com 5G4AINDRM-USB-A-HUB Manual de usuario

StarTech.com

StarTech.com SV831DUSBA Manual de usuario

StarTech.com

StarTech.com IES51000POE Manual del sistema

StarTech.com

StarTech.com 8 Port StarView CAT5 UTP KVM Manual de usuario

StarTech.com

StarTech.com STARVIEW SV431DVIUAHR Manual de usuario

StarTech.com

StarTech.com ST12MHDDCRP Manual de usuario

StarTech.com

StarTech.com HB30A7AME Manual de usuario

StarTech.com

StarTech.com SV831DVIU Manual de usuario

StarTech.com

StarTech.com VS123HD Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
