StarTech.com VGA2TV2WAY2 Manual de usuario

Video Converter with Scaler

2-Way High Resolution HDTV/

VGA Video Converter

with Scaler

VGA2TV2WAY2

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Side 1 View..................................................................................2

Side 2 View..................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................3

How to Use ...................................................................... 4

On Screen Display.......................................................................4

OSD Menu...................................................................................5

Support Resolutions....................................................... 6

Speciﬁcations.................................................................. 7

Technical Support........................................................... 8

Warranty Information...................................................... 8

Introduction

The StarTech.com 2-Way VGA to Component (HDTV) or Component

(HDTV) to VGA video Converter / Scaler combines the features of a

video scaler and a format converter, to provide a cost-effective way to

display VGA (PC) or component YPbPr (HDTV) feeds.

Packaging Contents

1 x VGA2TV2WAY2 video converter•

1 x 3ft. VGA to YPbPr component video cable•

1 x Power Adapter•

1 x Instruction Manual•

System Requirements

VGA or component (YPbPr) video source•

VGA or component (YPbPr) display device•

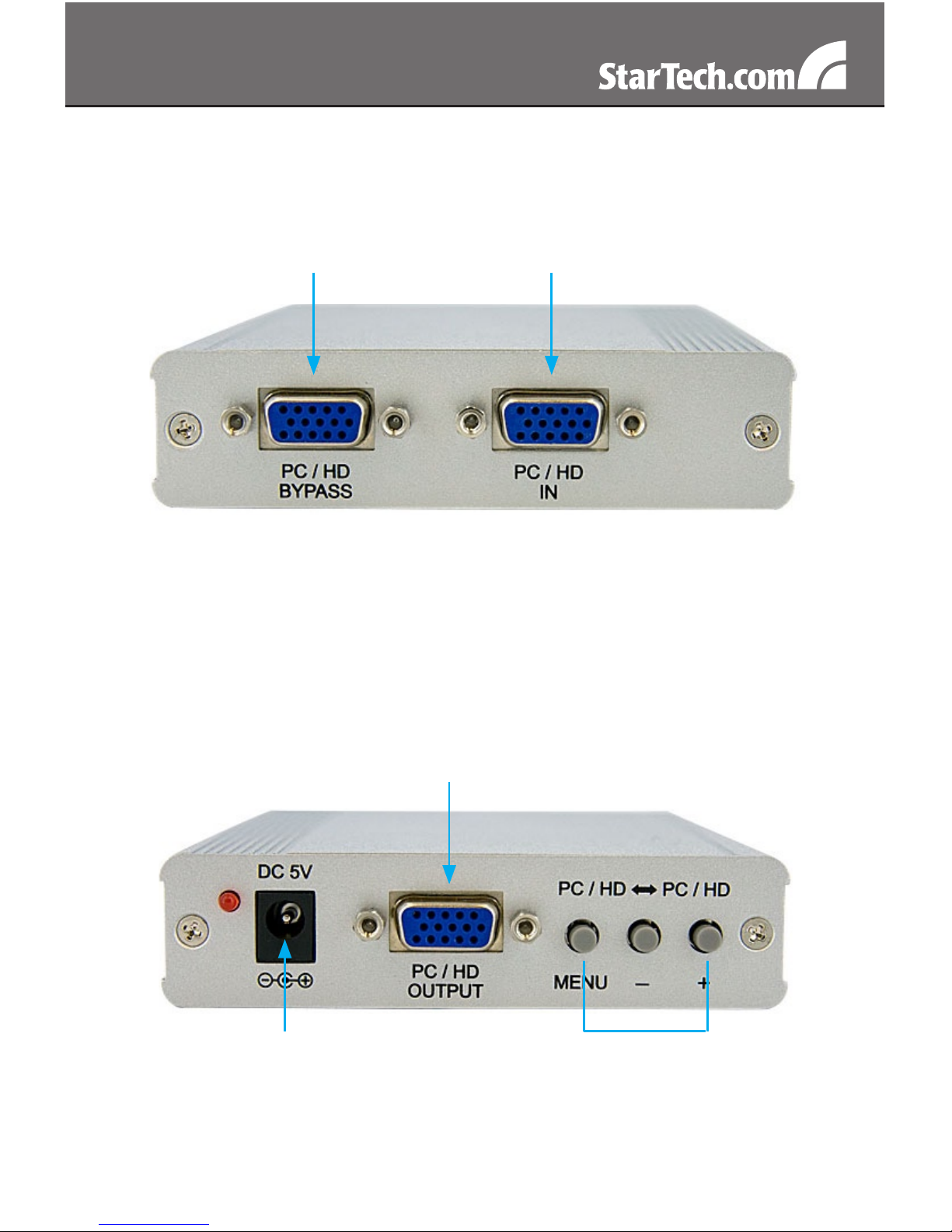

Side 1 View

Side 2 View

VGA or Component*

input connector

Video Pass-

through output

connector

*requires use of VGA to component breakout cable

VGA or Component*

output connector

DC Power

connector

Conﬁguration

buttons

Installation

WARNING: The default output signal from the video converter/

scaler is 1024 x 768 (XGA) at 60 Hz. Not all display devices have the

capability to display this resolution, so it is advisable to consult the

documentation for your display before attempting installation. If your

display does not support this resolution, you may not be able to access

the menu features through the on-screen display (OSD).

Hardware Installation

Make sure all devices and components are powered off.1.

Connect the VGA/Component video source into the “PC/HD IN”2.

connector on the video converter. If using a VGA source, then a

standard male/male cable should sufﬁce. If using a component

source, use the included VGA to Component breakout cable.

Plug the power adapter into the video converter. The Power LED3.

should light up steady.

Connect the “PC/HD Output” on the converter to the display device.4.

If connecting a display with VGA inputs, a standard male/male VGA

cable should sufﬁce. If connecting a display with component inputs,

use the included VGA to Component breakout cable.

Power on the display device.5.

Power on the video converter.6.

Power on the video source.7.

Driver Installation

No driver or software installation is required, as the video converter is

an external device, not visible to the video source or display device.

How to Use

On-Screen Display

The video converter/scaler has a built in On-Screen Display (OSD)

that can be accessed via the push buttons on the unit itself. The OSD

allows for manual conﬁguration of the video converter/scaler. Press the

“Menu” button to activate the OSD and the + and - buttons to navigate

the menu. Press the “Menu” button to conﬁrm selections.

NOTE: The OSD will only activate if an active video source is

connected to the video converter/scaler. If a video source is not

connected or not turned on, the OSD will not be visible.

The OSD allows for adjustments to the output picture, such as

brightness, contact, color and output resolution. These options should

allow for an optimal video image to be displayed on the display device.

If the wrong output resolution is selected, or incompatible with the

type of display device being used, the output resolution can be reset

to either XGA or 480p modes by pressing the “Menu” and + or “Menu”

and - buttons simultaneously. XGA mode should be used for any

display device that would normally be connected directly to a computer

system (i.e. computer monitor), while 480p should be used for a display

device that would normally be connected to cable/satellite TV.

480p reset

XGA reset

OSD Menu

1st Level Menu 2nd Level Menu Adjustment

Contrast N/A 0~100

Brightness N/A 0~100

Fine Tune

Hue 0~100

Saturation 0~100

Sharpness 0~100

Exit Return to 1st Level Menu

Color

Red 0~100

Green 0~100

Blue 0~100

Exit Return to 1st Level Menu

Size N/A Full, Overscan, Underscan,

Letterbox, Panscan

Output N/A

Native, VGA, SVGA, XGA,

SXGA, UXGA, WXGA, WSXGA,

WUXGA, 480i, 480p, 720p@50Hz,

720p@60Hz, 1080i@50Hz,

1080i@60Hz, 1080p@60Hz,

1080p@50Hz 576i, 576p,

OSD

HPosition 0~100 OSD Horizontal Position

VPosition 0~100 OSD Vertical Position

Timer 0~100sec. OSD time-out

Background 0~100 OSD transparency

Exit Return to 1st Level Menu

Information N/A Source, Input, Output, Version

Exit N/A Exit OSD Menu

Support Resolutions

Input/Output Resolution PC/HD Input PC/HD Output

480i/576i NTSC/PAL NTSC/PAL

480p/576p NTSC/PAL NTSC/PAL

720p 50/60Hz 50/60Hz

1080i 25/30Hz 25/30Hz

1080p 50/60Hz 50/60Hz

VGA (640x480) 60/72/75/85Hz 60Hz

SVGA (800x600) 56/60/72/75/85Hz 60Hz

XGA (1024x768) 60/70/75/85Hz 60Hz

SXGA (1280x1024) 60/75/85 60Hz

UXGA (1600x1200) 60Hz 60Hz

WXGA (1280x800) 60Hz 60Hz

WSXGA (1680x1050) 60Hz 60Hz

WUXGA (1920x1200) 60Hz 60Hz

Specications

Compatible Video Formats VGA (RGBHV),

Component (YPbPr)

Connectors 3 x DE-15 VGA female

1 x DC Power

LEDs 1 x Power

Maximum Video Resolution 1920x1200 / 1080p

On Screen Display Yes

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature 0°C to 60°C (32°F to 140°F)

Humidity 0~60% RH

Power Adapter 5VDC, 2.6A, center positive

Dimensions 157.0mm x 102.0mm x 25.0mm

Weight 332g
