ST12MHDDC

HDMI® Over CAT5/6 Extender with

Daisy Chain

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Transmitter Unit ......................................................................................................................................... 2

Receiver Unit ............................................................................................................................................... 2

ST12MHDDCRP Repeater ....................................................................................................................... 3

Preparing Your Site ................................................................................4

Hardware Installation ............................................................................5

Specications ..........................................................................................7

Technical Support ..................................................................................8

Warranty Information ............................................................................8

Instruction Manual

Introduction

The ST12MHDDC HDMI® to CAT5 Extender kit lets you extend an HDMI® audio and

video signal over a single Cat5 or Cat6 cable up to 330 feet (100 meters). The extender

oers a highly scalable installation when used with the optional ST12MHDDCRP

repeater units, which can be daisy-chained to additional displays at greater distances.

Using ST12MHDDCRP repeater units (sold separately), you also have the option to

daisy-chain the HDMI® over Cat 5/6 up to 30 broadcasting levels to over 100 displays.

With 2 RJ45 to HDMI® output ports per unit, each repeater allows you to output to a

display - and also extend the HDMI® signal to 2 additional HDMI® repeaters at up to

an additional 330 feet (100 meters) at each level, making this the perfect solution for

large-scale digital signage applications that require maximum HDMI® signal quality.

For further scalability, the ST12MHDDC kit can be used with existing network cable

for a cost-eective and exible extension. Plus, because the HDMI® signal is extended

over standard Cat5/Cat6 Ethernet cable with RJ45 connectors, proprietary cables aren’t

necessary which eliminates both expense and the hassle of running specialized cable.

The HDMI® over Ethernet Extender kit includes optional mounting hardware and

features an HDMI® output on the local transmitter unit, which allows you to keep a

display or projector near your video source.

Ideal for High-Denition applications, the HDMI® over UTP extender supports 1080p

video resolutions, 7.1 digital audio and features built-in EDID monitor emulation,

which ensures native resolution and maximum compatibility with your display or

projector, for a convenient plug-and-play installation.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1x HDMI® Over CAT5 Transmitter

• 1x HDMI® Over CAT5 Receiver

• 2x Universal Power Adapter (NA / UK / EU)

• 2x Foot Pad Set

• 1x Instruction Manual

System Requirements

• HDMI® enabled video source (i.e. computer, Blu-ray Player)

• HDMI® enabled display device(s) One for each Receiver/Repeater (i.e. television,

projector)

• Available AC electrical outlet for transmitter, receiver and optional repeaters

• HDMI® cable from for each display

Instruction Manual

Transmitter Unit

Front View of Transmitter Back View of Transmitter

1. HDMI® IN

2. Power Status LED

3. Link Status LED

1. Power Jack

2. HDMI Out Link (RJ-45 Connector)

Receiver Unit

Front View of Receiver Back View of Receiver

1. HDMI® OUT

2. Power Status LED

3. Link Status LED

4. EDID Copy Button

1. Power Jack

2. HDMI® Out Link (RJ-45 Connector)

Instruction Manual

ST12MHDDCRP Repeater

Unit (Sold Separately)

The ST12MHDDC HDMI extender kit allows for additional displays to be added

between the extender and receiver at any time using ST12MHDDCRP repeater units.

Repeaters provide an HDMI output for a display, as well as 2 additional RJ-45 Jacks to

potentially be daisy chained to 2 additional repeaters.

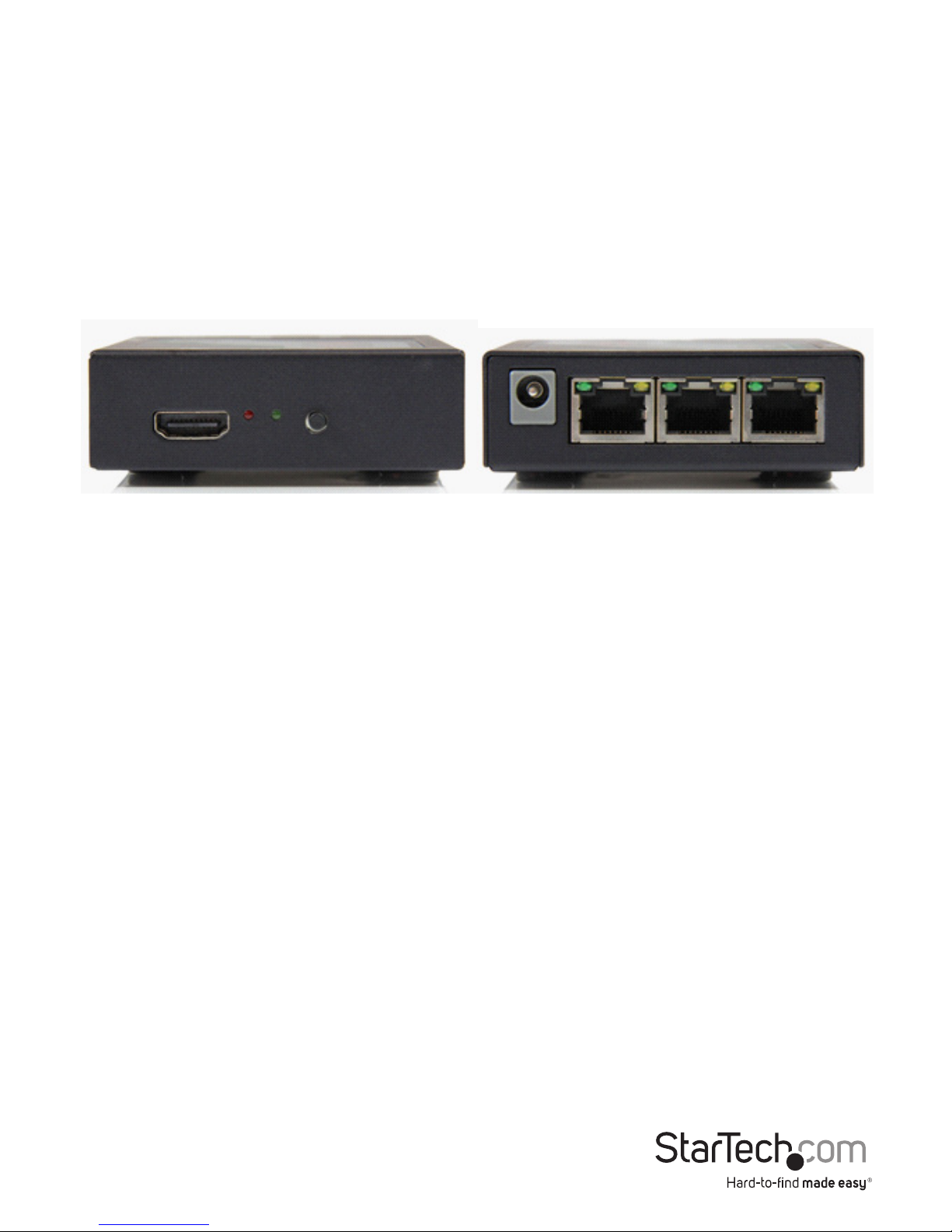

Front View of Repeater Back View of Repeater

1. HDMI® OUT

2. Power Status LED

3. Link Status LED

4. EDID Copy Button

1. Power Jack

2. HDMI® Out Link #1 (RJ-45 Connector)

3. HDMI® Out Link #2 (RJ-45 Connector)

4. HDMI® IN Link (RJ-45 Connector)

Instruction Manual

Preparing Your Site

1. Determine where the local video source (i.e. computer, Blu-ray Player) will be

located and set up the device.

2. Determine where the remote display(s) will be located and place/ mount the display

appropriately.

3. (Optional) If using ST12MHDDCRP Repeater unit(s) (sold separately), determine

where the remote display will be located in relation to the other displays and place/

mount the display(s) appropriately. Repeaters allow for an additional 330 ft. (100

meters) of Cat5/6 between each device. The repeater(s) must be situated between

the extender and the receiver, as the receiver does not have an RJ45 out port to

continue the chain.

NOTE: Ensure the Transmitter Unit, the Receiver Unit, and any Repeater Units are all

situated near an available AC electrical outlet. Make sure all devices are turned o

before beginning installation.

Instruction Manual

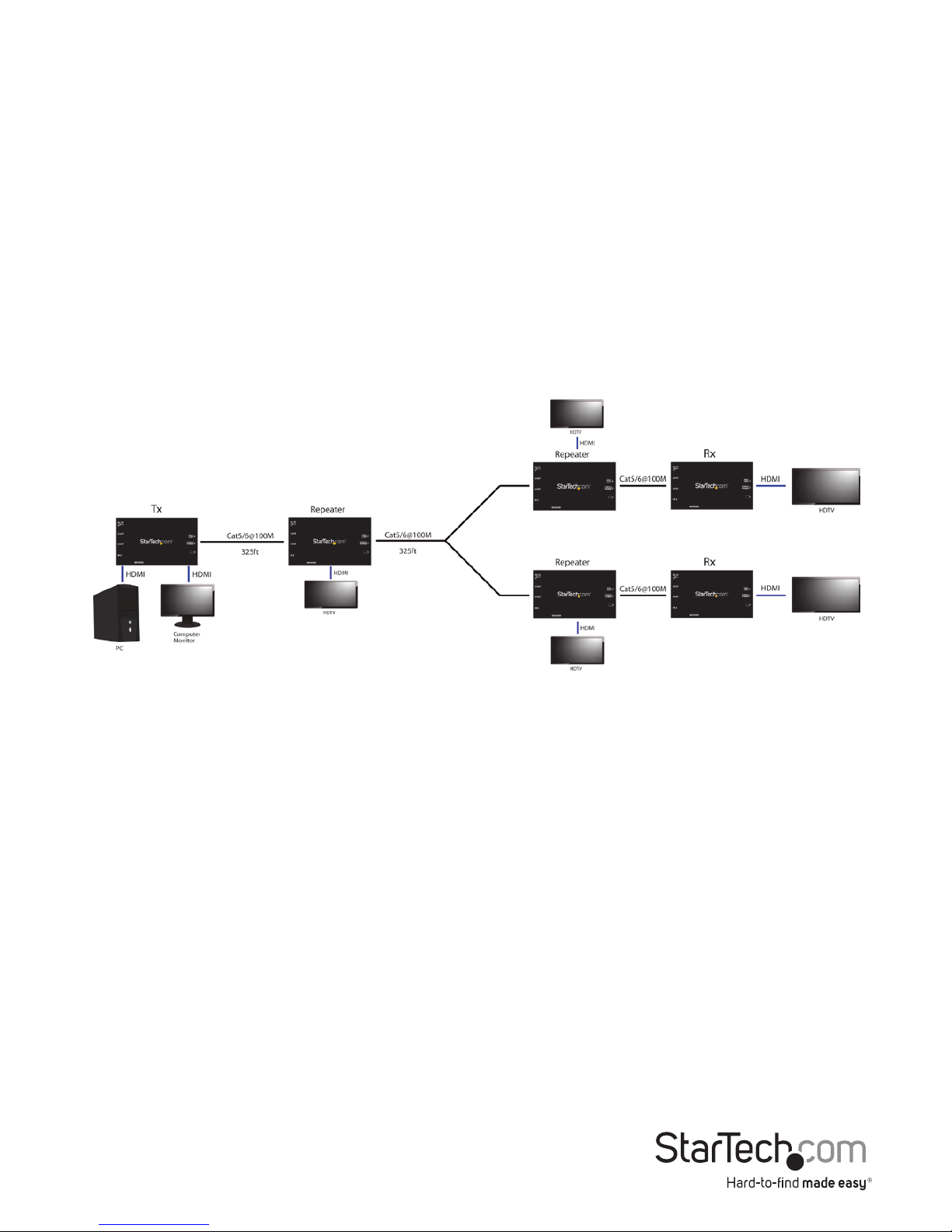

Hardware Installation

1. Install Transmitter Unit

a) Position the Transmitter Unit near the video source (i.e. Computer, Blu-ray Player).

b) Connect an HDMI® cable from the video source device (i.e. computer, Blu-ray

Player) to the “HDMI® IN” on the Transmitter Unit.

c) Connect the provided Transmitter Unit power supply.

2. Install RJ-45 terminated Cat5/6 Ethernet Cable

a) Connect an RJ-45 terminated Cat5/6 Ethernet cable to the HDMI® Out Link (RJ-45

Connector) on the Transmitter unit.

NOTE: If you are using surface cabling, ensure you have enough Category 5/6

unshielded twisted pair (UTP) network cabling to connect the Transmitter Unit to

the Remote Unit’s (Repeater/Receiver) location, and that each end is terminated

with a RJ45 connector. The cabling should not go through any networking

equipment (i.e. router, switch).

If you are using premises cabling, ensure that the Category 5/6 unshielded twisted

pair (UTP) network cabling between the Host Unit and the

Remote Unit has been properly terminated in a wall outlet in each location and

there is a patch cable long enough to connect the Remote Unit and the Host Unit

to their respective outlets. The cabling should not go through any networking

equipment (i.e. router, switch).

b) Connect the other end of the Cat5/6 cable run to the RJ45 connector on the

remote Unit (Receiver/Repeater) Unit.

c) (optional) When adding multiple repeaters, a run of Cat 5/6 cable will be required

from and to each device.

Instruction Manual

3. (Optional) Install Repeater Unit(s) (sold separately)

a) Position the Repeater Unit near the video display (i.e. television, projector) within

330 ft. (100 meters) from the level up device be it the initial transmitter or

another repeater.

b) Connect the video source to the HDMI® Out on the Repeater Unit using an

HDMI® cable.

c) Connect the Cat5/6 cable positioned in Step 2 to the”HDMI® In Link (RJ-45

Connector)” on the Repeater. Connect the Receiver Unit power supply. The Power

LED will light, and LINK LED will turn on after a successful connection between both

units is established. This may take several seconds.

NOTE: These steps can be repeated at each level when adding additional Repeaters

up to 30 levels. Each Repeater has two HDMI® out Links (RJ-45 Connectors) allowing

for the same signal to go in 2 dierent directions at each level.

4. Install Receiver Unit

d) Position the Receiver Unit near the video display (i.e. television, projector) within

330 ft. (100 meters) from the level up device be it the initial transmitter or

another repeater.

e) Connect the video source to the HDMI® out on the Receiver Unit using an

HDMI® cable.

f) Connect the provided Receiver Unit power supply. The Power LED will light,

and Link LED will turn on after a successful connection between both units is

established. This may take several seconds.

NOTE: The Receiver should only be used as the last device in the chain as it does not

have an HDMI out port (RJ-45 Connector).

5. Your source video image will now appear on the remote unit(s) attached

video display.

Instruction Manual

Specications

Local Unit Connectors 1x HDMI (19 pin)

1x RJ-45

Remote Unit Connectors 1x RJ-45 Female

1x HDMI (19 pin) Female

Max Distance 100 m / 330 ft

Maximum Digital Resolutions 1920x1200 @60Hz

Supported Resolutions

1920 x 1200

1920 x 1080

1600 x 1200

Wide Screen Supported Yes

Audio Specications 7.1 Surround Sound

Tabla de contenidos

Otros manuales de Extensor de StarTech.com

StarTech.com

StarTech.com USBthere USB120EXT Manual de usuario

StarTech.com

StarTech.com ST121SHD30 Manual de usuario

StarTech.com

StarTech.com ST1218T Manual de usuario

StarTech.com

StarTech.com ST121HDBTE Manual de usuario

StarTech.com

StarTech.com SV565UTPDUV Manual de usuario

StarTech.com

StarTech.com ST121HDFXA Manual de usuario

StarTech.com

StarTech.com USBthere USB110EXT Manual de usuario

StarTech.com

StarTech.com SV565UTPU Manual de usuario

StarTech.com

StarTech.com ST121UTPDVI Manual de usuario

StarTech.com

StarTech.com SV565UTP Manual de usuario

StarTech.com

StarTech.com ST121WHD2 Manual de usuario

StarTech.com

StarTech.com USB2G4LEXT2NA Manual de usuario

StarTech.com

StarTech.com HD202A Manual de usuario

StarTech.com

StarTech.com USBthere USB201EXT Manual de usuario

StarTech.com

StarTech.com UTPE Series Manual de usuario

StarTech.com

StarTech.com SV565UTPUL Manual de usuario

StarTech.com

StarTech.com ST121HDBT5 Manual de usuario

StarTech.com

StarTech.com ST12MHDLAN2K Manual de usuario

StarTech.com

StarTech.com 33FT-8K-HDMI-BOOSTER Manual de usuario

StarTech.com

StarTech.com STUTPRXWLA Manual de usuario

StarTech.com

StarTech.com SV565UTPDUA Manual de usuario

StarTech.com

StarTech.com ST121R Manual de usuario

StarTech.com

StarTech.com SV565UTPHDU Manual de usuario

StarTech.com

StarTech.com 8STST121HDBT20S Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
