StarTech.com EOC110K Manual del sistema

10/100 Mbps Ethernet Over Coaxial LAN Extender Kit

StarTech ID: EOC110K

The EOC110K Ethernet over Coax extender kit includes both end points, and allows you to span a 10/100 network over

extremely long distances (up to 2.4km/8000ft) while still maintaining high-speed network connectivity.

The Ethernet-Coax extender allows you to run the connection over existing coaxial cable, with little to no modification

required, making it a perfect solution for a broad range of applications, including connecting isolated user stations from the

same or separate building, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture)

where new wiring or wireless connectivity may be impossible.

The Coaxial Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same

coax cable without interference and also offers the ability to use multiple EOC110R receiver units (sold separately) to create

a point-to-point or point-to-multipoint topology for enhanced network scalability.

Backed by a StarTech.com 1-year warranty and free lifetime technical support.

Applications and Solutions

• Extend an Ethernet network across an existing closed circuit camera network (over coax) without interrupting the analog

TV signal

• Provide high-speed connectivity to a user or network segment that is in an isolated area of a large complex or in another

building

• Extend network connectivity to remote areas of stadiums, auditoriums or other venues at extreme distances

• Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control

equipment, and other harsh environment applications

• Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor

data, and various other healthcare related network communications

• Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)

Features

• Plug-and-play design for simple installation; no configuration orsoftware required

• Uses existing coaxial cable, RG-59, RG-6, RG-7, or RG-11

• Supports point to point, and point to multi-point topologies

• Supports up to 32 nodes

• Transparent TCP/IP Operations

• Auto-MDIX and Auto-negotiation 10Base-T or 100Base-TX and Full orHalf-Duplex on the Ethernet port

• Compliant with EoCNA standard

• Status LEDs for simple monitoring of the device and connection status

Technical Specifications

• Warranty: 1 Year warranty

• Color: Black

• LED Indicators: 1 - Power

• LED Indicators: 1 - LAN Link/Activity

• LED Indicators: 1 - Coax Sync

• LED Indicators: 1 - Coax Link/Activity

• Interface A: 1 - RJ45 Female

• Interface B: 2 - F Connector (RF Coax) Female

• Maximum Data Transfer Rate: Up to 144Mbps @ 4,921 ft (1500 m)

Up to 64Mbps @ 7,874 ft (2.4 km)

Speed/distance will vary depending on quality of line used (see manual for detailed chart)

• Max Transfer Distance : 7,874 ft (2.4 km)

• Power Budget: 8 +/- dBm, 12-28 MHz

• Industry Standards: IEEE 802.3 10BASE-T

• Industry Standards: IEEE 802.3u 100BASE-TX

• Industry Standards: ITU G.9954 (HomePNA 3.1)

• Power Adapter Included: Two

• Input Voltage: 115 AC

• Output Voltage: 5 DC

• Output Current: 2000mA

• Center Tip Polarity: Positive

• Plug Type: M

• Product Height: 3.03 in [77 mm]

• Product Length: 11.02 in [280 mm]

• Product Width: 5.43 in [138 mm]

• Product Weight: 0.71 lb [0.32 kg]

• Humidity: 10~90% RH

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -10°C to 70°C (14°F to 158°F)

• MTBF: 57000 Hours

• Shipping (Package) Weight: 3.14 lb [1.42 kg]

• Carton Quantity: 5

Otros manuales para EOC110K

Tabla de contenidos

Otros manuales de Extensor de StarTech.com

StarTech.com

StarTech.com F35023-USB-EXTENDER Manual de usuario

StarTech.com

StarTech.com 410VDSLEXT2 Manual de usuario

StarTech.com

StarTech.com 8STSV565HDIP Manual de usuario

StarTech.com

StarTech.com ST222HDBT Manual de usuario

StarTech.com

StarTech.com STUTPRXWAL Manual de usuario

StarTech.com

StarTech.com ST124UTPEA Manual de usuario

StarTech.com

StarTech.com ST121USBHD Manual de usuario

StarTech.com

StarTech.com EOC110K Manual de usuario

StarTech.com

StarTech.com SV565UTPDUA Manual de usuario

StarTech.com

StarTech.com SV565UTPU Manual de usuario

StarTech.com

StarTech.com DS128 Manual de usuario

StarTech.com

StarTech.com ST121HD20V Manual de usuario

StarTech.com

StarTech.com USBthere USB201EXT Manual de usuario

StarTech.com

StarTech.com ST121UTP232 Manual de usuario

StarTech.com

StarTech.com IREXT2 Manual de usuario

StarTech.com

StarTech.com USBthere USB110EXT Manual de usuario

StarTech.com

StarTech.com ST121USBHD Manual de usuario

StarTech.com

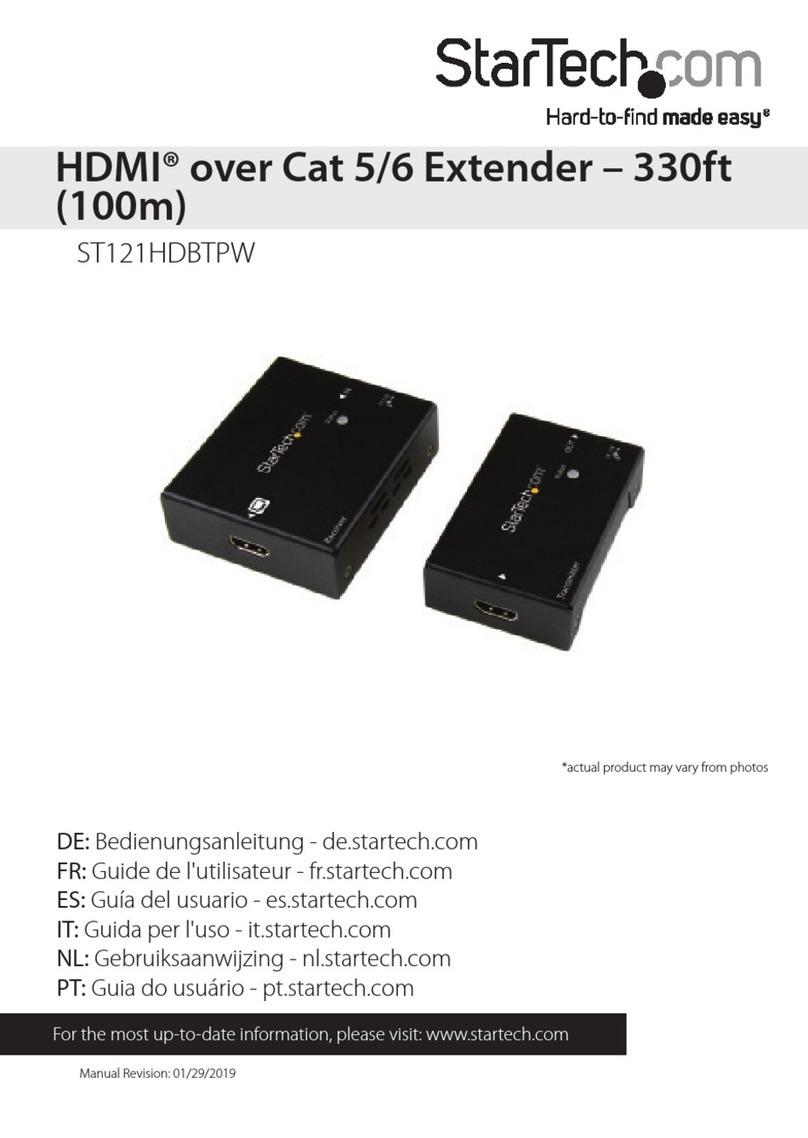

StarTech.com ST121HDBTPW Manual de usuario
