The SATDOCK22RE Dual Drive SATA Hard Drive Duplicator functions as both an external SATA

hard drive docking station for 2.5”or 3.5”SATA 1.5/3.0 Gbps compatible hard drives and a

convenient standalone hard drive imaging solution, delivering an exact 1 to 1 sector disk copy.

Packaging Contents

• 1 x SATDOCK22RE hard drive dock

• 1 x Universal Power Adapter

• 3 x Power Cord (NA, GB, EU)

• 1 x USB type A-B cable

• 1 x eSATA cable

• 1 x Instruction Manual

System Requirements

• Available USB 2.0 port and/or eSATA port

NOTE: eSATA port must support Port Multiplier technology

• Available AC Power Outlet

• Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server

2008 R2, Mac OS X, and Linux

Instruction Manual 2

Installation

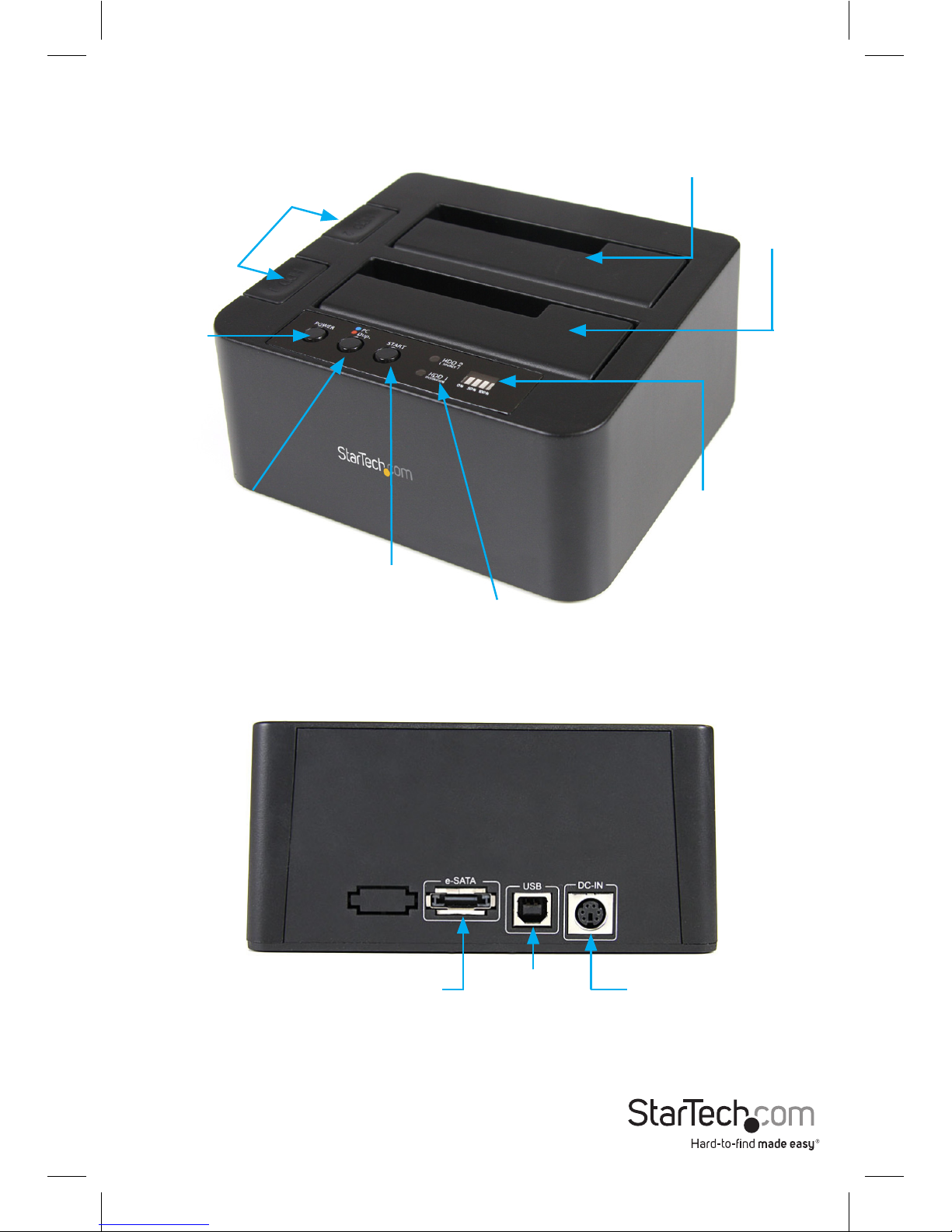

Rear View

Drive

Ejection

Button

Power

button/LED

Duplicate/JBOD

Mode button

Duplicate

Start button

Duplicate

Progress LED

Drive

Power/Activity

LEDs

Drive Bay

(Source)

Drive Bay

(Destination)

DIN Power

connector

USB type B

connector

eSATA

connector

*actual product may vary from photos

Top View

Instruction Manual 3

Hardware Installation

JBOD (PC) Mode

1. Connect the external power adapter to the hard drive dock.

2. Install 1 or 2 hard drives into the dock in either drive bay.

3. Power on the hard drive dock by pressing the power button.

4. The Mode button LED should be blue to indicate JBOD mode. Press and hold the Mode

button for 3 seconds to switch modes if necessary.

5. Connect the USB or eSATA cable from the hard drive dock to the computer system.

NOTE: If using eSATA, the port on the computer system must support Port Multiplier

technology for both drives to be visible.

6. The operating system should now detect the hard drive(s) and make them available. The

hard drives may need to be partitioned/formatted using a disk management utility before

you can access them.

Duplicator Mode

1. Connect the external power adapter to the hard drive dock.

2. Install 2 hard drives into the dock. Make sure to place the drive with the data you want

copied (Source) into the “Source” bay. The disk to receive the data (Destination) should be

equal or larger in capacity than the source disk.

3. Power on the hard drive dock by pressing the power button.

4. The Mode button LED should be red to indicate Duplicator Mode. Press and hold the Mode

button for 3 seconds to switch modes if necessary.

5. Once both drives are installed, press the Start button to begin duplication. The progress bar

will indicate how much of the duplication is complete. Once complete, the entire bar will be

lit solid.

Instruction Manual 4

Driver Installation

Windows 2000/XP/Vista/Server 2008 R2/7, Mac OS X, Linux

No driver installation is required for these operating systems, as this hard drive dock is natively

supported, so the drivers are already installed.

How to Use

LED Status

Name State Description

Drive Power/Activity

Blue Drive detected

Red No drive detected

Flashing Drive activity

Power O Hard drive dock is powered o

On Hard drive dock is powered on

Mode Blue JBOD (PC) mode

Red Duplicate mode

Instruction Manual 5

Specications

Bus Interface USB 2.0

SATA 3.0Gb/s

External Connectors

1 x USB type B

1 x eSATA female*

1 x DIN power connector

Chipset JMicron JMB352U

Hard Drive Bays 2

LEDs

1 x Power

1 x Mode

2 x Drive Power/Activity

1 x Duplication progress bar

Hard Drive Compatibility 2.5” and 3.5” SATA

Maximum Data Transfer Rate USB 2.0: 480Mb/s

eSATA: 3.0Gb/s

Duplication Rate 72MB/s

Dimensions 147.0mm x 132.0mm x 70.0mm

Weight 547g

Compatible Operating Systems

Windows 2000/ XP(32/64-bit)/ Server

2003(32/64-bit)/ Vista(32/64-bit)/

7(32/64-bit)/ Server 2008 R2, Mac OS X,

and Linux

* eSATA host controller must support Port Multiplier technology
