StarTech.com SATDOCK4U2E Manual de usuario

Manual Revision: 08/25/2011

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

For the most up-to-date information, please visit: www.startech.com

SATDOCK4U2E

SATDOCK4U3E

*SATDOCK4U3E shown

4 Bay eSATA/USB 2.0/3.0 to 2.5in/3.5in

SATA HDD Docking Station

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to

which this manual applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges

that all trademarks, registered trademarks, service marks, and other protected names and/or

symbols contained in this manual and related documents are the property of their respective

holders.

Instruction Manual i

Table of Contents

Introduction........................................................................................................................................................1

Packaging Contents ................................................................................................................................1

System Requirements ............................................................................................................................1

SATDOCK4U2E - Top View....................................................................................................................2

SATDOCK4U2E - Rear View..................................................................................................................2

SATDOCK4U3E - Top View....................................................................................................................3

SATDOCK4U3E - Rear View..................................................................................................................3

Installation............................................................................................................................................................4

Hardware Installation..............................................................................................................................4

Driver Installation......................................................................................................................................4

Using the Storage Device...........................................................................................................................5

Specications.....................................................................................................................................................7

Technical Support ...........................................................................................................................................8

Warranty Information....................................................................................................................................8

SATDOCK4U3E: Pressing the power button to turn o a hard drive will

momentarily restart the other drive bays. Ensure the other drives are not

being accessed when powering o any of the drives.

Instruction Manual 1

Introduction

The SATDOCK4U2E and SATDOCK4U3E Quad SATA Docking Stations for 2.5in and 3.5in hard

drives (HDD) and solid state drives (SSD) allows for up to four drives to be conveniently and

quickly accessed from a single device.

The SATDOCK4U2E allows four SATA drives to be paired and connected over USB 2.0, with

data transfer rates up to 480Mbps, with two USB connections or each drive can be connected

individually over a dedicated eSATA connection at up to 3Gbps, allowing for multiple computers

to simultaneously interface with a single docking station to access only a specic drive(s).

The SATDOCK4U3E features SuperSpeed USB 3.0 connectivity (also compatible with USB 2.0)

with data transfer rates up to 5Gbps (10x faster than USB 2.0) or eSATA with Port Multiplier

connectivity up to 3Gbps. This docking station provides fast connectivity to all 4 drives

simultaneously from a single connection.

Packaging Contents

System Requirements

• Available USB and/or eSATA* port(s) on computer system

*eSATA port requires Port Multiplier support for SATDOCK4U3E

• Available AC power outlet

• Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server

2008 R2, Mac OS X, and Linux

SATDOCK4U2E SATDOCK4U3E

1 x 4-Bay SATA Docking Station 1 x 4-Bay SATA Docking Station

2 x USB 2.0 cable 1 x USB 3.0 cable

4 x eSATA cable 1 x eSATA cable

1 x Universal Power Adapter 1 x Universal Power Adapter

3 x Power Cord (NA/UK/EU) 3 x Power Cord (NA/UK/EU)

1 x Instruction Manual 1 x Instruction Manual

Instruction Manual 2

SATDOCK4U2E - Top View

SATDOCK4U2E - Rear View

Instruction Manual 3

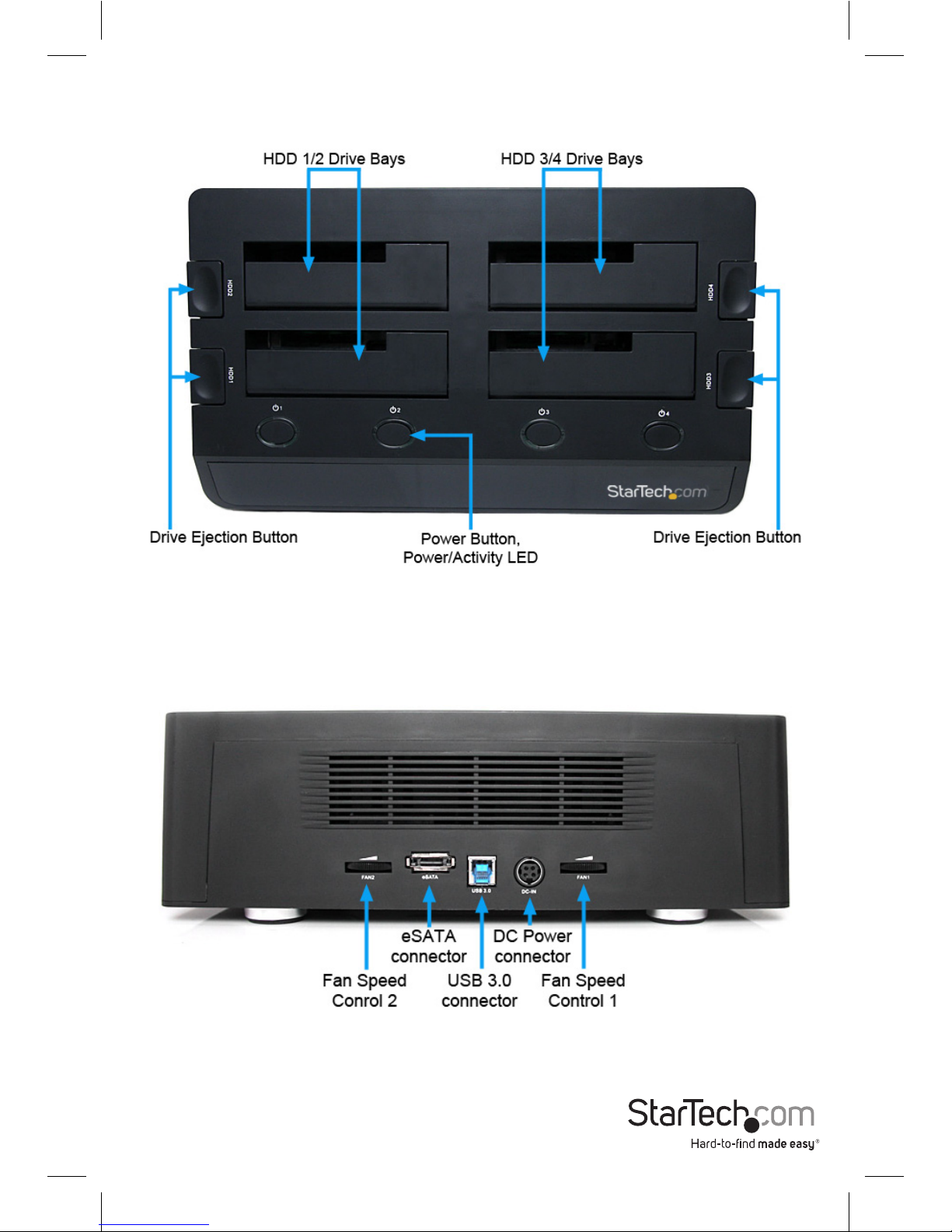

SATDOCK4U3E - Top View

SATDOCK4U3E - Rear View

Instruction Manual 4

Installation

WARNING! Hard drives require careful handling, especially when being transported. If you are

not careful, lost data may result. Always handle hard drives and storage devices with caution.

Hardware Installation

1. Connect the external power adapter from the hard drive docking station to an AC power

outlet.

2. Insert 2.5” or 3.5” hard drive(s) into the top loading slot(s). Make sure that the connectors on

the hard drive are facing the same corner of the slot that has a cutout in the door. The label

on the hard drive should face the front of the SATA docking station.

3. SATDOCK4U2E: Connect the HDD1/2 bays using either a single USB cable (USB1) or separate

eSATA cables (eSATA1/2) to a computer(s). Connect the HDD3/4 bays using either a single

USB cable (USB2) or separate eSATA cables (eSATA3/4) to the same or dierent computer(s).

SATDOCK4U3E: Connect the included USB cable or eSATA cable from the hard drive docking

station to an available USB or eSATA port on the computer system. The computer can be on

or o.

NOTE: If using eSATA, please note that the eSATA port on the host computer system must

provide Port Multiplier support. If the eSATA port does not oer Port Multiplier support, only

one of the installed SATA drives will be accessible.

4. Press the power buttons on the top of the hard drive docking station for each of the bays that

contain a hard drive. The Power LED around the power buttons should light up.

5. To remove the hard drive, make sure it is currently not being accessed by the computer and

the Activity LED is not ashing, then unmount or uninstall the disk drive from the operating

system (see documentation for your operating system). Press the appropriate power button

to turn o the hard drive and wait for the drive to power down. Press the drive ejection

button on the top of the hard drive dock to the release the drive, then pull the drive from the

slot.

Driver Installation

No driver installation is required for the supported operating systems, as this hard drive dock is

natively supported, so the drivers are already installed.

Instruction Manual 5

Using the Storage Device

Windows 2000/XP/Vista/7

If you are using a brand new hard drive that does not contain any data, then you will rst

need to prepare the hard drive for use. From the main desktop, right-click on “My Computer”

(“Computer” in Vista/7), then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

Locate the Disk that says it is “Unallocated”(check hard drive capacity to conrm it’s the correct

hard drive) and then right-click in the section that says “Unallocated”and select “New Partition”.

Instruction Manual 6

The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting

up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned

(i.e. E:). This drive letter should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after plugging it in, the drive

should automatically show up with a drive letter assigned within My Computer.

Instruction Manual 7

Specications

SATDOCK4U2E SATDOCK4U3E

Number of Drives 4

Bus Interface USB 2.0

SATA revision 2.x

USB 3.0

SATA revision 2.x

Chipset ID Initio INIC1610P JMicron JM321 + JM539

External Connectors 2 x USB type A female

4 x eSATA female

1 x USB 3.0 type B

female

1 x eSATA female

LEDs 4 x Drive Power

4 x Drive Activity

Fans 2 x 60mm

Maximum Data Transfer

Rate

USB 2.0: 480Mbps

eSATA: 3Gbps

USB 3.0: 5Gbps

eSATA: 3Gbps

Hard Drive Compatibility 2.5”/3.5” SATA 1.5/3.0/6.0 Gbps compatible drives,

tested up to 2.0TB in capacity

Insertion Rating 15, 000 cycles

Power Adapter 12VDC, 6500mA

Operating Temperature 5°C ~ 80°C (41°F ~ 176°F)

Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)

Humidity 8% ~ 90% RH

Dimensions 290.5mm x 172.7mm x 94.7mm

Weight 1054g 1020g

Compatible Operating

Systems

Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-

bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2,

Mac OS X, and Linux
