StarTech.com USB3SDOCKHD Manual del sistema

Universal USB 3.0 Laptop Docking Station – Dual Video HDMI DVI w/ Audio Ethernet

StarTech ID: USB3SDOCKHD

The USB3SDOCKHD Universal USB 3.0 Laptop Docking Station with DVI, HDMI, Audio and Ethernet adds dual

video outputs, headphone and microphone jacks, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0

ports to a laptop computer, all from a single device and over a single SuperSpeed USB 3.0 connection.

This versatile universal docking station features two independant external monitor outputs (HDMI, DVI) that can be

separately used to expand or mirror your computer's main desktop. Plus, each of the video outputs provided by the

docking station supports video resolutions up to 2048x1156 and HD video playback - an ideal solution for adding

robust video capability while remaining conveniently mobile.

An all-in-one mobile solution, the universal laptop docking station combines USB 2.0 and USB 3.0 hubs, headphone

and microphone audio connectors and a Gigabit Ethernet RJ45 port into a single docking station, making it the

perfect accessory for enhancing laptop capability for users who need to connect and manage multiple devices at

home or at the office.

Applications

Add HD video, USB (USB 2.0 and USB 3.0), Ethernet and Audio from a single USB connection, without

having to open the computer system

Add dual video outputs to a laptop or small form factor computer, where the video card cannot be replaced

Connect a wide variety of peripherals at home/office to a laptop and be able to instantly disconnect them all

from a single USB connection

Turn a laptop into a multi-monitor workstation (up to 3 screens total) for increased productivity

intrl.startech.com

Features

Independant HDMI and DVI video outputs with mirroring and/or extended desktop capabilities

10/100/1000 Mbps compatible RJ45 Ethernet port

Speaker and Microphone support via 3.5mm stereo mini-jacks

Supports resolutions up to 2048x1152 on both video outputs simultaneously

2 front panel USB 3.0 ports and 4 rear panel USB 2.0 ports

Fully compliant with USB 3.0 specifications, with support for transfer rates up to 5 Gbps

Supports the Windows® Aero® interface

Vertical, upright positioning saves desk space

intrl.startech.com

Technical Specifications

Warranty 2 Years

Interface USB 3.0

Bus Type USB 3.0

Industry Standards IEEE 802.3, 802.3u, and 802.3ab

Chipset ID DisplayLink - DL-3900; VLI - VL810; Terminus - FE1.1; Realtek - RTL8211E

Connector Type(s) 1 - DVI-I (29 pin) Female

Connector Type(s) 1 - HDMI (19 pin) Female

Connector Type(s) 1 - RJ-45 Female

Connector Type(s) 1 - USB 3.0 B (9 pin; SuperSpeed) Female

Connector Type(s) 2 - 3.5 mm Mini-Jack (3 Position) Female

Connector Type(s) 2 - USB 3.0 A (9 pin; SuperSpeed) Female

Connector Type(s) 4 - USB A (4 pin) Female

Maximum Digital

Resolutions

2048 x 1152

Type and Rate USB 2.0 - 480 Mbit/s

Type and Rate USB 3.0 - 5 Gbit/s

Compatible Networks 10/100/1000 Mbps

Auto MDIX Yes

Full Duplex Support Yes

OS Compatibility Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server

2008 R2/ 8(32/64-bit)

Color Black

Enclosure Type Plastic

Product Length 4.9 in [125 mm]

Product Width 2.8 in [70 mm]

Product Height 7.7 in [195 mm]

Product Weight 12.8 oz [362 g]

LED Indicators 1 - Power (Blue)

LED Indicators 1 - USB Hub Link (Blue)

Power Adapter Included Yes

Input Voltage Universal 115 ~ 230 AC

Output Voltage 5 DC

Output Current 4A

Operating Temperature 10°C to 40°C (50°F to 104°F)

Storage Temperature -10°C to 80°C (14°F to 176°F)

intrl.startech.com

System and Cable

Requirements

CPU: i3 Dual core 2.8GHz or better

RAM: 2GB or higher

Available USB 3.0 port

Package Quantity 1

Shipping (Package)

Weight

32.8 oz [929 g]

Included in Package 1 - USB 3.0 Docking Station

Included in Package 1 - USB 3.0 Cable

Included in Package 1 - Universal Power Adapter

Included in Package 3 - Power Adapter Plug (NA/ UK/ EU)

Included in Package 1 - Driver CD

Included in Package 1 - Instruction Manual

Certifications, Reports and Compatibility

intrl.startech.com

Otros manuales de Estación de acoplamiento de StarTech.com

StarTech.com

StarTech.com TB2DOCK4K2DP Manual de usuario

StarTech.com

StarTech.com SATDOCK22RU3 Manual de usuario

StarTech.com

StarTech.com SATDOCK22U3S Manual de usuario

StarTech.com

StarTech.com USB5N1DOCK Manual de usuario

StarTech.com

StarTech.com DK30ADD Manual de usuario

StarTech.com

StarTech.com USB3SMDOCKV Manual de usuario

StarTech.com

StarTech.com SDOCK2ERU33 Manual de usuario

StarTech.com

StarTech.com Thunderbolt 3 TB3DKM2DPL Manual de usuario

StarTech.com

StarTech.com SATDOCK4U3 Manual de usuario

StarTech.com

StarTech.com TB2DOCK4KDHC Manual de usuario

StarTech.com

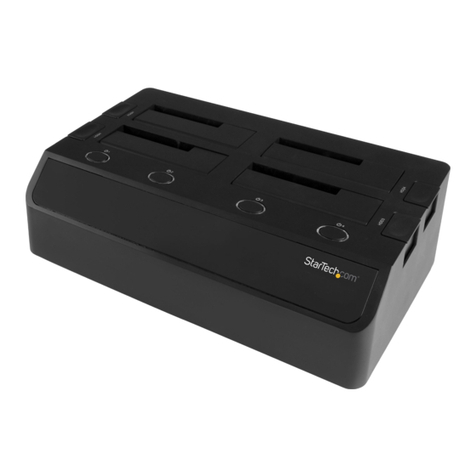

StarTech.com SDOCK4U33E Manual de usuario
