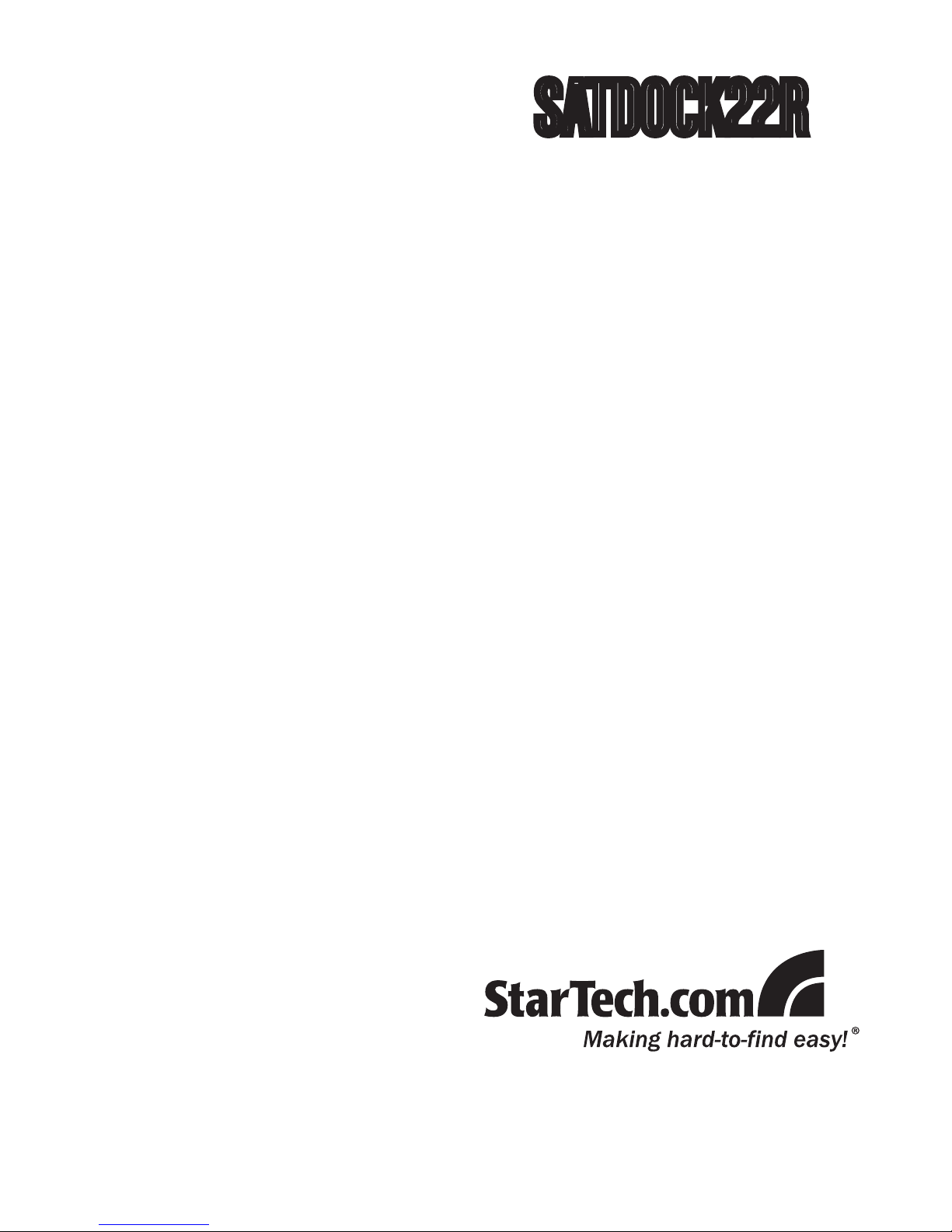

StarTech.com SATDOCK22R Manual de usuario

Serial ATA Hard Drive Dock

USB to SATA External Dual Hard

Drive Dock with Stand Alone

Duplicator

SATDOCK22R

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................3

How to Use ...................................................................... 4

LED Status ..................................................................................4

Buzzer Status ..............................................................................4

Speciﬁcations.................................................................. 5

Technical Support........................................................... 6

Warranty Information...................................................... 6

Introduction

The SATDOCK22R Dual Drive SATA Hard Drive Duplicator functions

as both an external SATA hard drive docking station for 2.5” or 3.5”

SATA 1.5/3.0 Gbps hard drives and a convenient standalone hard drive

imaging solution, delivering an exact 1 to 1 disk copy.

Packaging Contents

1 x SATDOCK22R hard drive dock•

1 x Power Adapter with US, UK, EU power cords•

1 x USB type A-B cable•

1 x Instruction Manual•

System Requirements

Available USB 2.0 port•

Available AC Power Outlet•

Microsoft Windows• ®2000/XP/Server 2003/Vista, Mac OS®X

or Linux®

Installation

Drive

Ejection

Button

Power

button/LED

Duplicate/JBOD

Mode button

Duplicate

Start button

Duplicate

Progress LED

Drive

Power/

Activity

LED

Drive Bay

(Source)

Drive Bay

(Destination)

Top View

Rear View

DIN Power

connector

USB type B

connector

Hardware Installation

JBOD Mode

Connect the external power adapter to the Hard Drive Dock.1.

Install 1 or 2 hard drives into the dock in either drive bay.2.

The Mode button LED should be blue to indicate JBOD mode. Press3.

and hold the Mode button for 3 seconds to switch modes.

Connect the USB cable from the hard drive dock to the computer4.

system.

The operating system should now detect the hard drive(s) and5.

make them available. The hard drives may need to be partitioned/

formatted using a disk management utility before you can access

them.

Duplicator Mode

Connect the external power adapter to the Hard Drive Dock.1.

Install 2 hard drives into the dock. Make sure to place the drive2.

with the data you want copied (Source) into the “Source” bay. The

destination disk (Destination) should be equal or larger in capacity

than the source disk.

The Mode button LED should be red to indicate Duplicator Mode.3.

Press and hold the Mode button for 3 seconds to switch modes.

Once both drives are installed, press the Start button to begin4.

duplication.

Driver Installation

Windows 2000/XP/Vista, Mac OS X, Linux kernel

No driver installation is required for these operating systems, as

this hard drive dock is natively supported, so the drivers are already

installed.

How to Use

LED Status

Name State Description

Drive Power/Activity

Blue Drive detected

Red No drive detected

Flashing Drive activity

PWR Off Hard drive dock is powered off

On Hard drive dock is powered on

Mode Blue JBOD mode

Red Duplicate mode

Buzzer Status

Mode Status Description

JBOD Twice per second,

every 8 seconds

Drive is removed while powered

up. No drives present.

Duplicate Long beep per

second, 3 times Drive detection failure.

Duplicate Twice per second, for

6 seconds

Drive duplication successfully

completed.

Duplicate Long and short beep Drive duplication error.

Specications

Bus Interface USB 2.0

External Connectors 1 x USB type B

1 x DIN power connector

Chipset Acard ARC286

Hard Drive Bays 2

LEDs

1 x Power

1 x Mode

1 x Duplicate progress bar

Hard Drive Compatibility 2.5” and 3.5” SATA 1.5 and

3Gb/s up to 1.5TB in capacity

Maximum Data Transfer Rate 480Mb/s

Duplication Rate 72MB/s

Dimensions 144.8mm x 133.6mm x 75.3mm

Weight 550g

Compatible Operating

Systems

Windows 2000/XP/Server 2003/

Vista, Mac OS X, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
