StarTech.com USB3SDOCKD Manual de usuario

Manual Revision: 02/09/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

USB3SDOCKD

USB3SDOCKHD

Universal USB 3.0 Laptop Docking Station

with Video, Audio, Ethernet

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Front View.................................................................................................................................................... 2

Rear View...................................................................................................................................................... 2

Installation ..............................................................................................3

Windows XP/ Vista/ 7............................................................................................................................... 3

How to Use ..............................................................................................4

Display Modes............................................................................................................................................ 5

“Extend” Display Mode (DEFAULT).............................................................................................................5

“Extend To” Options.........................................................................................................................................5

“Mirror” Display Mode ....................................................................................................................................6

“Set as Main Monitor” Display Mode.........................................................................................................6

“O” Display Mode ..........................................................................................................................................6

Screen Resolution............................................................................................................................................6

Screen Rotation ................................................................................................................................................6

Notebook Monitor O....................................................................................................................................7

Optimize For Video (Windows Vista/ 7 only)..........................................................................................7

Fit to TV................................................................................................................................................................7

Supported Video Resolutions ..............................................................8

Specications..........................................................................................9

Technical Support ..................................................................................11

Warranty Information............................................................................11

Instruction Manual

Introduction

The Universal USB 3.0 Laptop Docking Station with Video, Audio and Ethernet adds an

external DVI output (and HDMI® for USB3SDOCKHD), headphone/mic, Gigabit Ethernet

and additional USB 3.0 and USB 2.0 ports all from a single device and over a single

SuperSpeed USB 3.0 connection.

Featuring a DVI monitor output (and HDMI for USB3SDOCKHD) that can be used to

expand or mirror your computer’s main desktop, at video resolutions up to 1920x1200.

Also combining USB 2.0 and USB 3.0 hubs, headphone and microphone audio

connectors and a Gigabit Ethernet RJ45 port into an all-in-one laptop/notebook

docking station that is the perfect accessory for those that need to connect and

manage many devices on their laptops at home or the oce.

Packaging Contents

• 1 x USB 3. 0 Docking Station

• 1 x USB 3.0 Cable

• 1 x Universal Power Adapter

• 3 x Power Adapter Plug (NA/ UK/ EU)

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• USB 3.0 enabled computer system with available USB 3.0 port

• Available AC electrical outlet

• Microsoft® Windows® XP/ Vista/ 7 (32/64-bit)

• DVI (and/or HDMI for USB3SDOCKHD) enabled display device (e.g. monitor,

projector, HTDV, etc) with cables

• 10/ 100/ 1000 Mbps compatible TCP/IP Ethernet network

• CPU: Intel® Core™2 Duo 2.0 GHz or better (Intel® Core™ i5 Quad Core 2.4 GHz or

better recommended for video playback)

RAM: 2 GB or more (4 GB recommended for video playback)

Instruction Manual

Rear View

Front View

Power LED

USB Hub Link LED

USB 3.0 Hub

3.5mm Headphone jack

3.5mm Microphone jack

USB 2.0 Hub

RJ45 Ethernet connector

DVI-I connector (output)

HDMI connector (output, USB3SDOCKHD only)

USB 3.0 type B connector (Host)

DC Power connector

Instruction Manual

Installation

Windows XP/ Vista/ 7

1. Connect the included power adapter from an AC electrical outlet to the USB

Docking Station.

2. Insert the provided Driver CD into the computer’s CD/ DVD drive.

3. Autorun should give you the option to browse the les on the CD or automatically

open the CD.

If Autorun does not start, Go into“My Computer” and double-click the CD/DVD

drive that the CD is in.

*screenshots for reference only

4. Run the “setup.exe” le on the CD to launch the driver installation program. Follow

the on screen instructions to complete the driver installation.

5. Please wait while the installation program copies the necessary les.

6. Connect the Docking Station to the computer using the included USB 3.0 cable.

Windows will automatically detect and install the drivers.

7. Connect the monitor(s) to the USB Docking Station using DVI and/or HDMI cables

and power on the monitors.

8. Windows will start to automatically load the drivers and software for the USB display

adapter. Once complete, you should see this icon in your System Tray:

Instruction Manual

How to Use

Conguring the image being displayed by the monitor that is connected to the USB

3.0 Docking Station, can be done in one of two ways:

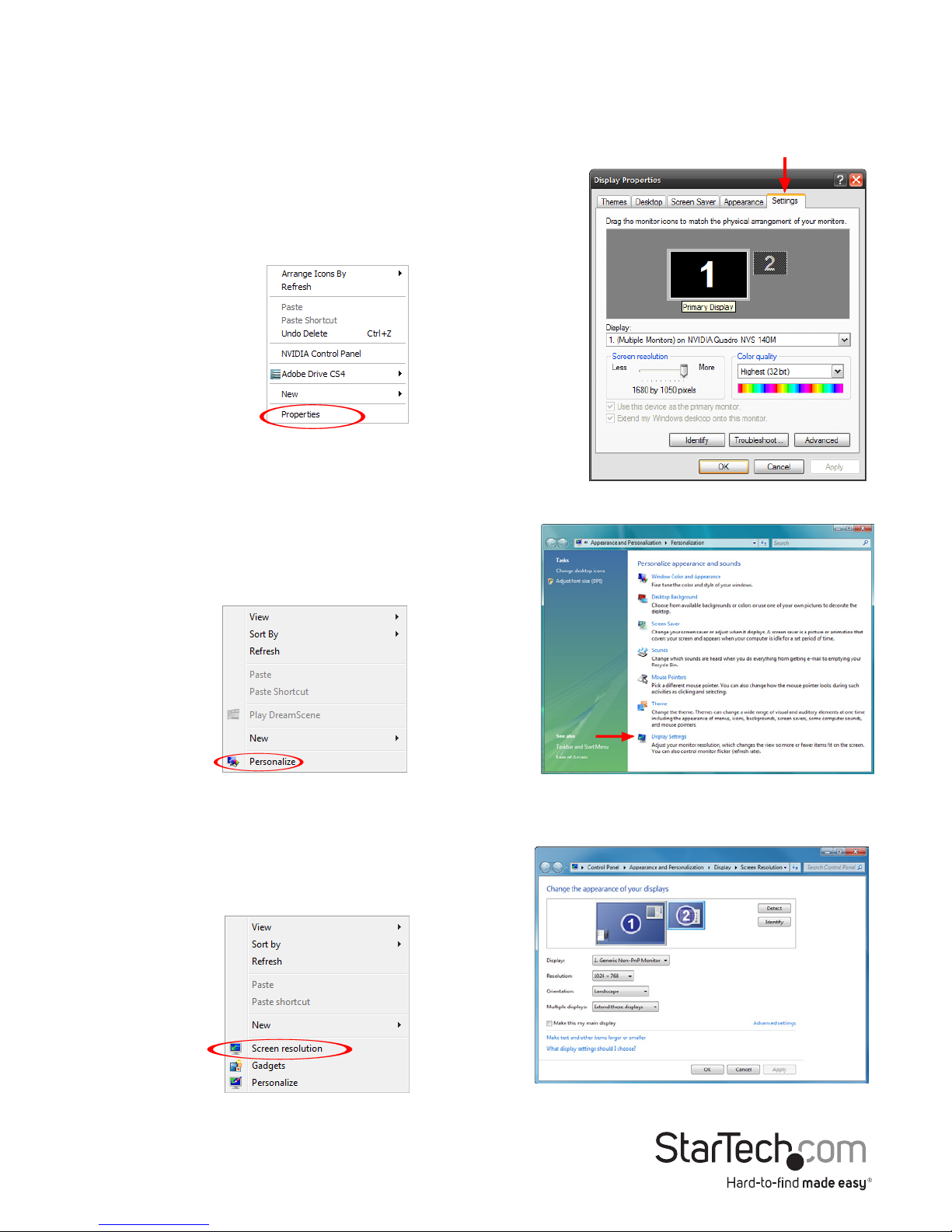

1. Accessing the Windows Display Settings

• Windows XP: right-click on a blank area of the

desktop, select Properties, then click on the

Settings tab:

• Windows Vista: right-click on a blank area

of the desktop, select Personalize, then

select the Display Settings option.

• Windows 7: right-click on a blank area of

the desktop, select Screen Resolution.

Instruction Manual

2. Right-clicking the DisplayLink tray icon ( ) in the system notication area.

Display Modes

“Extend” Display Mode (DEFAULT)

The default display mode; this mode allows the output on the USB 3.0 Docking Station

to work as an“Extended” display to the on-board display (i.e. internal graphics card).

This extended working space improves work eciency.

You may change the relative position of this extended display through the Windows

Display Settings or the “Extend To” option in the DisplayLink icon menu.

“Extend To” Options

When using the “Extend” display mode, 4 options are available for placement of the

extended display, relative to the primary display: Left, Right, Above, Below. More

ne adjustments to the placement of the extended display can be made through the

Windows Display Settings.

Instruction Manual

“Mirror” Display Mode

This mode allows the same content from the on-board display to be duplicated

(mirroring) to the output on the USB 3.0 Docking Station.

The screen resolution setting on the USB 3.0 Docking Station video output will match

the on-board display’s resolution. For example, if the on-board display’s resolution is

1024 x 768*32-bit, then the USB 3.0 Docking Station will use the same resolution.

“Set as Main Monitor” Display Mode

A unique feature to allow the USB 3.0 Docking Station to act as the main working

display. The USB 3.0 Docking Station will work as the main graphics adapter on the

system, while the on-board display will work as the extended display.

Please be advised that some display utilities and drivers that shipped with certain AGP

and built-in display adapters may prevent this option from working on some systems.

You may be able to disable the other utility program (usually found in the same tool

bar located on the bottom right hand corner) to make this function work properly.

“O” Display Mode

This option disables the video output from the USB 3.0 Docking Station.

Screen Resolution

Select the desired video display resolution for the connected monitor in Extend Mode.

The default resolution setting is: 1024 x 768 * 32-bit.

Screen Rotation

4 options are available: 0°(Normal), 90° (Left), 180° (Upside-Down), 270° (Right) when

used with the Extended or Primary display modes. It is a useful function for some

rotatable display devices.

Normal

Rotated Right

Rotated left

Upside-Down

Instruction Manual

Notebook Monitor O

Turns the monitor on the USB Docking Station to the main display and turns o the

screen of the laptop. NOTE: This function works only when one add-on monitor is

connected. This option will also only appear on laptop.

Optimize For Video (Windows Vista/ 7 only)

Optimize video play back when using Windows Vista/ 7. Regular text may appear

blurry while this is enabled.

Fit to TV

When using Extended Mode, if the Windows Desktop screen is not completely visible

on the TV/Monitor, this option can be used to adjust the size of the Windows Desktop.

NOTE: This mode will only work while using Extended mode. If using Mirror mode, this

will automatically change the adapter to Extended mode. This mode cannot be used

at the same time as the Screen Rotation feature.

A red border will appear on the Extended screen that will show the size of the new

Windows Desktop. Use the horizontal and vertical + and - buttons to manually adjust

the size to properly t the screen.

NOTE: Holding the CTRL key while making adjustments allow for ner control.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Estación de acoplamiento de StarTech.com

StarTech.com

StarTech.com DK31C3HDPD Manual de usuario

StarTech.com

StarTech.com TB3DK2DPM2 Manual de usuario

StarTech.com

StarTech.com SATDOCK4U3 Manual de usuario

StarTech.com

StarTech.com USB6N1DOCK Manual de usuario

StarTech.com

StarTech.com TB3DK2DPPD Manual de usuario

StarTech.com

StarTech.com USB5N1DOCK Manual de usuario

StarTech.com

StarTech.com USBA2DPGB Manual de usuario

StarTech.com

StarTech.com Thunderbolt TB3CDOCKDP Manual de usuario

StarTech.com

StarTech.com SDOCKU33EBV Manual de usuario

StarTech.com

StarTech.com Thunderbolt 3 TB3DKM2DPL Manual de usuario

StarTech.com

StarTech.com SDOCK2U33V Manual de usuario

StarTech.com

StarTech.com DK30CHHPD Manual de usuario

StarTech.com

StarTech.com UNIDOCKU33 Manual de usuario

StarTech.com

StarTech.com DK30CH2DEPUE Manual de usuario

StarTech.com

StarTech.com USB3SDOCKHDV Manual de usuario

StarTech.com

StarTech.com DKM30CHDPD Manual de usuario

StarTech.com

StarTech.com InfoSafe SATDOCKU2GB Manual de usuario

StarTech.com

StarTech.com USB3DDOCKFT Manual de usuario

StarTech.com

StarTech.com SATDOCKU3S Manual de usuario

StarTech.com

StarTech.com DK30C2DPPDUE Manual de usuario

StarTech.com

StarTech.com USB3SMDOCKV Manual de usuario

StarTech.com

StarTech.com SDOCK1EU3P Manual de usuario

StarTech.com

StarTech.com DK31C2DHSPD Manual de usuario

StarTech.com

StarTech.com USBVGADOCK Manual de usuario

Manuales populares de Estación de acoplamiento de otras marcas

Sony

Sony Dream Machine XDR-DS12iP Manual de usuario

Acer

Acer USB Type-C Dock II Manual de usuario

ATEN

ATEN UC-2000 Manual de usuario

Xcellon

Xcellon HDD-202 Manual de usuario

Dok

Dok CR09 Manual de usuario

Philips

Philips BTM630/12 Manual de usuario

IOGear

IOGear Travel Pro GUD3C09 Manual de usuario

RKI

RKI SDM-E2 Manual de usuario

iHome

iHome iP15 Manual de usuario

VITURE ONE

VITURE ONE MOBILE DOCK Manual de usuario

Lindy

Lindy 42984 Manual de usuario

CipherLab

CipherLab 8001 Manual de usuario

Pyle

Pyle PIPDSP2 Manual de usuario

Avol

Avol AS2350 Manual de usuario

Datalogic

Datalogic JoyaTouch Manual de usuario

Philips

Philips DC190/79 Manual de usuario

Targus

Targus DOCK315EUZ Manual de usuario

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manual de usuario
