StarTech.com SATADOCKU2 Manual de usuario

SATADOCKU2

SATADOCKU2E

SATADOCK22UE

2.5/3.5” SATA HD

Docking Station

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction .................................................................... 1

Features......................................................................................1

Package Contents .....................................................................1

SATADOCKU2.........................................................................1

SATADOCKU2E.......................................................................2

SATADOCK22UE.....................................................................2

Hardware Guide............................................................... 3

SATADOCKU2 ............................................................................3

SATADOCKU2E..........................................................................3

SATADOCK22UE........................................................................4

Disk Installation .............................................................. 5

SATA Drive Removal ....................................................... 5

Preparing the Hard Drives for Use................................. 6

Speciﬁcations.................................................................. 10

Technical Support........................................................... 11

Warranty Information...................................................... 11

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com SATA HD Docking station. This

unit allows you to install and access SATA drives quickly, and without the

need for an enclosure. Simply plug the hard drive into the upright dock

and connect it to a PC or notebook. The StarTech.com SATA HD Docking

Station is a perfect solution for data recovery, drive imaging, and testing

centers, or any environment requiring fast access to uninstalled/archived

drives.

Features

Hot Swap compatible•

Plug and Play support for most operating systems•

Supports both SATA 2.5 and SATA 3.5” hard drives without any•

adapters

Supports SATA I/II (SATA 150/300)•

Package Contents

SATADOCKU2

1 x Manual•

1 x Power Adapter•

1 x SATA hard drive docking station•

1 x USB Cable•

Instruction Manual

SATADOCKU2E

1 x eSATA Cable•

1 x Manual•

1 x Power Adapter•

1 x SATA hard drive docking station•

1 x USB Cable•

SATADOCK22UE

2 x eSATA Cable•

1 x Manual•

1 x Power Adapter•

1 x SATA hard drive docking station•

1 x USB Cable•

Instruction Manual

Hardware Guide

SATADOCKU2

SATADOCKU2E

DC Power Adapter

USB

Port

On/Off

Switch

On/Off

Switch

Power

Adapter

eSATA

Port

USB Port

Instruction Manual

SATADOCK22UE

eSATA

Ports

USB

Port

DC Power

Adapter

Eject Buttons

Drive LEDs

Instruction Manual

Disk Installation

Connect the Dock to an available power outlet, using the provided1.

power adapter.

Connect the Dock to the (powered) Host Computer, using the provided2.

USB/eSATA cables.

Insert the 2.5” or 3.5” SATA/SATA II drive(s) you wish to install, such3.

that the SATA power and data connectors at the back of the drive are

properly aligned with the corresponding connectors inside the Dock.

Press the Power Button on the rear panel of the Dock4.

Once the drive has been inserted, the operating system will detect that

it has been connected and automatically update the drivers for proper

operation.

SATA Drive Removal

If you are using the SATADOCKU2 or SATADOCKU2E, you can remove

SATA drives from the docking station by gently pulling them out from the

top of the dock.

If you are using the SATADOCK22UE, the drives can be removed using

the eject button that corresponds with the drive you wish to remove.

When removing the installed drive from the Dock, please ensure that you

have followed the appropriate steps (dependant on the operating system)

to disconnect removable storage. In Windows for example, click on the

Safe Remove icon located in the taskbar. Select the drive from the menu

provided, then click Stop. Select the device to disconnect, and click OK.

Instruction Manual

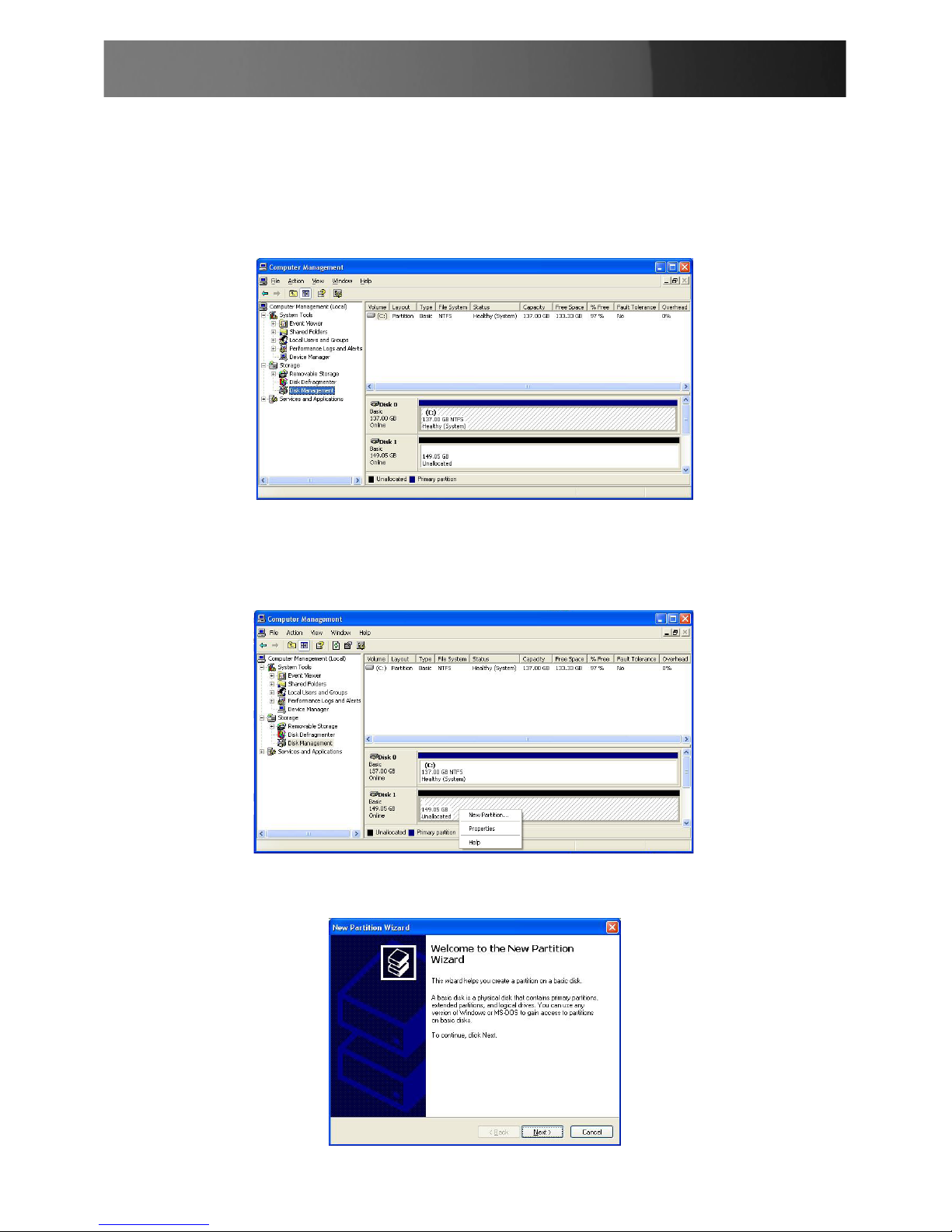

Preparing the Hard Drives for Use

With the hard drives inserted and the SATADOCK powered on, right1.

click on the My Computer icon and select Manage. In the left pane of

the Computer Management window, click Disk Management.

In the bottom right pane of the Computer Management window, you2.

should see your drives listed as unallocated. Click on the unallocated

drive and select New Partition. The New Partition Wizard will launch.

When the New Partition Wizard appears, click3. Next to continue.

Instruction Manual

Select the partition type you wish to create by clicking on Primary or4.

Extended, as appropriate. When you have made your selection, click

Next to continue.

Specify the size of the partition you wish to create.You must select a5.

partition size that is between the maximum and minimum sizes

(typically the maximum disk space available). Once you have done so,

click Next to continue.

Select6. Format this partition with the following settings. Using the

drop down buttons, select the ﬁle system, allocation unit size, and

volume label you wish to use. Select Perform a Quick Format and

click Next to continue.

Otros manuales para SATADOCKU2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Estación de acoplamiento de StarTech.com

StarTech.com

StarTech.com USB3SDOCKHDV Manual de usuario

StarTech.com

StarTech.com SDOCK2U313 Manual de usuario

StarTech.com

StarTech.com USBVGADOCK Manual de usuario

StarTech.com

StarTech.com Thunderbolt 3 TB3DKM2DPL Manual de usuario

StarTech.com

StarTech.com 8STSDOCK2U33 Manual de usuario

StarTech.com

StarTech.com Thunderbolt TB3CDOCKDP Manual de usuario

StarTech.com

StarTech.com TB3DK2DPWUE Manual de usuario

StarTech.com

StarTech.com USB3SDOCKHD Manual del sistema

StarTech.com

StarTech.com SDOCKU313E Manual de usuario

StarTech.com

StarTech.com SDOCKU33EF Manual de usuario

StarTech.com

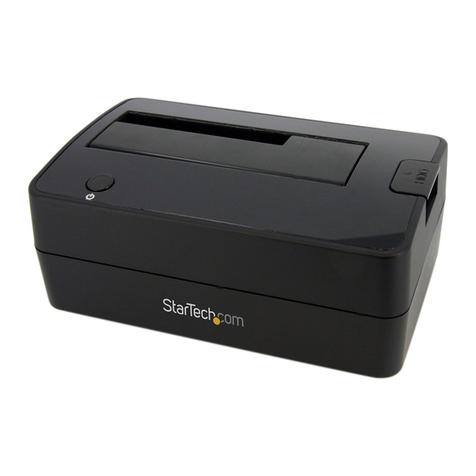

StarTech.com SATDOCKU3S Manual de usuario
