Introduction

The STEVAL-IFP045V1 is an industrial digital output expansion board. It provides a powerful and flexible environment for the

evaluation of the driving and diagnostic capabilities of the IPS1025HQ single high-side smart power solid state relay, in a digital

output module connected to 2.5 A industrial loads.

The STEVAL-IFP045V1 can interface with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins

and Arduino R3 connectors.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

It is also possible to evaluate a system composed of up to four stacked STEVAL-IFP045V1 expansion boards.

As an example, a system with four STEVAL-IFP045V1 expansion boards allows you to evaluate a quad channel digital output

module.

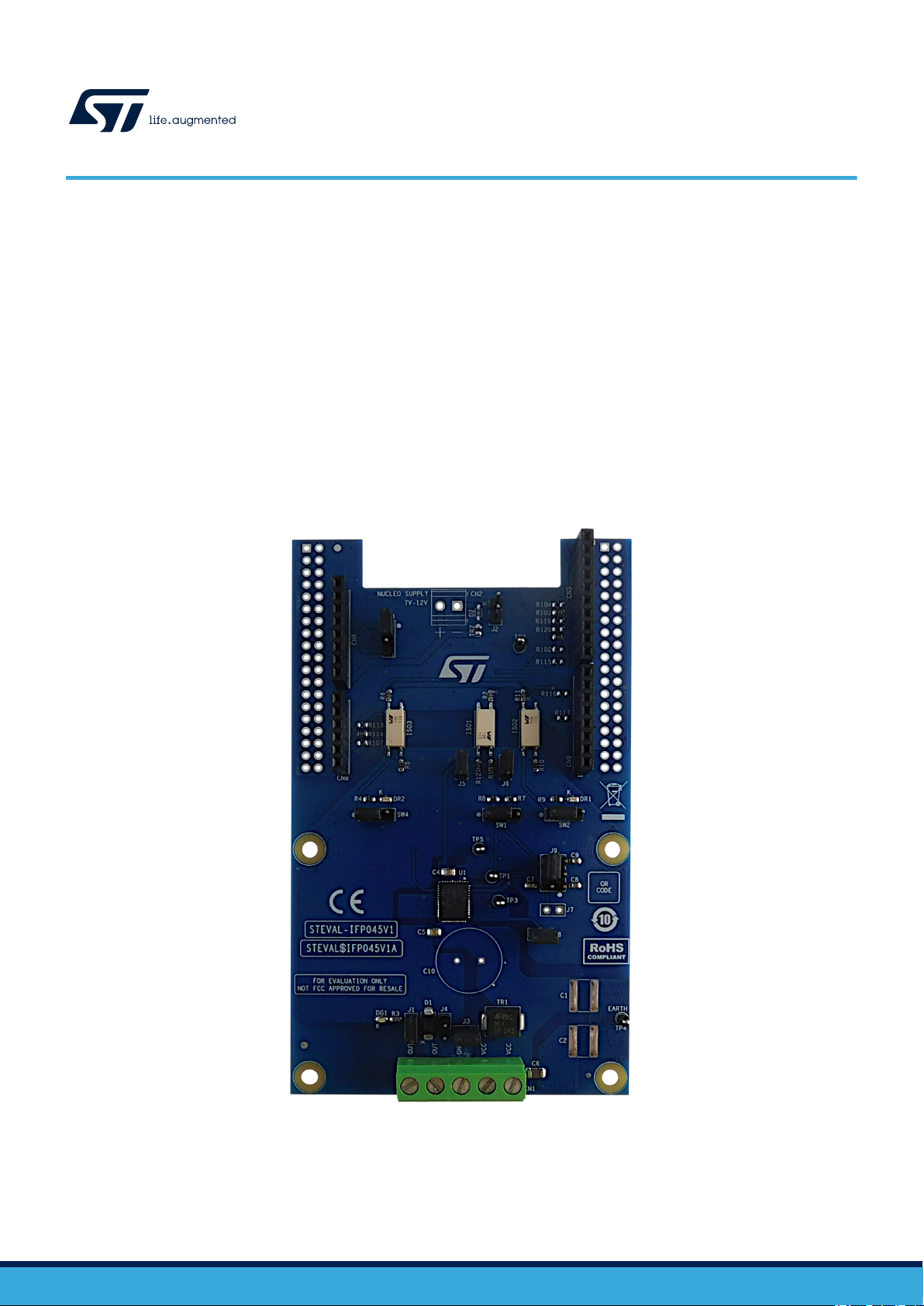

Figure 1. STEVAL-IFP045V1 expansion board

Getting started with STEVAL-IFP045V1 industrial digital output expansion board

UM3057

User manual

UM3057 - Rev 1 - August 2022

For further information contact your local STMicroelectronics sales office. www.st.com

1Getting started

1.1 Overview

The STEVAL-IFP045V1 embeds the IPS1025HQ intelligent power switch (IPS), featuring overcurrent and

overtemperature protection for safe output load control.

The board is designed to meet application requirements in terms of galvanic isolation between user and power

interfaces. This requirement is satisfied by an optical isolation implemented through three optocouplers (ISO1,

ISO2, and ISO3) for signal forward to the device and FLT pins for feedback diagnostic signals.

The expansion board features:

• Based on the IPS1025HQ single high-side switch, which features:

– Operating range up to 60 V

– Low-power dissipation (RON(MAX) = 25 mΩ)

– Fast decay for inductive loads

– Smart driving of capacitive loads

– Undervoltage lock-out

– Overload and overtemperature protections

– QFN48L 8x6 mm package

• Application board operating range: 8 to 33 V/0 to 2.5 A

• Extended voltage operating range (J3 open) up to 60 V

• Green LED for output on/off status

• Red LEDs for overload and overheating diagnostics

• 5 kV galvanic isolation

• Supply rail reverse polarity protection

• Compatible with STM32 Nucleo development boards

• Equipped with Arduino UNO R3 connectors

• CE certified

• RoHS and China RoHS compliant

• Not FCC approved for resale

1.1.1 Digital section

The digital section is associated with the STM32 interface and digital supply voltage to and from the STEVAL-

IFP045V1 expansion board.

UM3057

Getting started

UM3057 - Rev 1 page 2/19

Figure 2. STEVAL-IFP045V1 expansion board: digital interface section

Dotted green line indicates the whole digital interface section. Pink rectangles identify Arduino UNO R3 connectors

The four Arduino UNO R3 connectors:

•allow expansion board communication with the STM32 Nucleo development board microcontroller accessing

STM32 peripheral and GPIO resources;

• provide digital supply voltage between the STM32 Nucleo development board and the STEVAL-IFP045V1

expansion board, in either direction.

Normally, the STM32 Nucleo development board supplies the expansion board by a 3v3 or 5v0 generated by the

USB. You can select the preferred voltage on the expansion board via SW3 (3v3 closing pins 1-2; 5v0 closing

pins 2-3).

Alternatively, it is possible to supply the STM32 Nucleo development board by the expansion board. In this case,

an external supply voltage (7-12 V) should be connected to CN2 connector (not mounted by default) on the

expansion board and the ground loop should be closed by mounting D2 (enabling the reverse polarity protection)

or by closing J2 (without reverse polarity).

To supply the VIN voltage rail, it is necessary to:

• close jumper JP5 between pins 2 and 3 and open jumper JP1 on the NUCLEO-F401RE;

• open jumper JP5 between pins 1 and 2 and close jumper JP5 between pins 3 and 4 on the NUCLEO-

G431RB.

UM3057

Overview

UM3057 - Rev 1 page 3/19

1.1.2 Power section

The power section involves the power supply voltage (CN1, pins 4 and 5 for VCC, pin 3 for GND), load

connection (a load can be connected between pins CN1.1 and CN1.3 or CN1.2, and CN1.3; both output pins

are connected to the single output channel as shown in Schematic diagrams) and electromagnetic compatibility

(EMC) protection.

Figure 3. STEVAL-IFP045V1 expansion board: power section components

1. Overtemperature red LED

2. Overload red LED

3. IPS1025HQ

4. Output channel - green LED

5. Output and power supply connector

For EMC:

•The SM15T39CA transient voltage suppressor (TR1), enabled by closing J3, is placed between VCC and

GND tracks to protect the IPS1025HQ against surge discharge on the supply rail path up to ±1 kV/2 Ω

coupling;

• in common mode surge testing, two single-layer capacitors (C1 and C2 - not included) must be soldered at

the predisposed locations;

• the IPS1025HQ output stages do not require additional EMC protections with respect to the IEC61000-4-2,

IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8 standards.

UM3057

Overview

UM3057 - Rev 1 page 4/19

1.2 Hardware requirements

The STEVAL-IFP045V1 expansion board is designed to be used with the NUCLEO-F401RE or NUCLEO-

G431RB STM32 Nucleo development boards.

To function correctly, the STEVAL-IFP045V1 must be plugged onto the matching Arduino UNO R3 connector pins

on the STM32 Nucleo board as shown below.

Figure 4. STEVAL-IFP045V1 and STM32 Nucleo stack

1.3 System requirements

To use the STM32 Nucleo development boards with the STEVAL-IFP045V1 expansion board, you need:

• a Windows PC/laptop (Windows 7 or above)

• a type A to mini-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

F401RE development board

• a type A to micro-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

G431RB development board

• the X-CUBE-IPS firmware and software package installed on your PC/laptop

1.4 Board setup

Step 1. Connect the micro-USB or mini/USB cable to your PC to use the STEVAL-IFP045V1 with NUCLEO-

F401RE or NUCLEO-G431RB development board

UM3057

Hardware requirements

UM3057 - Rev 1 page 5/19

Step 2. Download the firmware (.bin) onto the STM32 Nucleo development board microcontroller through

STM32 ST-LINK utility, STM32CubeProgrammer and according to your IDE environment as detailed in

the table below.

Table 1. NUCLEO-F401RE development board supported IDEs - bin files

NUCLEO-F401RE

IAR Keil STM32CubeIDE

EWARM-OUT05_06-

STM32F4xx_Nucleo.bin

MDK-ARM-OUT05_06-

STM32F4xx_Nucleo.bin

STM32CubeIDE-OUT05_06-

STM32F4xx_Nucleo.bin

Table 2. NUCLEO-G431RB development board supported IDEs - bin files

NUCLEO-G431RB

IAR Keil STM32CubeIDE

EWARM-OUT05_06-

STM32G4xx_Nucleo.bin

MDK-ARM-OUT05_06-

STM32G4xx_Nucleo.bin

STM32CubeIDE-OUT05_06-

STM32G4xx_Nucleo.bin

Step 3. Connect the IPS1025HQ device supply voltage via CN1 (see Section 1.1.2 Power section).

Step 4. Provide the digital supply voltage (see Section 1.1.1 Digital section).

Step 5. Connect the load on the output connector (see Section 1.1.2 Power section).

Step 6. Reset the example sequence using the black push button.

Step 7. Push the STM32 Nucleo blue button to select the example provided in the firmware package.

1.5 Multiple board configuration

It is also possible to evaluate a four channel digital output module by stacking four STEVAL-IFP045V1 with shared

or independent supply rail and independent loads.

In this case, the four expansion boards (board 0, 1, 2, 3 as shown in the table below) must be properly configured:

for board 1, 2 and 3, it is necessary to unsolder three resistors for each board from the default position and solder

them back in the alternate positions according to the following table.

Table 3. Configuration of a stack of four expansion boards

Board no. IN1 FLT1 FLT2

Board 0 R101 R103 R114

Board 1 R102 R104 R117

Board 2 R115 R116 R107

Board 3 R120 R119 R118

UM3057

Multiple board configuration

UM3057 - Rev 1 page 6/19

2Schematic diagrams

Figure 5. STEVAL-IFP045V1 circuit schematic (1 of 2)

ALTERNATE USE

DEFAULT

PB8

PA6

PB3

PC1

PA8

PB10

VCC

PB4

PC0

Arduino Connectors

PA10

PB9

PB6

PA3

(7V-12V NUCLEO supply voltage)

PA2

PA4

Alternate Nucleo Supply

7V - 12 V

PC7

PA0

OUT

Analog supply

8V - 60 V

PA1

ALTERNATE USE

I OREF

VCC

PA7

ALTERNATE USE

NRST

PA9

DEFAULT

GND

PA5

PB5

OUT

DEFAULT

PB0

Morpho Connectors

(N.M.)

ALTERNATE USE

OUT1

ALTERNATE USE

VCC

IN1

FLT1

FLT2

3v3 5v0

CN1

691137710005

CN5

SSQ-110-04-F-S

R116 100 N.M.

R104 100 N.M.

CN7 N.M.

SSQ-119-04-L-D

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

R101 100

R115 100 N.M.

FIDUCIAL3

Fiducial

C10

100uF

N.M.

4700pF

N.M.

MH3

2.2uF

M3 HOLE NOT PLATED

MH2

CN8 M3 HOLE NOT PLATED

SSQ-106-04-F-S

CN9

SSQ-108-04-F-S

CN10 N.M.

SSQ-119-04-L-D

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

TP2

5001

R117 100 N.M.

R120 100 N.M.

R119 100 N.M.

FIDUCIAL1

Fiducial

4700pF

N.M.

MH4

J2 default open

M3 HOLE NOT PLATED

default open

R103 100

D1 STPS1H100A

TR1

SM15T39CA

default closed

R114 100

CN6

SSQ-108-04-F-S

R118 100 N.M.

FIDUCIAL2

Fiducial

TP4

5001

MH1

M3 HOLE NOT PLATED

N.M.

BAT48JFILM

R107 100 N.M.

TR2 N.M.

ESDA15P60-1U1M

CN2

N.M.

691214110002

FIDUCIAL4

Fiducial

R102 100 N.M.

EARTH

FLT1 D15

FLT1 D14

AVDD

VIN

3V3 D13

5V FLT1 D12

IN1 D11

IN1 D10

VIN IN1 D9

IN1 D8

IN1

FLT1

D7 FLT2

FLT1 D6

A0 D5

A1 FLT2 D4

A2 FLT2 D3

A3 FLT2 D2

A4 FLT2 D1

A5 D0

UM3057 - Rev 1 page 7/19

UM3057

Schematic diagrams

Figure 6. STEVAL-IFP045V1 circuit schematic (2 of 2)

default:

closed

VCC

IN1

FLT1

OUT1

FLT2

3v3

5v0

R11

2.2K

22k

R12

22k

ISO1

default closed

TP3

5001

DR1

150060RS75000

ISO2

default closed

R10

0.1uF

10k

0.1uF

C9470nF

R710k

C847nF

C7470pF

IPS1025HQ

FLT2

17 OUT_17

18 OUT_18

19 OUT_19

20 OUT_20

21 OUT_21

22 OUT_22

23 OUT_23

24 OUT_24 35

OUT_35

OUT_36

OUT_37

OUT_38

OUT_39

OUT_40

IPD 48

IN 3

GND 6

FLT1 46

OUT_41

OUT_42

49 Exp-VCC

SW1

con3-strip-male

default: CLOSE 1-2

SW2

con3-strip-male

default: CLOSE 1-2

DG1

150060VS75000

default closed

DR2

150060RS75000

SW4

con3-strip-male

default: CLOSE 1-2

390

SW3

con3-strip-male

TP5

default: CLOSE 1-2

5001

ISO3

TP1

5001

1 2

3 4

5 6

con6-2x3-strip-male

27K

R6 2.2K

UM3057 - Rev 1 page 8/19

UM3057

Schematic diagrams

3Bill of materials

Item Q.ty Ref. Part/value Description Manufacturer Order code

1 0 C1 C2

4700pF 1825

(4564 Metric)

3000V (3kV)

10%

CAP CER

4700PF 3KV

X7R 1825 (not

mounted)

Vishay Vitramon HV1825Y472KXHATHV

2 2 C4 C5

0.1uF 0805

(2012 Metric)

100V 10%

CAP CER

0.1UF 100V

X7R 0805

Würth

Elektronik 885012207128

3 1 C6

2.2uF 1206

(3216 Metric)

100V 10%

CAP CER

2.2UF 100V

X7R 1206

AVX

Corporation 12061C225KAT2A

4 1 C7

470pF 0603

(1608 Metric)

50V 5%

CAP CER

470PF 50V

C0G/NP0 0603

Wurth

Electronics Inc. 885012006061

5 1 C8

47nF 0603

(1608 Metric)

50V 10%

CAP CER

0.047UF 50V

X7R 0603

Murata

Electronics

North America

GCM188R71H473KA55D

6 1 C9

470nF 0603

(1608 Metric)

25V 10%

CAP CER

0.47UF 25V

X7R 0603

Wurth

Electronics Inc. 885012206075

7 0 C10 100uF Radial,

Can 100V 20%

CAP 100 UF

20% 100 V (not

mounted)

Würth

Elektronik 860130878011

8 1 CN1 691137710005

TERM BLK

5POS SIDE

ENTRY 5MM

PCB

Würth

Elektronik 691137710005

9 0 CN2 691214110002

7.4X7 pitch 3.5

TERM BLK

2POS SIDE

ENT 3.5MM

PCB (not

mounted)

Wurth

Electronics Inc. 691214110002

10 1 CN5 TH 2.54mm 10 ways, 1 row Samtec Inc.

4UCONN ESQ-110-14-T-S 17896

11 2 CN6 CN9 TH 2.54mm 8 ways, 1 row Samtec Inc.

4UCONN ESQ-108-14-T-S 15782

12 0 CN7 CN10 -

CONN RCPT

38POS 0.1

GOLD PCB (not

mounted)

- -

13 1 CN8 TH 2.54mm 6 ways, 1 row Samtec Inc.

4UCONN ESQ-106-04-T-S 15781

14 1 D1 STPS1H100A,

SMA

100 V, 1 A

power Schottky

rectifier

ST STPS1H100A

15 0 D2 BAT48JFILM,

SOD323

40 V, 350 mA

axial general

purpose signal

Schottky diode

(not mounted)

ST BAT48JFILM

16 1 DG1

150060GS7500

0 0603 (1608

Metric) 20mA

LED GREEN

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060GS75000

UM3057

Bill of materials

UM3057 - Rev 1 page 9/19

Item Q.ty Ref. Part/value Description Manufacturer Order code

17 2 DR1 DR2

150060RS7500

0 0603 (1608

Metric) 20mA

LED RED

CLEAR 0603

SMD

Wurth

Electronics Inc. 150060RS75000

18 3 ISO1 ISO2

ISO3

140109146000

LSOP04

OPTOISO 5KV

TRANSISTOR

Wurth

Electronics Inc. 140109146000

19 7 J1 J2 J3 J4 J5

J6 J8

JUMPER-con2-

strip-male TH

2.54mm

JUMPER-

CONN

HEADER .100

STR 2POS

Wurth

Electronics Inc. 61300211121

20 0 J7 JUMPER-con2-

strip-male

JUMPER-

CONN

HEADER .100

STR 2POS (not

mounted)

- -

21 1 J9 con6-2x3-strip-

male

CONN

HEADER .100

DUAL STR

6POS

Wurth

Electronics Inc. 61300621121

22 1 R1

27K 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 27K

OHM 1% 1/10W

0603

Yageo RC0603FR-0727KL

23 1 R2

390 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 390

OHM 1% 1/10W

0603

Yageo RC0603FR-07390RL

24 2 R3 R12

22k 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 22K

OHM 1% 1/10W

0603

Yageo RC0603FR-0722KL

25 4 R4 R5 R9 R10

0 0603 (1608

Metric) 0.1W,

1/10W Jumper

RES SMD 0

OHM JUMPER

1/10W 0603

Panasonic

Electronic

Components

ERJ-3GEY0R00V

26 2 R6 R11

2.2K 0603

(1608 Metric)

0.1W, 1/10W

RES SMD 2.2K

OHM 1% 1/10W

0603

Yageo RC0603FR-072K2L

26 2 R7 R8

10k 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 10K

OHM 1% 1/10W

0603

Yageo RC0603FR-0710KL

28 3 R101 R103

R114

100 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 100

OHM 1% 1/10W

0603

Yageo RC0603FR-07100RP

29 0

R102 R104

R107 R115

R116 R117

R118 R119

R120

100 0603 (1608

Metric) 0.1W,

1/10W 1%

RES SMD 100

OHM 1% 1/10W

0603 (not

mounted)

Yageo RC0603FR-07100RP

30 4 SW1 SW2 SW3

SW4

con3-strip-male

TH 2.54mm

CONN

HEADER .100

STR 3POS

Wurth

Electronics Inc. 61300311121

31 5 TP1 TP2 TP3

TP4 TP5

5001 0.100" Dia

x 0.180" L

(2.54mm x

4.57mm)

TEST POINT

PC MINI .040"D

BLACK

Keystone

Electronics 5001

32 1 TR1 SM15T39CA,

SMC

1500 W, 33.3 V

TVS in SMC ST SM15T39CA

UM3057

Bill of materials

UM3057 - Rev 1 page 10/19

Tabla de contenidos

Otros manuales de Hardware de computadora de ST

ST X-NUCLEO-IHM09M1 Manual de usuario

ST STM32F4 Series Manual de usuario

ST AEK-COM-ISOSPI1 Manual de usuario

ST STM32Cube Manual de usuario

ST X-NUCLEO-SNK1M1 Manual de usuario

ST STM32F107Series Manual de usuario

ST TDA911 Series Instrucciones de instalación y funcionamiento

ST TIP120 Manual de usuario

ST STSW-L9026-Y0 Manual de usuario

ST X-NUCLEO-GNSS1A1 Manual de usuario

ST FP-LIT-BLEMESH1 Manual de usuario

ST STM32U5 Nucleo-64 Manual de usuario

ST STM32CubeF2 Manual de usuario

ST UM2082 Manual de usuario

ST X-NUCLEO-OUT19A1 Manual de usuario

ST STM32F3DISCOVERY Manual de usuario

ST UM3039 Manual de usuario

ST STEVAL-IDB013V1 Guía del administrador

ST STM32F3 Series Manual del propietario

ST X-NUCLEO-NFC03A1 Manual de lista de piezas

ST X-NUCLEO-IHM02A1 Manual de usuario

ST X-NUCLEO-OUT10A1 Manual de usuario

ST STR91 Series Instrucciones de instalación y funcionamiento

ST STM8SVLDISCOVERY Instrucciones de instalación y funcionamiento

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario

Advantech

Advantech ASMB-935 Series Manual de usuario
