Speco VLD1TW Manual de usuario

VLD1TW Manual

Thank you for purchasing a Speco Technologies HD-TVI camera. Please

read this manual carefully for correct use of the product and keep it

for reference purposes.

►Warnings and Cautions

■ Disclaimer

■ Avoid Electric Shock

■ Avoid excessive moisture

■ Do not use camera beyond prescribed voltage range.

Page 1

■ Never attempt to disassemble the camera privately.

Speco Technologies is constantly developing and improving products.

We reserve the right to modify product design and speciﬁcations

without notice and without incurring any obligation.

To prevent electric shock, do not remove screws or cover.

Do not use strong or abrasive detergents when cleaning camera body.

Clean with dry cloth or mild detergent, wiping gently.

Only use recommended power supply. Ensure power input source

conforms to local voltage. Voltage outside of range could cause

damage or cause abnormal performance.

It may result in internal components being damaged.

VLD1TW

User Manual

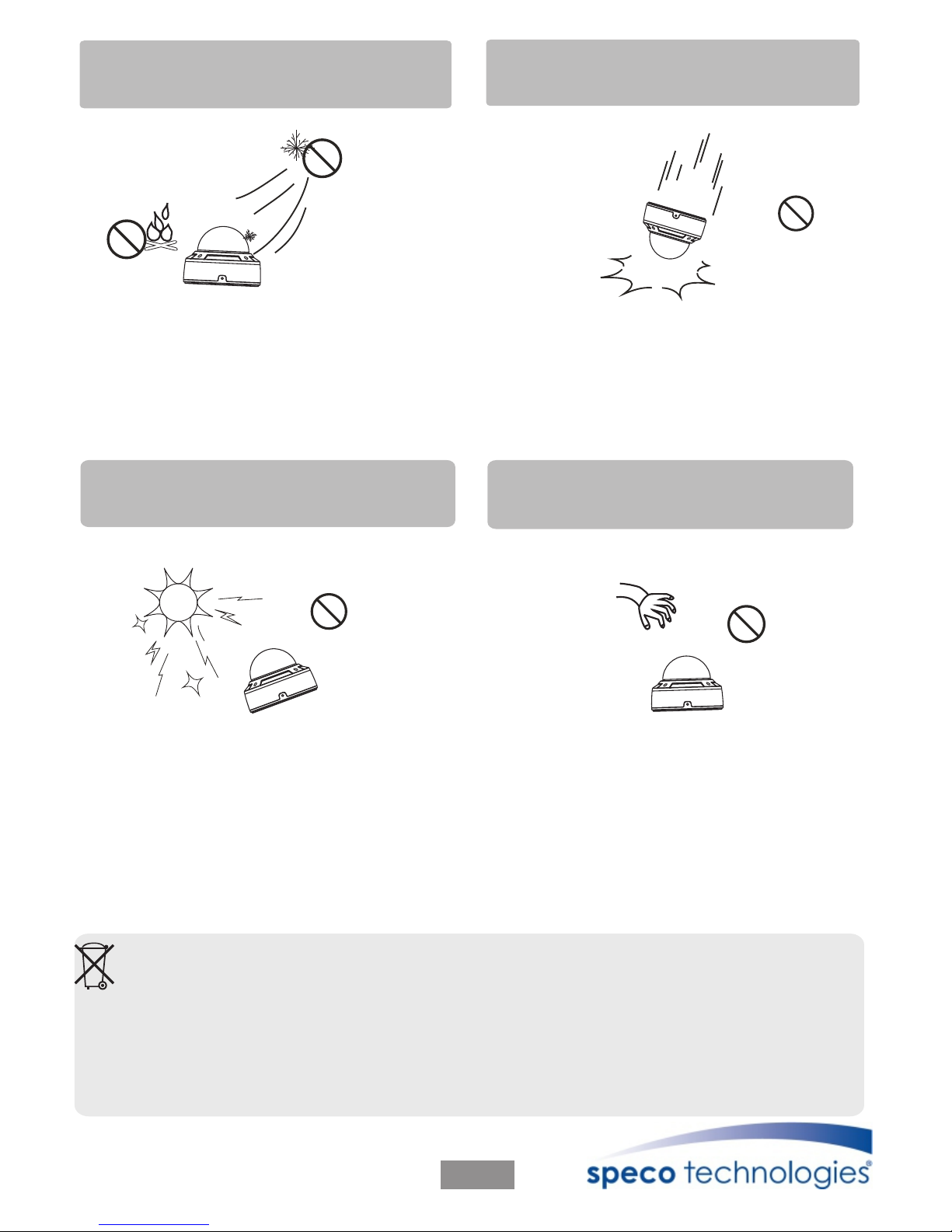

between -4*F and +140*F.Provide

Page 2

Use only under temperature conditions

good ventilation when using in high

temperature conditions.

Do not drop the camera or subject it to

physical shock.

It may cause production malfunction.

Do not aim camera at sun or extra

bright place.

Strong light will degrade image quality

and could cause damage.

Avoid touching the camera lens.

The lens is the most important component

of the camera. Be careful not to smear it

with ﬁngerprints.

Do not place the camera in extreme hot

or cold environment.

Correct Disposal of This Product

If the camera no longer functions or can no longer be repaired, it must be disposed

of according to regulations reading electronic waste. By not disposing of electronic

items in household waste you will not only be following the law, but contributing

the protection of the environment.

► Components and Accessories

Camera

User manual

Screwdriver

Drill Template

Adapter Plate

Screws

► Overview

Page 3

Mounting Base

Video Cable Lock Screw

Power Cable

Lower Dome

Focus

Zoom

Lens

► Connecting to Monitor

► Connecting to Power

Connect the adapter to the power input connector in accordance with the

camera. The recommended adapter speciﬁcation for the camera is DC12V.

Page 4

Video

HD-TVI

VIDEO IN

HDMI

VGA

TVI DVR Monitor

DC12V

Power

Before you start, please make sure that the wall or ceiling is strong enough to

withstand three times the weight of the camera.

► Installation

Page 5

1. Loosen the screws to open the lower dome and then loosen the lock screw

to remove the mounting base.

2. Attach the drill template to the place where you want to ﬁx the camera and

then drill 4 screw holes and 1 cable hole (if you want to route the cables

through the mounting base) according to the drill template.

secure the mounting base to the ceiling or wall with screws.

Route the cables and connect the power cable and video cable. And then

Ceiling or Wall

Lock Screw

Lower Dome

∅6

∅148

∅22

88 mm

89mm

* This installation should be made by a qualiﬁed service person and should

conﬁrm to all local codes.

Page 6

5. Three-axis adjustment. Before adjustment, preview the image of the camera

on a monitor and then adjust the camera according to the ﬁgure below to get

an optimum angle.

6. Adjust the Focus and Zoom screw to get a clear image (if your camera is

prime lens,please skip this step).

Ceiling or Wall

Focus

Zoom

Rotation 0°~360°

Pan 0°~360°

Tilt 0°~75°

7. Install the lower dome back to the camera with the screws and remove

the protection ﬁlm softly to complete the installation.

4. Fix the camera to the mounting base with the lock screw.

When the arrow is pointed upward, the image will be right side up.

Lens controllers are located in Top direction of image.

Page 7

► Features

This series of cameras adopt the latest HD-TVI technology and advanced

circuit design, feature high deﬁnition and sensitivity, low noise and

distortion and support HD video transmission with the common coaxial

cable, ensuring the requirement of the HD monitoring in the traditional

surveillance system.

● High Transmission Performance

Real-time transmission with high speed and long distance.

● ICR Auto Switch

The ﬁlter will ﬁlter infrared light during the daytime and change to

normal at night to ensure a high sensitivity and clear image.

● Color-B/W Auto Switch

The camera will display color image in daytime and become monochrome

automatically at night.

● Auto White Balance

Adjust the color temperature according to the environment

automatically.

● DNR

Reduce noise from brighteness and color signal.

● High Resolution

Adopt high performance HD-TVI sensor, providing high deﬁnition

and clear image, up to 1080P resolution.

Page 8

Model

Image Sensor

Pixels

Signal System

Min. Illumination

Lens

IR Visible Distance

IP Rank

Video Out

Resolution

Frame Rate

ICR

DNR

S / N Ratio

Electronic Shutter

AGC

White Balance

Power

Temperature

Humidity

Dimension

VLD1TW

1 / 3 '' CMOS

1920 x 1080

PAL / NTSC

0 Lux ( LED ON )

2.8 ~ 12 mm

66 ~ 98 feet (depending on scene reﬂection)

IP 66

TVI 2.0 and CVBS (960H) video output

1080 P ( 1920 x 1080 )

30 fps ( 60Hz ), 25 fps ( 50Hz )

Yes

> 52 dB ( AGC OFF )

Yes

Auto White Balance

DC12V ± 10%

- 4*F ~ 104*F

10% ~ 90%

5.9'' x 4.5''

1 / 50s ~ 1 / 67500s

► Speciﬁcations

Page 9
