Speco O4P4X2 Manual de usuario

Quick Start Guide

O4P4X2

Welcome

Thank you for purchasing this PTZ camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class 2 power supply or adequate PoE switch.

Please note: The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water

and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature

and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic

radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Overview

3 Overview

Installation

◆ Install SD Card

Please make sure the wall is strong enough to bear the dome

camera’s weight. Please make sure the camera is powered off

during installation.

1 Ethernet connector (PoE+)

2 MIC-Audioinput (3.5mm)

3 HP-Audiooutput (3.5mm)

4 Alarminput/output

5 DC12V Power jack

6 Ground

7 Lock Screw

8 Loudspeaker

9 Light Sensor

10 Microphone

11 Reset*

12 Memory Card Slot

ALARM

4 3 2 1

11 12

*Reset: After the camera is powered on, press and hold the reset button for more than 5s to reset to

the factory default settings.

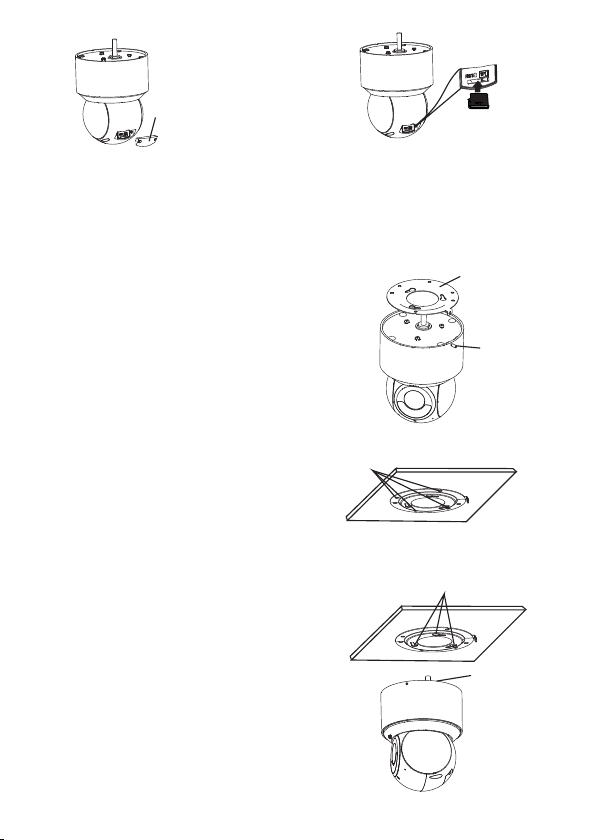

◆Install the PTZ camera

Insert a micro

SD card

1.Loosen the two screws of

the cover and then remove

the cover.

2. Insert a micro SD card as indicated

above and then install the cover back.

Cover

Lock

Screw

1. Unscrew the lock screw and then

remove the adapter.

Adapter

2. Use four screws provided to

install the adapter to the ceiling.

3. Align the three screw holes of

the adapter with the screws of the

mounting base and then put these

screws into these screw holes. After

that, turn the mounting base clockwise

to secure the PTZ camera.

Mounting

Base

Threescrewholes

4screws(PA4x25mm)

4. Adjust the position of the PTZ camera

and then tighten the lock screw on

the side. Note that the marked

position should be the front of the

camera.

1. Unscrew the lock screw and then remove the adapter. Stick spacers on the

back of the hole B.

2. Install each part of the bracket and then mount the wall mounting

bracket to the wall with three tapping screws.

3. Attach the adapter to the brackt as shown in the following picture.

4. Tighten the lock screw on the side of the PTZ camera to secure the

camera and the adapter.

Mark

◆Install the PTZ camera with an optional wall mounting bracket

(Wall mount model WMT2)

spacer

Lock

Screw

Adapter

Stick spacers on the

back of the hole B

2. Install each part of the bracket and then mount the ceiling mounting

bracket to the ceiling with three tapping screws.

3. Attach the adapter to the brackt as shown in the following picture.

4. Tighten the lock screw on the side of the PTZ camera to secure the

camera and the adapter.

◆Install the PTZ camera with an optional ceiling mounting bracket

(Ceiling Mount model CLT5)

PA 4x25mm

PM 4x10mm

3×

1. Unscrew the lock screw and then remove the adapter. Stick spacers on the

back of the hole B.

spacer

Lock

Screw

Adapter

Cable Connection

Connect to

earth ground

ALARM

4321

DC12V

1--ALM-GND

2--ALM-IN

3--ALM-OPEN

4--ALM-COM

PA 4x25mm

3×

PM 4x10mm

3×

ConnectingAlarmInput/Output

ALARM_IN

ALARM_GND

ALARM_OPEN

ALARM_COM

ALARM

POWER

Relay

The max. load of alarm output: 30VDC, 1A

Web Operation and Login

●Operation

IP Scanner can search for the device on the local network.

①Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

②Install IP Scanner from the CD and run it after installation.

③In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

5C :F2:0 7: 24:68 :B9

O4 P4X2

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins if prompted.
