SonicStage Ver. 2.3

2-590-878-11(1)

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB01COV-EU8.fm]

masterpage:Right

2-590-878-11(1)

Installation/Operating Guide

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB02REG-EU8.fm]

masterpage:Left

SonicStage Ver. 2.3

2-590-878-11(1)

•SonicStage and SonicStage logo are trademarks or registered trademarks of Sony

Corporation.

•OpenMG, Net MD, ATRAC, ATRAC3plus and their logos are trademarks of Sony

Corporation.

•Microsoft, Windows, Windows NT and Windows Media are trademarks or registered

trademarks of Microsoft Corporation in the United States and /or other countries.

•IBM and PC/AT are registered trademarks of International Business Machines

Corporation.

•Macintosh is a trademark of Apple Computer, Inc. in the United States and/or other

countries.

•Pentium is a trademark or a registered trademark of Intel Corporation.

•All other trademarks and registered trademarks are trademarks or registered trademarks

of their respective holders. ™ and ® marks are omitted in this manual.

service may practice one or more of the following U.S. Patents: #5,987,525; #6,061,680;

#6,154,773, #6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593, and other

patents issued or pending.

Gracenote and CDDB are registered trademarks of Gracenote. The Gracenote logo and

logotype, the Gracenote CDDB logo, and the “Powered by Gracenote” logo are

trademarks of Gracenote.

•Copyright laws prohibit reproducing the software or the manual accompanying it in

whole or in part, or renting the software without the permission of the copyright

holder.

•In no event will SONY be liable for any financial damage, or loss of profits, including

claims made by third parties, arising out of the use of the software.

•In the event a problem occurs with this software as a result of defective

manufacturing, SONY will replace it. However, SONY bears no other responsibility.

•The software cannot be used with equipment other than that which is so designated.

•Please note that, due to continued efforts to improve quality, the software

specifications may be changed without notice.

•The ability to display the languages on your SonicStage will depend on the installed

OS on your PC. For better results, please ensure that the installed OS is compatible

with the desired language you want to display.

— We do not guarantee all the languages will be able to be displayed properly on

your SonicStage.

— User-created characters and some special characters may not be displayed.

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB01COV-EU8TOC.fm]

masterpage:Right

SonicStage Ver. 2.3

2-590-878-11(1)

Table of Contents

For operating procedures of the CD player, see the supplied Operating

Instructions.

What you can do with SonicStage ................... 4

Basic operational flow using a portable CD player ......................... 4

Installing ........................................................... 5

Providing the required system environment .......................................... 5

System requirements ........................................................................ 5

Installing the software onto your computer ........................................... 6

Using SonicStage ............................................. 8

Importing audio data .............................................................................. 8

Recording music data on a CD-R/CD-RW .......................................... 10

Using SonicStage Help ........................................................................ 12

To display SonicStage Help ........................................................... 12

Understanding SonicStage Help .................................................... 13

Searching for a word inside an explanation ................................... 13

Referring to SonicStage Help .............................................................. 14

Importing audio data to the computer ............................................ 14

Listening to audio data on the computer ........................................ 14

Managing and editing imported tracks .......................................... 14

Backing up audio data .................................................................... 15

Troubleshooting ............................................................................. 15

When you want to know ................................................................ 15

Other information ........................................... 16

Uninstalling SonicStage ....................................................................... 16

On copyright protection ....................................................................... 17

Troubleshooting ................................................................................... 18

The software cannot be installed onto your computer ................... 19

•The displayed items in the illustrations that appear in this manual may differ from

the actual items displayed by the software.

•Explanations in this manual assume familiarity with basic Windows operations.

For details on the use of your computer and the operating system, please refer to

the respective manuals.

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB03INT-EU8.fm]

masterpage:Left

SonicStage Ver. 2.3

2-590-878-11(1)

What you can do with SonicStage

Using SonicStage, you can store music data imported from audio CDs or music files on

your PC, and burn your own CDs (ATRAC CD or audio CD).

*You can listen to ATRAC CDs only on a device compatible with ATRAC CDs.

Basic operational flow using a portable CD player

Providing the required system environment (page 5)

Installing the software onto your computer (page 6)

Importing audio data (page 8)

Recording music data on a CD-R/CD-RW (page 10)

Inserting the CD-R/CD-RW* you burnt into a device and

listening to it. (See the Operating Instructions of the device.)

Audio CDs

Music files

(MP3, WAV, WMA* format)

* WMA files protected by copyright

cannot be transferred.

Store

Burn

Your own CD

(ATRAC CD or

audio CD)

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB04C01-EU8.fm]

masterpage:Right

SonicStage Ver. 2.3

2-590-878-11(1)

Installing

Providing the required system environment

The following system environment is required in order to use the SonicStage Ver. 2.3.

This software is not supported by the following environments:

•OSs other than the indicated above

•Personally constructed PCs or operating systems

•An environment that is an upgrade of the original manufacturer-installed operating system

•Multi-boot environment

•Multi-monitor environment

•Macintosh

•We do not ensure trouble-free operation on all computers that satisfy the system requirements.

•The NTFS format of Windows XP/Windows 2000 Professional can be used only with the standard

(factory) settings.

•We do not ensure trouble-free operation of the system suspend, sleep, or hibernation function on all

computers.

•For Windows 2000 Professional users, install Service Pack 3 or later before using the software.

System requirements

Computer IBM PC/AT or Compatible

• CPU: Pentium II 400 MHz or higher (Pentium III 450 MHz or higher

is recommended.)

• Hard disk drive space: 200 MB or more (1.5 GB or more is

recommended) (The amount space will vary according to Windows

version and the number of music files stored on the hard disk.)

• RAM: 64 MB or more (128 MB or more is recommended)

Others

• CD drive (capable of digital playback by WDM)

• Sound Board

• USB port (supports USB (previously USB 1.1))

Operating

System

Factory installed:

Windows XP Media Center Edition 2005/Windows XP Media Center

Edition 2004/Windows XP Media Center Edition/Windows XP

Professional/Windows XP Home Edition/Windows 2000 Professional/

Windows Millennium Edition/Windows 98 Second Edition

Display High Color (16 bit) or higher, 800 ×600 dots or better (1024 ×768 dots

or better is recommended)

Others • Internet access: for Web registration, EMD services and CDDB

• Windows Media Player (version 7.0 or higher) installed for playing

WMA files

Notes

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB04C01-EU8.fm]

masterpage:Left

SonicStage Ver. 2.3

2-590-878-11(1)

Installing the software onto your computer

Before installing the software

•Make sure to close any virus-check software, as such software usually demands a large

amount of system resources.

•Make sure to install the software with the supplied CD-ROM.

— If OpenMG Jukebox or SonicStage is installed already, the previous software will be

overwritten by the new version. The new version retains the functions of the older

version, but with new functions added.

— If SonicStage Premium, SonicStage Simple Burner or Net MD Simple Burner is

installed already, the previous software will co-exist with the new version.

— You will still be able to use music data registered by an older software version even

after SonicStage has been installed. As a precaution, we recommend that you back up

your music data. To back up the data, refer to [Backing Up My Library] – [Backing

Up Data to a Disk] on SonicStage Help.

1Turn on your computer and start up Windows.

2Insert the supplied CD-ROM into the CD drive of your computer.

The setup program starts up automatically and the installation window appears.

Depending on the region, a window may appear asking you to select your country/

region. In this case, follow the displayed instructions.

3Click the region in which you will use SonicStage software.

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB04C01-EU8.fm]

masterpage:Right

SonicStage Ver. 2.3

2-590-878-11(1)

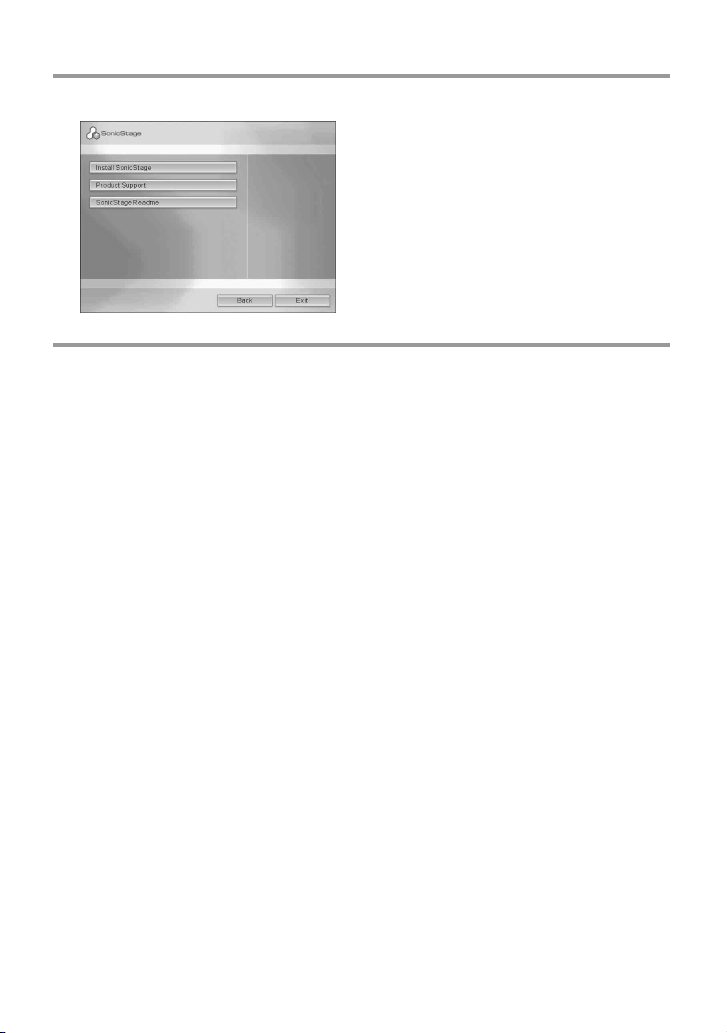

4Click [Install SonicStage] and then follow the displayed instructions.

Read the instructions carefully.

Depending on your region, the buttons other

than [Install SonicStage] may differ from

those in the illustration left.

The installation may take 20 to 30 minutes,

depending on your system environment.

Make sure to restart your computer only after

the installtion is completed.

Was the installation successful?

If any trouble occurs during the installation, see “Troubleshooting” (page 18).

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB04C01-EU8.fm]

masterpage:Left

SonicStage Ver. 2.3

2-590-878-11(1)

Using SonicStage

Importing audio data

This section explains how to record and store audio data from an audio CD to My Library

of SonicStage on the hard disk drive of your computer.

You can record or import music from other sources such as your computer’s hard disk.

Refer to SonicStage Help for details.

•Only audio CDs with a mark can be used with SonicStage.

•We do not guarantee normal operation in the case of the copy-control CDs.

1Start up SonicStage.

Click [Start] –[All Programs]*–[SonicStage] –[SonicStage].

∗[Programs] in the case of Windows 2000 Professional/Windows Millennium Edition/Windows

98 Second Edition

SonicStage starts up and the main window appears.

You can also start SonicStage with double click ([SonicStage] icon) on the desktop.

2Insert the audio CD that you want to record into the CD drive of your

computer.

The source indication in the top-left of the display changes to [Record a CD].

3Click [Music Source].

The contents of the audio CD appear in the music source list (on the left side of the

screen).

Notes

Source indication

[Music Source]

[CD Info]

[Format/Bit Rate]

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB04C01-EU8.fm]

masterpage:Right

SonicStage Ver. 2.3

2-590-878-11(1)

4If necessary, click to uncheck tracks you do not want to record.

If you unchecked a box by mistake, click it again to restore the check.

To check all boxes, click .

To uncheck all boxes, click .

5If necessary, change the format and bit rate for audio CD recording.

When you click [Format/Bit Rate] on the right side of the screen, “CD Recording

Format [My Library]” dialog box will appear. The dialog box will ask you to select the

format and bit rate for recording the audio CD.

6Click .

The recording of the tracks selected in step 4 starts.

To stop recording

Click .

If CD information such as album title, artist name, and track names could not be obtained

automatically, click [CD Info] on the right side of the screen. When you do this, your computer must be

connected to the Internet.

fil

ename

age

V23\2

590

878

111

SSV23

AIWA

eco\2590878111\2590878111SonicStageV23EU8\01GB04C01-EU8.fm]

masterpage:Left

SonicStage Ver. 2.3

2-590-878-11(1)

Recording music data on a CD-R/CD-RW

You can record tracks in the My Library of SonicStage on a CD-R/CD-RW.

The number of transfers for a track may be limited for reasons of copyright.

1Select “Create an ATRAC CD” or “Create an Audio CD” from the transfer

destination list in the upper right of the screen, then click [Transfer] in the

upper right of the screen.

To play back CDs using a device compatible with ATRAC CDs: select “Create an

ATRAC CD”.

To play back CDs using other devices: select “Create an Audio CD”.

2Insert a brand-new CD-R or CD-RW into the CD drive of your computer.

Use a 650 MB or 700 MB CD-R/CD-RW. If you use other CD-Rs/CD-RWs, your

music data may not be recorded properly.

3Click an album or a track you want to record in the My Library on the left side

of the screen.

If you double click an album, the list of tracks in the album appears and you can select

a track from the list.

4Click .

The albums or tracks you have selected appear on the right side of the screen (the

CD-R/CD-RW side) as a recording image (items to be burnt).

My Library list

Transfer

destination list

[Transfer]

Otros manuales para VGF-AP1L - Vaio Pocket Digital Music Player

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de Sony

Sony

Sony MZ-N1 Guía de inicio rápido

Sony

Sony TDM-NC1 - Wi-fi Client For Streaming Music Manual de usuario

Sony

Sony Memory Stick Autorun Manual de usuario

Sony

Sony DPP-MS300E Manual de usuario

Sony

Sony MZ-NH1 SonicStage v2.0 Manual de usuario

Sony

Sony SRW5800/2 Manual de usuario

Sony

Sony CLIE Audio Player version2.1 Manual de usuario

Sony

Sony UP-CX1 series Manual de usuario

Sony

Sony MZ-N10 Manual de usuario

Sony

Sony Memory Stick Gate Manual de usuario

Sony

Sony DSC-RX100M2 Guía de referencia

Sony

Sony BDP-BX57 - Blu-ray Disc™ Player Manual técnico

Sony

Sony Musicbox Version 2.0.2 Manual de usuario

Sony

Sony PEG-N610C MS Import/MS Export Manual de usuario

Sony

Sony CLIE PEG-UX40 Manual de usuario

Sony

Sony PCLink Manual de usuario

Sony

Sony DCR-TRV260 - Digital Handycam Camcorder Guía del usuario

Sony

Sony ICD-R100PC Operating Instructions (primary... Manual de usuario

Sony

Sony Micro HI-FI Component System Guía de instalación

Sony

Sony HAR-D1000 - Hard Disc Audio Recorder Manual de usuario

Sony

Sony Walkman D-NE1 Guía de inicio rápido

Sony

Sony ICD-SX46 - Ic Recorder Manual de usuario

Sony

Sony VGN-TX850P Manual

Sony

Sony DSC-F55 Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario
