Sony HWS-AV10K Manual de usuario

Home Wireless

A/V System

Operating Instructions

Manual de instrucciones

2-674-819-01(1)

HWS-AV10K

2US

WARNING

To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture.

Note

You are cautioned that any changes or modifications not expressly approved in this manual

could void your authority to operate this equipment.

This transmitter must not be co-located or operated in conjunction with any other antenna or

transmitter.

This equipment complies with FCC radiation exposure limits set forth for uncontrolled

equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to

OET65. This equipment should be installed and operated with at least 20cm and more

between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs).

Owner’s Record

The model and serial numbers are located on the bottom of both units. Record the serial

number in the space provided below. Refer to them whenever you call upon your Sony dealer

regarding this product.

Model number: HWS-AV10K

Transmitter: HWS-AV10T

Receiver: HWS-AV10R

Serial number

Transmitter: ___________________________

Receiver: ___________________________

3US

Table Of Contents

Features ........................................................................................................4

Preparing

Checking the package contents .................................................................5

Identifying parts and controls.....................................................................6

Transmitter .............................................................................................................. 6

Receiver ................................................................................................................... 7

Preparing the transmitter ............................................................................8

Preparing the receiver .................................................................................9

Operating

Watching A/V contents ..............................................................................10

Improving reception ...................................................................................11

To avoid the electromagnetic interference ............................................................ 11

Adjusting the dedicated antenna ........................................................................... 12

Installing the IR Blaster .............................................................................13

Others

Troubleshooting .........................................................................................14

Precautions.................................................................................................16

Specifications .............................................................................................17

4US

Features

Enjoy wireless transmission of stereo A/V contents in virtually any room of your house.

Easily and wirelessly enjoy A/V contents playing in one room on a TV in another room. Just

plug the transmitter into the A/V equipment you want to watch and plug the receiver into the

TV in another room.

PLAY

Receiver

Transmitter

Receiver

Transmitter

•Wireless system eliminates the need for cables running between rooms.

• Sony original 2.4 GHz wireless A/V transmission system.

•4selectable transmission channels (frequencies) for optimum reception.

• Wireless remote control signal transmission, allowing remote control of transmitting A/V

equipment from another room (remote control not supplied).

• Remote control extender (IR Blaster) supplied to control A/V equipment in main room using

an existing remote control.

•Up to 100 ft. unobstructed signal reception (up to 60 ft. reception through most walls and

floors).

•Separate receiving dedicated antenna for excellent transmission.

*As with all wireless products, actual performance will vary depending on environment.

5US

Preparing

Checking the package contents

After unpacking, check that all the following items have been included:

•Transmitter: HWS-AV10T* (1)

•Receiver: HWS-AV10R* (1)

•Dedicated antenna (1)

•IR Blaster (1)

•AC power adaptor (2)

•A/V cable (2)

•Operating instructions (1)

• To enjoy clear images and sounds (1)

•Double sided seal (for IR Blaster) (1)

•Warranty card (1)

*The transmitter and receiver are the same shape.

Check the label on the bottom of both units for the

model name.

6US

Identifying parts and controls

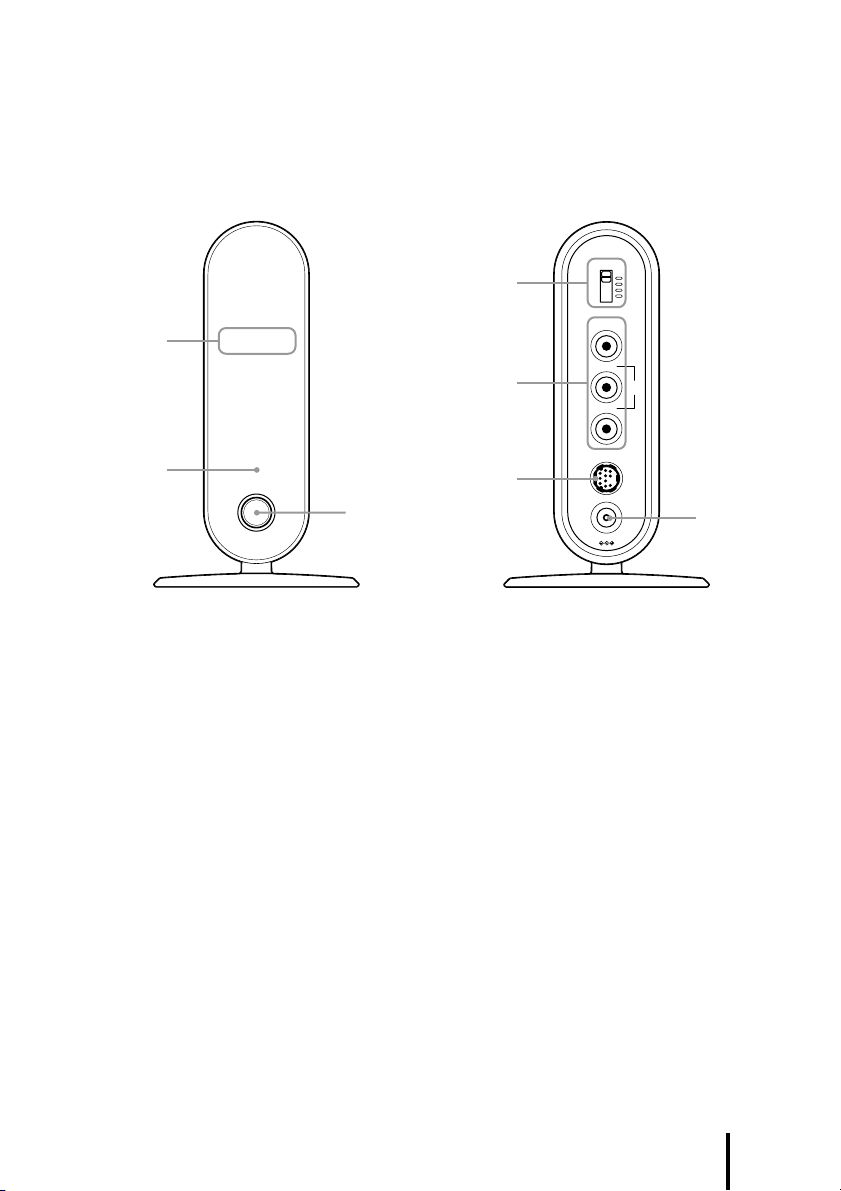

Transmitter

Front

1Power indicator

Lights when the transmitter is turned on.

2Power button

Turns the transmitter power on and off.

Rear

CHANNEL

VIDEO IN

LEFT

AUDIO

RIGHT

EXTENDER

DC IN 6V

3CHANNEL switch*(page 11)

Selects a desired channel (frequency) to

transmit.

4VIDEO/AUDIO IN jacks (page 8)

Connects the A/V cables to A/V

equipment in main room.

5IR EXTENDER jack (page 13)

Connects the IR Blaster (supplied).

Do not connect the other of supplied IR

Blaster.

6DC IN 6V jack (page 8)

Connects the AC power adaptor

(supplied).

* Make sure to set the CHANNEL switch of the

transmitter and receiver to the same position.

7US

Receiver

Rear

CHANNEL

VIDEO OUT

LEFT

AUDIO

OUT

RIGHT

ANT

DC IN 6V

4CHANNEL switch*(page 11)

Selects a desired channel (frequency) to

receive.

5VIDEO/AUDIO OUT jacks

(page 9)

Connects the A/V cables to your TV in

another room.

6ANT jack (page 9)

Connects the dedicated antenna.

7DC IN 6V jack (page 9)

Connects the AC power adaptor

(supplied).

* Make sure to set the CHANNEL switch of the

transmitter and receiver to the same position.

Front

1Infrared receiver

Receives the signal from the remote

control.

Point and operate the remote control of

A/V equipment at here.

2Power indicator

Lights when the receiver is turned on.

3Power button

Turns the receiver power on and off.

8US

Preparing the transmitter

Connect the A/V equipment in the main room to the transmitter and then turn on the

transmitter. If you want to operate the A/V equipment connected with the transmitter from

another room, see “Installing the IR Blaster” (page 13) to set the IR Blaster.

CHANNEL

VIDEO IN

LEFT

AUDIO

OUT

RIGHT

DC IN 6V

EXTENDER

R AUDIO L VIDEO

OUT PUT

CHANNEL

1Connect the A/V equipment’s output jacks in the main room to the

transmitter’s VIDEO/AUDIO IN jacks with the A/V cable (supplied).

2Set the CHANNEL switch to the top.

Important

Make sure to set the CHANNEL switch of the transmitter and receiver to the same position.

3Connect the AC power adaptor to the transmitter.

4Connect the AC power adaptor to the wall outlet.

5Press the POWER button on the front of the transmitter to turn it on.

The power indicator on the front of the transmitter lights green.

Notes

• Use only the recommended AC power adaptor manufactured by Sony. Polarity of the plugs of other

manufacturers may be different.

•If you connect a DVD player to the transmitter via a VCR, the VCR’s copy guard function may distort

or dim the DVD picture. In this case connect the DVD player directly to the VIDEO/AUDIO IN jack on

the transmitter.

A/V equipment

For details about

installing the IR Blaster,

see “Installing the IR

Blaster” (page 13).

IR Blaster (supplied)*

* Do not connect the other of supplied IR Blaster.

9US

Preparing the receiver

Connect the TV in another room to the receiver and then turn on the receiver.

INPUT

CHANNEL

VIDEO OUT

LEFT

AUDIO

OUT

RIGHT

DC IN 6V

ANT

R AUDIO L VIDEO

CHANNEL

1Connect the TV’s external input jacks in the another room to the

receiver’s VIDEO/AUDIO OUT jacks with the other A/V cable

(supplied).

2Set the CHANNEL switch to the top.

Important

Make sure to set the CHANNEL switch of the transmitter and receiver to the same position.

3Connect the dedicated antenna to the ANT jack.

4Connect the AC power adaptor to the receiver.

5Connect the AC power adaptor to the wall outlet.

6Press the POWER button on the front of the receiver to turn it on.

The power indicator on the front of the receiver lights green.

10US

Operating

Watching A/V contents

You can enjoy images and sounds from A/V equipment connected to the transmitter in the

main room by setting the appropriate input. See also the TV’s instruction manual.

Before you operate the TV, make sure as following:

sConnected the transmitter to the A/V equipment and the receiver to the TV.

sTurned on the transmitter and receiver.

sSet the CHANNEL switch of transmitter and receiver to the same position.

1Turn on the TV.

2Set the TV to the appropriate input.

3Play back the A/V equipment connected to the transmitter.

You can enjoy images and sounds received by the receiver.

Notes

• If the connected A/V equipment is not turned on, you cannot enjoy the image and sounds.

•If the image or sound is distorted, see “Improving reception” (page 11).

Information

If you operate the A/V equipment connected to the transmitter using the remote control,

see “Installing the IR Blaster” (page 13).
