Using Network Features

Multi Channel

AV Receiver

010COV.fm Page 1 Wednesday, October 29, 2008 3:30 PM

2GB

About This Manual

Please read the operating instructions supplied with

this receiver first.

This manual is written on the assumption that you

are skilled in the basic operation of this receiver after

performing basic connection and setup according to

the operating instructions.

STR-DA6400ES contains the following manuals.

Refer to them as required by the operation.

STR-DA6400ES Operating

Instructions

This manual explains the operations of the system

itself.

This manual mainly explains operations using the

main remote commander, but most of the same

operations can also be performed using the buttons

and controls on the system having the same or

similar names.

Using Network Featuers (this

manual)

This manual explains the operations of the network

function of STR-DA6400ES.

It explains also how to install supplied “ES Utility”

and “VAIO Media plus” application software on

your computer.

Quick Setup Guide

It explains how to connect components, speakers,

and a subwoofer so that you can enjoy multi-channel

surround sound.

GUI Menu List

GUI Menu List shows the menu tree of

STR-DA6400ES.

About the network

functions of the receiver

• The home network function of the receiver

supports the DLNA (Digital Living Network

Alliance) standard.

By configuring your home network with

DLNA-compliant devices, you can play

back analog audio signals with a DLNA-

compliant device (DLNA CERTIFIED™

Products) that has an authorized DLNA logo

displayed on the device, and which has

functions corresponding to those of the

receiver.

You can also enjoy content (music, photos,

and videos) which have been stored on a

DLNA-compliant device (DLNA

CERTIFIED™ Products) that has an

authorized DLNA logo displayed on the

device.

• With an Internet connection, you can listen

to SHOUTcast and upgrade the firmware of

the receiver.

About DLNA

DLNA (Digital Living Network Alliance) is a

standards organization made up of

manufacturers of various products, such as

computers, AV components, and mobile

computing devices which exchange content

(music, photos, and videos). DLNA decides

upon standards and publishes an authorized

logo to be displayed on devices which support

DLNA standards.

About the supplied manual

3GB

What you can do with the home network function

You can do the following using the network function of the receiver.

Playing back content

You can play back music, photos, and videos stored on other devices such as a computer on your

home network using this receiver (page 13).

Delivering the audio of the connected components

You can play back audio from components connected to the receiver or FM/AM tuner with devices

such as a computer over your home network (page 16).

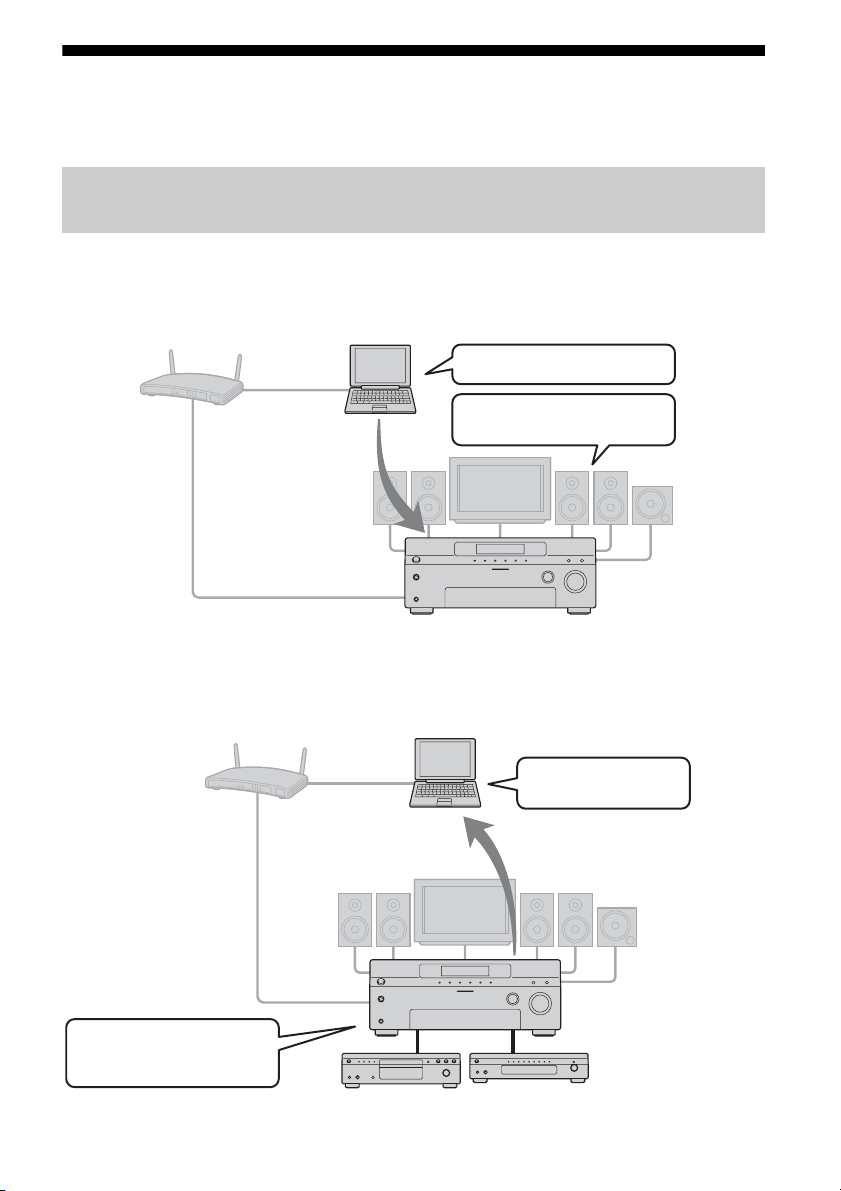

Sharing content (music, photos, and videos) on devices on a home

network

Delivers content

Plays back content

Computer

STR-DA6400ES

Plays back audio

Computer

STR-DA6400ES

Delivers the audio from the

component connected to the

receiver

Component connected

using an audio cord

(not supplied)

4GB

You can listen to SHOUTcast using the receiver (page 19).

Changing the settings using a computer

You can change the settings of the receiver using a computer on your home network (page 23).

Listening to SHOUTcast over the Internet

Other features

STR-DA6400ESInternet

Computer

STR-DA6400ES

ES Utility application software

5GB

Firmware Update

You can update the firmware of the receiver over the Internet (page 26).

A) Update the firmware directly over the Internet

B) Update the firmware using a file downloaded from the Internet via a

computer

STR-DA6400ES

Internet

STR-DA6400ES

Computer

Internet ES Utility application software

6GB

Table of Contents

About the network functions of the

receiver ....................................................2

What you can do with the home network

function ....................................................3

Getting Started

1: Connecting the receiver to your

network ....................................................7

2: Configuring the network settings of the

receiver ....................................................9

3: Preparing content for delivery to the home

network ..................................................10

4: Preparing a computer to use as a

server .....................................................11

Sharing Content (music,

photos, and videos) on

Devices on the Home

Network

Enjoying content stored on the server ........13

Enjoying content stored on a server in

zone 2 .....................................................15

Enjoying the audio of a component connected

to the receiver using other device via the

home network ........................................16

Listening to SHOUTcast

Using the Receiver

Listening to SHOUTcast ............................19

Adjusting the Receiver

Settings Using PC

Application Software

Features of the ES Utility application

software .................................................21

Installing the ES Utility application software

on a computer ........................................21

Using Other Functions

Checking the network settings ................... 22

Changing the network settings ................... 23

Changing the settings of the home network

function of the receiver ......................... 25

Updating the firmware ............................... 26

Additional Information

Glossary ..................................................... 28

Troubleshooting ......................................... 29

Specifications ............................................. 30

End-User License Agreement for Sony

Software Included in This Product ....... 31

Copyrights .................................................. 35

Index .......................................................... 40

7GB

Getting Started

1: Connecting the

receiver to your network

Configuring your home network with DLNA-

compliant devices.

If your computer is connected to the Internet,

you can connect this receiver to the Internet as

well, through the wired LAN connection.

Note

The method used to connect your computer to the

Internet depends on the devices, your ISP, your

computer, and the router used.

The following system environment is required

to use the network function of the receiver.

A Broadband line connection

A Broadband line connection to the Internet is

required in order to listen to the SHOUTcast

and to use the firmware update function of the

receiver.

Modem

This is the device that is connected to the

broadband line to communicate with the

Internet. Some of these devices are integrated

with the router.

Router

• Use a router compatible with 100 Mbps or

greater transmission speeds to enjoy content

on your home network.

• We recommend that you use a router

equipped with the built-in DHCP (Dynamic

Host configuration Protocol) server.

This function automatically assigns IP

addresses on the LAN.

LAN cable (CAT-5)

• We recommend that you use this type of

cable for a wired LAN.

Some flat-type LAN cables are easily

affected by noise. We recommend that you

use normal-type cables.

• If the receiver is used in an environment in

which there is power supply noise from

electric products or in a noisy network

environment, use a shielded-type LAN

cable.

Getting Started

System requirements

8GB

The following illustration is a configuration example of a home network with the receiver, a

computer.

We recommend that you use a wired connection.

Note

The audio may be interrupted when you use a

wireless connection.

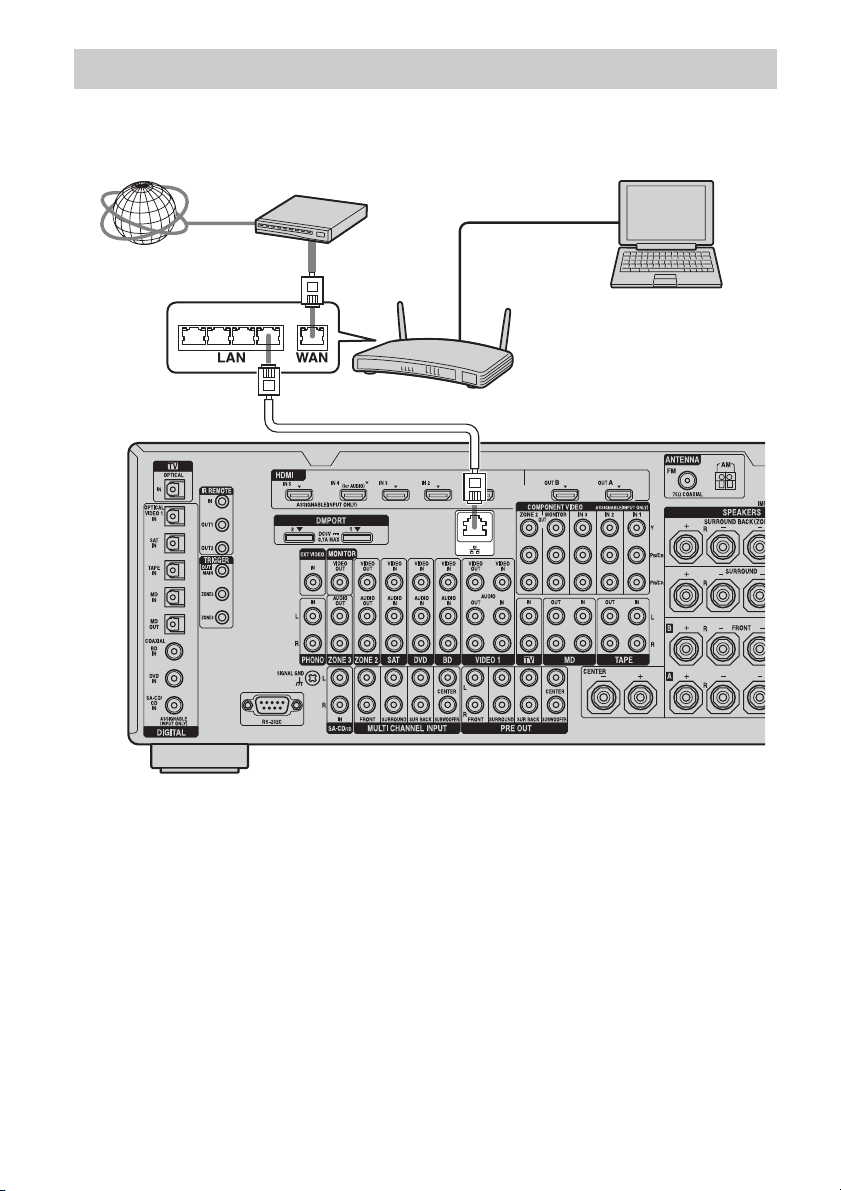

Configuration example

Internet Modem

Computer

Router

LAN cable

(not supplied)

LAN cable

(not supplied)

9GB

Getting Started

2: Configuring the

network settings of the

receiver

The network settings for the receiver must be

set correctly to use the network functions of

the receiver.

You can make the required network settings

for the receiver by following the instructions

provided by an initial setup wizard.

The procedure used to set up the IP address

automatically (DHCP) is explained below.

In this case, the router that is connected to the

receiver or the Internet provider must support

DHCP.

1Press AMP.

The receiver can be operated using the

remote.

2Press MENU.

The menu is displayed on the TV screen.

3Press V/vrepeatedly to select

“ Settings,” then press or

4Press V/vrepeatedly to select

“Network,” then press or b.

5Press V/vrepeatedly to select

“Network Setup,” then press

“Start Network function Setup Wizard”

appears on the TV screen.

6Press to select “Next.”

7Press to select “Connect

Automatically (DHCP).”

“Success! Your device is now connected

to your network.” appears on the TV

screen when you have succeeded in

making a connection.

If the failure screen is displayed, perform

the process referring to “Changing the

network settings” (page 23), after you

have completed this process.

8Press to select “Finish.”

9Press to select “ON.”

The setting of the server function is

turned to ON.

Select “OFF,” when you will not use the

server function.

10Press to select “Finish.”

To set the network settings

manually

Refer to “Configuring network settings

manually” (page 23).

Note

The wizard screen appears on the TV screen each

time you use the network function, until the network

function setup has been completed.

AMP

V/v/b,

10GB

3: Preparing content for delivery to the home network

This receiver can deliver the audio of a component connected to the receiver using an audio cord

or audio from an FM/AM tuner over the home network.

This receiver delivers to a device on a home network analog audio signals of a device connected to

the analog audio input jack or DMPORT jack of the receiver.

Connect the audio output of the device which stores audio you want to enjoy on the home network

to the analog audio input jack or the DMPORT jack of the receiver using an audio cord or DIGITAL

MEDIA PORT adapter.

* The adapter form differs depending on the model.

Connecting components to the receiver using an audio cord

Audio cord (not supplied)

DIGITAL MEDIA PORT adapter*(not supplied)

Otros manuales para STR-DA6400ES - Multi Channel Av Receiver

Tabla de contenidos

Otros manuales de Receptor de Sony

Sony

Sony ICF ICF-SW11 Manual de usuario

Sony

Sony STR-DN1020 Manual de usuario

Sony

Sony STR-DE725 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony DRC-BT30/BLK Manual de usuario

Sony

Sony STR-DN1040 Guide Manual de usuario

Sony

Sony HCD-RV777D Manual de usuario

Sony

Sony STR-DA80ES - Fm Stereo / Fm-am Receiver Manual de usuario

Sony

Sony STR-DA4ES - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony DWZ-B50I Manual de usuario

Sony

Sony STR-DA5800ES Manual de usuario

Sony

Sony STR-DA6400ES - Multi Channel Av Receiver Instrucciones de instalación y mantenimiento

Sony

Sony ICF-SW1005 Hoja de instrucciones

Sony

Sony Ipela SNCA-ZX104 Manual de usuario

Sony

Sony STR-DA7100ES - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony SAT-A2 Operating Instructions (primary... Manual de usuario

Sony

Sony STR-D365 Manual de usuario

Sony

Sony STR-DH510 - 10str Hifi Manual de usuario

Sony

Sony MEX-DV1000 - Cd/dvd Receiver, Mp3/wma Player Manual de usuario

Sony

Sony STR-DN1000 Manual de usuario

Sony

Sony STR-DH130 Manual de usuario

Sony

Sony Cablevision DHG-M55CV Manual

Sony

Sony DWR-S02DN Manual de usuario

Sony

Sony BKM-41HD Manual de usuario

Sony

Sony STR-DH700 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
