INSTALLATION MANUAL
1st Edition
WIRELESS TRANSMISSION ADAPTOR
HKC-WL50
利用条件:
① 本情報はソニー製品の販売、設置、設定、使用の目的でのみご利用ください。かかる目的以外での利用を禁止します。
② 著作者の事前の書面による許可なく、本情報の全部または一部の複写、複製、転載、改変、翻訳、送信等を禁止します。
情報改訂:
本情報は、当社の裁量により、予告なく変更されることがあります。ご使用される場合、本情報が最新の情報であることを確認のうえ、
ご使用ください。
Conditions of Use:
(1) Please use this information only for the purpose of sales, installation, configuration, and use of Sony products. Using this information
for any purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the prior
written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-date before
using it.
警告
このマニュアルは，サービス専用です。
お客様が，このマニュアルに記載された設置や保守，点検，修理などを行うと感電や火災，
人身事故につながることがあります。
危険をさけるため，サービストレーニングを受けた技術者のみご使用ください。
WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
1
Table of Contents
Section 1 Installation...................................................................................................................................................................2
1-1. Components.........................................................................................................................................................................2
1-2. Overview of Installation.......................................................................................................................................................3
1-2-1. Installing HKC-CN50 to the Camera Body.....................................................................................................................3
1-2-2. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body ............................................................................3
1-2-3. Installing HKC-WL50 (Battery Adaptor Assembly) to the Camera Body .........................................................................4
1-3. Installation Procedures .........................................................................................................................................................5
1-3-1. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body ............................................................................5
1-3-2. Installing HKC-WL50 (Battery Adaptor Assembly) to the Camera Body .......................................................................19
1-4. Arranging Harness when Removing the HKC-WL50 (Outside Panel Assembly)...................................................................23
Revision History ..........................................................................................................................................................................24
2
Section 1
Installation
Purpose of this manual
This manual is an installation manual of HKC-WL50. Intended for use by system and service engineers, this manual describes
information on installation of HKC-WL50.
Related manual
Besides this installation manual, the following manual is available for HKC-WL50.
If you need these manuals, please contact your local Sony Sales Office/Service Center.
• HDC3500 Service Manual (available on request)
This manual describes information on the maintenance and component-based service of the unit.
• HKC-CN50 Installation Manual (available on request)
This manual describes the information on installing HKC-CN50/FB30/FB50/TR37.
1-1. Components
• Outside panel assembly: 1pc
• Battery adaptor assembly: 1pc
• Screws: 4pcs
• Lock bracket: 1pc
• Hinge plate: 1pc
• Nut: 1pc
• Antenna cushion: 1pc
• Operating Instructions: 1pc
• Rating label: 1pc
• Harness (DC-OUT-POWER): 1pc
3
1-2. Overview of Installation
1-2-1. Installing HKC-CN50 to the Camera Body
• If CN-4044 board (HKC-CN50) is not installed to the camera body, install CN-4044 board first to begin with the following
procedures.
• For details of this installation, refer to “Installation manual HKC-CN50”.
1-2-2. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body
For details on the installation procedure, refer to “1-3-1. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body”.
Note
Outline of installation procedure
(1) Open the outside panel.
(2) Disconnect the two harnesses and the two
FPCs with connector.
(3) Remove the outside panel.
(4) Install the CN-4044 board (HKC-CN50) to
the camera body.
(5) Install the outside panel.
(6) Close the outside panel.
CN-4044 board
(HKC-CN50)
Outside panel
Camera body
Note
Outline of installation procedure
HKC-WL50 (outside panel assembly)
(1) Install the wireless unit to the HKC-WL50 (outside panel
assembly).
(2) Remove the outside panel.
(3) Remove the inside panel.
(4) Change the orientation of the DC IN connector.
(5) Replace the harness (DC-OUT) with the harness
(DC-OUT-POWER).
(6) Install the inside panel.
(7) Install the HKC-WL50 (outside panel assembly).
Outside panel
Camera body
4
1-2-3. Installing HKC-WL50 (Battery Adaptor Assembly) to the Camera Body
For details on the installation procedure, refer to “1-3-2. Installing HKC-WL50 (BatteryAdaptor Assembly) to the Camera Body”.
Note
Outline of installation procedure
Camera body
(1) Install the hinge plate and the lock bracket to the camera
body.
(2) Install the HKC-WL50 (Battery adaptor assembly).
(3) Attach the rating label on the camera body.
HKC-WL50
(battery adaptor assembly)
5
1-3. Installation Procedures
1-3-1. Installing HKC-WL50 (Outside Panel Assembly) to the Camera Body
1. Push the two buttons and open the cover of HKC-WL50 (outside panel assembly).
2. Secure the wireless unit using the mounting holes shown in the figure.
Use screws that meet the following conditions.
• Thread diameter: M2
• Depth of mounting hole: Max. 3 mm
Button
HKC-WL50 (outside panel assembly)
Cover
Button
Note
Mounting holes
6

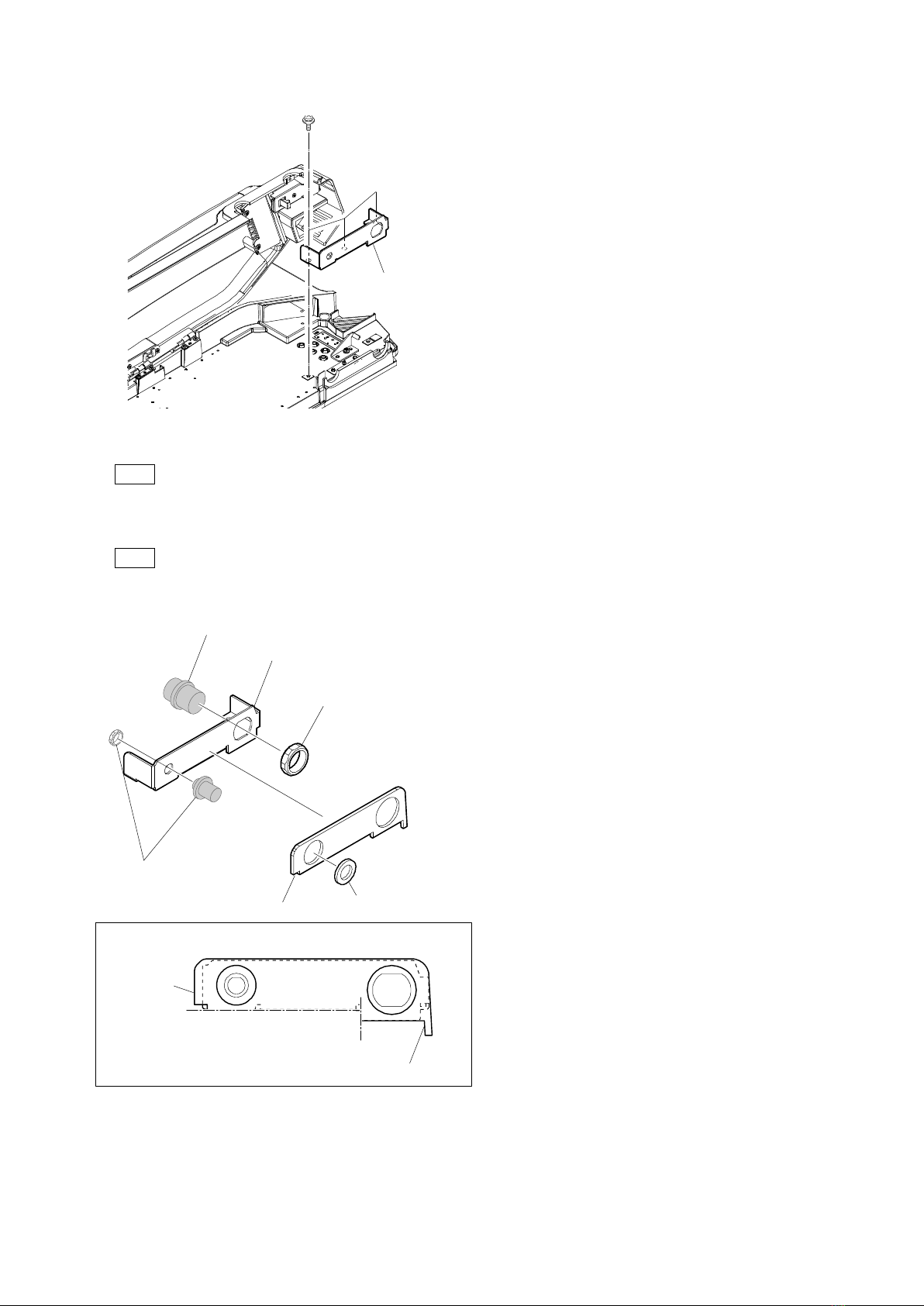

3. Remove the three screws, and then remove the antenna bracket.
4. Install the transmission antenna and the receiving antenna to the antenna bracket.
To install the transmission antenna, use the nut supplied with HKC-WL50.
5. Attach the antenna cushion.
• Align the antenna cushion with the reference line shown in the figure below.
• Remove portion Aof the antenna cushion, if necessary.
PSW3 x 6
Antenna bracket
Note
Note
Antenna bracket
Receiving antenna
Antenna
bracket
Nut
(Supplied with HKC-WL50)
Antenna cushion
Antenna cushion attachment position
Transmission antenna
Antenna cushion
Reference line
Reference line
PortionA
7
6. Attach the antenna bracket with the three screws.
• When attaching the antenna bracket, match the two bosses with the two holes.
7. Attach the antenna cushion to the outside panel.
8. Close the cover.
Confirm that the cover has locked.
Note
PSW3 x 6
Bosses
Holes
Antenna bracket
Antenna cushion
Outside panel
Note
8
To prevent damage in the unit, turn off the power and disconnect the power cord or remove the battery before starting the
following work.
9. Open the DC OUT lid (860) in the direction of the arrow A.
10. Loosen the five screws with stopper to open the outside panel assembly in the direction of arrow B.
11. Disconnect the harness from the connector (CN102) on the PS-943 board.
12. Disconnect the two FPCs with connector (DPR-SDI) from the two connectors (CN200, CN201) on the DPR-390 board.
13. Disconnect the harness from the connector (CN001) on the TX-164 board.
Note
DC OUT lid (860)
A
B
Outside panel assembly
B3 x 10
(Screws with stopper)
B3 x 10
(Screws with stopper)
CN201
DPR-390 board
CN200
Harness
Harness
Outside panel assembly
CN001
(TX-164 board)
CN102
(PS-943 board)
FPCs with connector (DPR-SDI)
