SOMFY Glydea ULTRA DIGITAL NETWORK Instrucciones de funcionamiento

SOMFY DIGITAL NETWORK™ (SDN)

RS485 Module for Glydea® ULTRA Motors

PROGRAMMING GUIDE

2 of 8

SDN RS485 Module for Glydea® ULTRA Motors

V E R S I O N 1 9 . 1 0 | N o v 2 0 1 9 | P r e p a r e d b y P R O J E C T S E R V I C E S

PROGRAMMING GUIDE

TABLE OF CONTENTS

I. OVERVIEW

DESCRIPTION

COMPATIBILTY

MOUNTING & POWER

INSTALLATION

COMMISSIONING

II. WIRING

III. FEATURES

FEEDBACK

MOTOR NODE ID & LABEL

INTERMEDIATE POSITIONS & GROUPS

PERCENTAGES & LOCK POSITION

RTS & DRY CONTACT

IV. SDN CONFIGURATION

REQUIREMENTS

CONTROL

V. SOMFY CONNECT™ UAI PLUS CONFIGURATION

REQUIREMENTS

CONTROL

The Somfy Digital Network™ (SDN) RS485 Module for Glydea® ULTRA Motors integrates Somfy's range of

Glydea® ULTRA motors into stand-alone SDN systems. The SDN module receives SDN network communication

signals and converts them to motor control commands for operating Somfy's Glydea® ULTRA motors. The

module receives power directly from the Glydea® ULTRA. It is configured using the Somfy Motor Configuration

Software and offers control commands for open, close, stop and up to 16 intermediate positions. Also, the

RS485 Module for Glydea® ULTRA Motors can be programmed with up to 16 SDN group addresses.

I. OVERVIEW

3 of 8

Follow the provided SDN RS485 Module for Glydea® ULTRA Inbox Instructions to remove bottom covers.

The RS485 Module for Glydea® ULTRA Motors is inserted into the bottom of the Glydea® ULTRA Motor.

M O U N T I N G & P O W E R

SDN Bus

CAT-5e or higher

Not to exceed 65 feet

Glydea® ULTRA

Motor Head

Power Plug

120V AC

RJ12 Connection

For Dry Contact (DCT) Only

C O M P A T I B I L T Y

▪Modules are compatible with the following Glydea® ULTRA motors: Glydea® 35e ULTRA DCT #1003151,

Glydea 35e ULTRA RTS #1003152, Glydea® 60e ULTRA DCT #1003158, Glydea® 60e ULTRA RTS #1003159

I N S T A L L A T I O N

▪Ensure the drapery track is properly installed and the drapery is hung

▪Follow the Glydea® ULTRA Motor Installation Guide provided in the product box

C O M M I S S I O N I N G

▪At initial Open or Close movements, the Glydea® ULTRA Motor will automatically run to record hard stop

positions. Depending on the type and weight of the drapery, end limits may need adjustment.

▪To adjust, connect the DCT Setting Tool #9014599 for Dry Contact Control.

▪Follow the Glydea® ULTRA Motor Installation Guide to make final end limit and direction adjustments.

▪For Radio Technology Somfy® (RTS) pairing using the Glydea® ULTRA 35e and 60e RTS motors, the RS485

Module must be removed then reinserted after pairing of the first RTS control point is complete. The RS485

Module may remain inserted when pairing additional RTS control points or making end limit adjustments from

these controls.

▪The Glydea® ULTRA Motor may also be configured using the Somfy Digital Network™ (SDN) Motor

Configuration Software (see page 6 of this Guide).

4 of 8

S D N P O W E R O V E R E T H E R N E T

S T A N D A R D S D N

*GLYDEA ULTRA 35e DCT, GLYDEA ULTRA 35e RTS, GLYDEA ULTRA 60e DCT or GLYDEA ULTRA 60e RTS

Data Hub

#1870262

*Glydea®

ULTRA Motor

RS485 Module for

Glydea® ULTRA Motors

#1870275

S I N G L E M O T O R

To 120V AC

TO IP NETWORK

TO RS232 NETWORK

TO 3rd PARTY

O P T I O N A L

Somfy Connect

UAI Plus

#1870272

NETWORK

Standard CAT-5e or higher

SDN BUS

Standard CAT-5e or higher

DCT

6 Conductor 26AWG

Bus Power Supply

#1822440

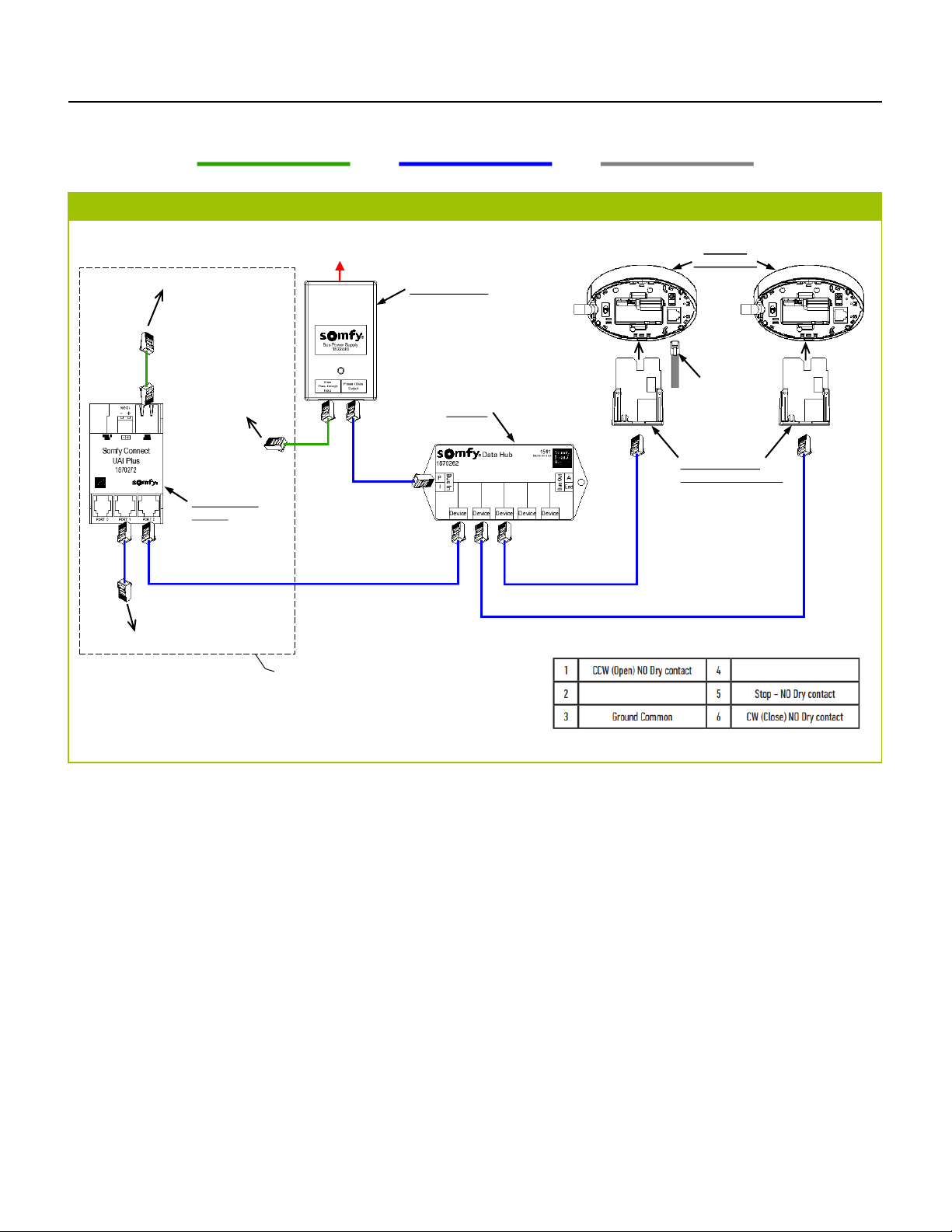

II. WIRING

S I N G L E M O T O R

RJ12 DCT

for Dry Contact

Control

DCT Pinout

5 of 8

F E E D B A C K

▪The RS485 Module for Glydea® ULTRA Motors support bi-directional feedback of the drapery motor position. If

a Glydea® ULTRA has been moved manually by hand, the Module will report real-time precise motor position.

S D N C O N F I G

M O T O R N O D E I D & L A B E L

▪Motor Node ID prefix of 20 displays for quick identification of the RS485 Modules on the Somfy Digital Network.

▪Each RS485 Module can be given an individual motor label.

III. FEATURES

I N T E R M E D I A T E P O S I T I O N S & G R O U P S

▪The RS485 Module for Glydea® ULTRA Motors are programmable with up to 16 intermediate positions and

assigned to 16 SDN group addresses.

▪The RS485 Module for Glydea® ULTRA Motors is capable of incremental motor movements from 0 to 100%. 0%

will send the Motor completely open, and 100% will send the Motor completely closed.

▪Positions will be 0% or 0 Pulse Counts for open and greater than 0 Pulse Counts or 100% for closed. An accurate

percentage and respective Pulse Count of motor position will report. Once drapery motor end limits are set, a

corresponding Pulse count will be represented.

▪Each RS485 Module can be given a temporary motor lock position.

P E R C E N T A G E S & L O C K P O S I T I O N

R T S & D R Y C O N T A C T

▪Radio Technology Somfy® RTS control (RTS models only) and the RJ12 Dry Contact port will remain active in

conjunction with full RS485 control.

6 of 8

IV. SDN CONFIGURATION

SOFTWARE

•Somfy Digital Network™ (SDN) Motor Configuration Software

*When possible, install as administrator

Download SDN Motor Configuration Software: https://www.somfypro.com/services-support/software

For complete installation instruction, set up, and features reference the SDN Motor Configuration Software

Programming Guide included in the software download zip folder.

HARDWARE

•Compatible Glydea® ULTRA Motor

•SDN RS485 Module for Glydea® ULTRA Motors #1870275

•USB-to-RS485 Adaptor for SDN #9015260 and software driver

•CAT-5e or higher patch cable terminated TIA 568B –Suitable length to connect Laptop to SDN Bus line

•Laptop PC with Windows 7 or higher

R E Q U I R E M E N T S

Control an RS485 Module for Glydea® ULTRA Motor by it’s Node ID:

1) In the Addressing section (A) enter a single Motor ID in the blank field, then select the Single radio button to

communicate with an individual Motor.

2) In the Movements section (B) use the various options to control a Motor.

3) In the IP’s section (C) set 16 Intermediate Positions for each Motor.

Control an RS485 Module for Glydea® ULTRA Motor by Group Addresses:

1) In the Group Addresses section (D) assign the RS485 Module to 16 unique SDN Groups:

•To create a Group Address enter 6 hexadecimal (0-9 and/or A-F) characters in one of the 16 fields,

then click the Set Groups button.

•Repeat using the same Group Address for each RS485 Module assigned to this Group.

2) Type the Group Address in the blank field under the Addressing section (A).

3) Select the Group radio button to communicate with the Group of Motors.

4) In the Movements section (B) use the various options to control a Motor Group.

C O N T R O L

SOFTWARE

•UAI Plus programming is done through the internal web GUI

*Can be accessed only with Google Chrome 59.0.3071 or higher

For complete set up instruction and features of the Somfy Connect™ UAI Plus

reference the Somfy Connect™ UAI Plus Programming Guide

Visit: https://www.somfypro.com/on-line-catalog/-/e-cat//1870272

HARDWARE

•Compatible Glydea® ULTRA Motor

•SDN RS485 Module for Glydea® ULTRA Motors #1870275

•Somfy Connect™ UAI Plus #1870272 firmware version 02.01.42 or higher

•CAT-5e or higher patch cable terminated TIA 568B –Suitable length to connect Laptop to SDN Bus line

•Laptop PC with Windows 7 or higher and Google Chrome 59.0.3071 or higher

IV. SOMFY CONNECT™ UAI PLUS CONFIGURATION

R E Q U I R E M E N T S

Control a RS485 Module for Glydea® ULTRA Motor by it’s Node ID:

1) Using Google Chrome navigate to the UAI Plus internal web GUI. In the Main Menu select Settings (A).

2) Open the SDN Commissioning page (B), go to the Motors tab and click the magnifying glass (C) to search for

all Motors and RS485 Modules on the bus line; this will list all discovered Motors.

3) Select an individual Motor, and use the directional buttons to move the Motor (D).

Control a RS485 Module for Glydea® ULTRA Motor by Group Addresses:

1) In the Groups tab create new Groups (E), then assign discovered Motors to Groups under Links (F).

2) Select one of the Groups, and use the directional buttons to move the Motor Group (G).

C O N T R O L

BY NODE ID BY GROUP ADDRESS

7 of 8

DOCUMENT PREPARED BY SOMFY NORTH AMERICA PROJECT SERVICES

Version 19.10

November 2019

FOR QUESTIONS OR ASSISTANCE PLEASE CONTACT TECHNICAL SUPPORT:

(800) 22-SOMFY (76639)

technicalsupport_us@somfy.com

SOMFY SYSTEMS INC

SOMFY NORTH AMERICA HEADQUARTERS

121 Herrod Blvd.

Dayton, NJ 08810

FLORIDA

1200 SW 35th Ave.

Boynton Beach, FL 33426

CALIFORNIA

15301 Barranca Pkwy.

Irvine, CA 92618-2201

CANADA

5178 Everest Dr.

Mississauga, Ontario L4W2R4

www.somfysystems.com

8 of 8
