Somfy RTS Motor Programming Instructions

Motor Programming Instructions have been rewritten by https://www.AVOutlet.com

We rewrite the Somfy instructions in an effort to make things a little easier to follow. There are

however some subtle differences in the motors. Please refer to the included Somfy motor

specific instructions if something is not working. Feel free to let us know if something is found to

be incorrect.

Please Read and Follow These Instructions.

Please use the motor programming instructions provided here. The remote control

instructions can be used for reference but they are not as easy to follow. A copy of the

Somfy instructions are also provided for your reference.

Please read installation instructions and programming instructions completely prior to

proceeding with installation and programming. Failure to do so can result in damage to the

motor and or the shade.

Be prepared to stop the shade during programming. The programming step where you set the

first stop limit (upper or lower whichever you do first) will activate the motor to move without

stopping on its own. You will need to stop the motor at the next stop limit using the remote as

indicated. Failure to stop the shade can result in shade or motor damage.

The motors MUST be installed in the tube and the assembly must be mounted into brackets to

be able to program the motor.

Only apply power to the motor being programmed regardless if the other motors have been

programmed or not. This will prevent inadvertent interaction with other motors. This is not

possible for motors with built-in batteries like the R28WF, ST30WF etc. Motors with built-in

batteries must be put to sleep.

We recommend mapping out the installation before proceeding. This will reduce set-up time and

make life easier. Decide the channels and or additional remotes to be assigned to each shade

in the installation. Each shade should be completely programmed before moving to the next.

Have the necessary remotes and controls ready prior to proceeding.

All motors programmed to the same RTS channel will operate at the same time. If you want

individual control of the motor, you must use separate channels on multi-channel remotes or

separate single channel remotes

The remote controls are generally considered to be dummy devices as they do not store any

motor or programming information. The motors are the intelligent devices. The motors store the

shade operation limits in their memory and the motors also memorize the specific remotes or

channels assigned to control them. Each motor can have up to 12 remotes or channels

controlling them.

Note: The Telis 4 Remote Control is a 5 Channel Remote control. The 5th channel is all lights

on. The 5th channel by default is not a group channel. This channel is not automatically

assigned and must be programmed.

Please read the previous page before proceeding.

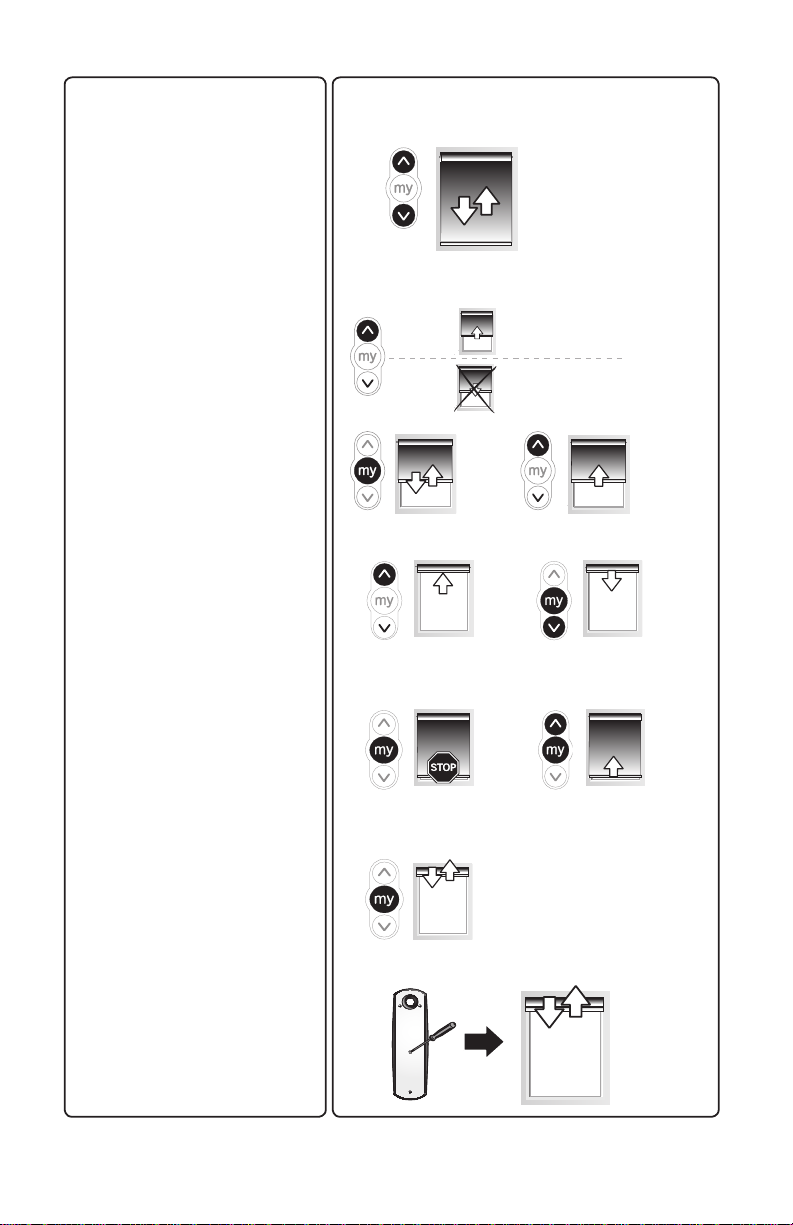

Step 1 - Assign a RTS Channel to the Motor

1-A) Select the RTS remote control and channel you want to use.

1-B) Press and Hold both the UP and DOWN buttons simultaneously until the motor jogs, then

release. A jog is a movement in both directions.

If the motor does not respond, proceed to the “Resetting and Clearing the Motor Memory”

Page(s) and reset the motor. If working with a built-in battery motor like the ST30WF you might

need to wake the motor first.

Step 2 - Check Motor Direction and Change if Necessary –DO NOT SKIP

2-A) Check the direction of operation (the motor will operate in momentary fashion).

Confirm that the UP button brings the shade UP and DOWN brings the shade DOWN.

2-B) Changing the direction (If needed), Press and Hold the STOP/MY button until the motor

jogs, then release. A jog is a movement in both directions. Re-Check the direction.

Step 3 - Set Lower and Upper Shade Limits

3-A) Move the shade to the desired lower limit position using the remote control. The shade will

only move when the button is being pressed.

3-B) Press and Hold both the STOP/MY and UP buttons simultaneously until the motor begins

to move up, then release. Be prepared to stop the shade manually using the STOP/MY button.

Stop the shade and adjust to your desired upper limit position.

3-C) Press and Hold both the STOP/MY and DOWN buttons simultaneously until the motor

begins to move Down, then release. The shade will move down to the already set lower limit

position and will stop on its own.

Step 4 - Store the Limits in the Motor Memory

4-A) Press and Hold the STOP/MY button until the motor jogs. A jog is a movement in both

directions. The limits are now recorded. The shade will NOT move automatically to a limit with

one button press yet!! Perform the next step.

Step 5 - Exit and Save Initial Programming

5-A) Briefly Press and Release the program button on the remote control. The motor will jog

once. A jog is a movement in both directions. The program button is typically on the backside of

a hand-held remote control or front of a wireless wall switch. A paperclip will be needed to press

the program button.

The shade should now move to the open and closed positions with a momentary press of the

buttons.

The optional steps on the next page should be reviewed. You should program the MY position

now as well as program additional channels of control if needed before moving on to another

motor.

Optional Programming Tasks

These procedures can be done at any time after initial programming, but we do recommend

performing all desired additional tasks before moving onto the next shade. All shades not being

programmed should have the power disconnected be put to sleep.

Set the Customer Preferred MY Intermediate Position

1) Using the remote, position the shade to the location you would like as your intermediate

customer preferred position

2) Press and Hold the STOP/MY button until the motor jogs, then release. A jog is a movement

in both directions.

Note: Simply repeat this step if you want to change the intermediate position to a new position

even if one has already been programmed.

Add a Remote or Channel to Control the Same Shade (If Desired)

1) To ADD another remote control or another RTS channel to the motor memory, Press and

Hold the program button on the previously recorded remote control until the motor jogs. A jog is

a movement in both directions.

2) Select the new remote or RTS channel to add to the motor memory. Briefly Press and

Release the program button on the remote control. The motor will jog once. A jog is a

movement in both directions.

Note: Some the older style motors require a Press and Hold of the program button for both

steps. Please refer to the included motor specific instructions if you are having difficulties.

Delete a Remote or Channel from the Motor Memory

1) To DELETE a remote control or channel, Press and Hold the program button of a previously

recorded channel or remote until the motor jogs. A jog is a movement in both directions.

(This remote or channel is the one to keep)

2) Select the remote or channel to delete. Briefly Press and Release the program button on the

remote control. The motor will jog once. A jog is a movement in both directions.

Note: Some the older style motors require a Press and Hold of the program button for both

steps. Please refer to the included motor specific instructions if you are having difficulties.

Adjusting the Lower Limit

1) Move the shade to its current lower limit position and let it stop.

2) Press and Hold the UP and DOWN buttons simultaneously and until the motor jogs, then

release. A jog is a movement in both directions.

3) Adjust to a new lower limit position. Press and Hold the STOP/MY button until the motor jogs,

then release. A jog is a movement in both directions.

Adjusting the Upper Limit

1) Move the shade to its current upper limit position and let it stop.

2) Press and Hold the UP and DOWN buttons simultaneously until the motor jogs, then release.

A jog is a movement in both directions.

3) Adjust to a new upper limit position. Press and Hold the STOP/MY button until the motor jogs,

then release. A jog is a movement in both directions.

Resetting and Clearing the Motor Memory

This procedure works for all motors except the ST40 120VAC and ST50 120VAC Motors. The

caveats of each motor are listed separately.

A paperclip will be needed to press the program button on some motors. These program

buttons do not need to be pressed hard. If you are having difficulty pressing the button, please

use a larger diameter paperclip.

Press and Hold the program button on the motor until the shade jogs 3 times while continuously

pressing the button. One jog is a movement in both directions. There will be a pause between

jogs so please be patient.

RU28 12VDC, R28WF Battery & ST30WF Battery RTS Motors

Same as a above. The program button is rectangular and found on the motor head.

R28 12VDC RTS Motor (Older Version)

Same as above. The program button is in a hole on the motor head.

The reset procedure on older versions of the R28 motor only works if the motor has been

completely programmed. Remove power for a minimum of 2 minutes if the motor is not

resetting.

LT30 12VDC RTS Motor

Same as above. The program button is in a hole on the motor head.

Some older versions of this motor do not jog. Hold the program button until the LED next to the

power connection stops blinking which is typically around 12 seconds.

ST30 RTS Motor (24VDC Version)

Same as above. The Sonesse 30 has two holes with recessed buttons. The white hole has the

program button and the yellow is for manually activating the shade to move.

RU24WF, ST30UWF & ST40WF RTS Battery RTS Motors

Same as above. The program button is in a hole on the motor head.

ST40 120VAC & ST50 120VAC Motor Resetting and Clearing

This reset procedure is sometime finicky. Several attempts may be required.

1) Disconnect power for 2 seconds.

2) Connect power for 5 seconds.

Note: Somfy recommends 10-15 seconds but we found 5 seconds to work better.

3) Disconnect power for 2 Seconds

4) Connect power and then leave it on. The motor will rotate in one direction if the shade is

between limits or will jog if at one of the programmed stops.

5) Press and Hold the programming button (App. 10 sec) on any RTS remote until the shade

jogs twice. There will be a pause between the jogs. Do not release the program button until the

second jog is complete. (The remote used does not have to be the one already programmed to

the shade) The motor is now ready for programming from the beginning.

Built-in Battery Motor –Sleeping and Waking

Sleep –Temporary (App. 15 Minutes)

Press and Hold the program button on the motor head until the shade jogs once. A jog is a

movement in both directions.

Press and Release the program button. The shade will jog twice. A jog is a movement in both

directions.

Sleep –Until Wake (Motor must be programmed prior)

Press and Hold the program button on the motor head or remote control until the shade jogs

once. A jog is a movement in both directions.

Press and Hold all three buttons Up, Stop/My/Down on the remote control until the shade jogs

once. A jog is a movement in both directions.

Wake

Press and Release the program button on the motor head until the shade jogs once or plug in a

charger. A jog is a movement in both directions.

Intentionally blank

www.somfy.com

Sonesse®30 RTS

Ref :5063394A

www.AVOutlet.com

SAFETY

• This Somfy product must be installed by a professional motorisation and home automation installer,

for whom these instructions are intended.

• Before installation, check that this product is compatible with the associated equipments and acces-

sories.

• These instructions describe how to install, commission and use this product.

• Moreover, the installer must comply with current standards and legislation in the country in which

the product is being installed, and inform his customers of the operating and maintenance conditions

for the product.

• Any use outside the sphere of application specied by Somfy is not approved. Such use, or any

failure to comply with the instructions given herein will invalidate the warranty, and Somfy refuses to

accept liability.

COMPATIBLE BLINDS

Roller blinds Venetian blinds Roman shades

GENERAL SAFETY INSTRUCTION

The safety instructions that must be observed, besides the usual rules, are

explained in these instructions and in the attached «Safety Instructions» document.

Never immerse the

motor in liquid!

Never drill holes in the

motor!

Avoid impacts!

Do not drop it!

www.AVOutlet.com

INSTALLATION

Motor preparation

1) Fit the crown (a) and drive wheel (b)

to the motor.

2) Measure the length (L) between

the middle of the drive wheel and the

head end.

Tube preparation

Cut the tube to the required length.

Deburr the tube and remove the

debris.

Motor/tube assembly

1) Slide the motor into the tube.

2) Fix the tube to the motor with self-

tapping screws or steel pop rivets

depending on the dimension (L).

Mounting the motorized tube on the

brackets

If necessary, screw the bracket inter-

face on the motor head.

1) Mount the motorized tube on the

end bracket (c).

2) Mount the motorized tube on the

motor bracket (d).

Wiring

Connect the power cable to the motor.

www.AVOutlet.com

COMMISSIONING

Programming the RTS control point

Switch on the power supply.

Press the UP and DOWN buttons si-

multaneously on the RTS control point:

the shade moves for a few seconds

and the control point is preprogram-

med in the motor

Checking the direction of rotation

Press the RTS control point UP button:

a) If the shade is raised, the direction

of rotation is correct: move to the sec-

tion entitled «Adjusting the end limits».

b) If the shade is lowered, the direction

of rotation is incorrect: move to the

next step.

Press the RTS control point MY button

until the shade jogs: the direction of

rotation has been modied.

Press the RTS control point UP button

to check the direction of rotation.

Adjusting the end limits

The limits can be set in any sequence.

1) Press and hold the UP button to

move the shade to the desired up

position.

2) Press the MY and DOWN buttons

simultaneously and release them once

the shade begins to move. The up limit

is memorized.

3) Press the MY button when it

reaches the desired down position.

If necessary adjust the down position,

using the UP or DOWN buttons.

4) Press the MY and UP buttons

simultaneously and release them

when the shade begins to move.

The down limit is memorized.

The shade moves up and will stop at

its upper limit.

5) To conrm the end limits press and

hold the MY button until the shade

jogs.The end limits are recorded.

Recording the RTS control point

Press the programming button on the

back of the RTS control point until

the motor jogs. The RTS control point

address is permanently recorded.

1 2

www.AVOutlet.com

Otros manuales para sonesse 30 rts

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Motor de SOMFY

SOMFY

SOMFY J4 1TN Manual de usuario

SOMFY

SOMFY Oximo 50 S auto RTS Instrucciones de montaje

SOMFY

SOMFY BAT-R Manual de instalación

SOMFY

SOMFY LT RTS CMO Manual de funcionamiento

SOMFY

SOMFY LT50 Manual de servicio

SOMFY

SOMFY Glydea Ultra DCT Manual de usuario

SOMFY

SOMFY Orea RTS Instrucciones de uso

SOMFY

SOMFY HOME MOTION Roll Up 28 WT Manual de usuario

SOMFY

SOMFY DR1000 Manual de usuario

SOMFY

SOMFY ST50 Guía del usuario

SOMFY

SOMFY CordLift WireFree CT-32RT-12V Manual de usuario

SOMFY

SOMFY Tilt Only 50 RTS Central Pack Manual de usuario

SOMFY

SOMFY Oximo 50 S auto RTS Manual de usuario

SOMFY

SOMFY Altus RTS 120 V Instrucciones de funcionamiento

SOMFY

SOMFY J4 RTS Instrucciones de montaje

SOMFY

SOMFY LS 40 Manual de usuario

SOMFY

SOMFY SUNEA CSI RTS Manual de usuario

SOMFY

SOMFY Sonesse Utra 50 DC Manual de usuario

SOMFY

SOMFY Sonesse 40 PA Manual de usuario

SOMFY

SOMFY PHOENIX PH 30/14 Manual de usuario

SOMFY

SOMFY J4 1TN Manual de usuario

SOMFY

SOMFY LS 40 Manual de usuario

SOMFY

SOMFY Tilt & Lift 25 RTS Central Manual de usuario

SOMFY

SOMFY Sonesse 28 WF Zigbee Manual de usuario

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

Kohler

Kohler K361 Manual de usuario

MTD

MTD OHV Series Manual de usuario

Kohler

Kohler COMMAND CH18-745 Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario

SOMFY sonesse 30 rts Manual de instalación

Manuales populares de Motor de otras marcas
