SolarEdge SEK-AU I Series Manual de usuario

Three Phase Inverter

with Synergy

Technology

For Australia

Version 1.1

Quick Installation Guide

PN: SEKxx-AUxxIxxxx

Scan for full

installation guide

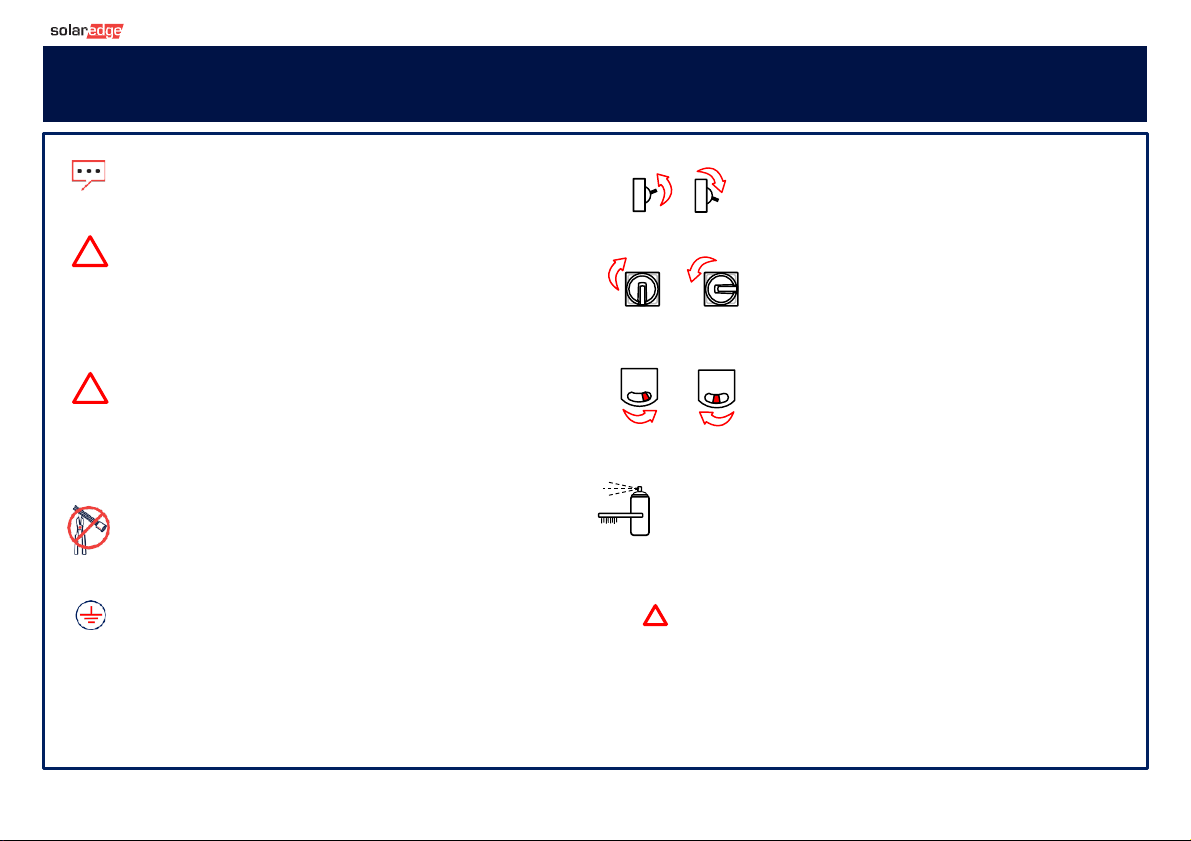

Legend

NOTE

This symbol denotes information intended to assist the

user in making optimum use of the product.

CAUTION!

Denotes a hazard. It calls attention to a procedure that, if

not correctly performed or adhered to, could result in

damage or destruction of the product. Do not proceed

beyond a caution sign until the indicated conditions are

fully understood and met.

WARNING!

Denotes a hazard. It calls attention to a procedure that, if

not correctly performed or adhered to, could result in

injury or loss of life. Do not proceed beyond a warning

note until the indicated conditions are fully understood

and met.

Do not cut the cable connectors

This symbol appears at grounding points on the

SolarEdge manuals and equipment.

Turn ON/OFF the main circuit board AC switch.

When turning off, wait 5 minutes for DC Voltage

to drop to safe level before removing the front

panel.

Turn the DC Disconnect Switch on/off.

When turning off, wait 5 minutes for DC Voltage

to drop to safe level before removing the front

panel.

Turn the ON/OFF/P Switch on/off. When turning

off, wait 5 minutes for DC Voltage to drop to safe

level before removing the front panel.

Before connecting aluminum wires to terminals:

1. Remove oxide from the exposed wires with emery paper or a

steel wire brush

2. Clean dust with a cloth and Isopropyl alcohol (IPA)

3. Coat wires with a designated antioxidant aluminum wire

grease immediately after cleaning

CAUTION!Connection of oxidize aluminum wires may result

in resistance and high temperatures at contact points.

Improper execution of the following procedure may cause

damage to the unit.

OFF

SAVE THESE INSTRUCTIONS –This manual contains important instructions for the Three Phase Inverter with Synergy Technology that should

be followed during installation and maintenance. Using this equipment in a manner not specified in this guide by SolarEdge may impair the

protection provided by this equipment.

P 1 0

OFF (0)

P 1 0

ON (1)

OFF

Notes

Use SolarEdge Designer

to design SE System

https://designer.solaredge.com

MAN-01-00822-1.1 1

Download SolarEdge Mapper

to map Array Power Optimisers

Download

Installing the Power Optimisers 1

123456

2 MAN-01-00822-1.1

Installing the Power Optimisers

1123456

Scan QR code using Mapper

Complete site registration

and physical layout in the

Monitoring platform

Install Power Optimiser

Stainless steel 9.5 N*m

10 mm

25 mm (P860,P960, P1600)

12.7 mm

10 mm

25 mm (P860,P960, P1600)

10 mm

25 mm (P860,P960, P1600)

10 mm

25 mm (P860,P960, P1600)

MAN-01-00822-1.1 3

Installing the Power Optimisers 1

123456

Use a dual input Power Optimiser (P800p)

for parallel connection of two PVs or use a

branch cable to connect two PVs to a

single input Power Optimiser

2:1 series connection

Connect input from Module

Connect output to Array

4 MAN-01-00822-1.1

Connecting the PV Array

Check array polarity.

Verify 1±0.1V per Power Optimiser

Example: 8 Power Optimisers = ~8V

MAN-01-00822-1.1 5

Maintaining Clearance 3

40 cm

10 cm

40 cm

114.5 cm

100.8 cm

CAUTION! Donot block airflow

40 cm

WARNING! Area

in front of the

inverter must be

kept clear for at

least one meter

20 cm

30 cm

Back to back

On metal back sheetOn mesh fence

Indoor Clearance

Outdoor Clearance

20 cm where annual average high temperature equals or above 25˚C

Keep more than 10°

Horizontal Installation

15 cm

5 cm

Avoid wobbly installation by

adding back support

6 MAN-01-00822-1.1

Level provided template horizontally

Position provided template vertically

Mark holes

Ø 9 mm

Drill holes

Marking & Drilling Holes

9.3 cm

16.6 cm

18.7 cm

15.5 cm

9.3 cm

15.5 cm

CAUTION! Donot block airflow

Optional

Holes

MAN-01-00822-1.1 7

Mounting the Units 5

18KG

4 N*m

32KG

4 N*m 4 N*m

4 N*m

For left or right units, use

only the outer screw
