Silver Cross REFLEX Manual de usuario

IMPORTANT: KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Reflex

Warranty

All Silver Cross products are guaranteed

for a period of 36 months against faulty

workmanship, when the product is used

correctly according to the instruction

manual.

Garantie

Tous les produits Silver Cross sont garantis

pour une période de 36 mois contre tout

défaut de fabrication, si le produit est utilisé

conformément au manuel d’instructions.

Garantía

Todos los productos de Silver Cross incluyen

una garantía de 36 meses contra defectos

de fabricación, siempre que el producto se

utilice correctamente de acuerdo con el

manual de instrucciones.

Garanzia

Tutti i prodotti Silver Cross sono garantiti

per un periodo di 36 mesi contro difetti di

fabbricazione, purché il prodotto venga

utilizzato correttamente, in conformità al

manuale delle istruzioni.

Garantie

Für alle Produkte von Silver Cross besteht

für den Fall von Herstellungsmängeln eine

Garantie von 36 Monaten, sofern das Produkt

sachgemäß wie in der Bedienungsanleitung

angegeben gebraucht wurde.

Garanti

Alla Silver Cross-produkter har 36 månaders

garanti som gäller tillverkningsfel förutsatt

att produkten har använts korrekt i enlighet

med bruksanvisningen.

Гарантия

На всю продукцию Silver Cross

действует гарантия сроком 36 месяцев,

покрывающая случаи производственного

брака, при условии использования

изделия в соответствии с инструкциями.

保修

在依据说明书正确使用产品的情况下，所有

Silver Cross产品对工艺质量问题保修期为

36个月。

保養期

所有 Silver Cross 產品均可享有36個月保

養期，提供在按照指引說明書正確使用下的

工藝缺憾保養。



Silver Cross



silvercrossbaby.com

These instructions are

important.

Read these instructions carefully before

use and keep them for future reference.

Your child’s safety may be aected if you

do not follow these instructions.

Your Reex pushchair is a high quality

Silver Cross product. It meets current

safety standards and care and regular light

maintenance will ensure long service.

This vehicle is intended for children from

birth to 25kg. If somebody unfamiliar is

using your Reex pushchair always ensure

that they read these instructions carefully

so that they understand how the product

works best. Always read all the instructions

provided carefully and remember, the

safety of your child is your responsibility.

WARNING: NEVER LEAVE YOUR

CHILD UNATTENDED.

Contents

Your Reex pushchair includes the

following components, please check that

you have all the items before proceeding:

1.1 Reex Pushchair Chassis,

Seat Fabrics and Basket

1.2 Reex Hood

1.3 Reex Raincover

1.4 Reex Front Wheel Assembly x2

1.5 Reex Bumper Bar

1.6 Reex Head Hugger

1.7 Reex Chest Pads and Crotch Pad

1.1 1.2

1.3

1.4 1.5

1.6 1.7

Assembling the Reex

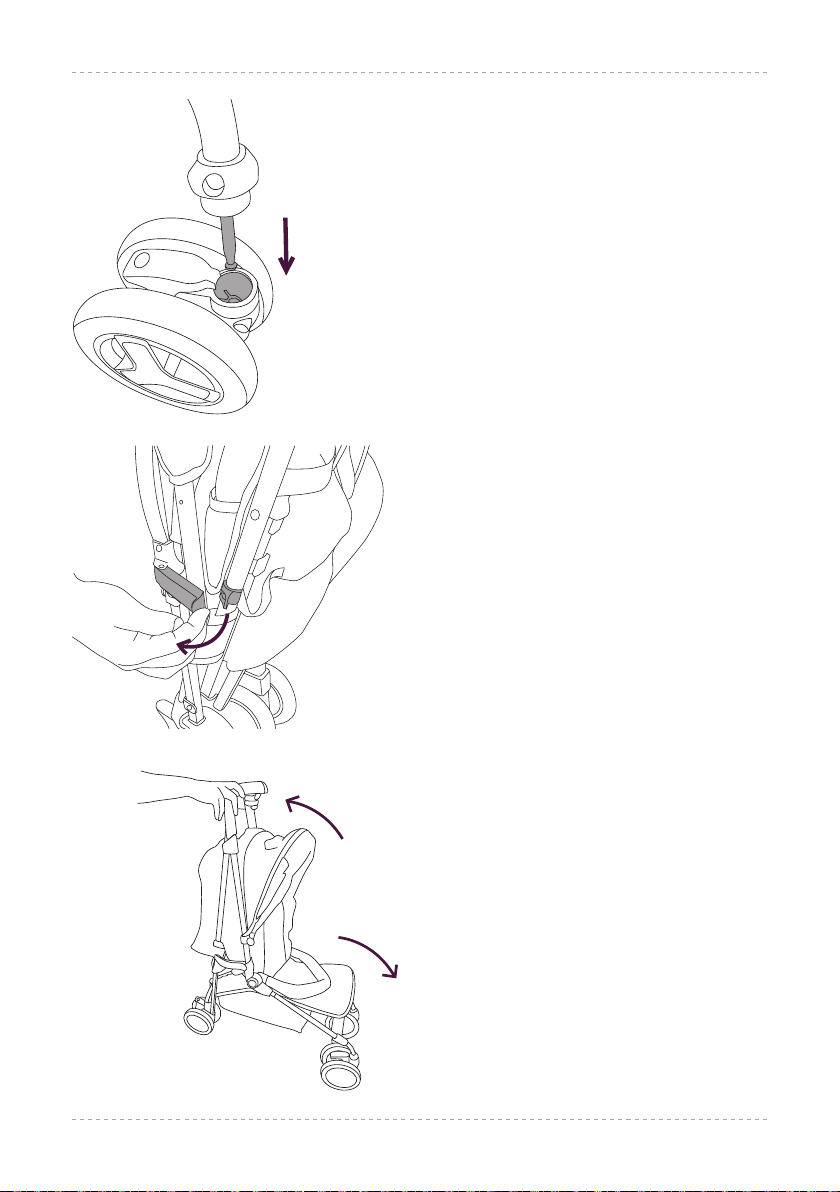

2.1 Attach the swivel wheels by locating

the wheel under the steel attachment

pin. Slide the wheel upwards and

press until the wheel clicks into

position.

WARNING: CHECK

THE WHEEL IS SECURE

BY PULLING GENTLY

DOWNWARDS.

Repeat on both sides. Your Reex is

now ready to be unfolded.

2.2 Locate the locking catch on each side

of the pushchair and lift to release

from the locking stud.

2.3 Allow the pushchair to open by lifting

the handles upwards and the wheels

will naturally fall to the oor.

2.1

2.3

2.2

silvercrossbaby.com

Assembling the Reex

(continued)

2.4 Finally, press down gently upon

the rear locking catch, positioned

between the rear wheels, to lock your

pushchair.

WARNING: FAILURE TO DO

THIS WILL CAUSE DAMAGE

TO YOUR PUSHCHAIR.

Place the pushchair on a at surface

and ensure that the pushchair moves

freely.

2.5 To t your Reex hood, locate the

clips on the hood. Now attach the

hood to the Reex chassis by sliding

clips over the hood connection

bracket. A positive engagement

should be ensured.

2.6 Connect the fabric of the hood

to the fabric of the seat with two

press studs, one on each side of the

pushchair.

2.7 Connect the fabric of the hood to

the rear leg of the chassis with two

press studs, one on each side of the

pushchair.

2.4

2.5

2.6 2.7

Assembling the Reex

(continued)

2.8 Your Reex hood can be opened and

folded by pulling the hood forward

or pushing backwards on the hood

frame. Your hood can also be

extended forwards by unzipping zip

as shown in diagram 2.8. Please note

when folding your Reex pushchair

you should always ensure the hood

is folded away. Failure to do this

could result in damage to your Reex

pushchair.

2.9 Your Reex pushchair has a multi-

position calf support. Locate the

adjustment levers either side of the

calf support. Pull levers towards you

and adjust to the required position.

2.8

2.9

silvercrossbaby.com

Reclining the Reex

3.1 Your Reex pushchair has a multi-

position recline.

3.2 First, locate the backrest adjustment

mechanism at the rear of the seat.

Pull up the recline lever and gently

lower to the desired position.

3.3 To raise the backrest locate the

recline lever and pull up gently into

the desired position. The backrest will

rise to the desired height.

NOTE: The backrest should always be

in the upright position and the hood

folded away prior to folding.

3.1

3.2

3.3

Using the Harness

The harness is a ve point system

consisting of shoulder straps, waist straps

and crotch strap. Before you use the

pushchair, the harness must be adjusted

to suit the size of the child.

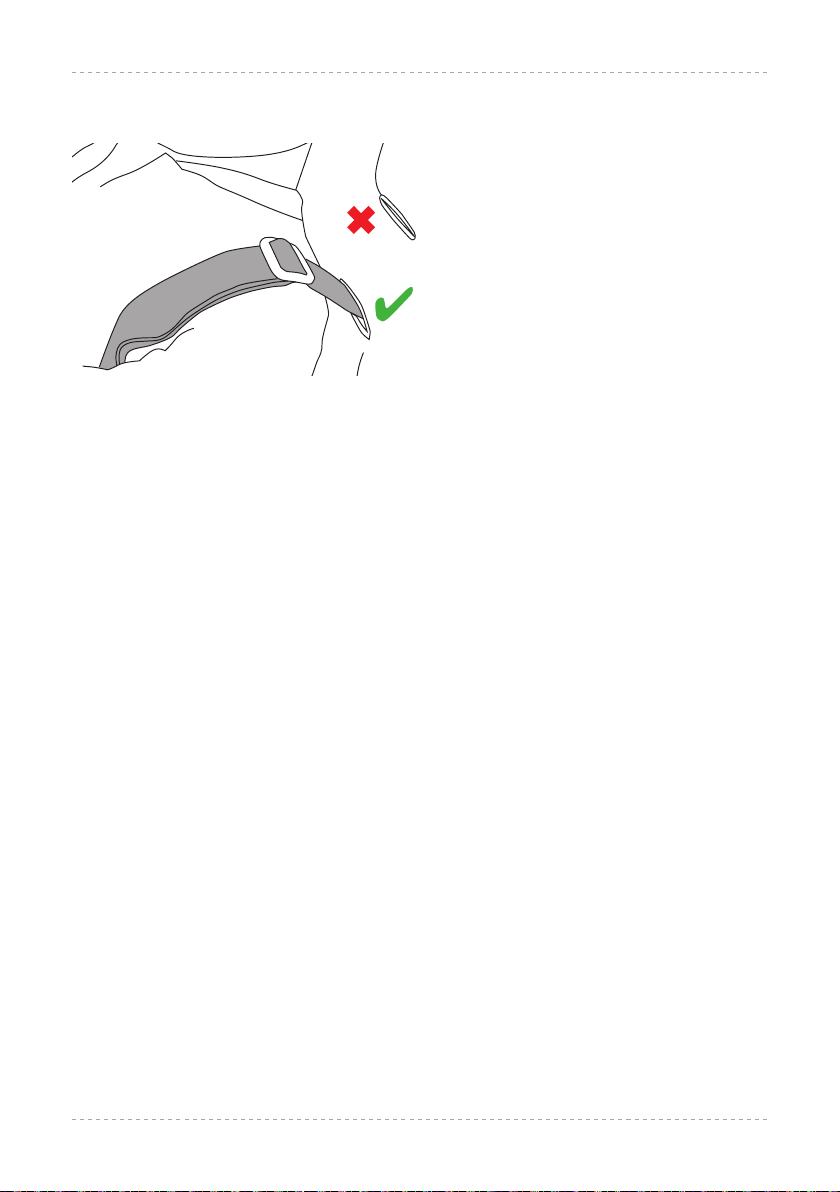

4.1 It is very important that you make

sure the shoulder straps are the

correct height for your child. The

shoulder straps should be level or just

below your child’s shoulders.

In a safe and secure environment,

place your child in the pushchair

with the backrest upright and assess

which of the three shoulder strap

height positions is most suitable for

your child.

NOTE: Winter/Summer clothing can

make a dierence to the size of your

child.

WARNING: NEVER LEAVE

YOUR CHILD UNATTENDED

DURING THIS PROCESS.

REMOVE YOUR CHILD WHILST

THE ABOVE ADJUSTMENTS ARE

BEING MADE.

4.1

silvercrossbaby.com

Adjusting the Reex handles

5.1 Your Reex features 3-position

adjustable handles. The desired

position can be selected by depressing

the button shown and either pulling

up or pushing down the handles.

5.1

6.1 Adjusting the harness

6.1 Your Reflex pushchair has a multi-

position height adjustment for the

harness. To adjust the shoulder strap

height, start by disconnecting the

shoulder clips from the waist clips.

6.2 Pass one of the shoulder clips

through the button hole on the cover

and backrest. Once the clip is fully

through to the opposite side of the

backrest, pass it back through the

desired slot. Repeat these steps for

the other shoulder clip, ensuring that

the selected button holes are in line.

6.2
