Silver Cross Pioneer Manual de usuario

Pioneer

Pushchair and Carrycot

2 3

silvercrossbaby.com

Your child’s safety may be

aected if you do not follow these

instructions.

Your Pioneer Pushchair is a high

quality Silver Cross product. It

meets current safety standards

and care and regular light

maintenance will ensure long

service.

If somebody unfamiliar is using

your Pioneer Pushchair always

ensure that they read these

instructions carefully so that

they understand how the product

works best. The Pioneer Pushchair

is designed and tested to be

used with the Pioneer Carrycot

and the Simplicity Car Seat (sold

separately).

THE SAFETY OF THE CHILD IS YOUR

RESPONSIBILITY.

Pioneer

Pushchair and Carrycot

ENG

Contents

First check all your parts have been

supplied. Your Pioneer pushchair

includes:

1.1 Seat with harness

1.2 Bumper bar

1.3 Chassis including basket

& rear wheels

1.4 Front wheels

1.5 Rain cover in bag

1.6 Hood

1.7 Carrycot outer

1.8 Carrycot liner

1.9 Carrycot mattress with

cover and board

1.10 Chest pads and crotch pad

1.11 Carrycot apron

1.1 1.2

1.3

1.4

1.7 1.8 1.9

1.5 1.6

1.10 1.11

ENG IMPORTANT

READ CAREFULLY AND KEEP

FOR FUTURE REFERENCE

IMPORTANT

A LIRE ATTENTIVEMENT

ET À CONSERVER POUR

RÉFÉRENCE ULTÉRIEURE

IMPORTANTE

LEER DETENIDAMENTE

Y MANTENERLAS PARA

FUTURAS CONSULTAS

IMPORTANTE

LEGGERE ATTENTAMENTE E

CONSERVARE PER FUTURO

RIFERIMENTO

WICHTIG

BITTE SORGFÄLTIG LESEN UND

FÜR SPÄTERES NACHLESEN

UNBEDINGT AUFBEWAHREN

VIKTIGT

LÄS NOGGRANT OCH SPARA

FÖR FRAMTIDA BRUK

FIN TÄRKEÄÄ

LUE HUOLELLISESTI JA SÄILYTÄ

VASTAISUUDEN VARALLE

4 5

silvercrossbaby.com

Preparation for use

Remove all packaging material

from your Pioneer pushchair.

To use your Pioneer pushchair from

birth you must use the Pioneer

Carrycot (included).

Pioneer chassis

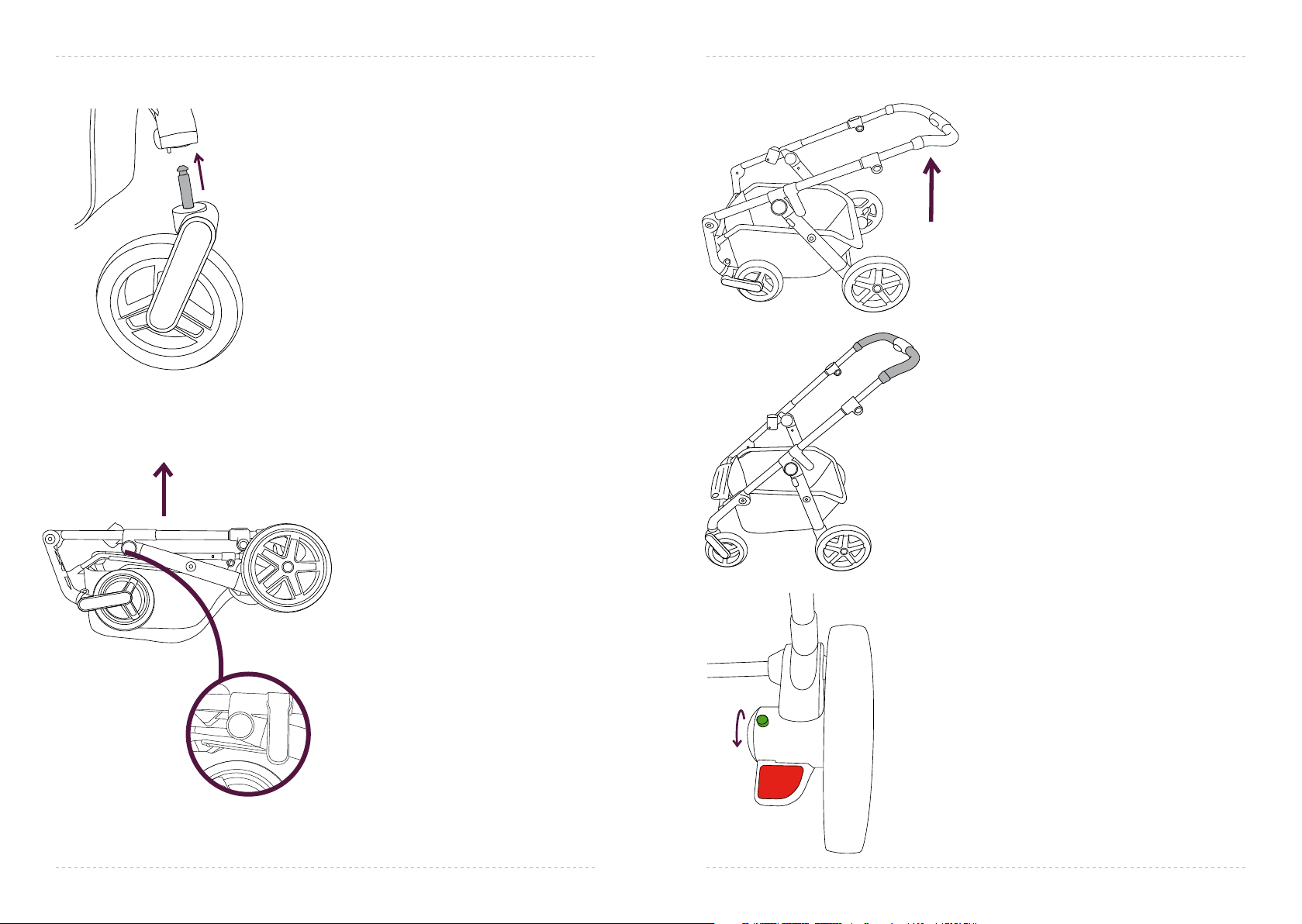

2.1 Attach the front wheels by

inserting the axles into the

Pioneer frame until they ‘click’

into position.

2.2 Release the folding lock and

lift the handle upwards.

WARNING: CHECK THE WHEEL

IS SECURE BY PULLING GENTLY

DOWNWARDS.

WARNING: CHECK THAT THE

CARRYCOT OR SEAT UNIT OR

CAR SEAT ATTACHMENT DEVICES

ARE CORRECTLY ENGAGED

BEFORE USE.

2.1

2.2

Pioneer chassis

2.3 Continue to lift the handle

upwards until the frame

‘clicks’ and locks into position.

Always check that the frame

is secure.

2.3

Using the brake

WARNING: ALWAYS APPLY THE

PARKING BRAKE WHEN YOU ARE

STANDING STILL.

WARNING: ALWAYS APPLY THE

BRAKE WHEN PLACING AND

REMOVING THE CHILD.

3.1 To engage the brake, press

down on the red brake pedal.

Listen for the ‘click’.

NOTE: Always check that

your brake is fully engaged by

gently rocking the pushchair.

To disengage the brake, gently

press down on the green

brake release button. Rock the

pushchair backwards before

moving forward.

3.1

6 7

silvercrossbaby.com

Operating the swivel wheels

Your Pioneer chassis has lockable

front swivel wheels. We advise

locking the front wheels if pushing

the pushchair straight ahead for a

long period.

4.1 Rotate the swivel release lever

sideways to lock the wheels

into the xed position.

Always apply brake when

placing and removing the

child.

4.1

Operating the height adjustable

handle

Your Pioneer has a 4-position

handle height.

5.1 Press and hold the handle

height adjustment/folding

button.

5.2 Slide the handle up or down

to required height and release

the adjustment button.

The handle will lock and ‘click’

into place.

5.2

5.1

Folding your Pioneer chassis

NOTE: To ensure your Pioneer

chassis folds correctly remove all

items from the shopping basket

before attempting to fold.

NOTE: If using as a travel system

(with a car seat) or pram (with

Pioneer carrycot) please ensure

each part has been removed

before folding.

Your Pioneer chassis can be folded

with the seat unit attached and

in a forward-facing, upright

position. In all other positions it is

recommended to remove the seat

unit.

6.1 Ensure the swivel wheels are

locked

6.2 Engage the brake pedal

6.1

6.2

8 9

silvercrossbaby.com

Folding your Pioneer chassis

6.3 Press and hold the fold release

button. Pull the fold release

triggers towards you. Push the

handle downwards gently and

lower the handle downwards

until the fold lock engages. Lift

the handle upwards gently to

ensure that the chassis is folded

correctly.

6.4 To release the rear wheels,

press and hold the green button

under the brake and gently pull

wheel away from chassis.

WARNING: TO AVOID POSSIBLE

INJURY OR DAMAGE, ALWAYS

ENSURE THE STORAGE LATCH HAS

BEEN ENGAGED BEFORE LIFTING

THE PRAM/STROLLER.

CARRY THE PRAM USING THE

MAIN HANDLE, ONCE STORAGE

LATCH HAS BEEN ENGAGED.

WARNING: DUE CARE SHOULD

BE TAKEN WHEN FOLDING AND

UNFOLDING THIS PUSHCHAIR.

PLEASE ENSURE FOLDING

MECHANISMS ARE KEPT CLEAR

TO AVOID POSSIBLE FINGER

ENTRAPMENTS OR INJURIES TO

PARTS OF THE BODY.

6.3

6.4

Using your Pioneer from birth

with the carrycot

Preparing the carrycot for use

Remove all packaging material

from your Pioneer carrycot.

7.1 First erect the carrycot outer.

Lay the carrycot outer down

onto its base. Press the 2x

metal bars into the locators

on internal base of carrycot.

A small groove in the locator

holds the frame in position.

7.2 Attach the carrycot liner to

the carrycot outer. Fasten

each inner zip. There is one at

each end of the liner.

7.3 Pass the two D-shaped parts

of the liner between the liner

and the outer and fasten the

Velcro patches to secure the

liner in place.

7.4 Place the mattress into the

base of the liner.

WARNING: DO NOT LEAVE YOUR

CHILD UNATTENDED.

WARNING: NEVER USE THE

CARRYCOT ON A STAND.

WARNING: DO NOT LET OTHER

CHILDREN PLAY UNATTENDED

NEAR THE CARRYCOT.

CAUTION: Do not force the zip

7.1

7.2

7.3

7.4

10 11

silvercrossbaby.com

Attaching the apron to the

carrycot

8.1 Place the apron over the top

of the carrycot and secure in

place using the velcro tabs.

8.2 Slide the apron ap clips over

the attachment points inside

the carrycot frame.

THIS CARRYCOT IS SUITABLE

FOR A CHILD WHO CANNOT SIT

UP UNAIDED, ROLL OVER AND

CANNOT PUSH ITSELF UP ON ITS

HANDS AND KNEES. MAXIMUM

WEIGHT OF CHILD: 9KG

WARNING: USE A HARNESS AS

SOON AS THE CHILD CAN SIT

UNAIDED.

WARNING: ONLY USE ON A FIRM,

HORIZONTAL LEVEL AND DRY

SURFACE.

CAUTION: The head of the child

in the carrycot should never be

lower than the body of the child.

8.2

8.1

Attaching the carrycot hood to

the carrycot

9.1 Attach the hood by pressing

the hood clips onto the slots

on either side of the carrycot

frame.

Slide the back of the Pioneer

hood over the rear edge of the

carrycot.

9.2 Your Pioneer hood can be

used in 3 positions. Fully open,

semi-open and fully covered.

9.1

9.2

12 13

silvercrossbaby.com

Attaching the bumper bar to

the carrycot or seat unit

10.1 Attach the bumper bar

by pressing the ends of

the bumper bar into the

attachment points of the

carrycot/seat unit frame.

Wait to hear them ‘click’ into

place. Lift gently to ensure the

bumper bar is locked in place.

10.2 To detach, press the bumper

bar release button on the

carrycot/seat unit frame with

one hand and pull the bumper

bar away from the connector

point with the other hand.

The bumper bar will rotate.

To detach both sides repeat

point (10.2) above. With

one side of the bumper bar

removed the carrycot/seat

unit is easily accessible.

WARNING: THE BUMPER BAR

MUST BE SECURELY CONNECTED

AT ALL TIMES WHEN IN USE. THE

SAFETY OF YOUR CHILD IS YOUR

RESPONSIBILITY.

WARNING: ALWAYS REMOVE

YOUR CHILD FROM THE SEAT

UNIT BEFORE ATTEMPTING

TO LIFT AND REMOVE THE

SEAT UNIT.

WARNING: THE BUMPER BAR IS

NOT A CARRY HANDLE.

10.1

10.2

Attaching the carrycot to your

chassis

11.1 To attach your Pioneer

carrycot to the Pioneer chassis

hold the carrycot above the

chassis. Locate the carrycot

chassis connector posts into

the attachment slots on

the chassis. Ensure that the

carrycot ‘clicks’ into place.

The carrycot should be tted

rearward facing. Lift the

carrycot gently by the bumper

bar to check the carrycot has

locked into place.

WARNING: NEVER USE THIS

CARRYCOT ON A STAND.

Detaching the carrycot from

your chassis

11.2 With the Pioneer carrycot

facing you, pull both carrycot

release handles outwards and

lift the carrycot clear of the

chassis.

Always ensure your bumper bar

is attached when your child is in

the carrycot.

This product is suitable for a

child who cannot sit up by itself,

roll over and cannot push its self

up on its hands and knees. Max

weight of child: 9kg.

CAUTION: Only use replacement

parts supplied and approved by

the manufacturer.

11.1

11.2

14 15

silvercrossbaby.com

12.1 Using your liner and mattress

12.1 Your Pioneer Carrycot

mattress is removable.

Simply lift it out of the liner.

The mattress cover can be

hand washed. Remove the

foam mattress insert prior to

washing by opening the ap

on the back of the mattress

cover and removing the foam

mattress.

12.2 The Pioneer Carrycot has a

removable liner. Simply unzip

each end and release the

Velcro fastenings to remove it.

To remove the board within

the liner simply unzip from

underneath.

To t the liner and mattress

see preparation for use (see 7.1

- 7.4)

WARNING: DO NOT ADD A

MATTRESS OTHER THAN THE

ONE PROVIDED.

CAUTION: Do not force the zip

12.2 13.1

13.2

Using your Pioneer as a

pushchair

Your Pioneer seat unit can

be tted to the chassis in

rearward-facing position

(infant facing you) or

forward-facing position

(infant facing away from

you). Follow (17.1) to attach the

seat unit to the chassis.

Attaching the seat unit hood to

the seat unit

13.1 First, slide the back of the

hood over the back of the seat

unit. Locate the slot in the

fabric at the back of the hood

and slide over the seat recline

adjustment lever.

13.2 Attach the hood by pressing

the hood clips onto the slots

on either side of the seat unit

frame. Note your Pioneer

pushchair has a function

where you have the option to

raise or lower the height of

the hood provided. The height

position can be adjusted by

connecting the hood to one

of the two height locations

provided. Velcro the lower

front corners of the hood onto

the seat unit.

16 17

silvercrossbaby.com

Using your hood

14.1 Your Pioneer hood can be

used in 3 positions. Fully open,

semi-open and fully covered.

14.1 Using your hood

Your Pioneer hood features a

ventilation panel and pop-out

sunvisor.

14.2 To open the ventilation panel,

lift the ap and secure under

the viewing window ap using

the magnets either side of the

hood.

14.3 To use the sunvisor, pull out of

the hood. To store, push back

into the hood.

14.2

14.3

18 19

silvercrossbaby.com

Preparing the harness

15.1 The shoulder straps have 3

height positions. To adjust,

rst lift the ap on the back

of the seat unit. Thread the

harness buckle from the front

of the seat unit through to

the back of the seat unit and

allow the buckle to lay at

behind the seat securing the

shoulder strap in place.

Thread the harness through

the button hole in the seat

unit relative to the size of your

child, and secure the harness

buckle. (see 16.1).

WARNING: THE HARNESS CAN

FORM LOOPS WHICH MAY BE

A STRANGULATION HAZARD.

NEVER LEAVE THE HARNESS

CONNECTED WHEN NOT FITTED

TO A CHILD IN THE PUSHCHAIR.

15.1 Using the harness

WARNING: ALWAYS USE

THE CROTCH STRAP IN

COMBINATION WITH THE WAIST

AND SHOULDER STRAPS

16.1 To fasten the harness insert

both buckle clips into each

side of the buckle. Listen for

the ‘click’.

WARNING: ALWAYS USE THE

RESTRAINT SYSTEM.

16.2 To release the harness press

the button at the centre of

the buckle and pull apart.

The shoulder straps can be

unhooked from the buckle if

required.

16.3 Your harness is fully adjustable

by moving the slides (A), to

make tting easy. Your child

should always be harnessed

in and should never be left

unattended, even for short

periods of time.

Your Pioneer harness can be

adjusted for the size of your

child.

‘D’ rings are provided for

tting a separate harness if

required (B).

16.1

16.2

16.3

Otros manuales para Pioneer

Este manual sirve para los siguientes modelos

Otros manuales de Paseante de Silver Cross

Silver Cross

Silver Cross Doll’s Pram Manual de usuario

Silver Cross

Silver Cross Wayfarer Manual de usuario

Silver Cross

Silver Cross SURF Manual de usuario

Silver Cross

Silver Cross Jet Manual de usuario

Silver Cross

Silver Cross POP Manual de usuario

Silver Cross

Silver Cross SUN SAIL Manual de usuario

Silver Cross

Silver Cross Freeway Manual de usuario

Silver Cross

Silver Cross Fizz Manual de usuario

Silver Cross

Silver Cross Kensington Manual de usuario

Silver Cross

Silver Cross Pioneer Manual de usuario

Silver Cross

Silver Cross Tide Manual de usuario

Silver Cross

Silver Cross Jet Manual de usuario

Silver Cross

Silver Cross Coast Manual de usuario

Silver Cross

Silver Cross Coast Manual de usuario

Silver Cross

Silver Cross Wing 2 Manual de usuario

Silver Cross

Silver Cross Wayfarer Pushchair & Carrycot Manual de usuario

Silver Cross

Silver Cross ZEST Manual de usuario

Silver Cross

Silver Cross Coast Manual de usuario

Silver Cross

Silver Cross SURF Manual de usuario

Silver Cross

Silver Cross Linear Chassis Manual de usuario

Silver Cross

Silver Cross Freeway Manual de usuario

Silver Cross

Silver Cross Comet Manual de usuario

Silver Cross

Silver Cross Marie-Chantal Sleepover Manual de usuario

Silver Cross

Silver Cross REEF Manual de usuario

Manuales populares de Paseante de otras marcas

Hauck

Hauck Priya Trioset Manual de usuario

CHILDHOME

CHILDHOME CWQDN Manual de usuario

Dreamer Design

Dreamer Design Rebound GST Manual de usuario

Britax

Britax STEELCRAFT AGILE Manual de usuario

Graco

Graco 7427 Manual de usuario

Comfort

Comfort COMPASS Manual de usuario

OBaby

OBaby Aura Manual de usuario

Tutek

Tutek Tirso Manual de usuario

Babify

Babify Dual Plus Manual de usuario

Graco

Graco Stroller Manual de usuario

Special Tomato

Special Tomato Jogger Manual de usuario

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manual de usuario

Otto Bock

Otto Bock Kimba neo Manual de usuario

Milly Mally

Milly Mally ROYAL Guía de inicio rápido

Hauck

Hauck DUETT 3 PRAM Manual de usuario

BOB

BOB DUALLIE Manual de usuario

Nuna

Nuna Pepp Manual de usuario

Britax

Britax B2 Manual de usuario
