Silver Cross SURF Manual de usuario

IMPORTANT: KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Surf

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 1 11/07/2017 16:59

UK - PL

These instructions are

important.

Read these instructions before use and keep

them for future reference. Your child’s safety

may be aected if you do not follow these

instructions.

Your Surf Pushchair and carrycot is a high

quality Silver Cross product. It meets current

British and European safety standards and

care and regular light maintenance will

ensure long service.

This pushchair is suitable from birth up to

9kg with the Carrycot and from 6 months up

to 15 kg using the Seat Unit.

If somebody unfamiliar is using your Surf

Pushchair always ensure that they read

these instructions carefully so that they

understand how the product works best.

The Surf Pushchair is designed and tested

to be used with the Ventura Plus S Car Seat

and Simplicity Infant Carrier and the Surf

Essentials pack all sold separately.

Always read all the instructions provided

carefully and remember, the safety of your

child is your responsibility.

WARNING: It may be dangerous

to leave your child unattended.

Contents

First check all your parts have been

supplied. Your Surf Pushchair includes:

1.1 Surf seat unit with harness

1.2 Chassis

1.3 Bumper bar

1.4 Rain cover

1.5 Rear wheels

1.6 Front wheels

1.7 Simplicity Adaptors

1.8 Cup holder

1.9 Shopping basket

1.10 Carrycot mattress and cover

1.11 Carrycot outer

1.12 Carrycot liner

1.1

1.3

1.2

1.5

1.6

1.9

1.8

1.121.11

1.10

1.7

1.4

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 2 11/07/2017 16:59

silvercrossbaby.com

UK - PL

Preparation for use

Remove all packaging material from your

Surf Pushchair. To use your Surf Pushchair

from birth you must use the Silver Cross

the Carrycot (included).

WARNING: Check that the

carrycot or seat unit is correctly

engaged before use.

Surf chassis

2.1 Attach the front and back wheels by

inserting the axles into the Surf frame

until they ‘click’ into position.

2.2 Release the folding lock and lift the

handle to waist height.

2.1

2.2

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 3 11/07/2017 16:59

UK - PL

Surf chassis (continued)

2.3 Lift the handle upwards and ick

forwards, while holding the handle

tightly, the frame ‘clicks’ and locks

into position. Always check that the

frame is secure.

2.4 Apply the brake (see point 23.1) and

adjust the handle height by pushing

the adjustment button in. Slide the

handle up or down and release the

adjustmentbutton. The handle will

lock and ‘click’ into position.

Your Surf chassis is now ready for use.

2.3

2.4

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 4 11/07/2017 16:59

silvercrossbaby.com

UK - PL

Using your Surf from birth with

the carrycot.

Remove all packaging material from your

Surf Carrycot.

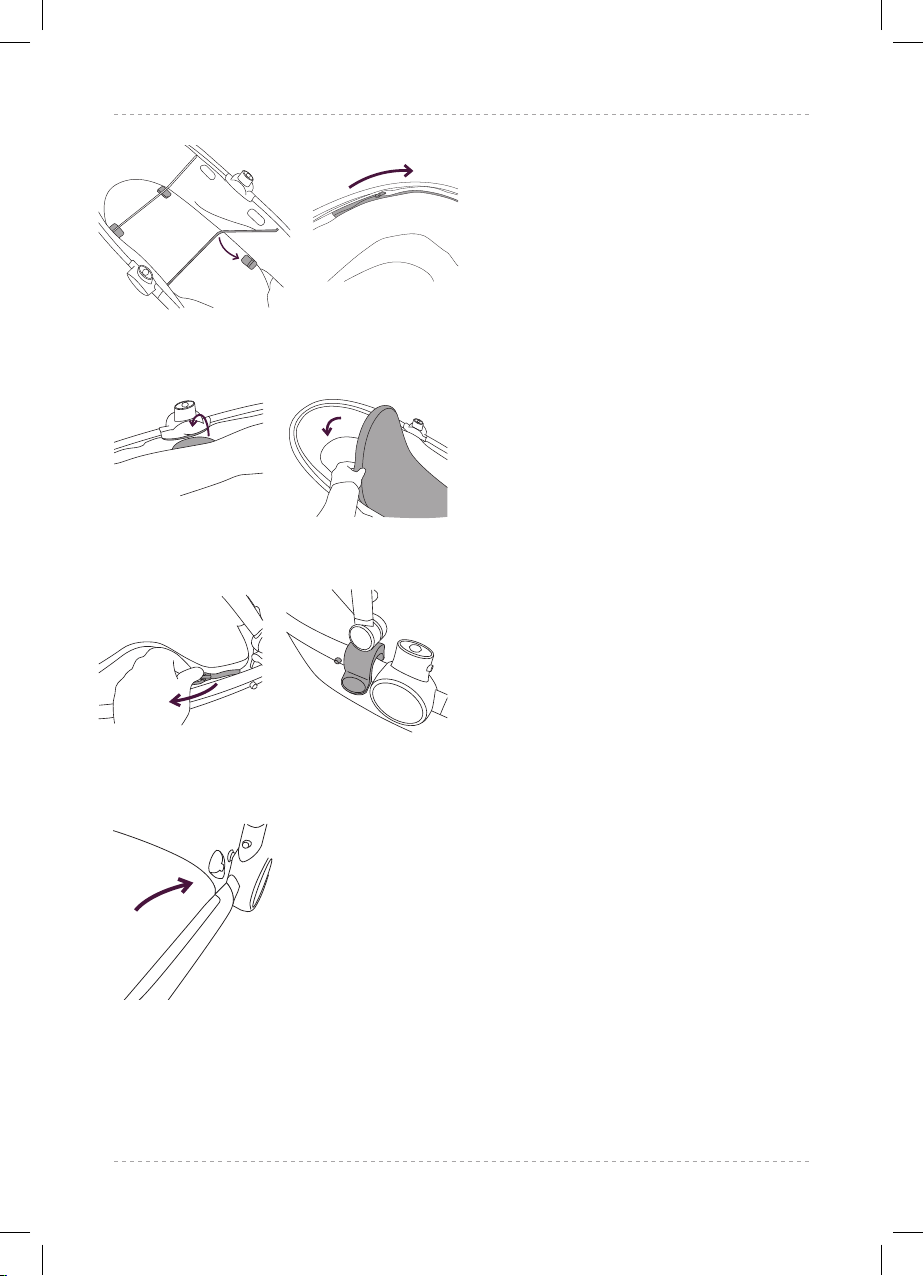

3.1 First erect the carrycot outer. Lay the

carrycot outer down with frame upper

most. Press the 2 x metal bars into the

locators on internal base of carrycot.

A small groove in the locator holds the

frame in position.

3.2 Attach the carrycot liner to the

carrycot outer. Fasten each inner zip.

There is one at each end of the liner.

3.3 Pass the two D-shaped parts of the

liner between the liner and the outer

and fasten the velcro patches to secure

the liner in place.

3.4 Place the mattress into the base of

the liner.

3.5 Zip your Surf hood to the zip on the

carrycot outer.

3.6 Attach the hood to the frame by

pressing down on the hood attachment

clips on each side of frame.

3.7 To t the apron, place the apron over

the top of the carrycot. Secure in place

by sliding the apron clips over the

attachment points inside the

carrycot frame.

NOTE: The Apron comes in 2 parts. To use

the apron with the carrycot, the lower

part of the apron will need to be zipped

o rst. Please keep the lower part in a

safe place.

WARNING: ONLY USE ON A FIRM,

HORIZONTAL LEVEL AND DRY

SURFACE.

CAUTION: The head of the child

in the carrycot should never be

lower than the body of the child.

3.1

3.4

3.5 3.6

3.7

3.2

3.3

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 5 11/07/2017 16:59

UK - PL

Using your Surf from birth with

the carrycot. (continued)

3.8 Slide the apron ap clips over the

attachment points on the inside of

the carrycot frame.

3.9 Attach the bumper bar by pressing

the ends of the bumper bar into the

attachment points of the carrycot

frame. Wait to hear them ‘click’

into place. Lift gently to ensure the

bumper bar is locked in place. Fold

the apron ap over the bumper bar,

the magnets hidden inside the ap

will hold it in place.

NOTE: The bumper is to be used on the Surf

Pushchair and the Surf Carrycot

WARNING: Please ensure the

bumper bar is fully locked in

place whenever lifting your child

in the carrycot. Your child’s

safety is your responsibility.

WARNING: Ensure all locking

devices are engaged before use.

Your Surf Carrycot is ready to use.

3.8

3.9

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 6 11/07/2017 16:59

silvercrossbaby.com

UK - PL

Attaching the carrycot to your

chassis

4.1 To attach your Surf Carrycot to

the Surf chassis hold the carrycot

above the chassis. Locate the

carrycot chassis connector onto

the attachment post of the chassis.

Ensure the carrycot ‘clicks‘ into

place. The carrycot should be tted

rearward facing. Lift the carrycot

gently by the bumper bar to check it

has locked into place.

WARNING: Do not add a

mattress other than the one

provided.

Detaching the carrycot from

your chassis

4.2 With the Surf Carrycot facing you

press the red release button rst

located on the side of the carrycot

until it clicks into place.

WARNING: This button is

now unlocked. It will re-lock

automatically when the

carrycot is re-attached to the

chassis.

Then while pressing and holding the other

black release button on the opposite side

of the carrycot, lift the carrycot from the

chassis using the bumper bar.

WARNING: Always ensure your

bumper bar is attached when

your child is in the carrycot.

The carrycot will now lift clear of the chassis.

4.1

4.2

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 7 11/07/2017 16:59

UK - PL

Using your bumper bar on the

carrycot

Your Surf Carrycot uses the same Surf

bumper bar as your seat unit. It can be

fully or partly removed.

5.1 To attach, simply press both ends of

the bumper bar into the connector

points on the seat unit. Wait for it to

‘click’ in place.

5.2 To detach, press the bumper bar

release button on the carrycot frame

with one hand and pull the bumper

bar away from the connector point

with the other hand. The bumper bar

will rotate.

To detach both sides repeat point (5.2)

above. With one side of the bumper

bar removed the carrycot is easily

accessible.

WARNING: The bumper bar

must be securely connected

at all times when in use. The

safety of your child is your

responsibility.

Using your hood on the carrycot

6.1 Zip the back of the Surf hood to the

top of the Surf Carrycot frame taking

care to engage the zip properly.

6.2 Your Surf hood ts to the carrycot

frame by pressing the hood clips

down onto the frame below the round

black plastic locator.

6.3 Your Surf hood can be used in 4

positions. Fully open, semi-open,

semi-open with viewing window, and

fully covered.

5.2

5.1

6.1 6.2

6.3

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 8 11/07/2017 16:59

silvercrossbaby.com

UK - PL

7.1

7. 2

8.1

Using your apron on the

carrycot

7.1 First detached the Surf apron lower

section using the zip on the front of

the apron and place over the top of

the carrycot.

NOTE: Please ensure you keep

the apron lower section in a safe

place, as you will need it when

using the Surf as a pushchair.

7. 2 Secure in place by sliding the apron

clips over the attachment points

inside the carrycot frame and fold

the apron ap over the bumper bar

using the hidden magnets to secure

in place.

Using your carrycot liner &

mattress

8.1 Your Surf Carrycot mattress is

removable. Simply lift it out of the

liner. The mattress cover can be hand

washed. Remove the foam mattress

insert prior to washing by opening

the ap on the back of the mattress

cover and removing the foam

mattress.

The Surf Carrycot has a removable

liner. Simply unzip each end and

release the Velcro fastenings to

remove it.

To t the liner and mattress see

preparation for use points (3.1-3.4).

The liner can be hand washed. (The

boards should be removed using the

zip on the back prior to washing)

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 9 11/07/2017 16:59

UK - PL

Using your raincover on the

carrycot

9.1 Your Surf raincover should be used

when the Surf hood is attached to the

carrycot. First slide over the hood and

down towards the foot of the carrycot

and over the apron.

NOTE:This raincover can be used on

both the Carrycot and the Seat Unit.

A zip gives easy access to your child.

Using your Surf as a pushchair

10.1 Your Surf seat unit can be tted

to the chassis in rearward facing

position (infant facing you) or

forward facing position (infant facing

away from you). Follow point (4.1) to

attach the seat unit to the chassis

Adjust the seat unit to the desired

position. See point (20.1). Secure

the apron see point (17.1). Your Surf

Pushchair is ready to use.

10.1

9.1

SX SURF PUSHCHAIR and CARRYCOT 2017 - UK POLISH.indd 10 11/07/2017 16:59

Otros manuales para SURF

Tabla de contenidos

Idiomas:

Otros manuales de Paseante de Silver Cross

Silver Cross

Silver Cross 2003 Kensington Manual de usuario

Silver Cross

Silver Cross Avia Manual de usuario

Silver Cross

Silver Cross Tide Manual de usuario

Silver Cross

Silver Cross Wave Manual de usuario

Silver Cross

Silver Cross Pioneer Manual de usuario

Silver Cross

Silver Cross Avia Manual de usuario

Silver Cross

Silver Cross Freeway Manual de usuario

Silver Cross

Silver Cross Sleepover Elegance Manual de usuario

Silver Cross

Silver Cross Coast Manual de usuario

Silver Cross

Silver Cross 3D Pram System Manual de usuario

Silver Cross

Silver Cross Coast Manual de usuario

Silver Cross

Silver Cross Dune Manual de usuario

Silver Cross

Silver Cross Balmoral Manual de usuario

Silver Cross

Silver Cross Freeway Manual de usuario

Silver Cross

Silver Cross Coast Manual de usuario

Silver Cross

Silver Cross Tide Manual de usuario

Silver Cross

Silver Cross SURF Manual de usuario

Silver Cross

Silver Cross Wing 2 Manual de usuario

Silver Cross

Silver Cross Spirit Manual de usuario

Silver Cross

Silver Cross Coast Manual de usuario

Silver Cross

Silver Cross Fizz Manual de usuario

Silver Cross

Silver Cross Jet Manual de usuario

Silver Cross

Silver Cross POP Manual de usuario

Silver Cross

Silver Cross Dune Manual de usuario

Manuales populares de Paseante de otras marcas

Hauck

Hauck Priya Trioset Manual de usuario

CHILDHOME

CHILDHOME CWQDN Manual de usuario

Dreamer Design

Dreamer Design Rebound GST Manual de usuario

Britax

Britax STEELCRAFT AGILE Manual de usuario

Graco

Graco 7427 Manual de usuario

Comfort

Comfort COMPASS Manual de usuario

OBaby

OBaby Aura Manual de usuario

Tutek

Tutek Tirso Manual de usuario

Babify

Babify Dual Plus Manual de usuario

Graco

Graco Stroller Manual de usuario

Special Tomato

Special Tomato Jogger Manual de usuario

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manual de usuario

Otto Bock

Otto Bock Kimba neo Manual de usuario

Milly Mally

Milly Mally ROYAL Guía de inicio rápido

Hauck

Hauck DUETT 3 PRAM Manual de usuario

BOB

BOB DUALLIE Manual de usuario

Nuna

Nuna Pepp Manual de usuario

Britax

Britax B2 Manual de usuario
