Silver Cross Sleepover Elegance Manual de usuario

Sleepover Elegance

IMPORTANT: KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

1.4

1.5

1.6 1.7

These instructions are important.

Read these instructions before use and keep

them for future reference. Your child’s safety

may be affected if you do not follow these

instructions.

This pushchair is suitable from birth to 15 kgs.

If somebody unfamiliar is using your

Sleepover body, always ensure that they

read these instructions carefully so that they

understand how the product works best.

The Sleepover body is designed and tested

to be used with the following Silver Cross

chassis; Classic, Elegance, Linear Compact

and Linear.

Always read all the instructions provided

carefully and remember, the safety of your

child is your responsibility.

WARNING: It may be dangerous to

leave your child unattended.

Contents

First check all your parts have been

supplied. Your Sleepover body and includes:

1.1 Sleepover body unit

1.2 Carrycot liner

1.3 Footmuff

1.4 Mattress

1.5 Hood

1.6 Apron

1.7 Rain cover

1.8 Magnetic rosette accessory (this can

be used to accessorise your Sleepover

as you wish. We recommend attaching

to the edge of your hood for extra

detail).

1.3

1.1 1.2

silvercrossbaby.com

Using the harness

WARNING: Always use the crotch

strap in combination with the waist

belt.

2.1 To fasten the harness insert both buckle

clips into each side of the buckle. Listen

for the ‘click’.

WARNING: Always use the harness

provided.

2.2 To release the harness press the centre

and pull apart. The shoulder straps

can be unhooked from the buckle if

required.

2.3 Your harness is fully adjustable

by moving the slides (A), to make ﬁtting

easy. ‘D’ rings are provided for ﬁtting

a separate harness if required (B). Any

additional harness must comply with

BS 6684. Your child should always be

harnessed in and should never be left

unattended, even for short periods of

time.

2.1

2.2

2.3

Operating the bumper bar

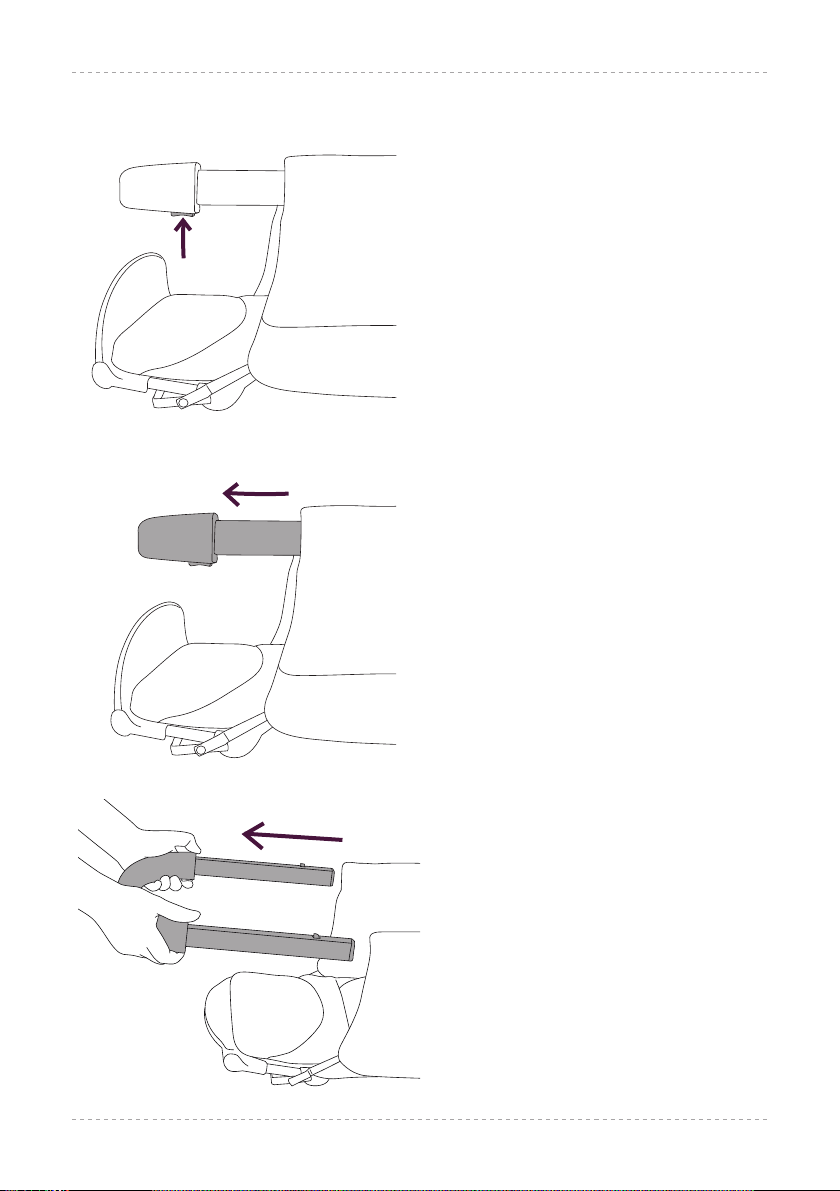

3.1 To adjust your bumper bar press the

release button on either side, located

underneath the bar.

3.2 Whilst pressing both buttons, pull the

bumper towards the foot end of the

body until you hear a click. Check that

both side catches have locked.

3.3 By pressing both buttons once more,

the bumper bar can be fully removed for

greater access or cleaning.

3.1

3.2

3.3

silvercrossbaby.com

Operating the footrest

4.1 To lower the footrest reach underneath

the footrest and locate the release bar.

Push this downwards and the footrest

will lower.

4.2 Gently lower the footrest into the lower

position.

4.3 The footplate is also adjustable, so as

your child grows the footplate can be

stowed up under the fabric.

4.1

4.2

4.3

Operating the backrest recline

5.1 The body unit’s backrest is fully

adjustable from upright to a lie ﬂat

position.

5.2 To adjust the seat, place the palm of

your hand on the hand rest and grip the

release catch. Squeeze to release the

catch and either lift or lower.

5.3 Remember when using the Sleepover in

the overnight cot mode always ensure

the backrest is lowered into the lowest

position.

5.1

5.2

5.3

silvercrossbaby.com

Operating the hood

6.1 The Sleepover hood is multi positional.

Simply hold the front hood bar and

gently lift or lower. When the hood is

in the upright position push the hood

tensioner down to secure.

6.2 To release the hood, locate the red

‘PRESS’ sign on the seat fabric

(approximately below the hood ratchet

mechanism) and press to release the

clip and lift the hood upwards. Failure

to press the release button may result in

damage to your product. Finally undo

the press studs on the skirt of the hood.

PRESS

6.1

6.2

Attaching the body to the chassis

7.1 There are two slits on either side of the

Sleepover body. Underneath you will

discover the release handle. Always lift

your Sleepover body from this point and

not from any other point.

Position the body so that the four

locking catches on the base are directly

over the top of the support bars on

your chassis (or bedside stand, sold

separately). Push the body downwards

so that all four locks click and locate.

Give the body a gentle lift to check all

points are securely fastened. The ‘safe

and secure’ locking system operates in

an identical way on both the bedside

stand or chassis.

Detaching the body from

the chassis

8.1 Gently grip the inner release catch and

slide the release hand towards the foot

end of the body. Squeeze to release the

body catches clear of the bars. The body

will now lift away from the chassis freely.

7.1

8.1

silvercrossbaby.com

Preparation for use as a pram

9.1 To prepare your Sleepover body for use

as a pram ensure the footrest is folded

under. Extend the bumper bar to its

fullest extension and lift the backrest

upwards to make it easier to pull the

liner onto the body.

9.2 Pull the head of the pram liner over the

backrest and then gently pull over the

bumper bar. Ensure the backrest is then

lowered into the lie ﬂat position. Check

the liner is the correct way around and

that it ﬁts snugly over all the edges of

the Sleepover body unit. Finally check

that the hood attachment points are

open and clear.

9.3 Clip together the webbing straps on the

underside of the Sleepover body and

then fasten the Velcro ﬂaps to secure the

liner.

WARNING: Only the mattress

supplied with your Sleepover

is to be used. Do not use any

other mattress with this product.

Replacement or spare mattresses

can only be purchased through Silver

Cross approved stockists.

9.1

9.2

9.3

Preparation for use as a pram

(continued)

9.4 Now place the supplied mattress inside

the Sleepover body, ensuring that the

ventilated section is placed towards the

head end.

9.5 Open out your hood, this then ﬁts by

pushing the clips into the body hood

attachment.

9.6 To fully attach your hood there are two

press studs on the rear of the hood ﬂap

and one on each side.

9.7 Slide the Sleepover apron onto the body

unit.

9.4

9.5

9.6

9.7
