Siemens OMM-2 Manual de usuario

Installation Instructions

Model OMM-2

Output Master Module

P/N 315-092699-5

INTRODUCTION

The SIEMENS Model OMM-2 Output Master module is the motherboard for all of

the MXLV plug-in boards: the OCC-1, A C-1/-2, DMC-1, PLC-4, RCM-1, ZAC-30,

and the ZC zone cards. The module has the same dimensions as the MOM-2

MXL motherboard. The OMM-2 mounts vertically in the MME-3L and MLE-6

backbox or horizontally in the MLE-3 backbox and

contains two half-width card

slots

. (Refer to Figure 1.)

Voice system field wiring terminates on the OMM terminal blocks. ( ee Figure 5.)

Power and network communications are provided by the MMB or the P R-1,

depending on the application. The network control signals are distributed to the

plug-in cards through the OMM-2. All connecting cables are supplied with the unit.

The MME-3 enclosure has three locations for the OMM-2 (or for OMM-1s, MOM-4s

or MOM-2s). However, when a T P-40 printer is installed in a system, it decreases

the number of OMMs (or MOMs) to two modules for that enclosure. The MLE-6

enclosure has six locations for optional card cages, such as OMM-1s, OMM-2s,

MOM-4s, or MOM-2s. The MLE-3L enclosure has one location for the OMM-2.

INSTALLATION

(Refer to Figures 2, 3, and 4)

Remove all system power before installation, first the battery and then AC.

(To power up, connect the AC first, then the battery.)

Unpack the OMM-2 and its attached backplate. Inspect it, looking for such things

as connectors not properly installed, missing polarizing keys, dirt, and packing

material on the board.

Check to see if the card guides for the plug-in boards are already installed. If they

are not, install all four of the card guides according to the following directions

before mounting the OMM-2 into the enclosure. Figure 1

OMM-2 Module

Fire Safety

Siemens Building Technologies, Inc.

8 ernwood Road

lorham Park, New Jersey 07932

Siemens Building Technologies, Ltd.

2 Kenview Boulevard

Brampton, Ontario L6T 5E4 CN

All manuals and user guides at all-guides.com

all-guides.com

To install the card guides:

(Refer to Figure 2)

1. Place the card shoulder on the raised boss at the

end of the card edge connector.

2. Align the hole in the shoulder with the hole in the

boss.

3. Place the mounting screw in the hole in the

shoulder and tighten the screw.

4. Repeat teps 1 and 2 for the remaining card

guides.

To mount the OMM-2 card cage:

The OMM-2 mounts vertically on the MBR-MP

mounting plate in the MME-3 and MLE-6 enclosure

under the MMB or the P R as shown in Figure 3.

The OMM-2 mounts vertically in the M E-3L

enclosure as shown in Figure 4.

The installation kit for the OMM-2 includes the

following:

Three No. 10 nuts

Three washers

One 8-conductor ribbon cable

(P/N 555-190967)

One 14-conductor ribbon cable

(P/N 555-192155)

To mount the OMM-2 in an MM -3 or ML -6 backbox:

1. Hold the OMM-2 so that the terminal blocks TB4

and 5 are on the left. ( ee Figure 1.)

2. Place the module on the mounting studs of the

MBR-MP mounting plate in the left-hand

position.

3. Fasten the OMM-2 in position with the hardware

provided as shown in Figure 3.

Figure 2

Installing the Card Guides

Figure 3

Mounting the OMM-2 Board

on the MBR-MP Mounting Plate

4. To mount any other OMM-2 modules used in the

system, repeat the above steps. Use the center

position first and then the right-hand position for

the additional modules, as needed.

5. When mounting OMM-2 modules in an MLE-6

enclosure, it may be necessary to reverse the

mounting in the lower row by placing the two

position terminal block TB1 at the bottom instead

of the top (Refer to Figure 6). This will insure that

the 14-conductor cables that are supplied can be

assembled.

To mount the OMM-2 in an MS -3L backbox:

1. Hold the OMM-2 so that the terminal blocks TB4

and 5 are on the left. ( ee Figure 1.)

2. Place the module on the mounting studs in the

upper left-hand corner of the enclosure as shown

in Figure 4.

3. Fasten the OMM-2 in position with the three No.

10 nuts provided, placing two on the top of the

module and one on the right bottom. ee the

positions marked A shown in Figure 4.

To assign the plug-in cards to the OMM-2:

The cards that can be assigned to plug into the

OMM-2 are the OCC-1, the A C-1/-2, the DMC-1,

the PLC-4, the RCM-1, the ZAC-30, and the ZC zone

cards. Determine which optional plug-in cards are

used in your C G-M configuration. Assign the plug-in

cards to the card edge connectors on the OMM-2(s)

as needed.

All manuals and user guides at all-guides.com

CAUTION

Handle all plug-in cards with extreme care. When

inserting or removing a card, keep the position of

the card at right angles to the OMM-2 board.

Otherwise, the plug-in card can damage or dis-

place other components. Never insert or remove a

plug-in card with power applied to the panel.

WIRING

(Refer to Figures 5 and 6)

All wiring must comply with

national and local codes.

1. A 2-conductor wire cable (P/N 600-192239) is

supplied with the ACM-1 module to use on the

OMM-2 TB1. Use this cable to connect 24 VDC

from P3 on the MMB to TB1 on the OMM-2

module. When using a P R-1, connect two

individual 14 AWG wires between the OMM-2 TB1

and P R-1 TB3-1 and TB3-2.

 The terminals on OMM-2 TB1 are marked

+24V and R T.

 On MMB P3, 1 is positive and 2 is negative.

 On P R-1 TB3, 1 is positive and 2 is negative.

2. Assign plug-in cards to the card edge connectors

as determined above. Once the terminal block

related to each edge connector is wired, place

only the assigned plug-in card in that edge

connector.

3. Refer to the Installation Instructions listed in Table

1 for directions on wiring to the 22 position

OMM-2 terminal blocks and for attaching these

modules to the OMM-2 terminal blocks.

If the system includes more than one OMM-2,

use

the 14-conductor ribbon cable (P/N 555-192155)

to connect P1 of the first OMM-2 to P2 of the

second OMM-2. If there is a third OMM-2,

connect P1 of the second OMM-2 to P2 of the third

OMM-2. No more than three OMM-2s can be

connected together when they are in an MME-3

enclosusre.

It may be necessary to reverse the module

mounting in the lower row of the MLE-6 enclosure

to insure that the 14-conductor cables that are

supplied can be assembled ( ee Figure 6).

5. Note that there are two 8-conductor cables. The

long 8-conductor cable (P/N 555-192243), comes

with the ACM-1. Use this cable for communications

and power from P4 of OMM-2 to either P6 of the

P R or to P6 of the MMB, whichever is present.

This cable is polarized. Observe polarity and DO

NOT U E EXCE IVE FORCE. The black tracer

on the cable indicates the position of pin 1.

6. If there is more than one OMM-2, use the short

8-conductor cable (P/N 555-190967) to connect P3

of the left-hand OMM-2 to P4 of the OMM-2 that is

to its right.

This cable is polarized. Observe polarity and DO

NOT U E EXCE IVE FORCE. The black tracer

on the cable indicates the location of pin 1. If there

is a third OMM, repeat this step.

For additional information on the MXL

System, refer to the MXL Manual, P/N

315-092036.

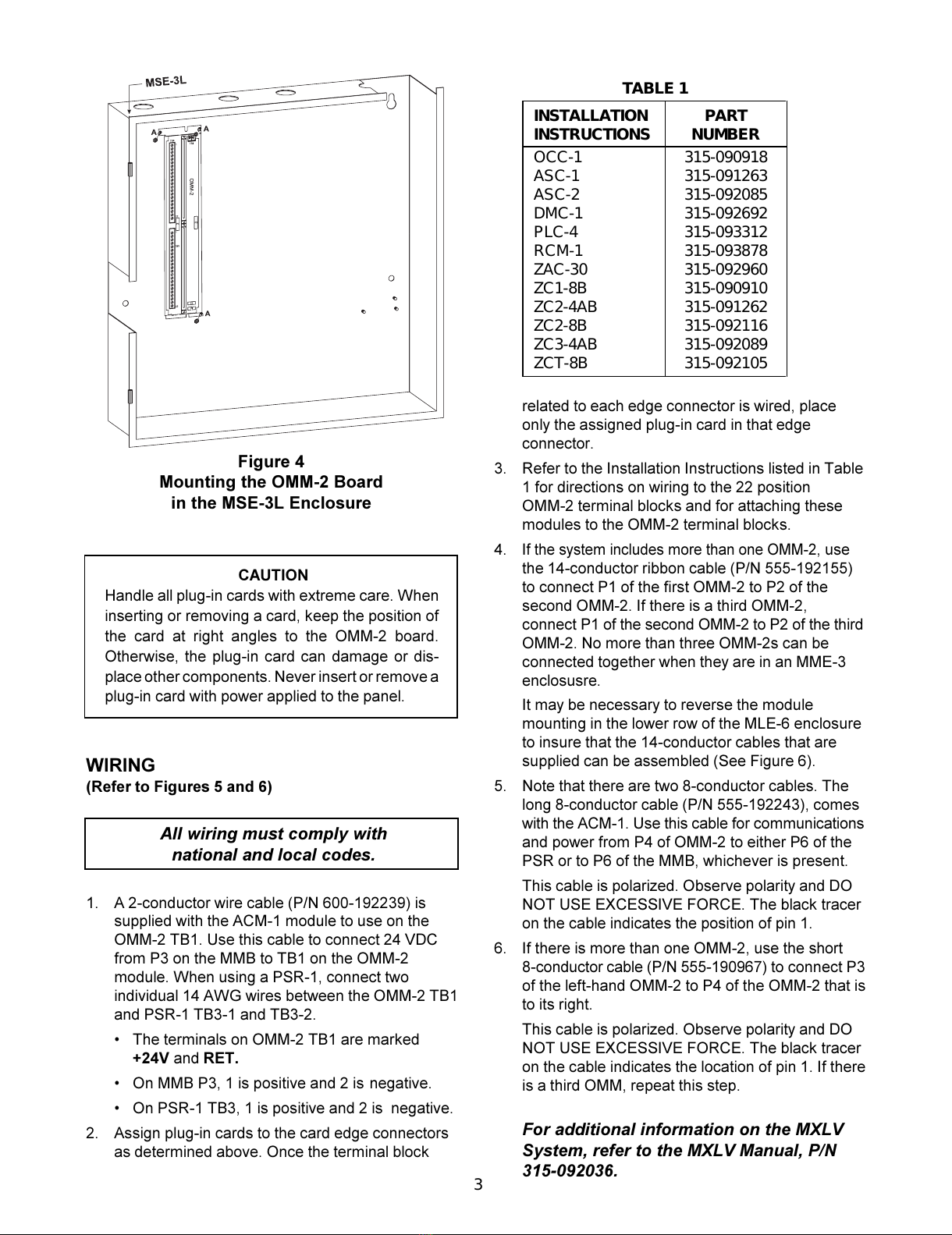

Figure 4

Mounting the OMM-2 Board

in the MSE-3L En losure

TABLE 1

INSTALLATION

INSTRUCTIONS PART

NUMBER

OCC-1

ASC-1

ASC-2

DMC-1

PLC-4

RCM-1

ZAC-30

ZC1-8B

ZC2-4AB

ZC2-8B

ZC3-4AB

ZCT-8B

315-090918

315-091263

315-092085

315-092692

315-093312

315-093878

315-092960

315-090910

315-091262

315-092116

315-092089

315-092105

All manuals and user guides at all-guides.com

P/N 315-092699-5

Figure 5

Wiring the OMM-2

Figure 6

Wiring MOM-4s and OMM-2s in an MLE-6 En lsoure

All manuals and user guides at all-guides.com
