Securitytronix ST-PTZMINI-IR10XTA Manual de usuario

INSTALLATION MANUAL

ST-PTZMINI-IR10XTA

High Speed Intelligent IR Dome PTZ Color Camera

This is a 12 volt DC camera.

WARNINGS AND CAUTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT

INSERT ANY METALLIC OBJECTS THROUGH VENTILATION

GRILLS OR OPENINGS ON THE EQUIPMENT.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lighting flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user the presence of

non-insulated “dangerous voltage” within the product’s

enclosure that maybe of sufficient magnitude to constitute a

risk of electric shock to different persons.

The exclamation point within an equilateral triangle, is

intended to alert the user the presence of important operating

and maintenance (servicing) instructions in the literature

accompanying this product.

PRECAUTIONS:

Persons without technical qualifications should not attempt to operate this

dome device before reading this manual thoroughly.

Remove any power to the dome before attempting any operations or

adjustments inside the dome cover to avoid potential damage to the

mechanism.

Inside the dome cover there are precision optical and electrical devices.

Heavy pressure, shock and other sudden adjustments or operations should be

avoided. Otherwise, you may cause irreparable damage to the product.

Please DO NOT remove or disassemble any internal parts of the video

camera to

Avoid normal operation and possibly void the warranty. There are no

serviceable parts inside the camera.

All electrical connections to the dome should be made in strict accordance

with the attached labels and wiring instructions in this manual and in

accordance with all local and national electrical codes. Failure to do so may

damage the dome beyond repair and void the warranty.

For outdoor installation especially in high places or poles, it is highly

recommended that the proper lightning arrestors and surge suppressors are

installed before the dome is entered into service.

Do not use the product under circumstances where the environment exceeds

the maximum specified temperature, humidity or power supply

specifications.

IMPORTANT SAFEGUARDS

1. Read these instructions before attempting installation or operation of this dome.

2. Keep these instructions for future reference.

3. Heed all warnings and adhere to electrical specifications. Follow all instructions.

4. Clean only with non-abrasive dry cotton cloth, lint free and approved acrylic

cleaners.

5. Should the clear dome of the camera become dirty, use a special lens cleaning

cloth and solution to properly clean it.

6. Do not block any ventilation openings. Install in accordance with manufacturer’s

instructions.

7. Use only attachments or accessories specified by the manufacturer.

8. Verify that the surface you are planning to use for attaching the dome can

adequately support the weight of the device and mounting hardware.

9. Protect this device against lighting storms with proper power supplies, surge

arrestors and other protective precautions.

10. Refer all servicing to SecurityTronix service personnel. Servicing is required

when the device has been damaged in any way, when liquid traces are present, or the

presence of loose objects is evident or if the device does not function properly, or

has received sever impact or has been dropped accidentally.

11. Do not use this product under circumstances exceeding specified temperature

and humidity ratings.

12. Avoid pointing the camera directly to the sun or other extremely bright objects

for prolonged period of time avoiding the risk of permanent damages to the imaging

sensor.

13. The attached instructions are for use by qualified personnel only. To reduce the

risks of electric shock, do not perform any servicing other than contained in the

operating instructions unless you are qualified to do so.

14. During usage, the user should abide by all electrical safety standards and adhere

to electrical specifications for the operation of the dome. The control cable for

RS485 communications as well as the video signal cables should be isolated from

high voltage equipment and high voltage cables.

1 Carton Contents

IR Speed dome 1pc

Wall mount bracket 1pc

Screws kit 1pc

User manual 1pc

Product Summary

1.1 Technical Parameters

Model number

4 INCH MINI HIGH SPEED IR DOME CAMERA

Optical focus

10X

Image sensor

1/4"CCD

Signal mode

PAL / NTSC

Resolution

650TVL

Optical focus

Manual/Auto, Digital continuous focusing function.

Presets

256

Pattern scan

4 Scan Patterns, each can record 100 actions

Tour scan

Up to 30 presets. Speed and dwell time can be set.

Rotation range

Horizontal 360°, Vertical 180°, auto reverse

Rotation speed

Horizontal & Vertical Min 0.01° Max 300°/s.

Communications

PELCO-D and PELCO-P

OSD

Full screen menu

Temperature

control system

Optional

Power supply

DC12V

Material

Aluminum & plastic, for indoor use only

Environmental

-4F ~ +122°F <95%RH

Equipment installation

Setting the Address, Baud Rate and Protocol

This camera uses the On-Screen Menu to change communication settings.

This is called “Soft Addressing”. The camera comes from the factory with

the default settings of:

Address: 1

Baud Rate: 2400

Protocol: Pelco D

To Change the settings, use a PTZ controller set the above settings to

access the camera’s menu by calling Preset 95, then use the menu as

indicated in TABLE 3-3 on page 7 of this manual.

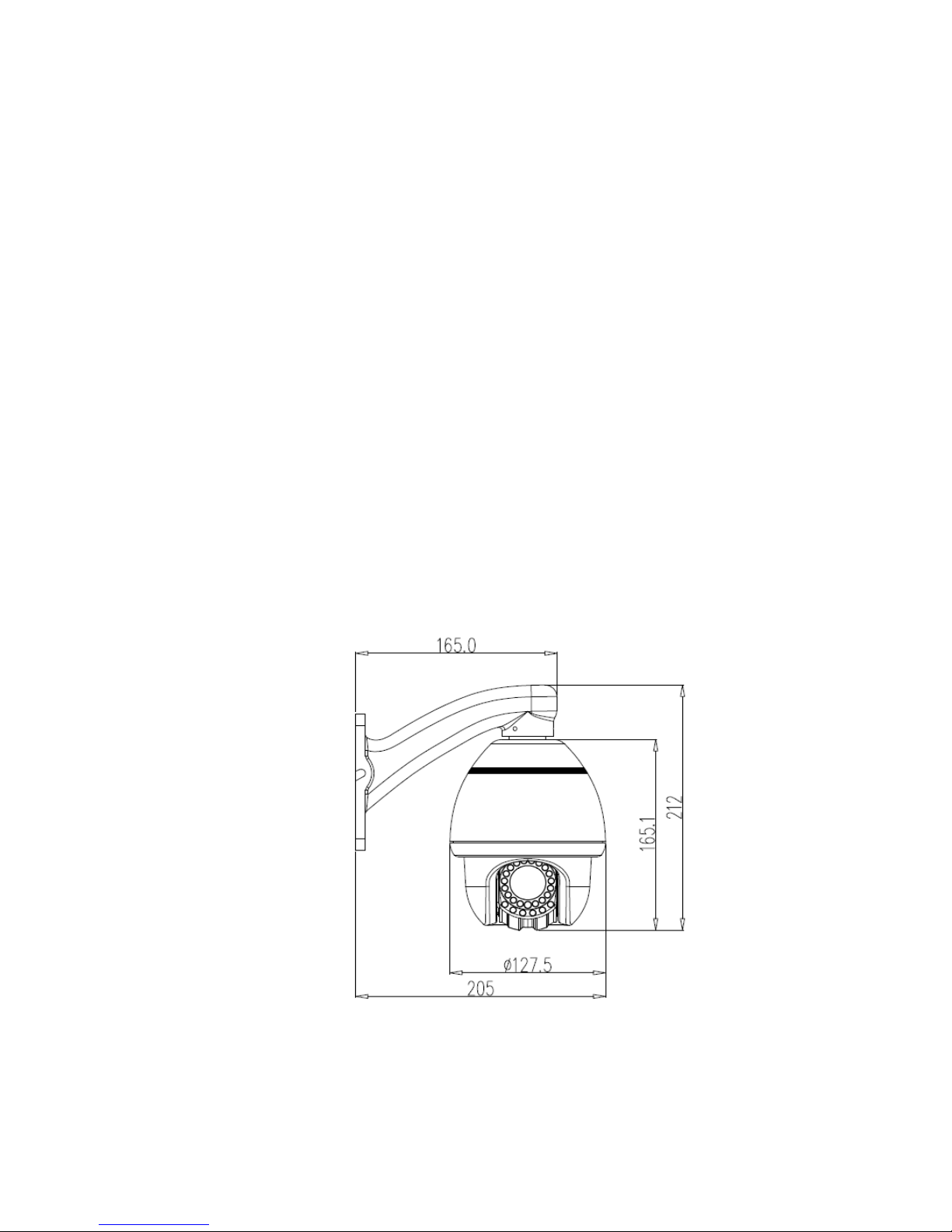

Dome camera dimensions

Bracket dimensions

System OSD menu settings

Power-On / Self-Test

When power is connected, the camera will perform a self-test function by

panning and tilting the camera as well as testing zoom. After the self-test, the

camera will display the Protocol (PTOL), Baud Rate (COMM) and Address

(ADDR) as shown in the diagram below.

PTOL： PELCO-D

COMM： 2400，N，8，1

ADDR： 1

Storing (saving) preset points:

Using a PTZ controller, aim the camera at the desired subject and adjust

zoom if desired. To store the preset in the camera, consult the manual for the

specific PTZ controller you are using for how to store a preset. Sometimes

storing a preset is referred to as “writing”, “saving”, “setting” or some other

similar term. For instance, on a SecurityTronix ST-PTZMINI-KB controller,

the button sequence to STORE preset 1 on a camera is:

Press “SET”, press “1”, press “PRE”.

Calling preset points:

Normally, “calling” a preset will cause the camera to move to the position it

was at when that preset number was stored. There are a few exceptions,

such as the preset numbers which are reserved for special functions, as

listed in the table below. To “CALL” a preset in the camera, consult the

manual for the specific PTZ controller you are using for how to call a preset.

For instance, on a SecurityTronix ST-PTZMINI-KB controller, the button

sequence to CALL preset 1 on a camera is:

Press “1”, press “PRE”.

Preset point function table:

Call Preset 95

Enter the On-Screen menu.

Call Preset 82

Auto Cruise

Call Preset 83

Clear all presets

Call Preset 84

Start Pattern scan 1

Call Preset 85

Start Pattern scan 2

Call Preset 86

Start Pattern scan 3

Call Preset 87

Start Pattern scan 4

Call Preset 96

360-degree scan with 90° stops

Call Preset 97

Scan between two presets

Call Preset 98

Presets cruise

Call Preset 99

360 degree continuous scan

To access the camera’s On-Screen Display (OSD) menu, “call” preset 95

using your PTZ controller and the Main Menu screen will appear:

MAIN MENU

Menu function descriptions

SYSTEM INFORMATION

Displays basic camera information.

ADDR SETTING

Used to set the camera address.

MOTION

“PTZ” setup menu.

PATTERNS

Manual scan settings

CAMERA

Lens settings

CRUISE SETTING

Preset point cruise settings

IR SETTING

Infrared light settings

DISPLAY SETUP

Screen display settings

RESTORE FACTORY DEFAULT

Restore the factory default setting.

REBOOT SYSTEM

System restart.

EXIT

Exit the OSD menu setting.

SYSTEM INFORMATION

Menu function descriptions

COM 2400,N,8,1

Displays the camera’s current Baud Rate

ADDRESS 1

Displays the camera’s current Address

PROTOCOL PELCO-D

Displays the camera’s current Protocol

PRESETS 256

Displays the currently selected preset

SOFTWARE VERSION V5.2

Displays the current software version.

BACK

Return to main menu.

EXIT

Exit the menu

Note: The system information such as Address, Baud Rate, etc shown

on this menu cannot be changed on this menu page
