Securitytronix ST-PTZ650FM-23X Manual de usuario

ST-PTZ650FM-23X

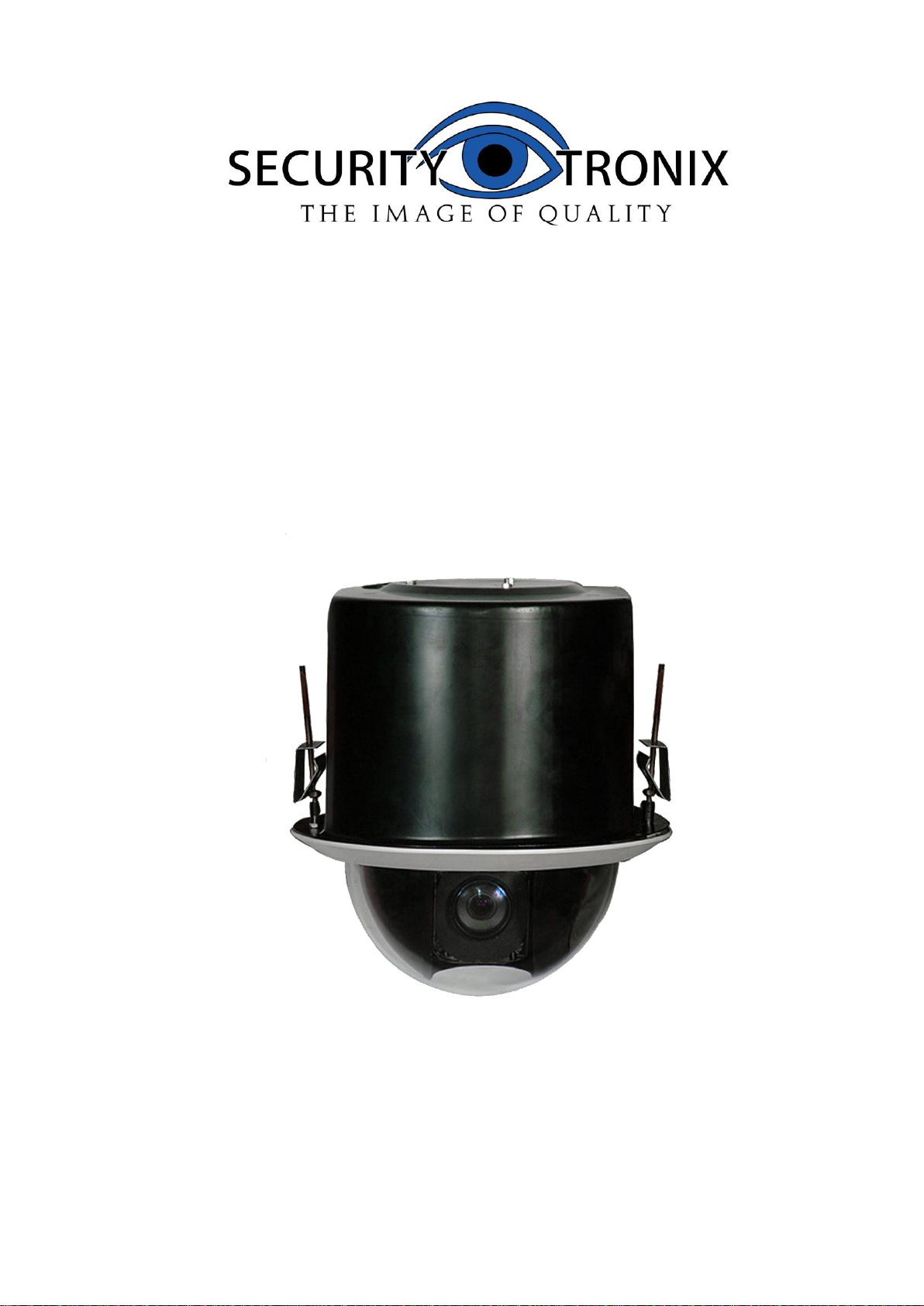

INDOOR FLUSH MOUNT PTZ CAMERA

Installation Manual

WARNINGS AND CAUTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS

THROUGH VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT.

PRECAUTIONS:

1. Persons without technical qualifications should not attempt to operate this dome device before

reading this manual thoroughly.

2. Remove any power to the dome before attempting any operations or adjustments inside the

dome cover to avoid potential damage to the mechanism.

3. Inside the dome cover there are precision optical and electrical devices. Heavy pressure,

shock and other sudden adjustments or operations should be avoided. Otherwise, you may

cause irreparable damage to the product.

4. Please DO NOT remove or disassemble any internal parts of the video camera to avoid

normal operation and possibly void the warranty. There are no serviceable parts inside the

camera.

5. All electrical connections to the dome should be made in strict accordance with the attached

labels and wiring instructions in this manual. Failure to do so may damage the dome beyond

repair and void the warranty.

6. For outdoor installation especially in high places or poles, it is highly recommended that the

proper lightning arrestors and surge suppressors are installed before the dome is entered into

service.

7. Please do not use the product under circumstances where the limits exceed the maximum

specified temperature, humidity or power supply specifications.

IMPORTANT SAFEGUARDS

1. Read these instructions before attempting installation or operation of this camera

2. Keep these instructions for future reference

3. Heed all warnings and adhere to electrical specifications Follow all instructions

4. Clean only with non abrasive dry cotton cloth, lint free and approved acrylic cleaners

5. Should the lens of the camera become dirty, use special lens cleaning cloth and solution to

properly clean it.

6. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions

7. Use only attachments or accessories specified by the manufacturer

8. Verify that the surface you are planning to use for attaching the dome can adequately support

the weight of the device and mounting hardware

9. Protect this device against lighting storms with proper grounding, power supplies, surge

suppressors and wiring.

10. Refer all servicing to qualified service personnel. Servicing is required when the device has

been damaged in any way, when liquid traces are present, or the presence of loose objects is

evident or if the device does not function properly, or has received sever impact or has been

dropped accidentally.

11. Indoor dome is for indoor use only and not suitable for outdoor or high humidity locations.

Do not use this product under circumstances exceeding specified temperature and humidity

ratings.

12. Avoid pointing the camera directly to the sun or other extremely bright objects for prolonged

period of time avoiding the risk of permanent damages to the imaging sensor.

13. The attached instructions are for use by qualified personnel only. To reduce the risks of

electric shock do not perform any servicing other than contained in the operating instructions

unless you are qualified to do so.

14. During usage, user should abide by all electrical safety standards and adhere to electrical

specifications for the operation of the dome. The control cable for RS485 communications as

well as the video signal cables should be isolated from high voltage equipment and or high

voltage cables.

15. Use supplied power supply transformer only.

1 Product Introduction

Package Contents

High Speed dome 1pc

Power supply 1pc

User manual 1pc

Specification

Horizontal Rotation Speed

200°/s

Tilt Rotation Speed

100°/s

Horizontal Rotation Range

360°

Tilt Rotation Range

93°

Auto Flip

Horizontal 180°, Vertical 180°

Ratio Speed

Supported

PWR on Action

Memory/NOP/A-B scan/360/Home/Tour 1-3

360° Scan Flip Range

0°-93° selectable

A-B Scan

User programmable

A-B Scan Speed

1-64 speed selectable

A-B Scan Dwell

2-60s selectable

360° Scan Speed

1-64 speedss

Dwell Preset

1-60s interval selectable

Preset Points

Go to Preset Speed

1-64 speedss selectable

Guard Tours

3 groups (16 points / group)

Park Action Mode

A-B scan / 360 / Home / Tour 1-3 / Save action

Park Time

1-60mins selectable

Park Action

User programmable

Communication Protocol

Pelco-D, Pelco-P

Communication

RS485 Bus

Baud Rate

1200/2400/4800/9600bps

Dome ID

DIP ID on Dome: 001-255; Soft ID in Menu: 001-250

Privacy Mask

Not supported on this version

Alarm

Not supported on this version

OSD Menu

Multiple Language (P/N customization)

Operating Temperature

20°F~ 140°F

Operating Humidity

≤95% Non Condensing

Heater & Blower

Auto temperature control

Waterproof

None –For indoor use only

Power

AC24V ≤3A

Lightning Protection

Transient voltage 6000V

Power Consumption

≤ 20W

Compatible Camera

SONY, LG, CNB, SAMSUNG, etc. (Optional)

Installation

DIP Switch Settings

Preparation

Before installation, make sure that the protocol, baud rate and address code used by the

product is fully consistent with the PTZ control device. The corresponding DIP switch diagram

can be seen below:

Address Settings

DIP switch SW1 is for the address settings of camera. OFF status means 0 while ON status

means 1.

(See illustration above) Turn on the 1st and 3rd (allocated to ON position) and get the binary

code 00000101, so the correspondence address is 5.

Detailed settings please refer to the back “Address Code Mapping Table”(appendix Ⅳ).

Baud Rate Settings

The 4thand 5th DIP Switches of the “FUN SW 2”set the Baud rate. Factory-default setting is

2400bps.

Baud rate: 1200bps、2400bps、4800bps、9600bps selectable. See next page for DIP switch

settings.

RS-485 Bus Matching Resistance

The 8th bit of DIP switch SW2 is to select the matching resistor. To the control center, in order to

prevent the reflection and interference of RS-485 communication signal and other signals, the

parallel matching resistor is needed in the communication interface of the dome camera at the

end away from the control center.

]

Connection

Connection of RS485

Before connecting, please turn off the power and carefully read the instructions of all connected

devices.

Function Instruction

Power Up Action

Power Up Self Testing Pan, Tilt, Camera Self-test Completion

Pan action: Pan & rotate, then stop at the zero coordinate.

Tilt action: Tilt, then stop at the zero coordinate

Lens action: Lens zooms out to the widest angle.

After completing the above actions, the power up self-testing finishes.

Basic Function

Dome Running

Control the joystick up, down, left and right on the PTZ keyboard.

Zoom

Press ZOOM- button to “zoom out”and obtain a wider field of view..

Press ZOOM+ button to “zoom in”and obtain a narrower field of view on distant subjects.

Focus

After FOCUS- button is pressed, objects closer to the camera will become clearer while objects

far away will become blurred.

After FOCUS+ button is pressed, objects farther away from the camera will become clearer

while objects close to the camera will become blurred.

Iris

Press IRIS- to shrink the iris and decrease the image brightness.

Press IRIS+ to enlarge the iris and increase the image brightness.

MFG

PROTOCOL ATUO

DOME ID

COMM

VERSION

DETECTING

MFG

PROTOCOL ATUO

DOME ID

COMM

VERSION

PAN: XXX TILT: XXX

Special Functions

The follow presets are predefined as special functions. “Call”these preset numbers to enable

those functions：

Screen Character Operation

Call preset 95 to enter the OSD, call preset 94 to exit the OSD.

Up or Down : Move the option of the OSD, change the value on the OSD.

Right ：Enter the option, select the item or confirm.

Left：Return to main menu or cancel

Note: 1. Items with“< >” means they have a sub menu.

PREST

FUNCTION

PRESET

FUNCTION

Pan scan180 º

Freeze on

Reset

Freeze off

Digital zoom on

A-B scan

Digital zoom off

OSD off

Auto day/night

OSD on

Switch to night

Guard tour 3

Switch to day

Guard tour 2

BLC on

Guard tour 1

BLC off

Pan scan

OSD Menu

Menu Index

fig 4.1.1 Get into the Menu Screen

System Information

Fig 4.2.1

MFG：Max 15 characters display on the screen.

PROTOCOL：Display the protocol of the dome

<DOME>

<RESET>

EXIT

MFG

PROTOCOL AUTO

DOME ID 001

COMM 2400.N.1

VERSION

EXIT
